Harnessing the power of the wind just got easier and more efficient. This review delves into the Archimedes Screw Wind Turbine, a revolutionary Horizontal Axis Wind Turbine (HAWT) that redefines home energy generation. Its innovative design, based on the Archimedes screw principle, allows for exceptional energy capture even in low-wind conditions, starting at just 1 m/s. Unlike traditional windmills, this lightweight and aesthetically pleasing turbine boasts minimal visual impact, making it a perfect fit for rooftops and various other locations.This groundbreaking technology offers a compelling combination of high efficiency, low noise operation (under 40 decibels), and remarkable durability thanks to its UV-resistant construction. With a rated power of 1.5 kW and a compact design, this turbine promises significant annual energy savings while requiring minimal maintenance. Discover how this cutting-edge solution can provide a sustainable and cost-effective energy source for your home, offering a compelling alternative to traditional wind turbine technology.
Pros And Cons
- Very low inertia
- Light structure
- Transparent design
- Rotates from 1 meter per second wind speed
- Starts generating current from 2.5 m/s
- 60 degrees of angular tolerance for wind collection
- Low noise (under 40 decibels)
- Easy installation (under 50kg)
- Can be mounted on roofs, poles, or masts
- High voltage output (400V after boosting)
- Power output uneven and dependent on wind conditions
- Potential for UV degradation of materials over time
- Requires a safety system to prevent damage in high winds
Read more: InnerVenue's Forever Battery: Revolutionizing Renewable Energy Storage
Innovative Design and Low Inertia

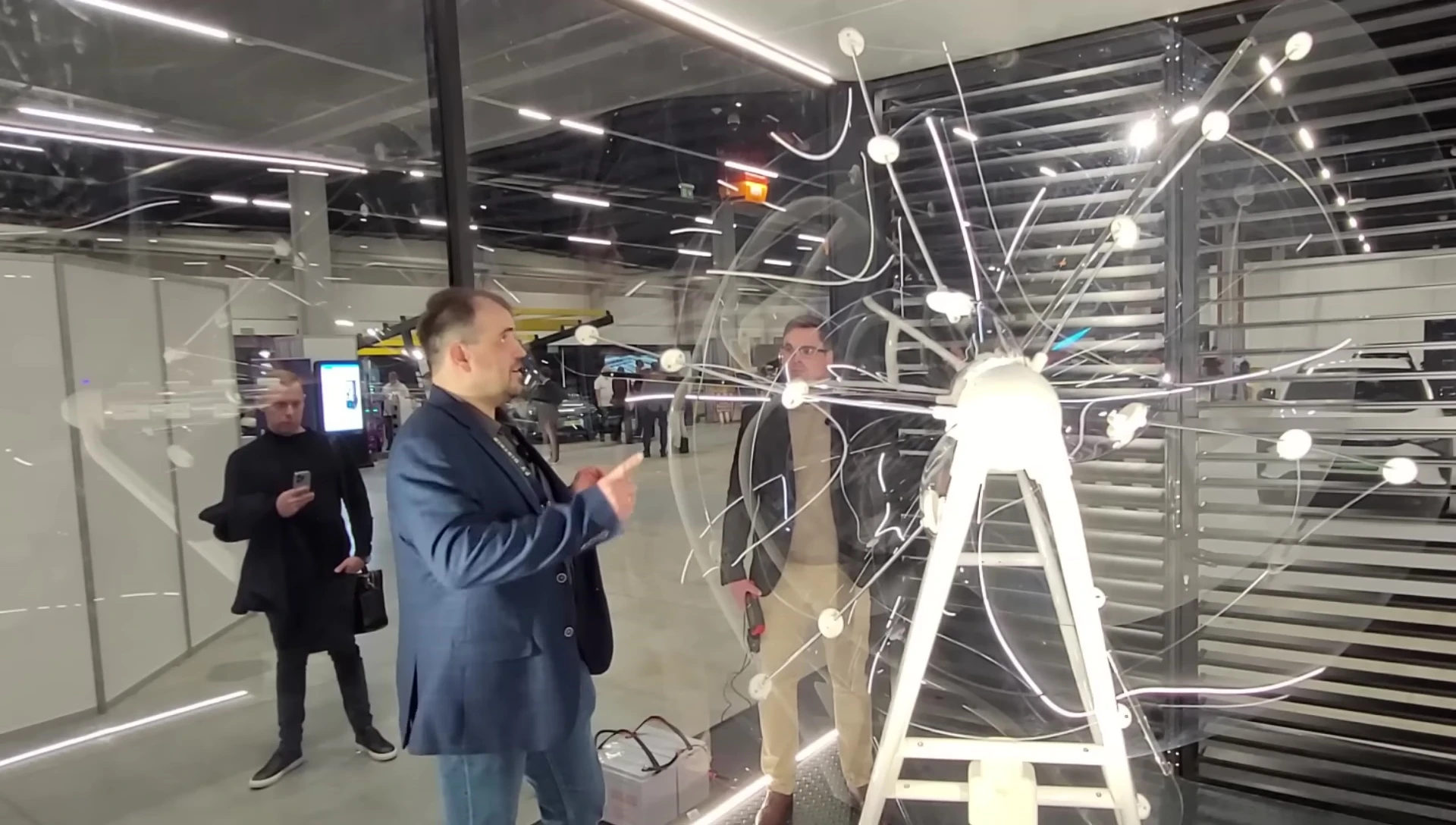

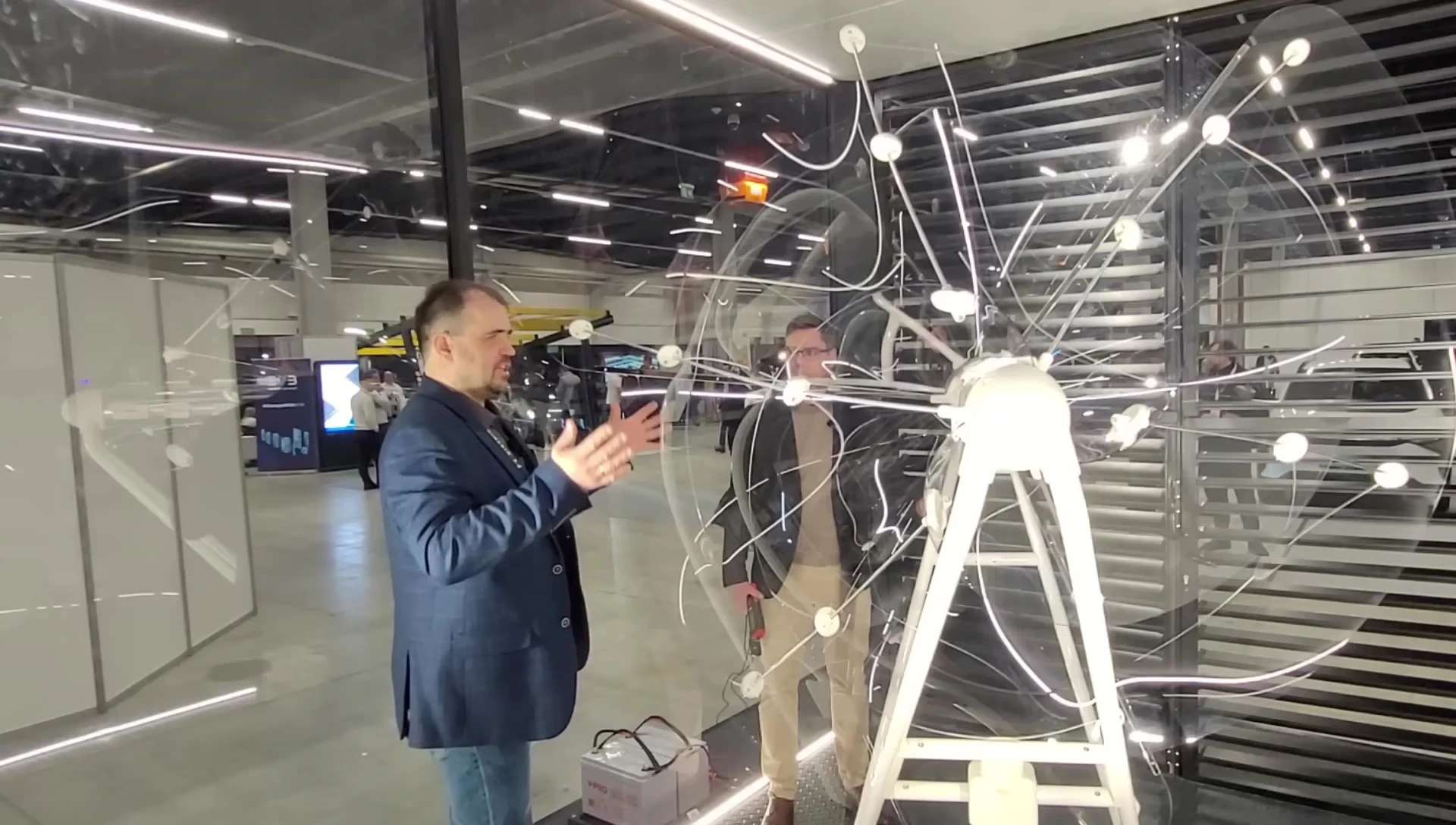

This revolutionary HAWT (Horizontal Axis Wind Turbine) boasts an innovative design based on the Archimedes screw principle. Its unique structure allows it to absorb maximum energy from the wind's surface. The turbine's lightweight and transparent design minimizes visual impact and allows for optimal wind flow.
A key feature is its incredibly low inertia, enabling it to start generating electricity at wind speeds as low as 1 meter per second. This contrasts sharply with traditional windmills and allows for consistent energy generation, even in light winds.
The turbine’s self-orienting mechanism ensures optimal positioning relative to the wind direction, maximizing efficiency and minimizing wear.
Power Output and Efficiency

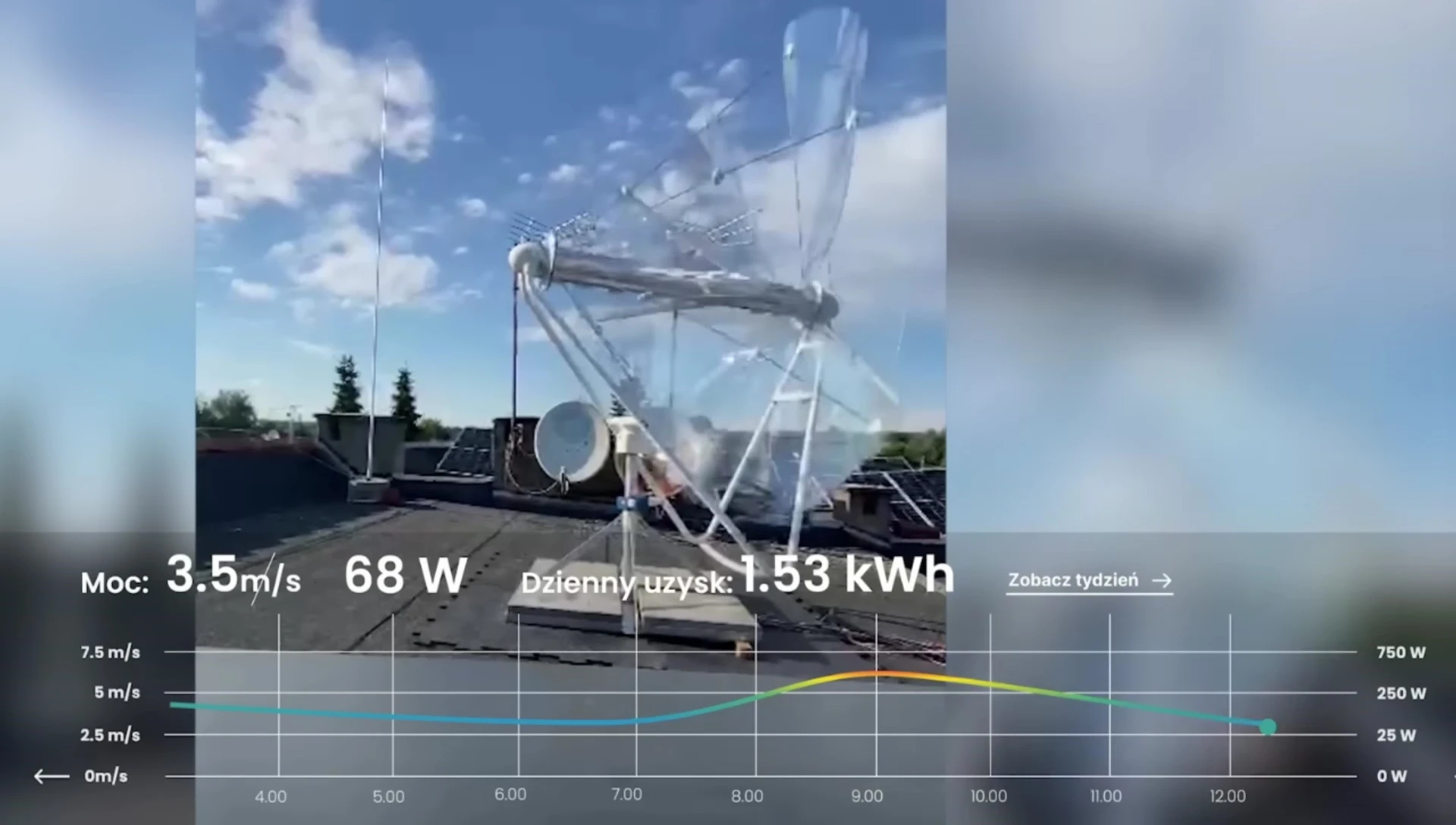

With a rated power of 1.5 kW, this small-scale turbine achieves remarkable efficiency. Even under average wind conditions (3.5 m/s), it generates approximately 1000 kWh annually in locations with wind conditions mirroring the average across Poland (70% of the country).
The turbine's performance scales exponentially with increasing wind speed, promising significantly higher yields in locations with stronger average winds. Its ability to generate power even from low wind speeds (starting at 2.5 m/s) ensures consistent energy production.
The turbine outputs low voltage (18-28V), which is boosted to 400V by an integrated booster, effectively making it a high-current turbine.
Mounting and Installation
Primarily designed for rooftop installation, this turbine offers versatile mounting options. It can be easily mounted on roofs, poles, or masts, offering flexibility to suit various locations and building types.
The turbine's lightweight design (under 50 kg) allows for straightforward two-person installation, even on rooftops. For taller installations (e.g., skyscrapers), ballasting or anchoring systems may be necessary.
Its compact size (2.5m sweep diameter) and height ensure compliance with most building regulations, negating the need for permits in many locations.
Durability, Maintenance, and Cost
Constructed from durable, UV-resistant PG material with reinforcing additives, the turbine is built to withstand harsh weather conditions, including strong winds (tested up to 140 km/h). Noise levels are kept below 40 decibels, ensuring minimal disruption.
While component replacement is possible, the high impact resistance of the PG material promises a long lifespan. A planned service campaign will address any potential long-term degradation issues.
The complete system, including turbine, scalable energy storage (0.5 kWh), converter, and mounting hardware, is priced at PLN 18,000 gross (approximately €4,000).
Conclusion
The Archimedes screw wind turbine presents a compelling alternative to conventional wind turbines. Its innovative design, high efficiency, and low-wind operation make it a practical solution for residential and potentially commercial applications.
Its durability, low noise, and ease of installation are significant advantages. While the price point is relatively high, the long-term energy savings and environmental benefits could justify the investment for many consumers.
The ongoing pilot program further demonstrates the commitment to continuous improvement and adaptation to diverse conditions, promising a future-proof and reliable energy solution.
