DIY Wind Turbine Setup: A 6-Month Solar Power User's Experiment (Part 1)

This article documents a six-month experiment in expanding an existing off-grid solar power system by adding a wind turbine. The author, a seasoned solar power user, initially encountered a significant challenge: the incompatibility between the 36-volt solar system and the 12-volt wind turbine. Early attempts to bridge this voltage gap using multiple charge controllers failed, highlighting the critical need for voltage matching in off-grid systems. This setback, however, sparked a resourceful solution using readily available components.The unexpected failure led to a creative workaround involving an old inverter and a spare 12V battery. Instead of directly integrating the wind turbine into the higher-voltage solar system, the author cleverly adapted the setup to convert the wind turbine's 12V DC output into AC power using the inverter. This approach, while utilizing second-hand equipment, offers a cost-effective and practical solution, showcasing the ingenuity and adaptability required in off-grid projects. The article details the process, the inherent risks of using untested components, and the methodical testing approach employed to ensure a successful integration.

Read more: InnerVenue's Forever Battery: Revolutionizing Renewable Energy Storage

Initial Setup and the 12V vs 36V Voltage Mismatch

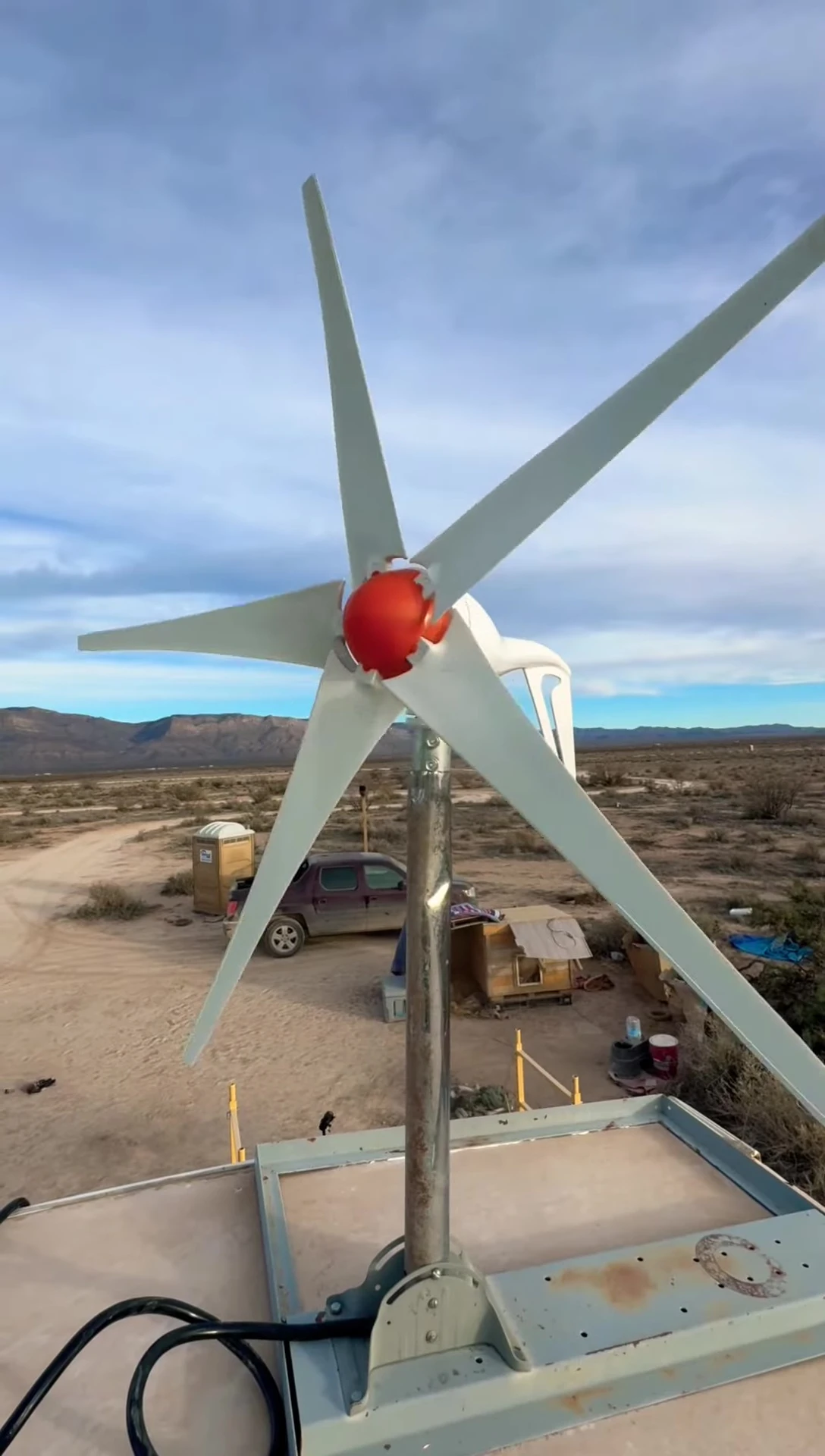

After six months of successfully using solar power, I decided to expand my off-grid system by incorporating a wind turbine. My existing solar setup operates at 36 volts, while the wind turbine I purchased outputs 12 volts. Initially, I attempted to use three 12V charge controllers to boost the voltage, but this proved unsuccessful; the motors locked up and wouldn't spin.

This unexpected issue forced me to reconsider my approach. The incompatibility highlighted the importance of matching voltage requirements between different components within an off-grid power system. A seemingly simple solution of adding multiple charge controllers became a critical design flaw.

Repurposing Existing Components: A 12V Battery and Inverter

Fortunately, I had a spare 12V battery and an old inverter lying around. This presented an alternative solution to the voltage problem. Instead of trying to directly integrate the 12V wind turbine into the 36V system, I decided to use the inverter to convert the 12V DC from the wind turbine into usable AC power.

This improvisation demonstrated the benefit of having spare parts for troubleshooting and adapting the system. Reusing old equipment not only saved money but also provided a practical workaround for the initial voltage incompatibility issue.

Wiring the System and Testing the Unknown Inverter

I wired the wind turbine to a charge controller, which then connected to the 12V battery. The battery, in turn, is connected to the old inverter, whose functionality is currently unknown. I acquired this inverter through a series of hand-me-downs, so its reliability is uncertain.

Close up on the wind turbine charge controller
Close up on the wind turbine charge controller

This stage involved a degree of risk, relying on a previously untested inverter. This highlights the challenges of working with second-hand equipment in off-grid setups, which often require careful testing and potential troubleshooting. The decision to proceed with an unknown inverter underscores the experimental nature of this project.

The 12V battery
The 12V battery

Initial Charging and Future Testing

Currently, the wind turbine is charging the 12V battery. I plan to test the inverter's functionality and the entire system's output tomorrow. This initial step focuses on ensuring the charging process is working correctly before evaluating the final power generation.

This phased approach is crucial for debugging. Testing the charging process independently helps isolate potential issues. If the battery isn't charging, any problems with the inverter are irrelevant. This methodical approach will ultimately determine the success of the wind turbine integration.
