This guide provides a comprehensive, step-by-step walkthrough for building a powerful and portable 3000W off-grid solar power system in just one hour. Designed for both beginners and experienced DIY enthusiasts, this project utilizes the EG4 3000 EHV 48VT off-grid inverter as its core component, simplifying the assembly process and reducing reliance on expensive pre-built systems. We'll cover everything from safe component mounting and wiring to efficient power distribution and crucial safety features, ensuring a reliable and effective backup power solution. Learn how to harness the power of the sun with ease and confidence.This DIY project prioritizes safety and efficiency, incorporating key safety elements like a DIO solar disconnect switch, DC circuit breaker, and surge protection within a waterproof enclosure. We’ll guide you through connecting the battery, solar panels, and AC distribution panel, emphasizing proper wiring techniques and the importance of using appropriate gauge wiring and ferrules. The guide also explores scalability and portability, allowing you to adapt the system to your specific needs and easily transport it for various applications, from emergency backup power to powering RVs or remote locations.
Pros And Cons
- More than 15 years life cycle
- 80% depth of discharge daily
- Up to 100 amps charge and discharge current
- UL listed
- Supports up to 64 batteries
- LCD touchscreen
- Supports closed-loop communication
- 10-year warranty
- 3000W output power
- MPPT and battery charger
- LCD display and button operation
- 94% efficiency
- Suggested charging current of 80 amps
- PV array open circuit wattage of 500 volts
- Includes cables, circuit breaker, bracket, manual, communication cables, and Wi-Fi stick
- Ground connection point designed outside of the service panel
Read more: InnerVenue's Forever Battery: Revolutionizing Renewable Energy Storage
System Overview and Purpose
This project focuses on building a portable, 3000W off-grid solar power system. The goal is to create a reliable backup power source for essential appliances during power outages or in remote locations. The system's mobility is a key advantage, allowing for easy transportation and deployment.
The build emphasizes simplicity and ease of assembly, making it accessible to individuals without prior experience. It aims to provide a more powerful and cost-effective solution than pre-assembled all-in-one units. The entire construction process is estimated to take around one hour.
Core Components: Inverter and Mounting

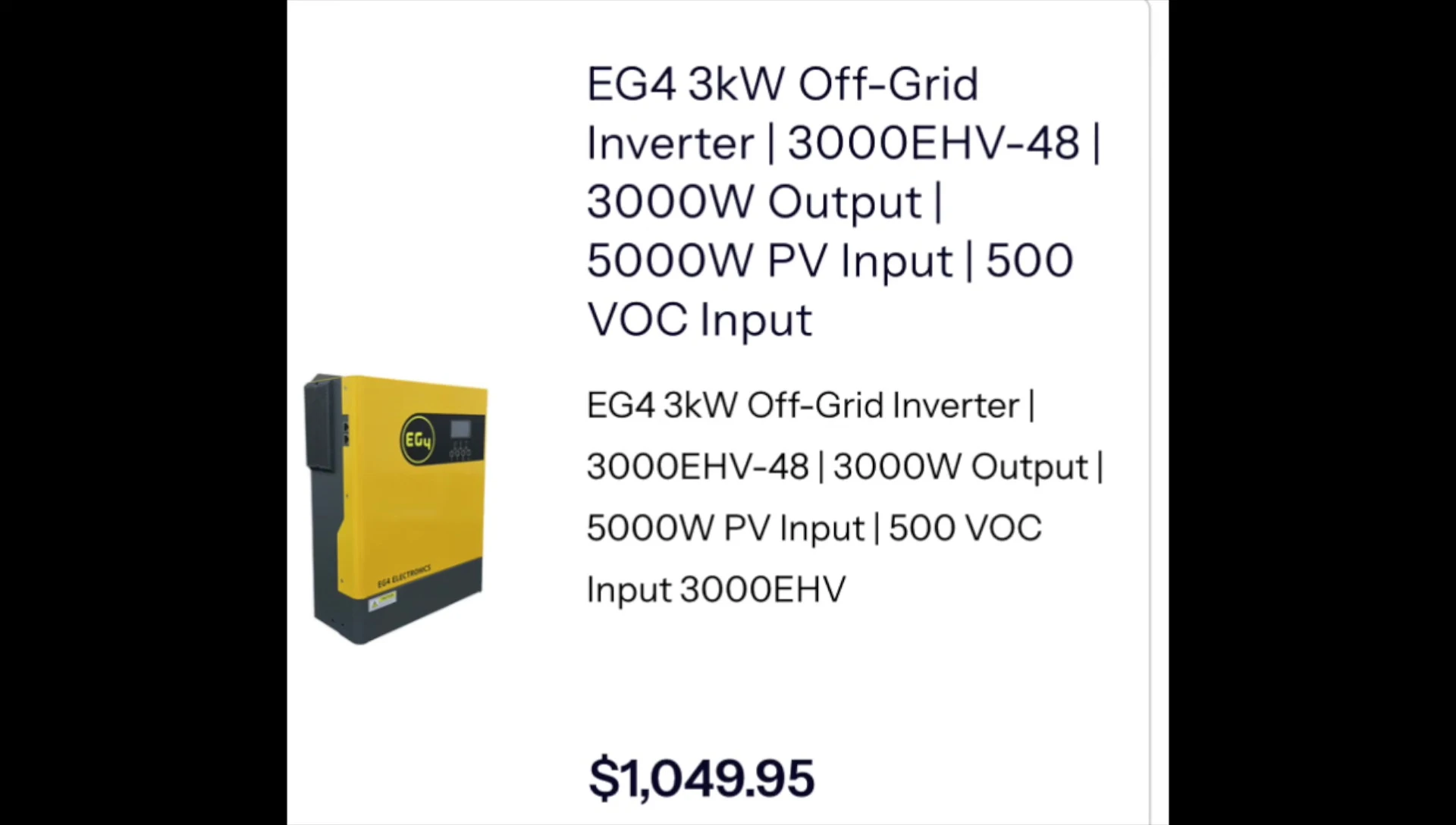

The heart of the system is the EG4 3000 EHV 48VT off-grid inverter, which also functions as a Maximum Power Point Tracking (MPPT) solar charge controller. This inverter boasts features like an LCD display, button operation, and high efficiency.

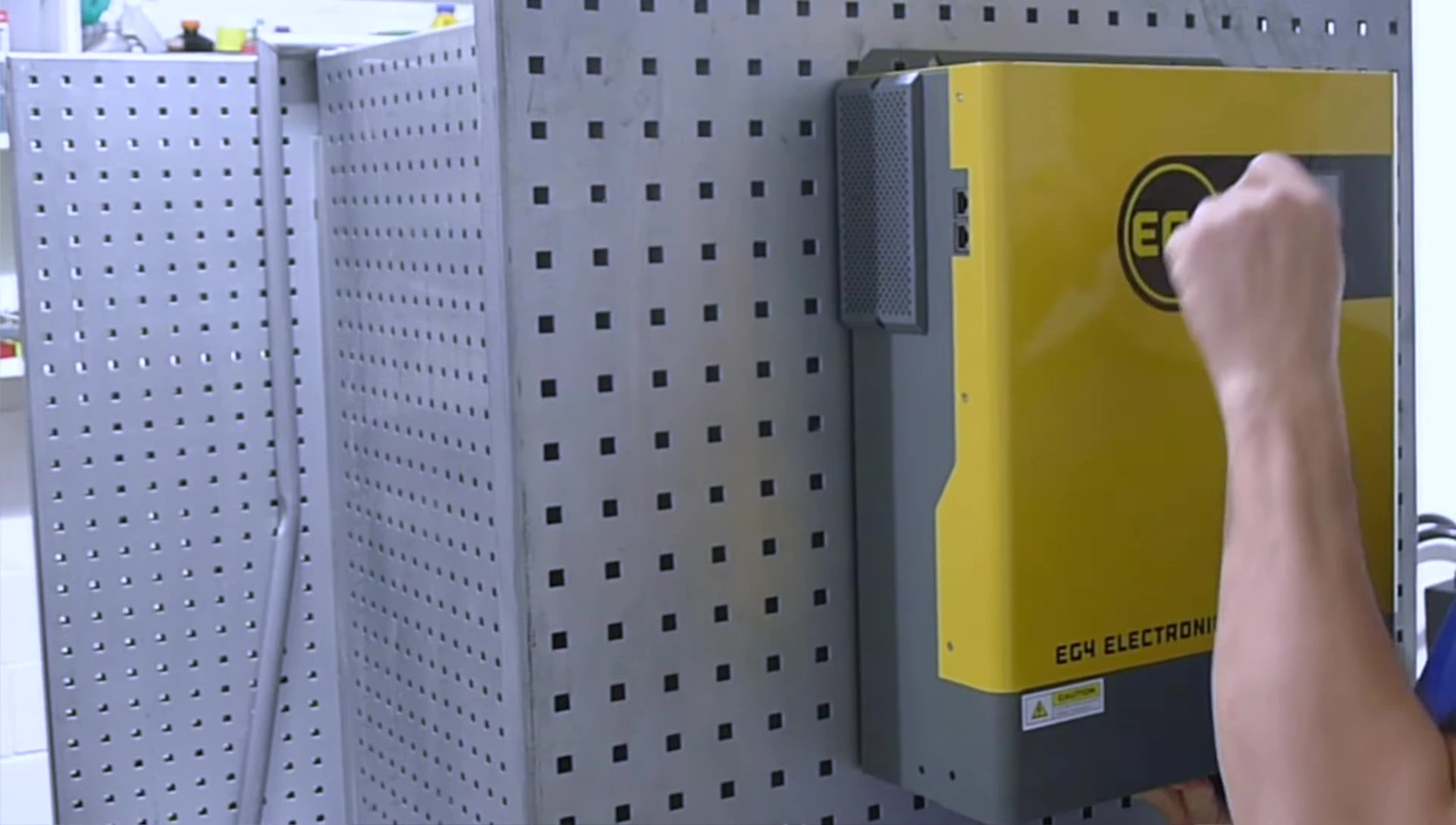

Secure mounting of the inverter is crucial. The instructions recommend using a non-combustible, sturdy material and maintaining proper distances from other objects to ensure safety and optimal performance. The video utilizes a metal stand for mounting, showcasing its adaptability.
Safety and Disconnects

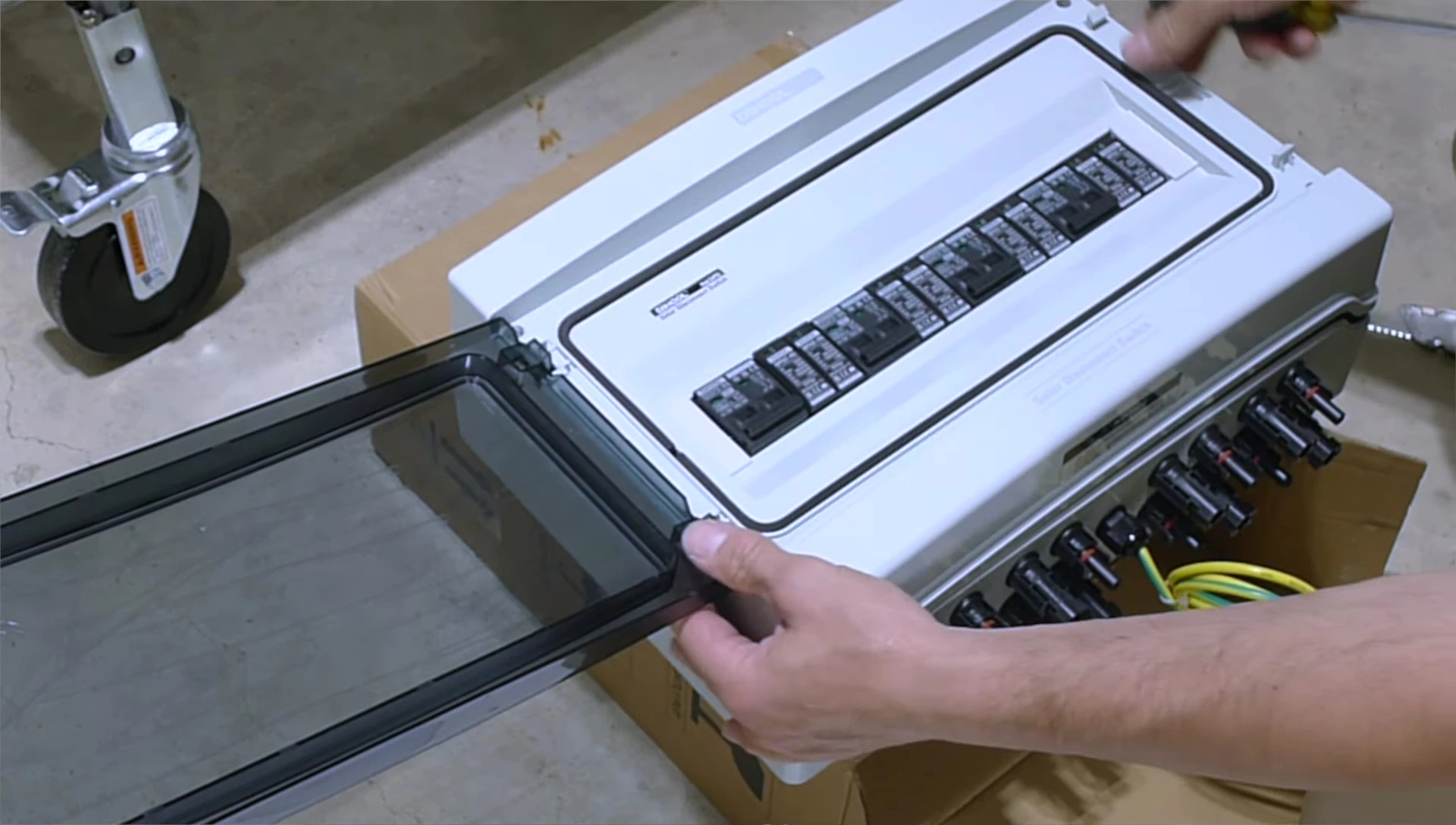

Safety is paramount. The system incorporates a DIO solar disconnect switch, a 4-amp DC circuit breaker, and surge protection. This waterproof enclosure ensures safety and protection against the elements.
The video also demonstrates alternative disconnect switches without the integrated safety features. The importance of securely connecting all components before mounting is emphasized to ensure a safe and reliable installation.
Wiring and Electrical Connections
The video guides viewers through the process of wiring the various components together, highlighting the use of appropriate gauge wiring for both AC and DC circuits. The importance of using ferrules for secure DC wire connections is stressed to prevent damage and ensure higher amperage handling.

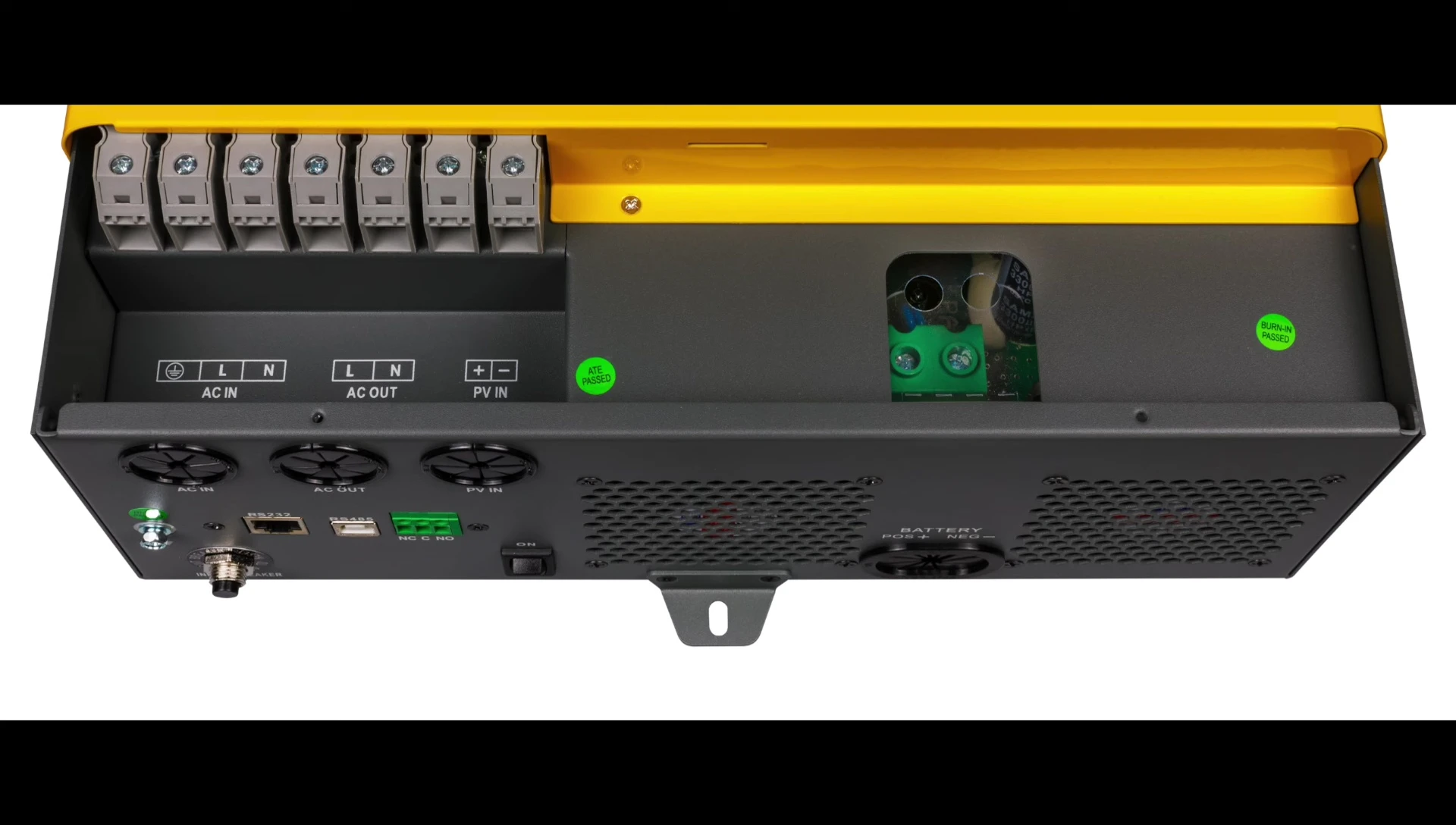

Detailed steps are provided for connecting the battery cables to the inverter, AC output wires, and PV (solar panel) wires. Proper insulation stripping and crimping techniques are also demonstrated for safe and reliable connections.
AC Panel and Circuit Breakers
A 200-amp electrical panel is installed to manage AC power distribution. For emergency-only setups, a 30-amp circuit breaker is deemed sufficient. The video details the connection of wires to the panel, emphasizing the importance of proper grounding and neutral connections.
The use of GFCI (Ground Fault Circuit Interrupter) receptacles for added safety is also demonstrated. Clear instructions for connecting wires to the breakers and busbars are provided, with a cautionary note to consult an electrician if needed.
Battery Connection and System Testing

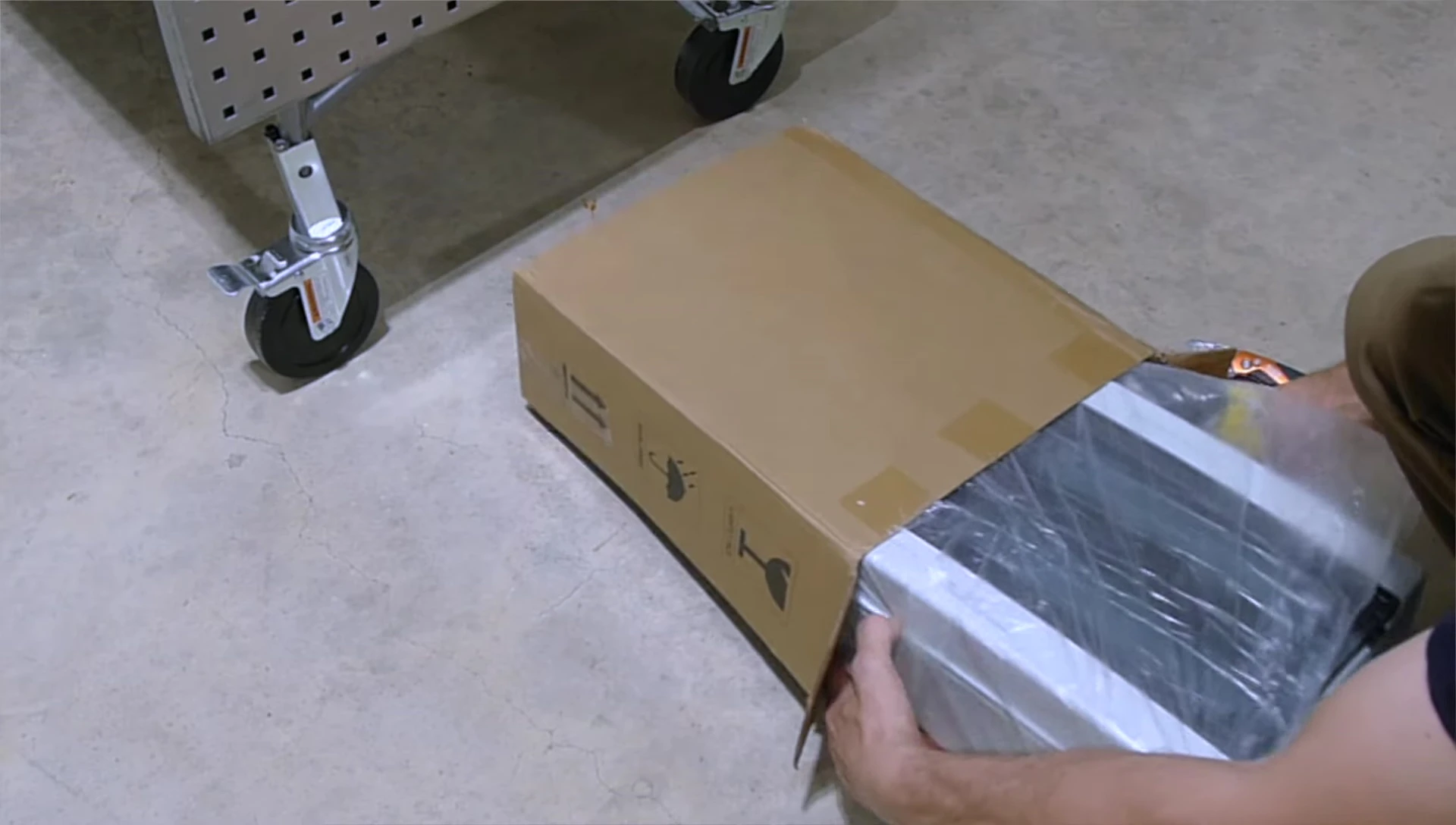

The video shows the connection of the battery to the system, utilizing an EG4 LLS 48-volt battery. The battery's specifications, including lifespan, depth of discharge, and charge/discharge current, are outlined.

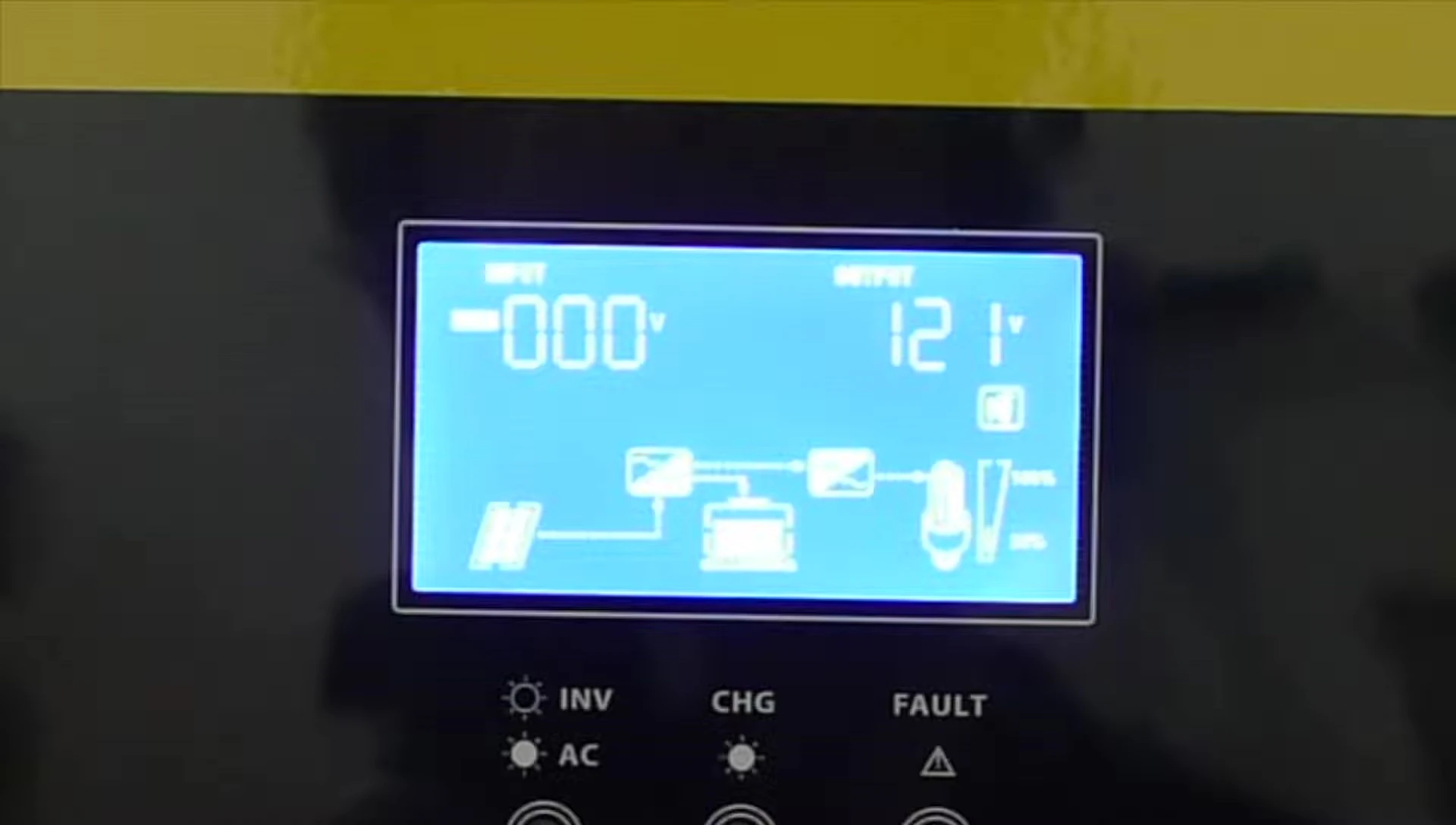

The completed system is thoroughly tested. The inverter is switched on, and the AC output voltage is verified. A heat gun is used to load test the inverter, demonstrating its power output capabilities. Solar panels are then connected to assess the charging functionality.
Portability and Scalability

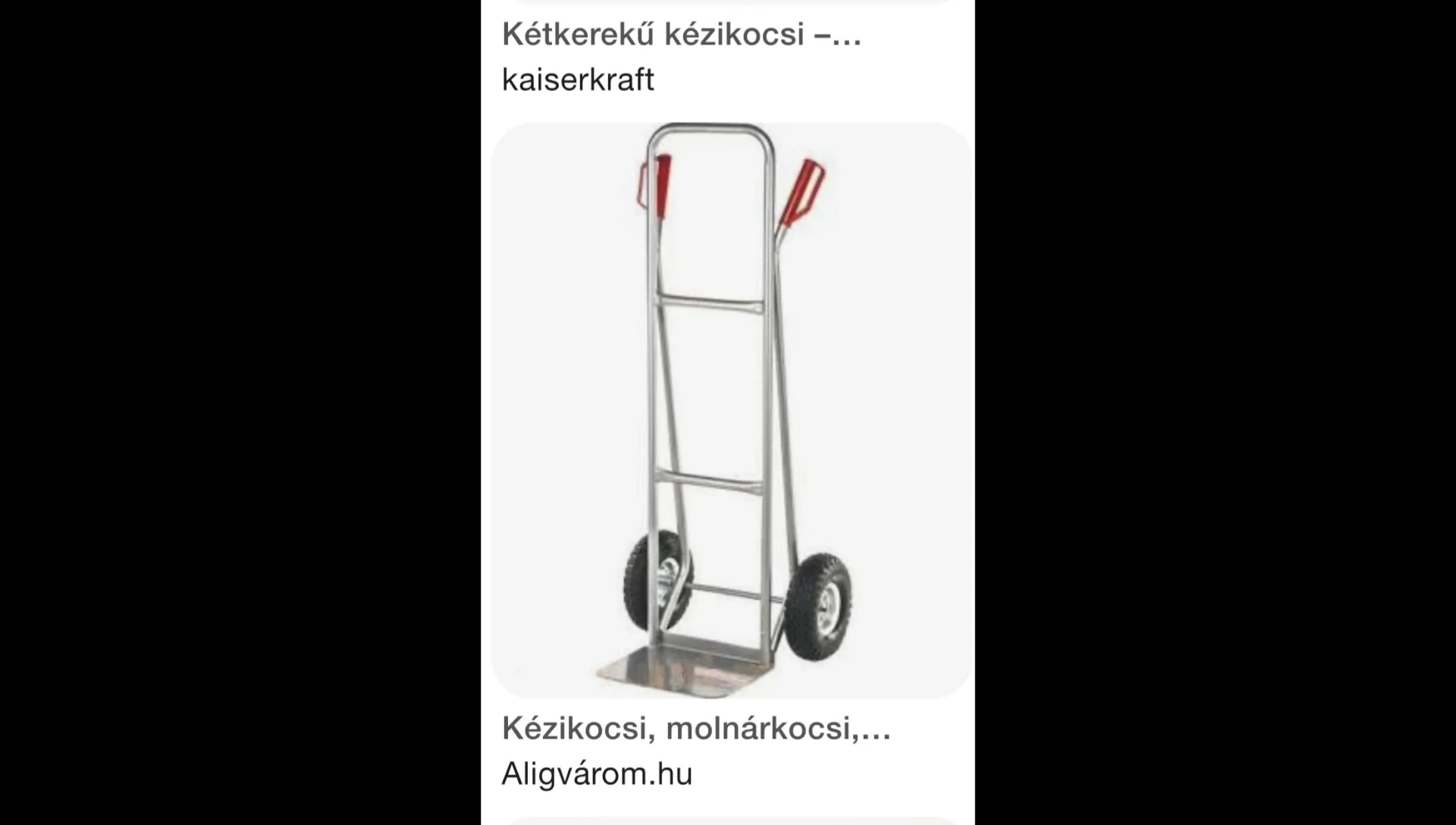

The video demonstrates the system's portability, suggesting alternative mounting options like a hand truck. Instructions are given on securing the inverter and battery for easy transport.
The system's scalability is emphasized, advising viewers to choose components that can be easily expanded upon in the future. The adaptability for various use cases, including emergency backup or RV power, is highlighted.
Conclusion
This DIY off-grid solar system offers a powerful and flexible solution for various power needs. The one-hour build time, coupled with its portability and scalability, makes it an attractive option for both emergency preparedness and remote power applications. The use of high-quality components, like the EG4 inverter and LLS battery, ensures reliability and longevity.
While requiring some electrical knowledge and DIY skills, the detailed instructions provided make the project manageable for those with intermediate abilities. The emphasis on safety and the inclusion of protective measures, such as GFCI receptacles and surge protection, contributes significantly to the system’s overall value.
