This comprehensive guide provides a step-by-step walkthrough for setting up the Honeywell T6 Pro programmable thermostat. Whether you're a seasoned DIY enthusiast or a first-time installer, this tutorial will equip you with the knowledge to navigate the thermostat's extensive configuration options. We'll cover everything from accessing the installer setup menu and understanding the various settings to customizing schedules and optimizing your heating and cooling system for maximum efficiency and comfort. This guide simplifies the process, breaking down the complexities into manageable steps, making the setup of your Honeywell T6 Pro a seamless experience.We'll explore the intricacies of the installer setup menu, explaining each setting and its numerical code. You'll learn how to configure your heating system type, manage scheduling options, adjust temperature units, and customize features like backup heat, compressor cycle rate, and keypad lockout. We'll also guide you through the user-friendly scheduling interface, enabling you to create personalized temperature programs tailored to your daily routine. By the end of this guide, you’ll be confident in your ability to fully utilize the advanced features of the Honeywell T6 Pro.
Pros And Cons
- Allows for individual daily programming.
- Offers options for Fahrenheit or Celsius.
- Compatible with a wired outdoor sensor (sold separately).
- Various heating system types are supported (conventional forced air, heat pump, radiant heat, cool only).
- Provides settings for adjusting compressor stages (up to 2 stages in conventional heat mode, 1 stage in heat pump mode).
- Includes settings for backup heat source (electric, gas, or oil forced air).
- Offers manual or automatic system changeover.
- Allows for adjustment of backup heat droop (temperature difference before backup heat strips activate).
- Adjustable compressor cycle rate and heating cycle rate.
- Compressor protection setting (default 5 minutes).
- Air adaptive intelligent recovery feature (can be turned off).
- Allows setting maximum cooling and heating points.
- Keypad lockout options (partial or none).
- Air filter replacement reminder (adjustable from 10 run days to 15 calendar months).
- 12h or 24h clock format.
- Daylight saving time option.
- Temperature display offset.
- Two-stage compressor functionality is limited to conventional heat mode.
Read more: Nuwave PIC Titanium Induction Cooktop Review: A Mixed Bag of Features
Accessing Installer Setup Menu
The Honeywell T6 Pro thermostat's installer setup menu is accessed by pressing and holding the center and plus buttons simultaneously for approximately three seconds. This will bring up the 'ISU installer setup' screen, granting access to various configuration options. Remember to consult the installation manual for a complete understanding of each setting and its numerical code. This manual provides detailed explanations of all the features available within the thermostat.
Navigating the menu involves using the plus and minus buttons to adjust numerical values. Each setting has a corresponding number, which is crucial for making the necessary adjustments accurately. Always refer to the manual to ensure correct interpretation and modification of these settings.
Key Settings and Configurations
The scheduling option (setting 1) allows for customization. You can choose between a 5-1-1 (5 days, 1 weekday program, 1 weekend program), 5-2-1, or non-programmable schedule. Setting 4 enables individual daily programming, providing maximum flexibility. The thermostat also offers the option to change the temperature units from Fahrenheit to Celsius (setting 2).
Heating system type (setting 200) impacts further settings. Options include conventional forced air, heat pump, radiant heat, and cool-only systems. Selecting 'heat pump' unlocks additional settings related to reversing valves and compressor stages. For 'conventional forced air', options include high efficiency gas, standard efficiency oil, electric, or hot water fan coil.
Heat Pump Specific Settings
When using the heat pump setting, options like reversing valve (setting 218) and cooling stages (setting 220) become available. The reversing valve determines whether the system operates in heating or cooling mode. Cooling stages allow you to select one or two-stage compressor operation, dependent on your system capabilities. The T6 Pro only supports one-stage compressors in heat pump mode.
Heating stages (setting 205) are also influenced by the system type. With a heat pump selected, only options seven (air-to-air) and eight (geothermal heat pump) are accessible. Other options are available for conventional forced air systems. Note that the two-stage heating option isn't available in heat pump mode.
Advanced Settings and Customization
Backup heat source (setting 255) is configurable for electric, gas, or oil forced air systems. This is useful in dual-fuel setups. System changeover (setting 300) allows for manual or automatic switching between heating and cooling. Backup heat droop (setting 305) lets you define the temperature difference triggering auxiliary heat, offering more control over backup heat activation.
Compressor cycle rate (settings 310 and 315) allows for adjustment of compressor runtime versus rest time. Compressor protection (setting 320) ensures the compressor doesn't cycle too frequently; the default is 5 minutes. Air adaptive intelligent recovery (setting 325) anticipates scheduled times to pre-heat or pre-cool the space.
Security and User Interface Settings
Maximum cooling and heating set points (settings 330 and 335) limit the temperature adjustments possible by users. Keypad lockout (setting 340) provides either a partial or complete lockout, enhancing security. Indoor temperature sensor configuration (setting 345) depends on your setup. Air filter replacement reminder (setting 350) is customizable from 10 run days to 15 calendar months.
Clock format (setting 400) can be set to 12-hour or 24-hour. Daylight Saving Time (setting 405) allows enabling or disabling automatic adjustments. Temperature display offset (setting 410) corrects for any calibration issues or user preferences. These settings refine the user experience and enhance the thermostat's functionality.

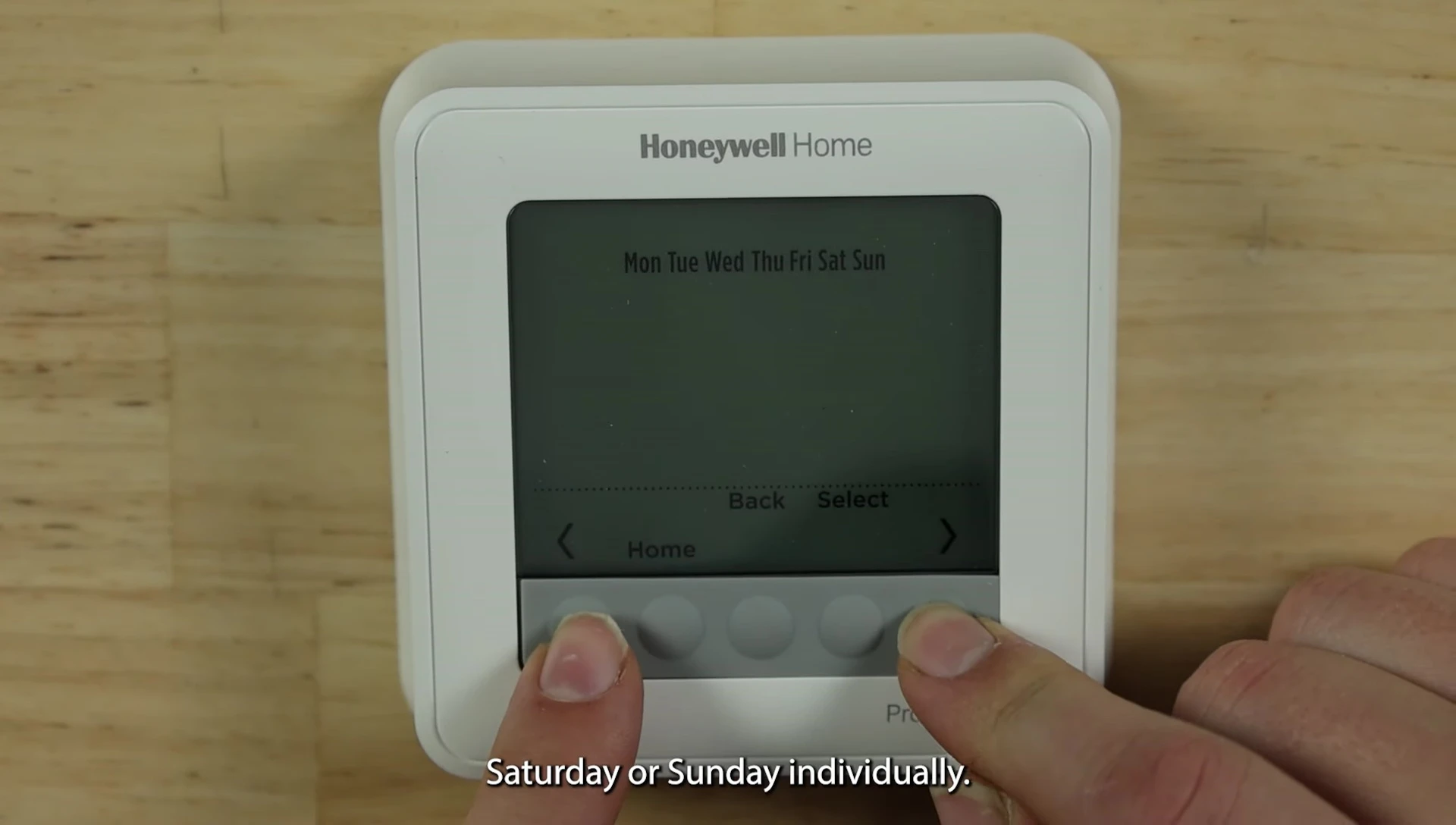

Scheduling Your Thermostat
Scheduling is straightforward with the T6 Pro. The 5-1-1 schedule allows you to program Monday-Friday as a single block and Saturday-Sunday as another. Alternatively, you can program each day individually. Each period (wake, away, home, sleep) is customizable in 15-minute increments.
For each period, you can set the desired heating and cooling temperatures. The thermostat guides you through this process step by step. The interface is user-friendly, enabling adjustments and modifications as needed. Once finished, save your settings to finalize the program.
Conclusion
The Honeywell T6 Pro programmable thermostat offers extensive customization options, covering various heating and cooling system types. Its user-friendly interface simplifies setup and programming, while the installer setup menu provides granular control over many aspects. The comprehensive set of features, including intelligent recovery, detailed scheduling, and security options, make it a versatile choice for diverse applications.
While it may have a learning curve initially due to the number of settings, the detailed manual and the clear on-screen prompts make the process manageable. The added security features and ability to customize nearly every aspect of temperature control make the Honeywell T6 Pro a valuable investment for optimizing home comfort and energy efficiency.
