This review dives deep into the JNGE wind/solar hybrid charge controller, examining its performance, features, and overall usability. We unpack the controller, analyzing its build quality, internal components, and design choices. From initial impressions of the packaging and included accessories to a detailed exploration of its internal workings, we leave no stone unturned. Testing procedures cover functionality, safety features, and the efficiency of its MPPT algorithm, highlighting both strengths and weaknesses.A key focus is the controller's accompanying app, assessing its intuitive design, data presentation, and remote monitoring capabilities. We address the controller's compatibility with various voltage systems and discuss the significance of its unique voltage range and safety certifications. Ultimately, this review aims to provide a comprehensive evaluation of the JNGE controller, helping readers decide if it's the right choice for their renewable energy needs, weighing its impressive features against its limitations.
Pros And Cons
- Works as expected
- Has a good overcharge protection feature
- Nicely packed and easy to disassemble
- Aluminum radiators
- Detailed instructions included
- Includes a companion app for monitoring
- App allows for remote monitoring via internet connection
- MPPT works well, efficiently increasing current and managing wind fluctuations.
- Effectively slows down the turbine when the battery voltage limit is reached.
- Does not measure instant output; requires a separate measuring device
- App design is described as poorly designed
- Controller's screen does not display instant consumption
Read more: InnerVenue's Forever Battery: Revolutionizing Renewable Energy Storage
Unboxing and First Impressions

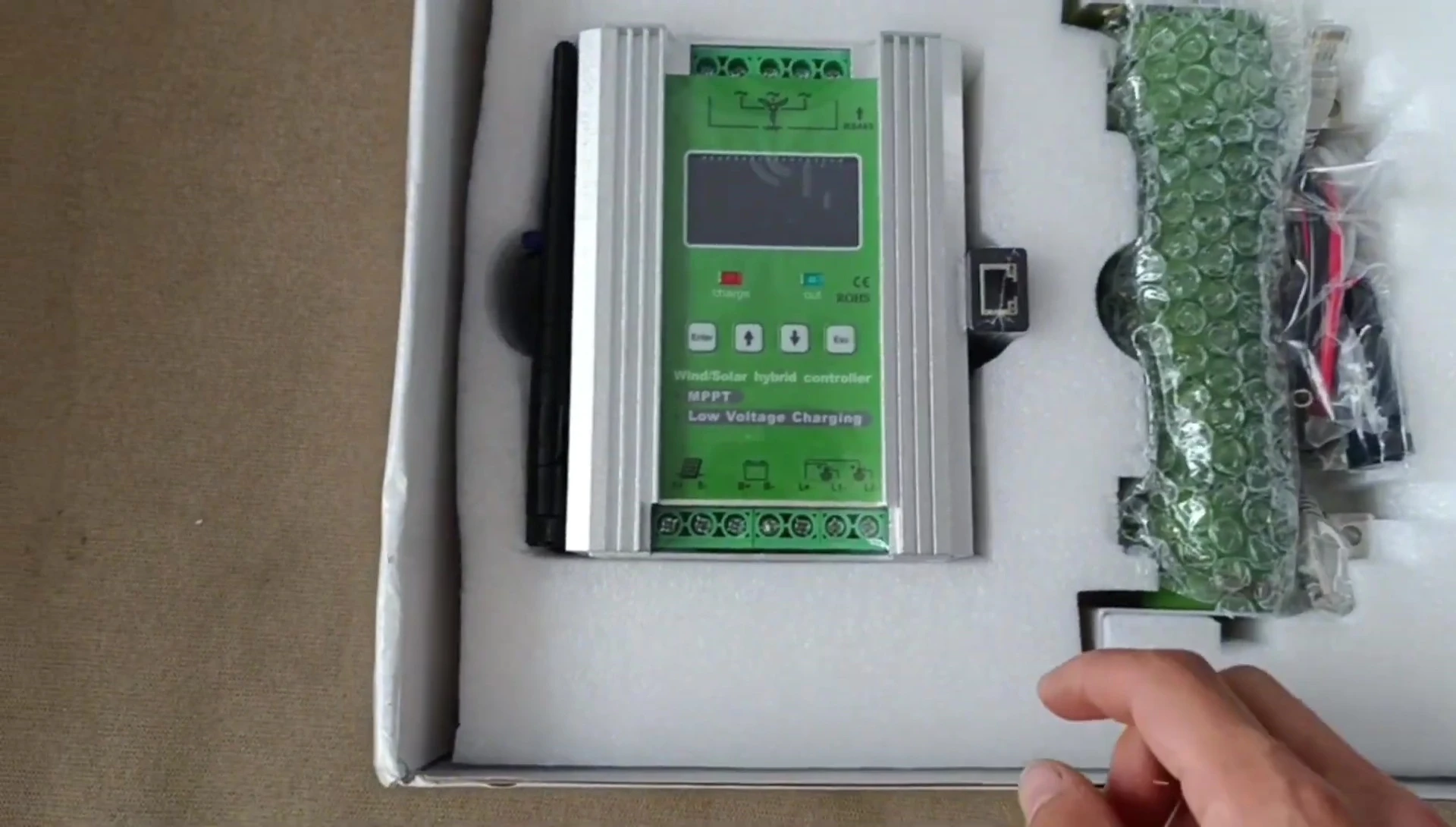

The package arrived, and the unboxing revealed a neatly packed controller. The initial impression was positive, with high-quality packaging and components. The inclusion of MC4 connectors and a screwdriver was a thoughtful touch, demonstrating attention to detail.
One curious aspect was the seemingly reversed internal/external labeling. While potentially a minor detail, it prompted a question about the manufacturing process or design rationale.
Controller Specifications and Features
The controller is rated for 12, 24, or 48 volts, making it versatile for various applications. It boasts impressive specifications, including a 100-amp rectifier and aluminum heat sinks for efficient cooling. The inclusion of Wi-Fi capabilities allows for remote monitoring and control.

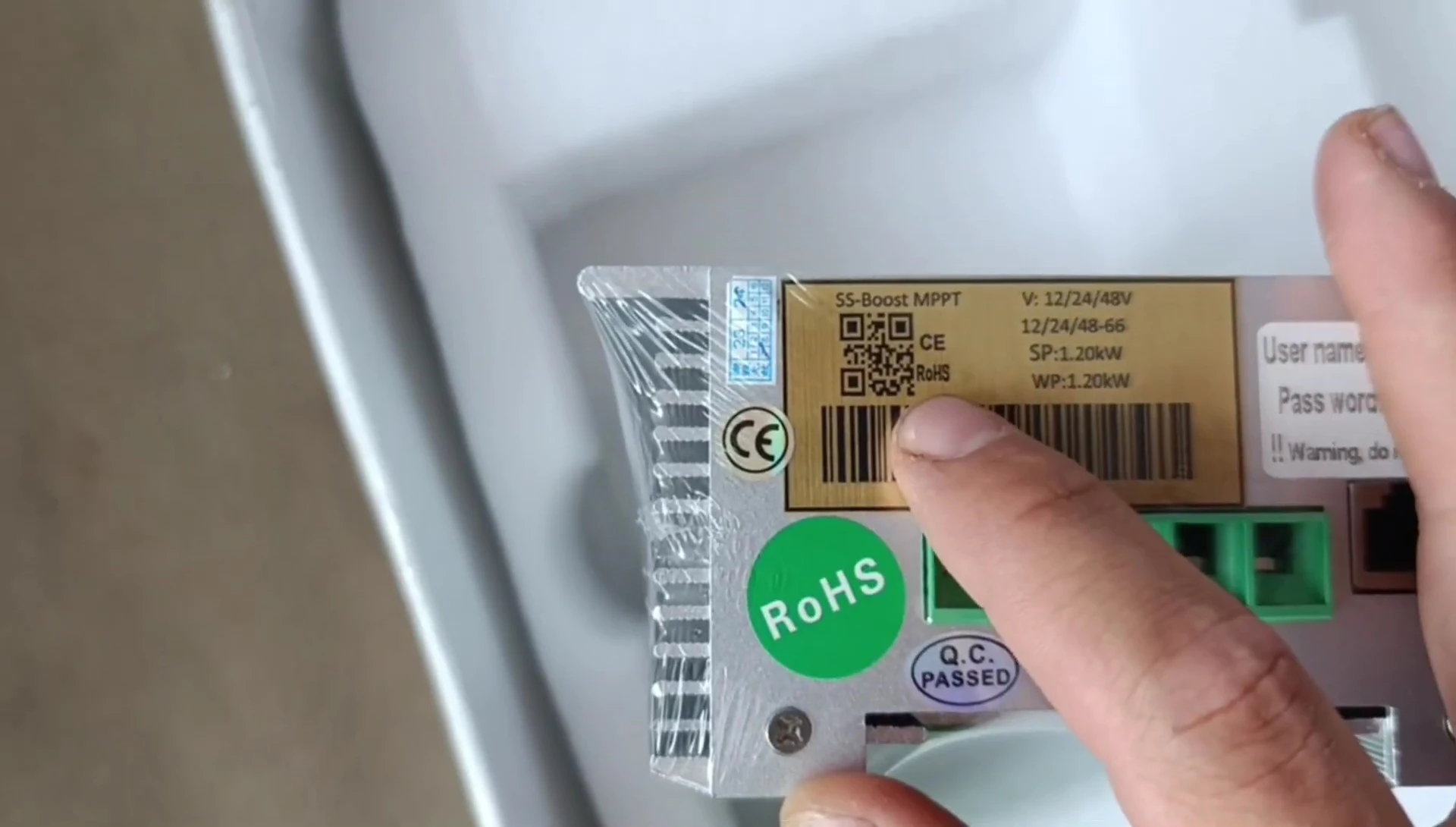

The manufacturer’s stated voltage range up to 48-66 volts is unique and a notable feature. The controller also includes safety certifications, such as C and RoHS, signifying a commitment to quality and safety standards.
Internal Components and Design

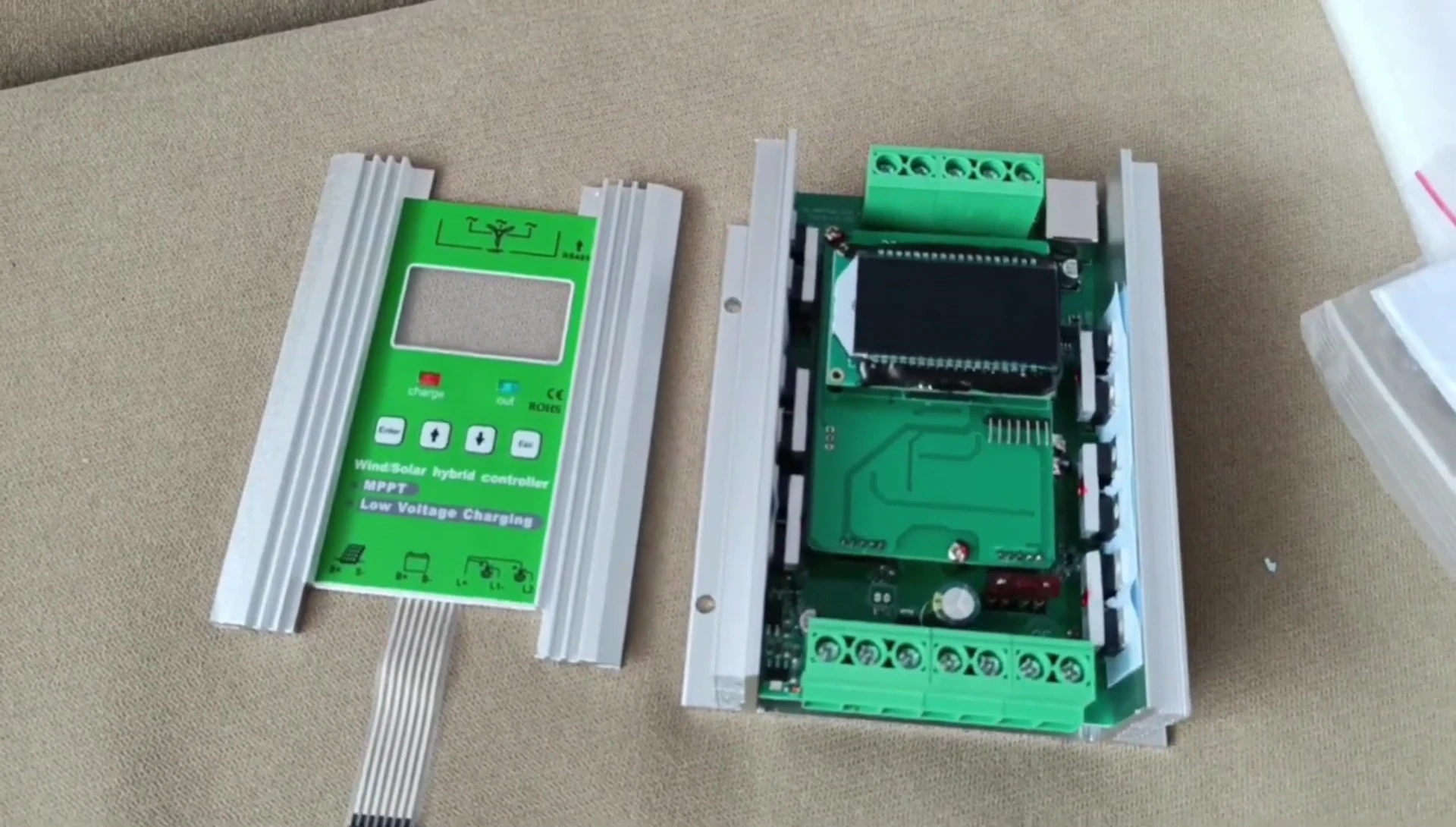

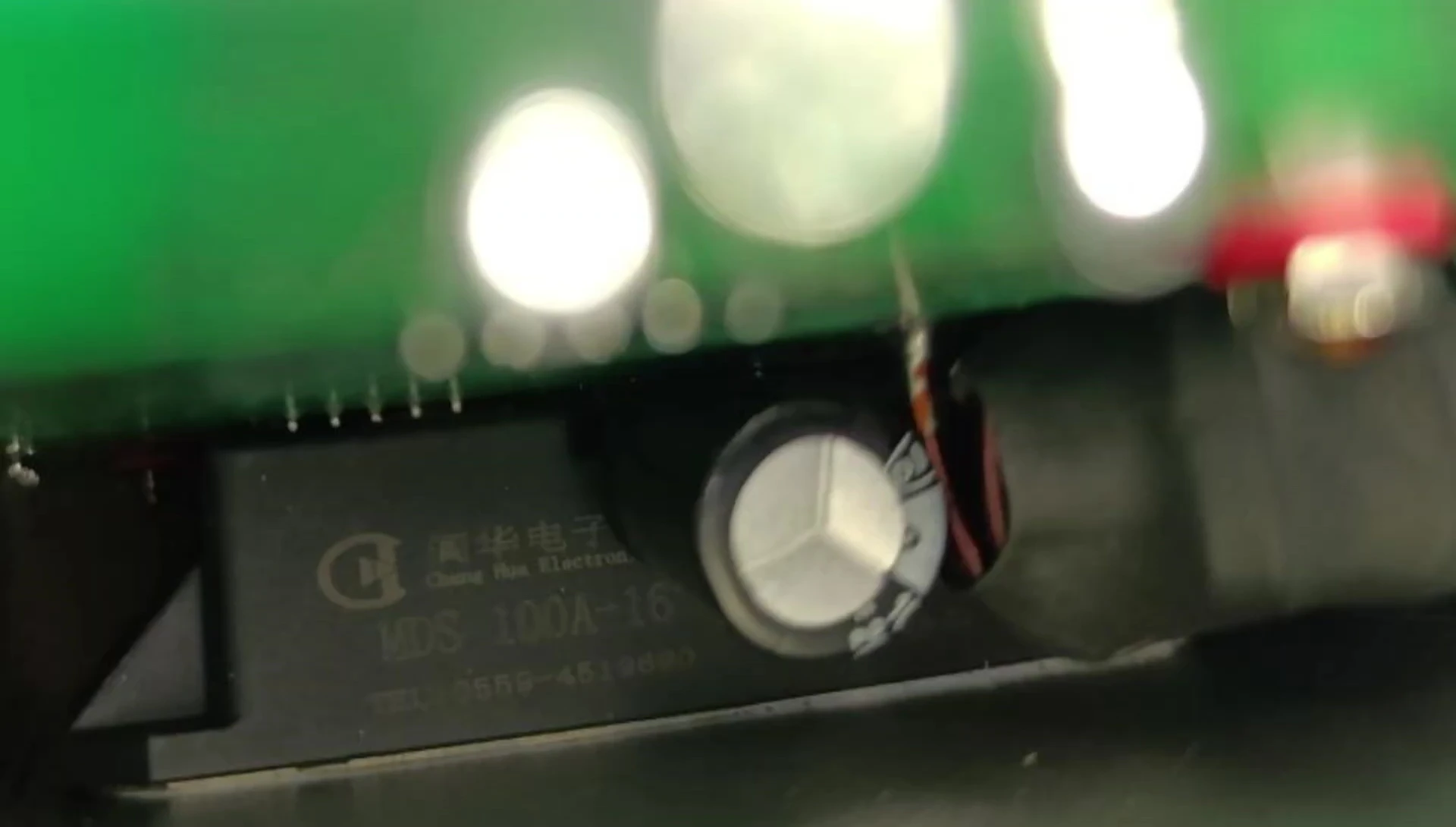

Disassembly reveals high-quality internal components. The use of aluminum throughout the design contributes to excellent heat dissipation. The rectifier is a 100-amp unit, and a large capacitor is visible among other internal components. The design's ease of assembly/disassembly makes maintenance straightforward.
A closer examination shows the use of a boost converter circuit, as confirmed by the capacitor and copper windings. This means the controller is a boost-type design. Its functionality includes increasing the input voltage from low voltage to a higher voltage level to efficiently charge the battery bank.
Testing and Performance

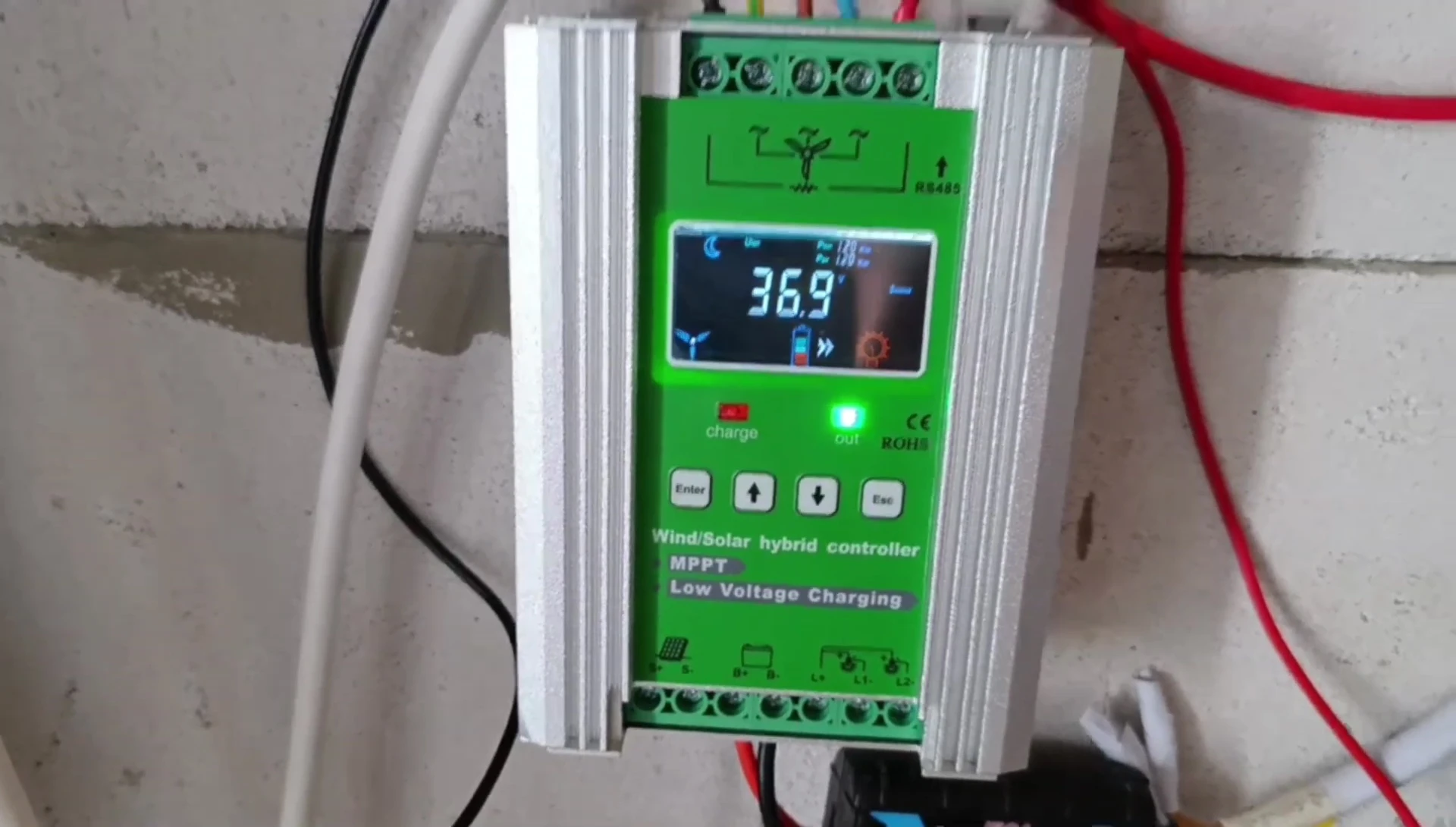

Testing revealed that the controller functions as advertised. The overcharge protection feature performs reliably, preventing battery overcharging. The controller's MPPT algorithm efficiently maximizes power extraction from the wind turbine.

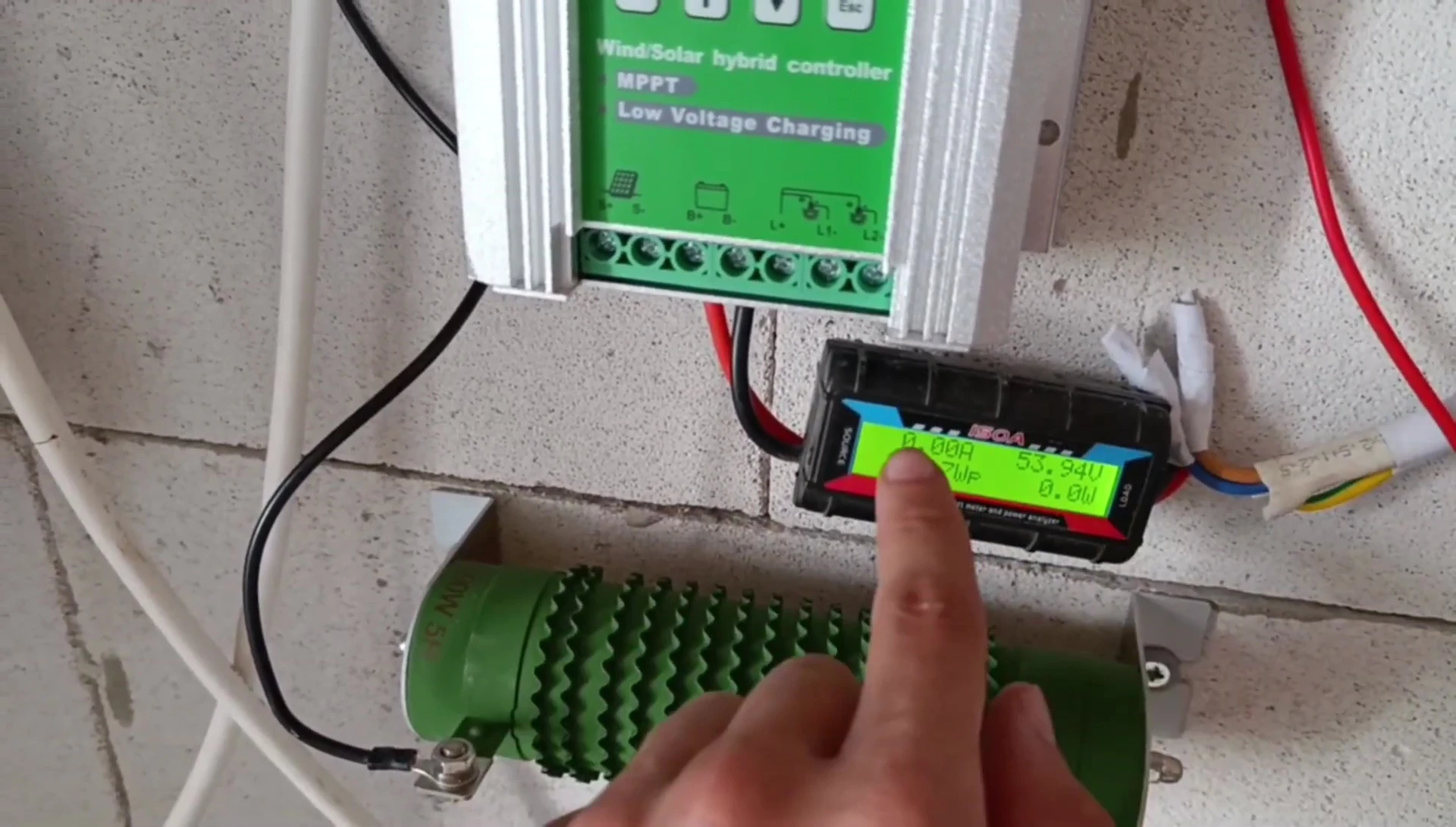

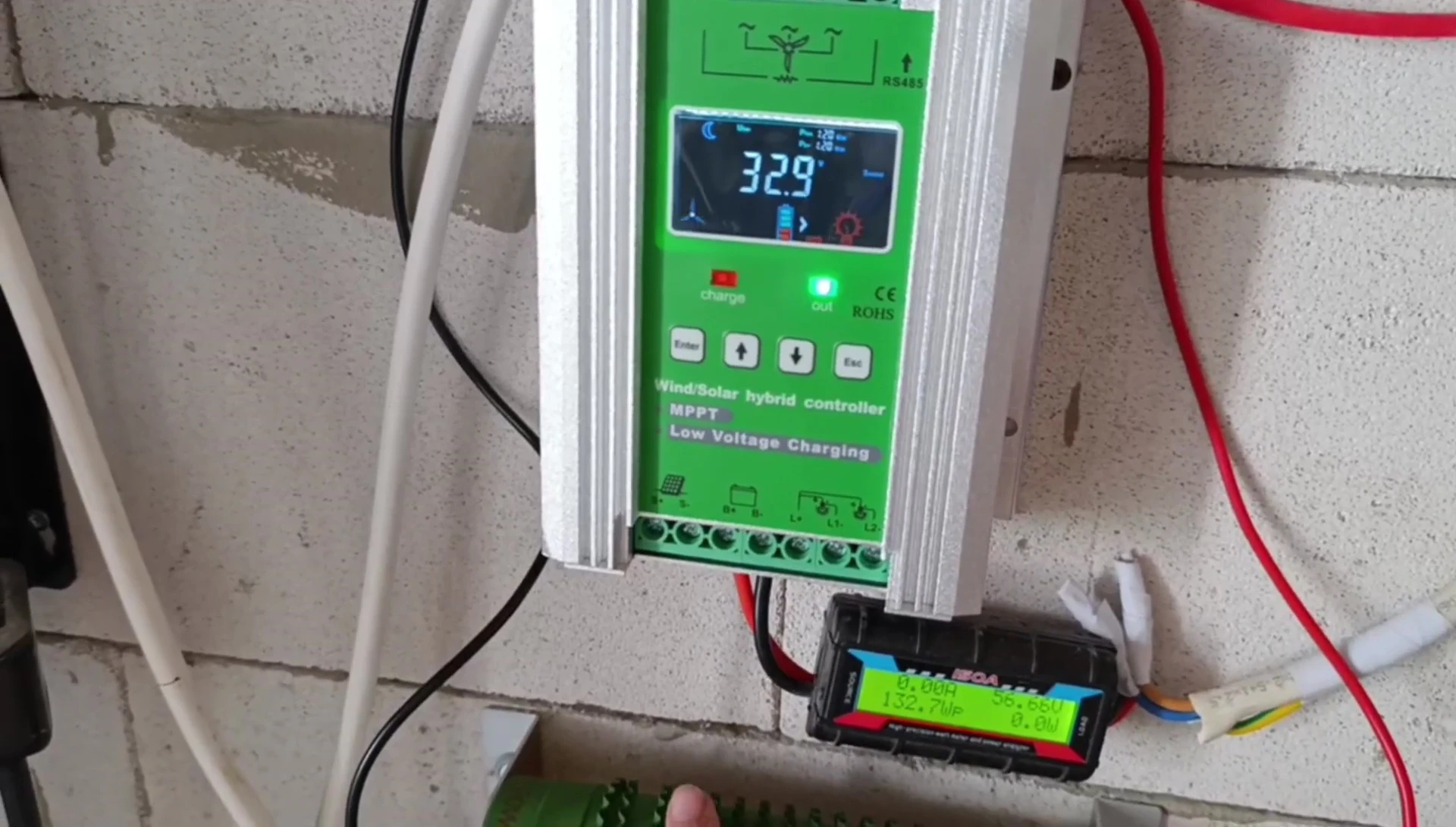

A significant drawback is the lack of real-time output readings on the controller itself. Users must rely on an external device, such as a multimeter, for accurate power output measurements. Additionally, charging for the 48-volt system starts only at approximately 32 volts.
App Functionality and User Interface

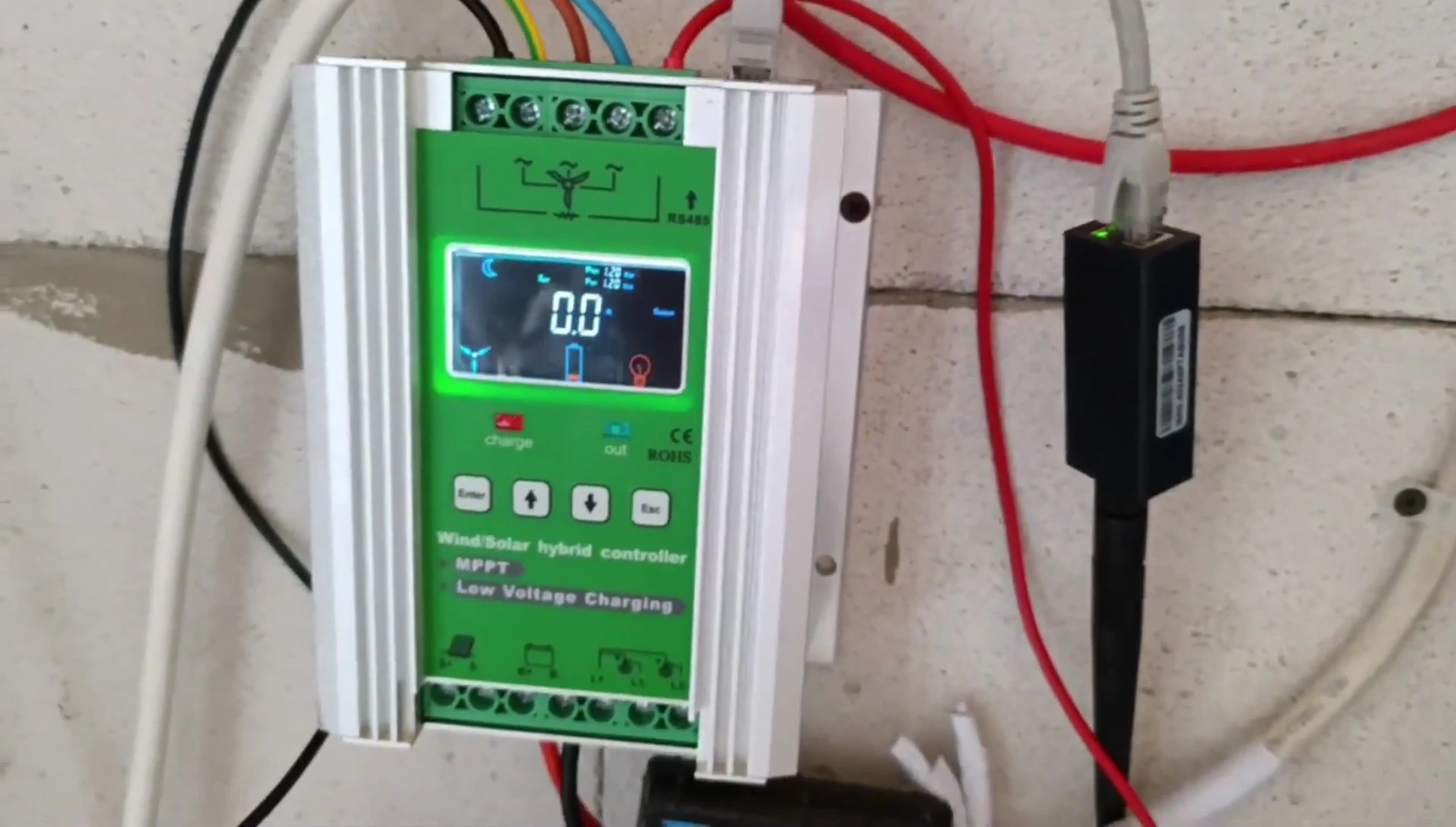

The companion app provides comprehensive monitoring and control features. The app interface is generally intuitive, with clear instructions for setup and configuration. The app allows for remote monitoring of various parameters, such as voltage, current, and power.
While the app is a valuable tool, some aspects of the design could be improved. The historical data graph, for example, is somewhat poorly designed. The app provides real-time monitoring, updates after a certain time interval, and detailed information about faults and battery parameters.
Conclusion and Overall Assessment
The JNGE wind/solar hybrid charge controller offers a range of features, including MPPT, overcharge protection, Wi-Fi connectivity, and app integration. The controller performed well during testing, and the aluminum construction suggests durability. The lack of real-time output data display is a significant drawback, necessitating the use of an external meter.
Overall, the controller is a decent option for those who need remote monitoring and control capabilities. The app's functionality adds considerable value. However, the lack of an on-board display for real-time power output is a key limitation to consider. While it's a functional and well-built controller, the usability could be significantly improved.
