This article details the construction of a highly efficient and space-saving DIY solar panel system designed for off-grid power generation. The project focuses on maximizing solar energy capture through a unique sliding and tilting array, cleverly integrating four panels onto a roof with minimal footprint. The design addresses the challenges of optimizing both solar exposure and limited roof space, offering a practical solution for homeowners seeking renewable energy.The iterative development process, documented in detail, highlights the crucial design decisions made to overcome initial engineering hurdles. From optimizing actuator selection and configuration to ensuring structural integrity and stability in varying weather conditions, the article showcases a methodical approach to building a robust and reliable solar panel system. The final design boasts a smooth, controlled deployment mechanism and enhanced stability, making it a viable and adaptable option for off-grid living.
Pros And Cons
- Minimizes roof space usage
- Maximizes solar charge by tilting at certain times
- Uses a single 660 lb actuator for improved efficiency
- Employs gas struts to stabilize panels in windy conditions
- Panels slide on stainless steel drawer slides for smooth operation
- Independent operation of actuators allows for partial deployment
- Controlled closing mechanism prevents sudden drops
- Uses stainless steel hinges for durability
- Early designs had issues with actuator angle and synchronization
- Initial designs experienced twisting of the beam due to offset mounting
- Previous designs suffered from actuator collapse at tight angles
Read more: InnerVenue's Forever Battery: Revolutionizing Renewable Energy Storage
Initial Design Requirements and Goals
The project began with a clear set of requirements: to integrate four solar panels on a roof in a way that maximized solar energy capture. This involved a tilting mechanism to adjust the panel angle throughout the day and year.
Space optimization was also key. The goal was to minimize the roof area occupied by the solar panel system.

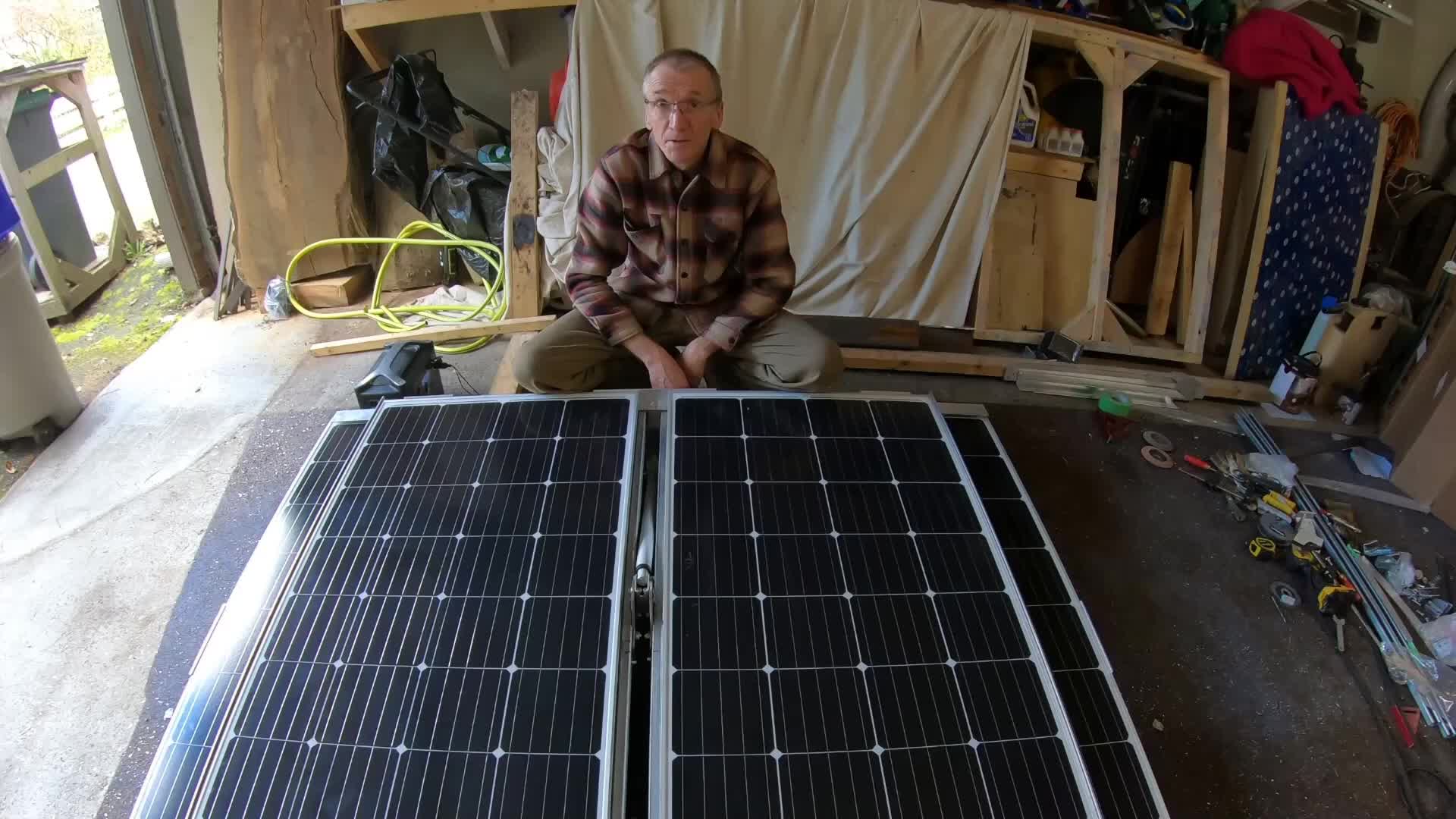

The chosen design involved two panels fixed to the roof and two additional panels that slid out from beneath, a clever space-saving solution.
Iterative Design Process: Actuator Challenges
The development process involved several iterations, primarily focused on finding the optimal actuator configuration for tilting the panels.
Initial attempts with a single, smaller actuator proved inadequate due to the challenging angle. The actuator struggled to lift the weight and achieve the necessary tilt.
Using two smaller actuators didn't resolve the issue due to speed discrepancies, requiring an expensive synchronization system. This led to exploring a more powerful single actuator.
Final Design and Structural Integrity
The final design incorporates a robust frame using uni-struts, strategically positioned to maintain panel integrity and distribute weight evenly.
Two uni-struts support the lifting mechanism, while others prevent the panels from being pushed apart during deployment. This eliminates the need for additional securing mechanisms on the roof.
The design effectively addresses potential issues caused by wind or breezes by incorporating gas struts for added stability.
Panel Deployment and Stability
The lower panels utilize independent actuators and stainless steel drawer slides for smooth, controlled deployment.
This allows for flexible deployment based on available space, with the option to extend one or both panels.
Gas struts provide critical stability, preventing panel swaying even in windy conditions.
Dimensions, Tilt Angle, and Mounting
The system has a total length of 5.5 ft when retracted and extends to 9 ft when fully deployed.
The tilt angle is approximately 35 degrees, optimized for maximum solar energy capture.
The design includes multiple stainless steel hinges and opposite feed mechanisms to manage pressure and enhance stability during deployment.
Actuator Performance and Controlled Closing
A 660 lb actuator smoothly lifts the panels, aided by the gas struts.
The improved design ensures a controlled lowering process, preventing the actuator from collapsing under its own weight at tight angles.
The system avoids the jarring ‘clunk’ sound observed in previous iterations, signifying improved stability and longevity.
Conclusion
This DIY solar panel system demonstrates a successful iterative design process, addressing initial challenges and resulting in a robust and functional solution.
The final design balances space-saving features with optimal solar energy capture, enhanced by a sophisticated tilting mechanism.
The incorporation of gas struts and strategically placed uni-struts provides stability and ensures a smooth, controlled deployment and retraction of panels, making it a worthy project for off-grid power needs.
