This guide details the installation of a complete off-grid solar power system for a garden shed or greenhouse, providing a reliable electricity source for various needs. The project utilizes a pre-assembled kit, streamlining the process and ensuring component compatibility. This approach minimizes the complexities associated with individual component selection and troubleshooting, making it ideal for DIY enthusiasts. We'll walk you through each step, from strategically positioning solar panels for optimal sunlight absorption to the final testing and verification of the system's functionality.The chosen kit includes solar panels, a solar charge controller, lithium iron phosphate batteries, and a pure sine wave inverter, delivering sufficient power for modest demands. This comprehensive guide covers the safe and efficient assembly, installation, and testing of the entire system, highlighting crucial safety measures and providing practical tips for a smooth and successful installation. Whether you're a seasoned DIYer or a beginner, this guide will empower you to bring reliable, clean energy to your off-grid location.
Pros And Cons
- Complete system: includes solar panels, batteries, inverter, solar charge controller, and accessories.
- Easy to install: takes the guesswork out of compatibility.
- Suitable for modest power needs in sunny locations.
- Smart batteries with built-in protections and alerts.
- Waterproof design.
- Batteries may get hot in high temperatures, though within the operational limits specified in the manual.
Read more: InnerVenue's Forever Battery: Revolutionizing Renewable Energy Storage
Project Overview: Powering a Greenhouse
This project focuses on installing a complete off-grid power system for a garden shed/greenhouse lacking power. The goal is to provide sufficient electricity for various needs, including grow lights, garden lights, and ventilation fans.
The system will include solar panels to generate power, batteries for storage, an inverter to convert DC power to AC, and a solar charge controller to regulate the charging process.
A pre-assembled kit simplifies the process, eliminating the need for individual component selection and compatibility checks.
Choosing the Right Off-Grid Kit
Selecting a pre-assembled off-grid kit is advantageous as it ensures compatibility between components and simplifies installation.
The kit used in this project includes 4 x 100W solar panels, a 40A MPPT solar charge controller, two 12V 2400Wh lithium iron phosphate batteries, and a 12V 3000W pure sine wave inverter.
This kit is suitable for modest power demands in sunny locations, ideal for sheds, workshops, or greenhouses.
Solar Panel Installation and Wiring

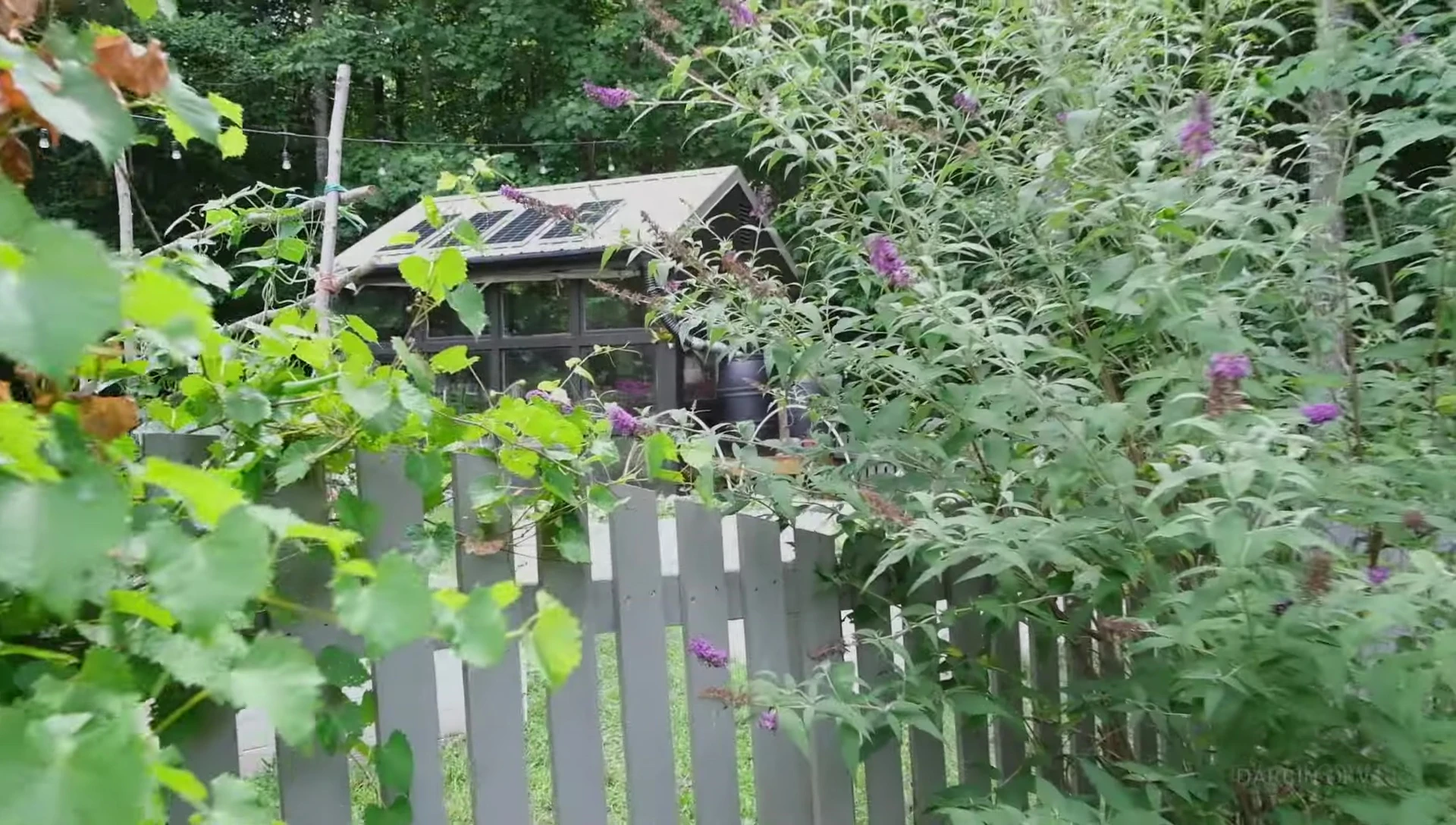

The solar panels are strategically positioned on the shed roof for optimal sun exposure. Connecting the panels involves combining positive and negative wires using combiner boxes.
Fuses are incorporated for safety and to protect the system from overcurrent. A dry run on the ground is recommended before installing panels on the roof to avoid confusion.
Proper labeling of wires during the dry run simplifies the installation process on the roof.
System Assembly and Testing
All components are neatly assembled and tested on a piece of plywood before final installation. This prevents errors during the installation.
The assembled system is mounted on a metal rack inside the shed, ensuring easy access and protection of the components.
After installation, a thorough test is performed to check voltage, power output, and overall system functionality.
System Functionality and Performance
The system efficiently delivers power, even during the late evening. The smart batteries have various safety features and a wide operating temperature range.
The system effectively powers a heater inside the shed, demonstrating its capacity to handle a load. The test shows a power input of 186 Watts even as the sun begins to set.
Careful consideration was given to overheating and battery safety, with measures taken to prevent accidental short circuits.
Conclusion: A Reliable Off-Grid Solution
The Renogy Craftsman kit provides a reliable and easy-to-install off-grid power solution for small-scale applications.
The kit's components are high-quality and well-suited for the task, providing efficient power generation and storage. The system's safety features and ease of use are significant advantages.
The project successfully demonstrates the effectiveness of a pre-assembled off-grid kit in providing power to locations without grid access.
