This article reviews a robust off-grid power system designed for year-round energy independence. The system ingeniously combines three distinct renewable energy sources – a 7kW solar array, a 1600-watt wind turbine, and a 13kW backup generator – to provide a highly reliable and efficient power solution. The author details the system's components, including a SolArk 15kW inverter, an EG4 battery rack, and a sophisticated bus bar setup for seamless energy integration. Detailed performance data illustrates the system's effectiveness and the synergistic interplay between solar, wind, and generator power.The author chronicles their experience since system installation on April 17th, highlighting the system's consistent performance and reliability. Particular attention is given to the efficient charging of the battery bank, even under varying weather conditions and with simultaneous generation from multiple sources. The review concludes with a discussion of the long-term benefits of energy independence and the overall cost-effectiveness of this multifaceted off-grid power solution.
Pros And Cons
- Provides backup power when solar and wind are insufficient.
- Efficient: 2 hours of use raises battery charge by 20% using less than 2 gallons of propane.
- Charges batteries at 60 amps, distributing charge effectively across six batteries.
- Works well with other power sources.
Read more: InnerVenue's Forever Battery: Revolutionizing Renewable Energy Storage
The Solar Array and Wind Turbine
My off-grid system boasts a 7kW solar array, cleverly divided into three legs of eight panels each. This configuration ensures efficient energy capture even in partially shaded conditions.

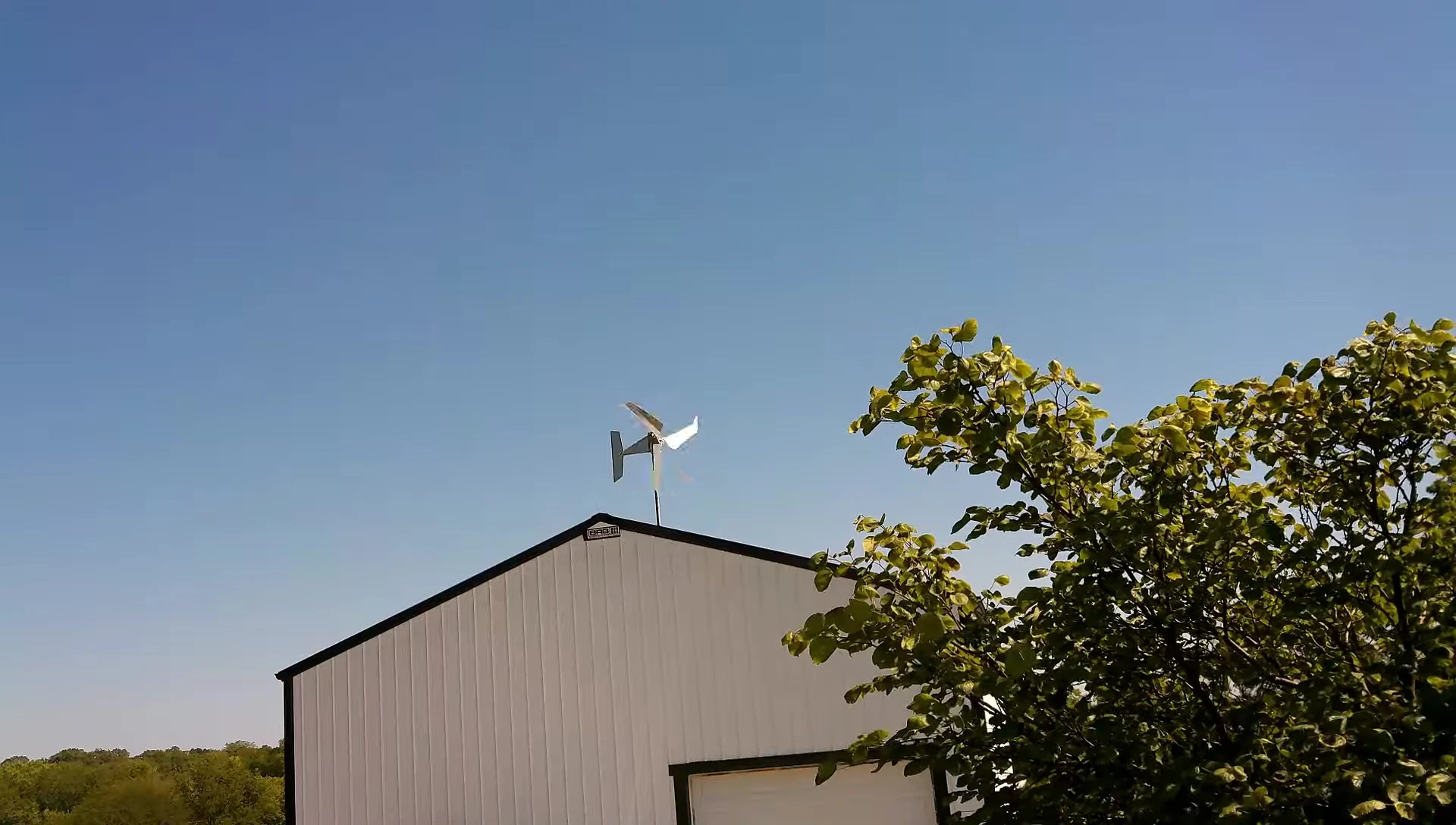

Supplementing the solar power is a 1600-watt Falcon 3 turbine from Missouri Wind and Solar. This turbine is designed for consistent energy generation, even during periods of low sunlight.
The combination of solar and wind power sources offers a robust and resilient system, capable of providing power throughout the year, mitigating the limitations of each individual source.
Backup Power and Energy Storage

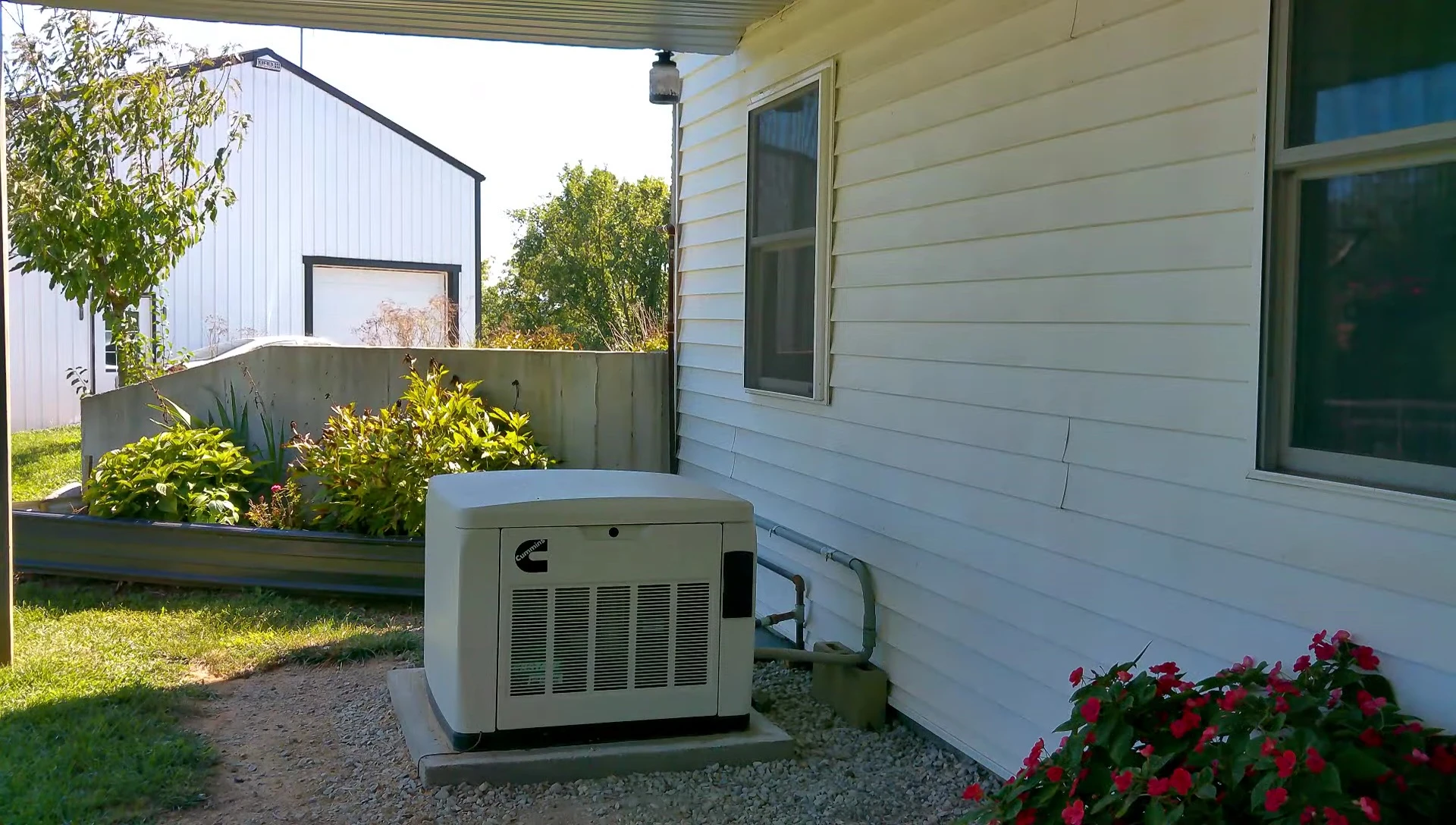

As a backup, I've installed a Cummins 13kW whole-house generator. This generator serves solely to charge the battery bank via an EG4 charge converter, ensuring uninterrupted power supply during extended periods of low renewable energy production.

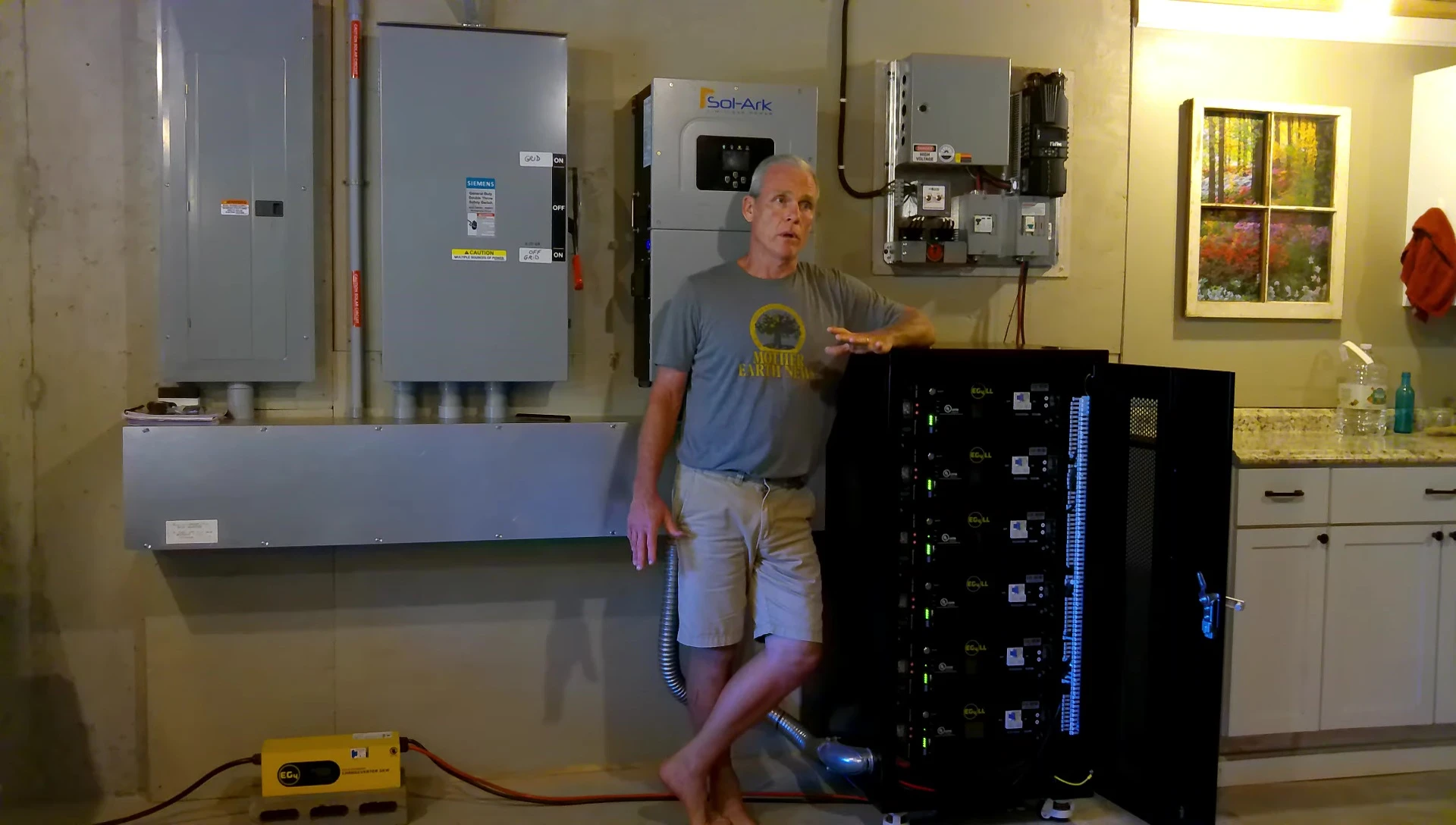

The core of my system is a 15kW SolArk inverter, an EG4 battery rack, and the control panels for the turbine and EG4 charge converter. This integrated system intelligently manages the flow of energy from various sources.
The system incorporates a sophisticated bus bar setup, seamlessly integrating power from the solar array, wind turbine, and generator. This ensures optimal energy distribution and charging of the battery bank.
Performance and System Integration
The system's performance has exceeded expectations. The three power sources operate seamlessly together, even during periods of simultaneous generation. I've monitored the battery charge rates and haven't encountered any current sharing issues.
When using the generator to charge the batteries at 60 amps, each battery charges consistently between 9.4 and 9.6 amps, demonstrating efficient energy distribution. This consistent charging remains unaffected by the addition of the wind turbine.
The turbine plays a crucial role during winter, when cloud cover reduces solar panel output. It effectively supplements solar energy production, ensuring consistent battery charging even under challenging weather conditions.
Conclusion: Off-Grid Living and Grid Connection
My off-grid journey began on April 17th, and I've been consistently impressed by the system's reliability. The backup generator, while rarely used, provides peace of mind during periods of low renewable energy production.
The system's ability to seamlessly integrate three distinct power sources—solar, wind, and generator—is a testament to its robust design. The intelligent control system ensures efficient charging of the batteries and optimizes energy use.
While the initial investment was significant, the long-term benefits of energy independence and reduced reliance on the grid outweigh the costs. My off-grid system provides a reliable, sustainable, and highly efficient power solution.
