This detailed review of Part 6 explores a practical off-grid wind turbine system, focusing on its design, functionality, and limitations. The system's core components—a wind turbine, a dual-meter monitoring system, a 24V 600W dump load ("dump bucket"), and a TRTS 45 controller—work together to generate and manage power efficiently. The review highlights the system's real-time power generation monitoring and its ability to handle fluctuating wind speeds by preventing battery overcharging through intelligent dump load activation. This ensures optimal battery health and system longevity.However, the review also acknowledges the current system's limitations, primarily its single-battery configuration, which restricts energy storage capacity. This limitation impacts performance during low wind or high energy demand periods. The article concludes by suggesting improvements, such as expanding the battery bank and potentially upgrading the dump load system, to enhance the system's overall reliability, resilience, and energy output. These enhancements would significantly improve the system's suitability for off-grid applications.
Read more: InnerVenue's Forever Battery: Revolutionizing Renewable Energy Storage
Power Generation and Monitoring

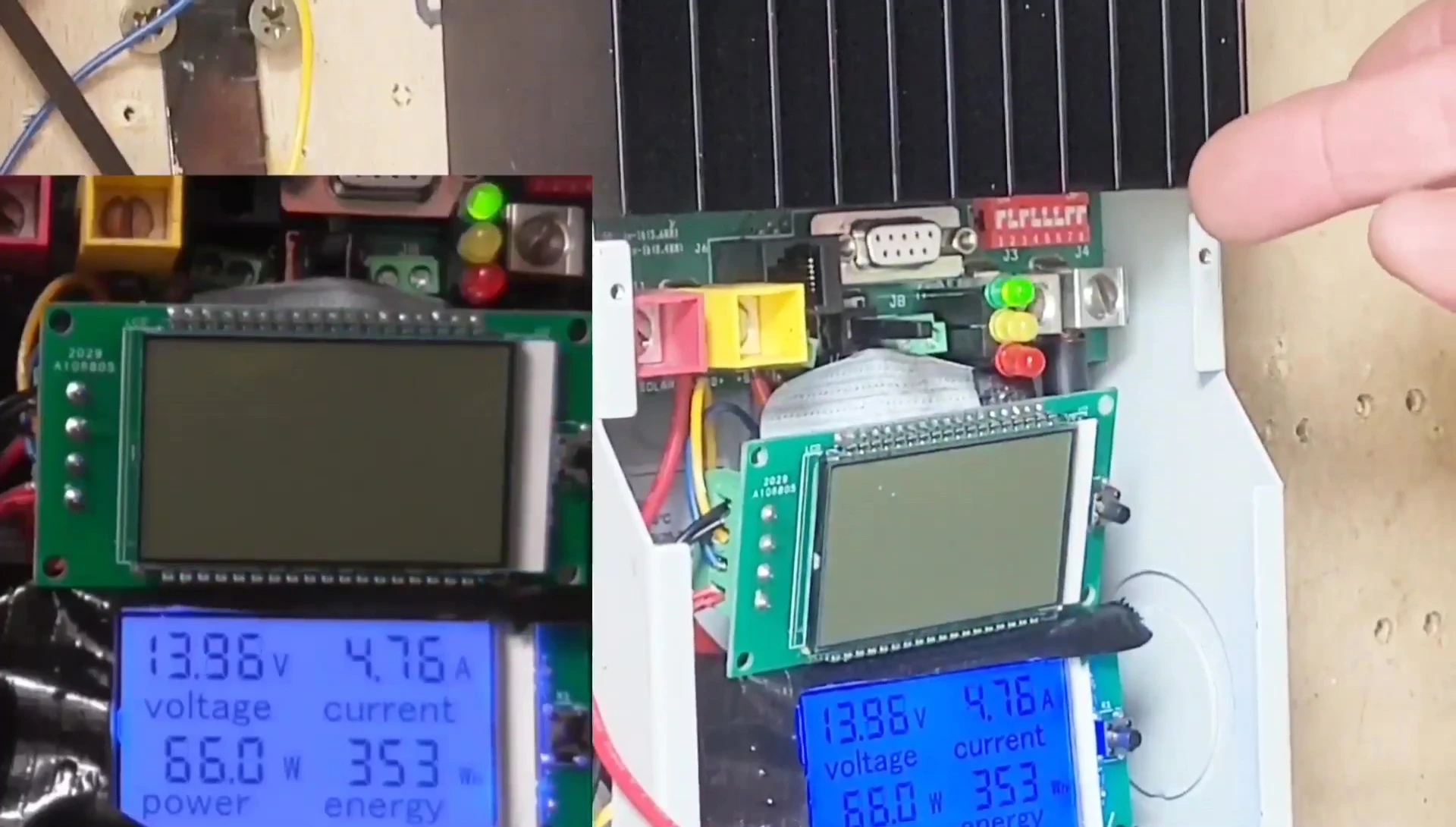

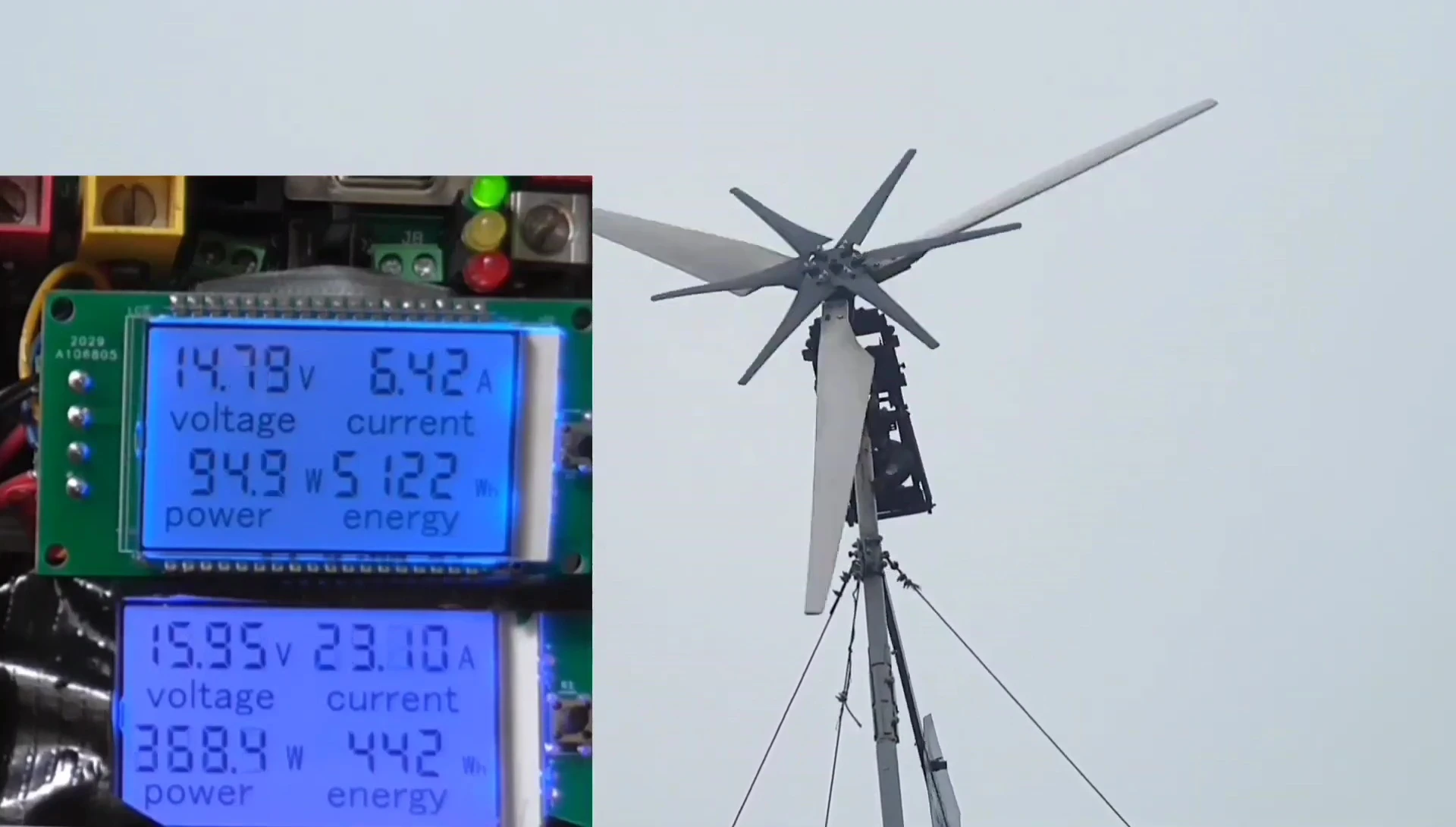

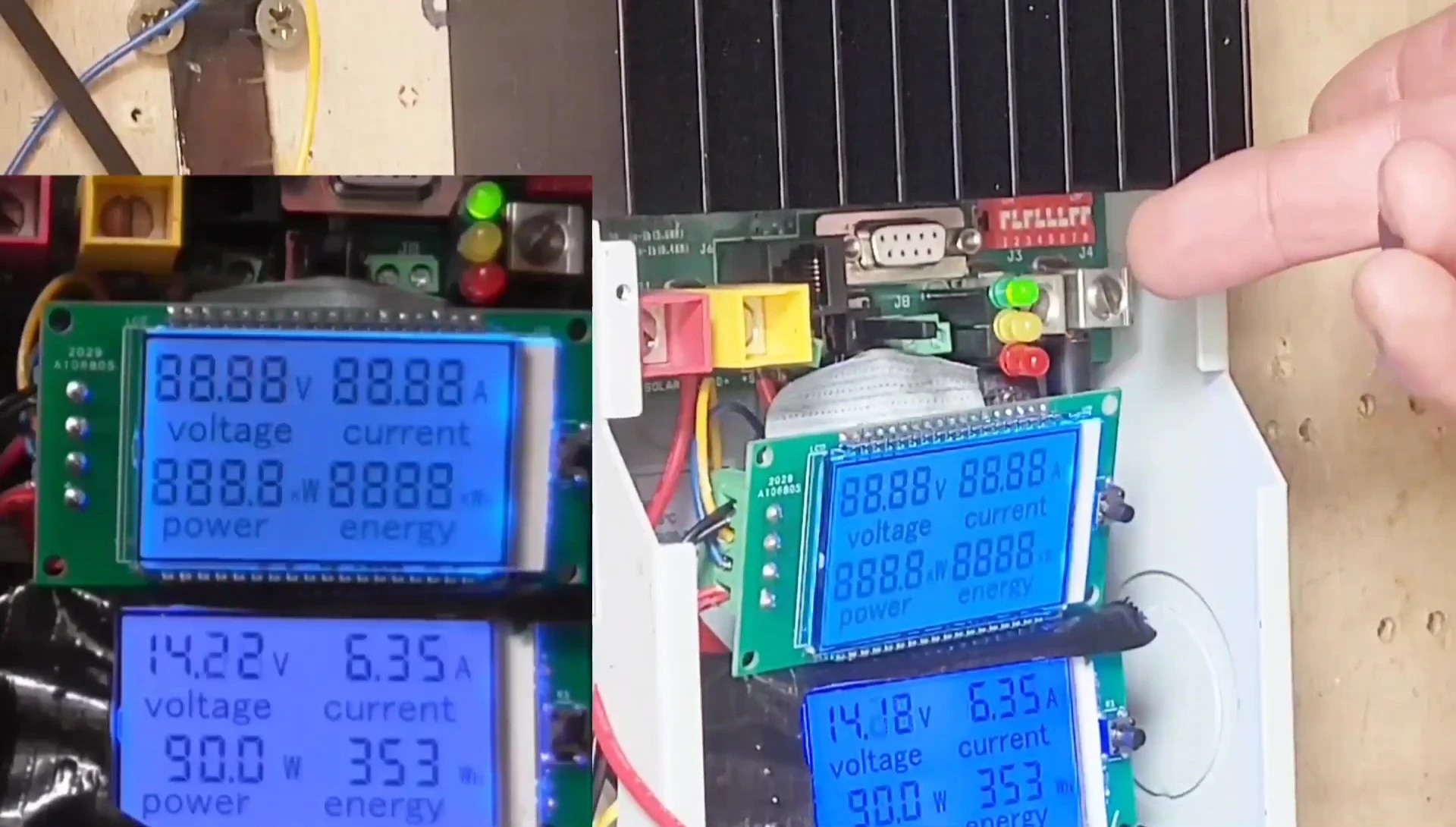

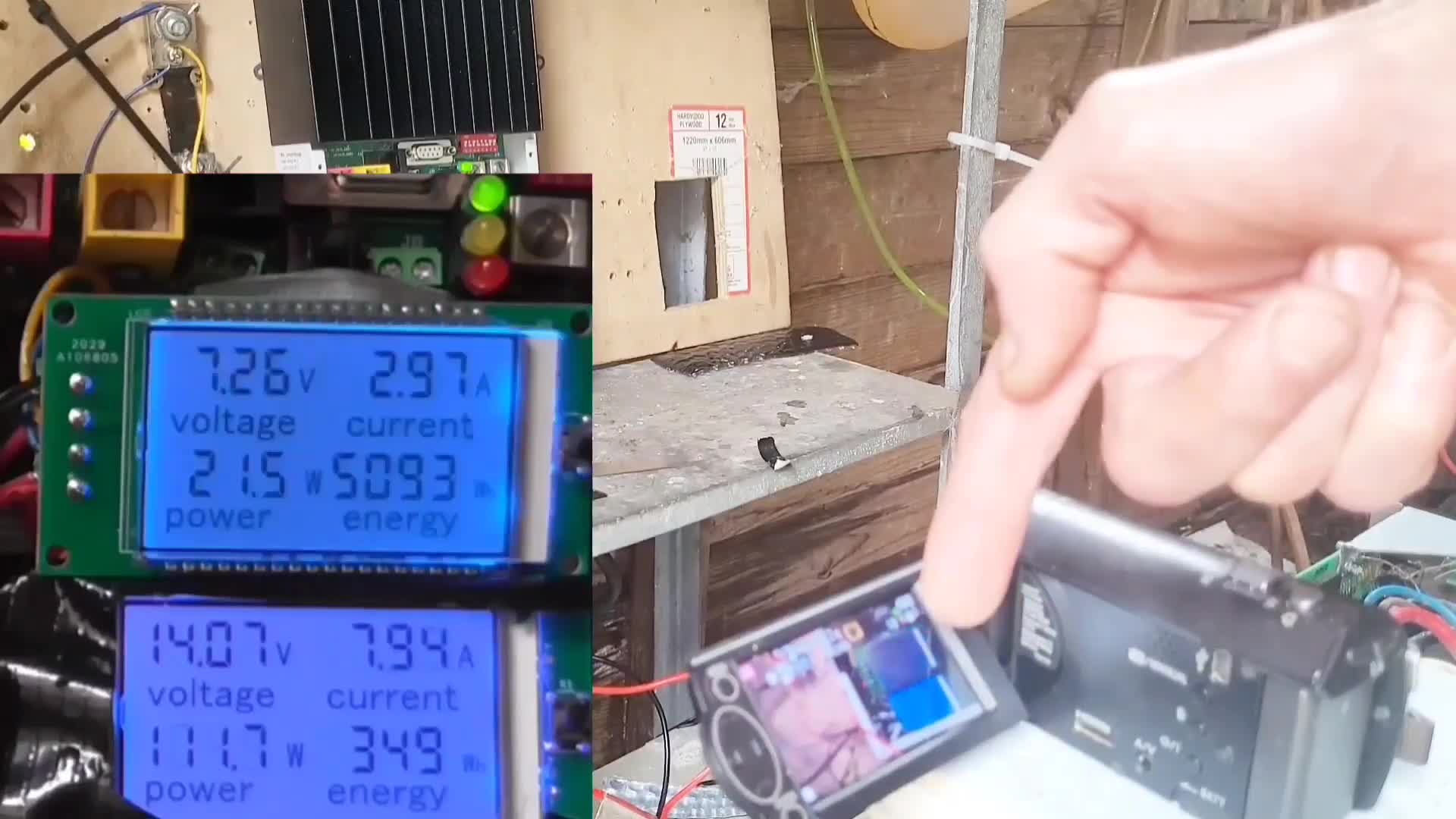

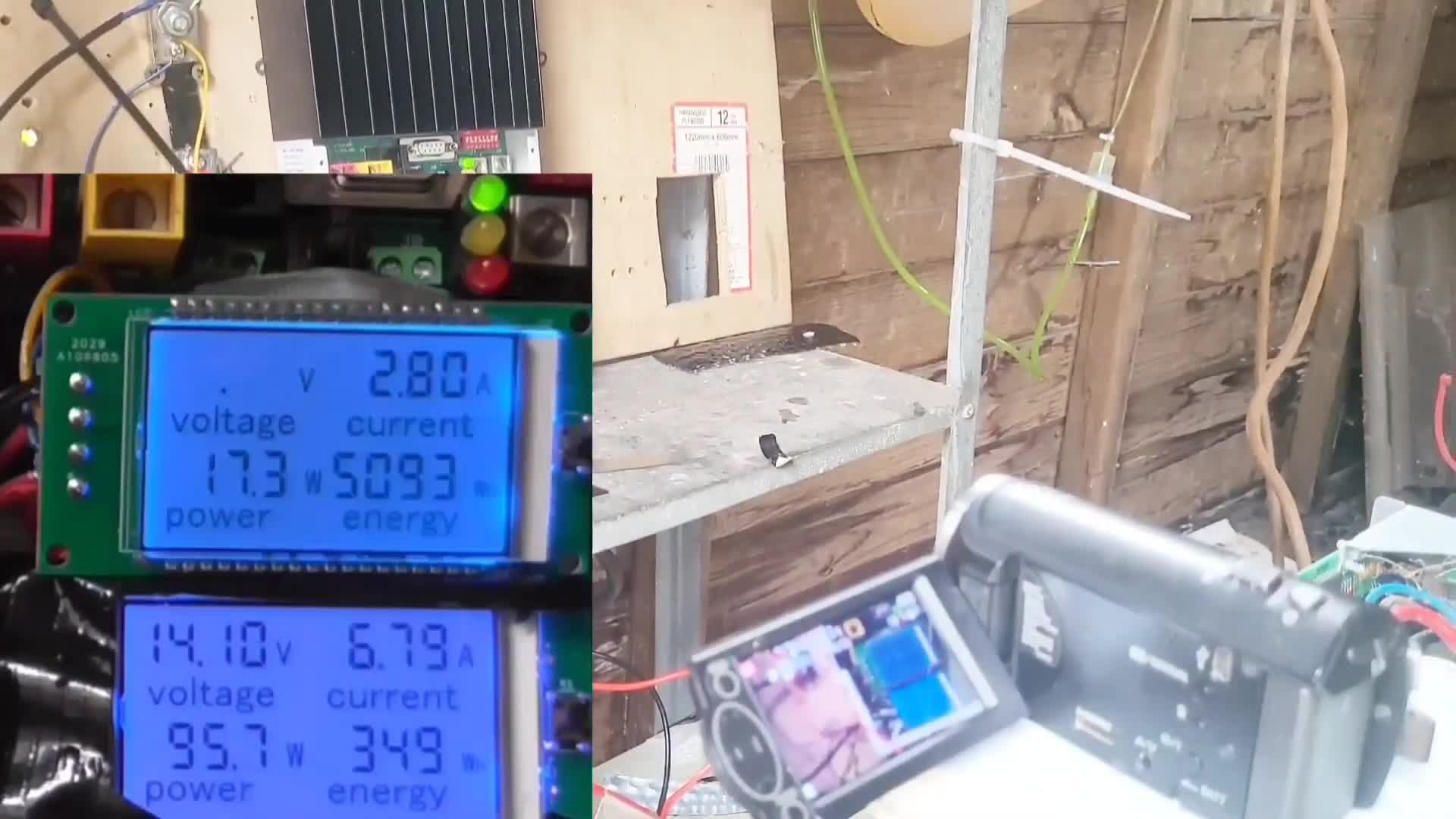

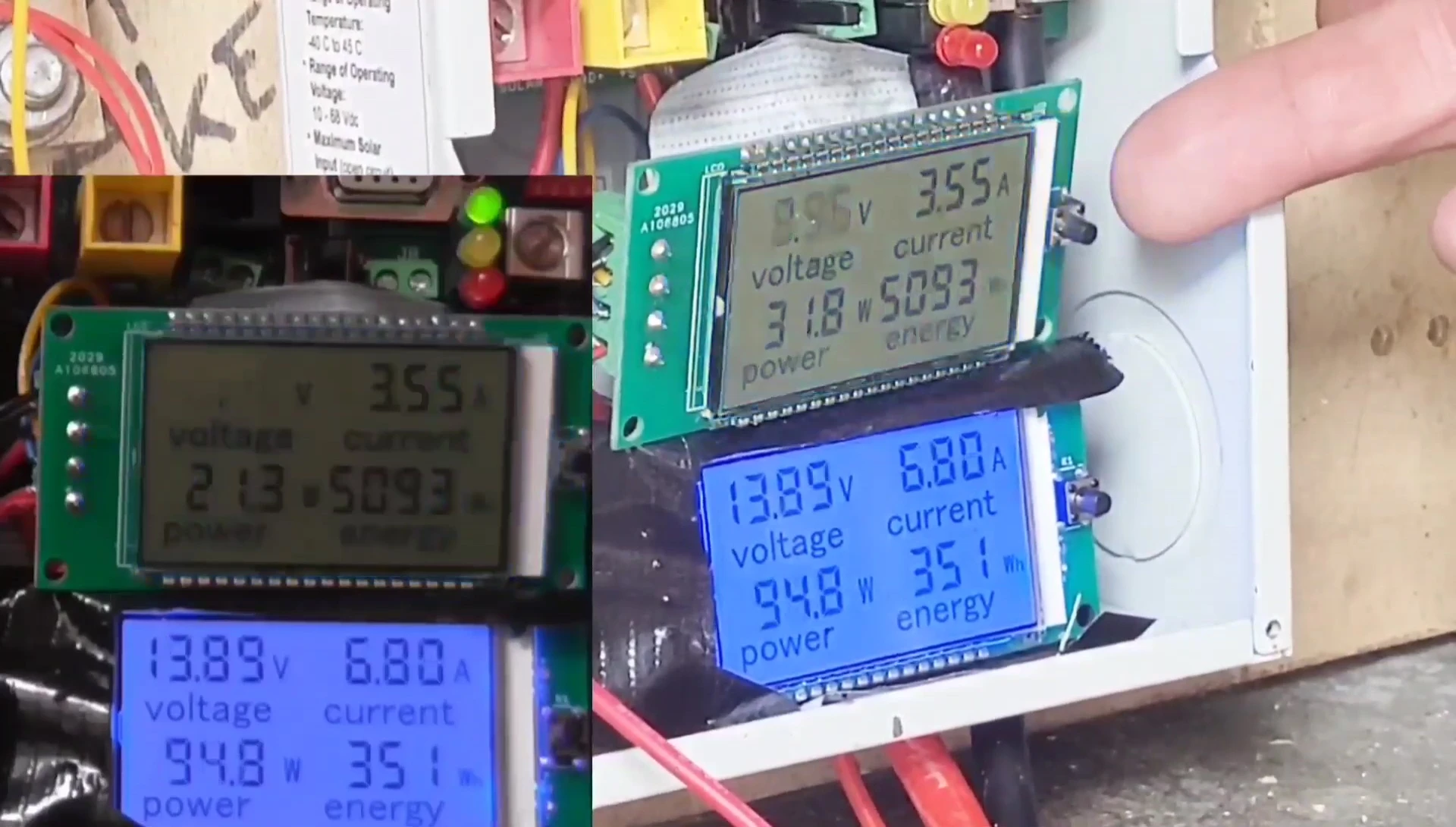

This video showcases a wind turbine system designed for off-grid applications. A key feature is the dual-meter system; one meter displays the power generated by the turbine in real-time, providing immediate feedback on energy production. The second meter monitors the dump load, a crucial component for managing excess energy.
The system's effectiveness is evident in how it handles fluctuating wind conditions. When wind speeds increase, the power generation rises correspondingly, and the dump load kicks in to prevent overcharging. This ensures optimal battery health and system efficiency.
Dump Load Management and Battery Charging
The system incorporates a 24V 600W dump load, referred to as a 'dump bucket,' to handle surplus energy generated by the turbine. This prevents overcharging of the battery bank, a critical aspect of off-grid system longevity and safety. The dump load activates once the voltage exceeds a certain threshold, effectively managing excess power.
The system's controller, a TRTS 45 operating in 12V mode, plays a vital role in regulating energy flow. The controller monitors battery voltage and activates the dump load appropriately. This intelligent control mechanism ensures that the batteries are charged efficiently while avoiding damage from overcharging.
System Performance and Limitations
While the video demonstrates the system's ability to generate and manage power effectively, the limitation of having only one working battery is noted. This restricts the overall energy storage capacity, which could impact the system's performance during periods of low wind or high energy demand. The float voltage is set at 13.8V, which is a standard setting for lead-acid batteries.
The system's performance is largely dependent on wind conditions. The video shows that when the wind increases, the energy generation rises, leading to a higher dump load activation. The system's efficiency could be improved with a larger battery bank, allowing for greater energy storage.
Conclusion: System Suitability and Future Improvements
This off-grid wind turbine system, as demonstrated in this video, shows promise for small-scale power generation. The dump load system is a valuable feature for safety and efficiency, ensuring optimal battery charging. However, the current setup is somewhat limited by having just one battery in operation.
Future improvements could include expanding the battery bank for increased storage, which would enhance the system's reliability and resilience in variable wind conditions. Upgrading to a larger dump load system would also accommodate higher energy generation capacity, effectively maximizing the system's potential output.
