This guide provides a beginner-friendly walkthrough of building a robust off-grid power system for van life using Victron components. We'll cover the essential elements, from battery selection and configuration to solar panel integration and intelligent power management. Learn how to safely and effectively combine solar power, lithium batteries, and a versatile inverter/charger to create a reliable and adaptable power solution for your van. This step-by-step approach will empower you to build a system that meets your specific needs, ensuring a comfortable and energy-independent life on the road.Whether you're a novice or have some DIY experience, this guide demystifies the process of designing and installing a Victron-based off-grid system. We'll detail the crucial safety aspects, emphasizing proper wiring, fuse selection, and the role of a Battery Management System (BMS). Through clear explanations and practical examples, you’ll gain the confidence to construct a power system that's both efficient and safe, allowing you to enjoy the freedom of van life without worrying about power limitations.
Pros And Cons
- Designed to turn off the DC-DC charger using the remote switch
- Prevents damage to smart battery protect from excessive reverse voltage
- Reads real-time data from batteries
- Reacts to faults and prevents damage
- Charger and inverter in one unit
- Converts DC to AC power and vice versa
- Multiple AC and DC outputs
- Provides overview of the entire system
- Can be displayed on a screen
- Has additional inputs for future use (temperature sensors, tank sensors)
Read more: InnerVenue's Forever Battery: Revolutionizing Renewable Energy Storage

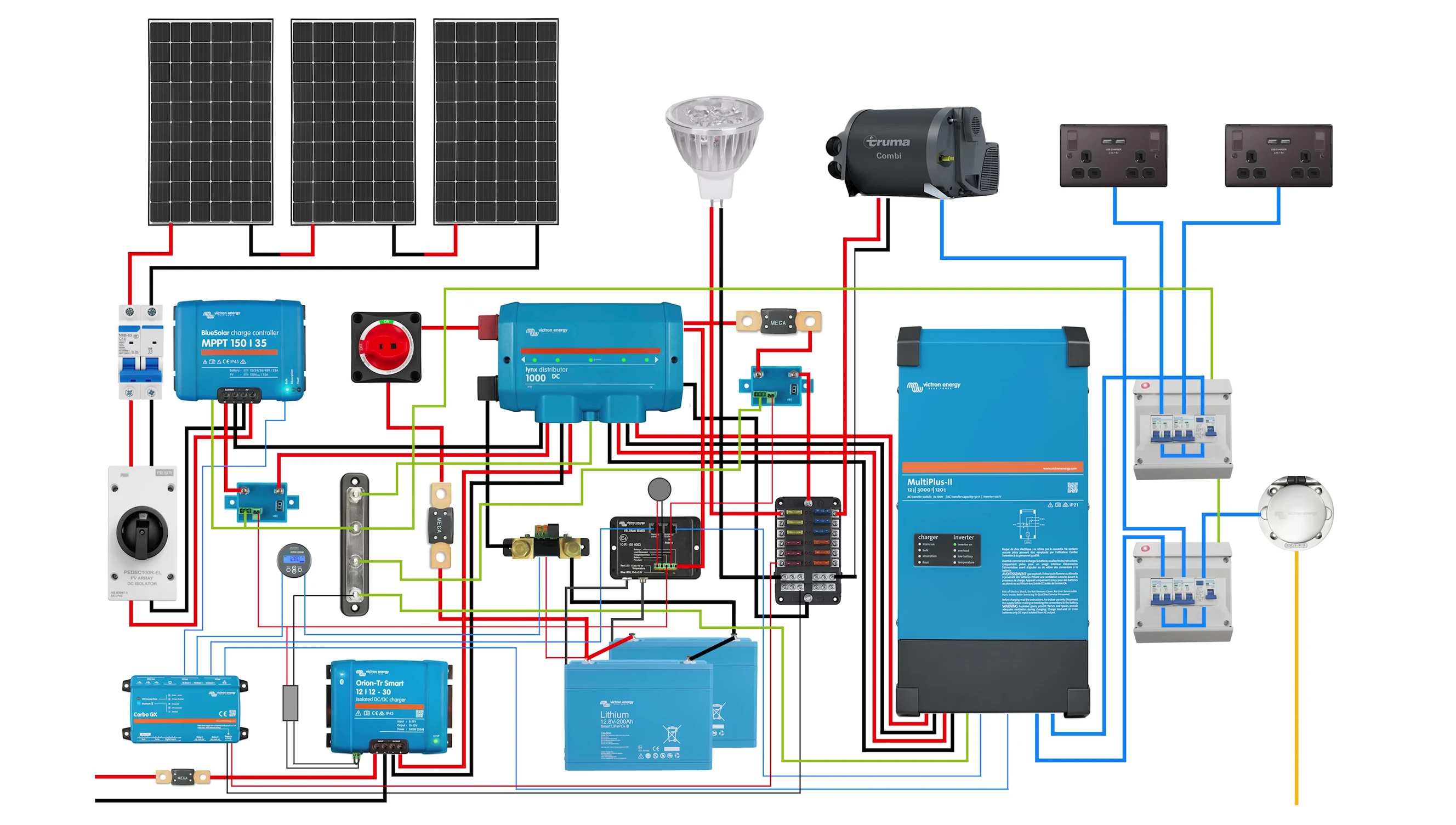

Battery Setup: Parallel Connection for 400Ah
I opted for two Victron 200Ah 12V lithium batteries, creating a powerful 400Ah system through a parallel connection. This configuration doubles the capacity without increasing the voltage, ideal for my needs. Connecting the positive and negative terminals of the batteries is crucial, ensuring proper system performance and capacity.
To prevent wire clutter and ensure efficient energy distribution, I incorporated a bus bar. This simplifies the wiring, making the connections more organized and accessible. Remember, proper fuse and cable sizing is crucial for safety and preventing fire hazards.
Careful consideration of cable and fuse sizing is paramount to avoid fire hazards. Overloading wires can lead to burning and potential damage. A correctly sized fuse should blow before the wire overheats, safeguarding your system. Using a wiring guide helps ensure these safety precautions are met.
Lyns Distributor: Organized Power Distribution
Instead of directly connecting devices to the batteries, I used a Lyns distributor. This device simplifies the management of multiple circuits, making fuse replacement easier and providing visual indicators for blown fuses. This allows for a much more streamlined system.
The Lyns distributor acts as a centralized hub, making it straightforward to identify and address issues if a fuse blows. The integrated fuse holders and visual indicators significantly enhance troubleshooting and safety. The convenience of the design significantly simplifies maintenance.
Before adding devices, completing the circuit to the distributor is crucial. Adding a fuse between the batteries and distributor is essential. A switch is installed to easily disconnect the batteries during maintenance or system work.
Solar Power Integration: 3 x 175W Panels in Series
Three 175W solar panels are connected in series on the roof, generating a 36V circuit. This configuration increases the voltage, which is crucial for efficient charging with my MPPT controller. Wiring them in series is a specific decision based on system requirements.
An MPPT controller converts the 36V solar panel output to 12V, making it compatible with the battery system. It is essential to select an MPPT controller suited to your system's specifications. The installation involves connecting the panels to the controller and then to the Lyns distributor.
An isolator switch is added to control solar power input. This allows for safe system work by disconnecting the solar panels. This switch prevents accidental charging during maintenance and enhances safety.
Victron MultiPlus II: Inverter/Charger Functionality
The Victron MultiPlus II serves as both an inverter and a charger, handling 240V AC and 12V DC. This versatility allows for flexibility in power sources (shore power and batteries). This provides significant power management options.
Shore power connects to a consumer unit with an RCD for safety, powering devices directly or through the inverter. The MultiPlus II converts 240V AC from shore power to 12V DC for the battery system. The device also allows for charging the 12V system through the inverter.
The MultiPlus II's AC output feeds additional consumer units, RCDs, and MCBs for separate circuits in the van. The 12V DC output of the MultiPlus supports the 12V system when off-grid. This versatility offers many advantages.
12V Load Distribution and BMS Integration
A blade fuse holder distributes 12V power to various loads. It's connected to the Lyns distributor, ensuring efficient power routing. This simplifies the distribution process and enhances system reliability.
The Battery Management System (BMS) monitors battery health and safety. It prevents damage through various measures, including temperature and voltage monitoring. This ensures the longevity and safety of the lithium batteries.
The BMS integrates with several system components, including the MultiPlus II (via the RJ45 cable) and the 12V distribution panel (using a Smart Battery Protect). This creates a comprehensive monitoring and safety system for the entire setup.
System Monitoring and Safety Features
The Victron Cerbo GX provides system monitoring. It displays information on a screen, offering a comprehensive overview of power levels and other data. This allows for easy monitoring of the entire off-grid setup.
Load and charge disconnects ensure safety. The BMS automatically shuts down the system if issues arise (overloads or overcharging), protecting the batteries from damage. Smart Battery Protects provide additional safety measures.
The system incorporates multiple safety features to protect the batteries. Alarms (visual and audible) warn of potential problems, and disconnects prevent damage in case of faults. This comprehensive setup ensures safe and reliable operation.
Conclusion: A Comprehensive Off-Grid Solution
This Victron off-grid system offers a robust and reliable power solution for van life. The combination of solar panels, batteries, an inverter/charger, and comprehensive monitoring provides flexibility and safety. The system is adaptable and highly reliable.
The step-by-step installation process, aided by the detailed wiring guide, makes it manageable for beginners. The clear instruction and numerous safety features help ensure a successful installation and safe operation. The well-organized system is highly scalable and adaptable to various needs.
While the initial setup involves several components, the overall design is user-friendly and effective. The result is a safe and efficient off-grid power solution that enhances the van-life experience. This system is a great option for those looking for reliable power.
