This article details a hands-on experiment evaluating the practicality of using a small-scale wind generator for home power generation. The author meticulously documents the process, from initial testing of the generator's core functionality to the complexities of mounting, rectifying the AC output to usable DC, and ultimately assessing the system's power output under varying wind conditions. The experiment involved overcoming several unexpected challenges, including inaccurate product specifications and limitations with initially chosen components like the MPPT controller.The findings offer a realistic perspective on the limitations of small wind turbines for residential use. The author analyzes the performance data, comparing the power generated against the effort and expense required for installation and setup. Ultimately, the experiment concludes with a critical evaluation of the technology's viability for average households, suggesting alternative energy solutions may be more suitable for most home energy needs.
Pros And Cons
- Performed better than the first generator.
- Reached peaks of up to 15 volts DC at wind speeds of 4-5 m/s.

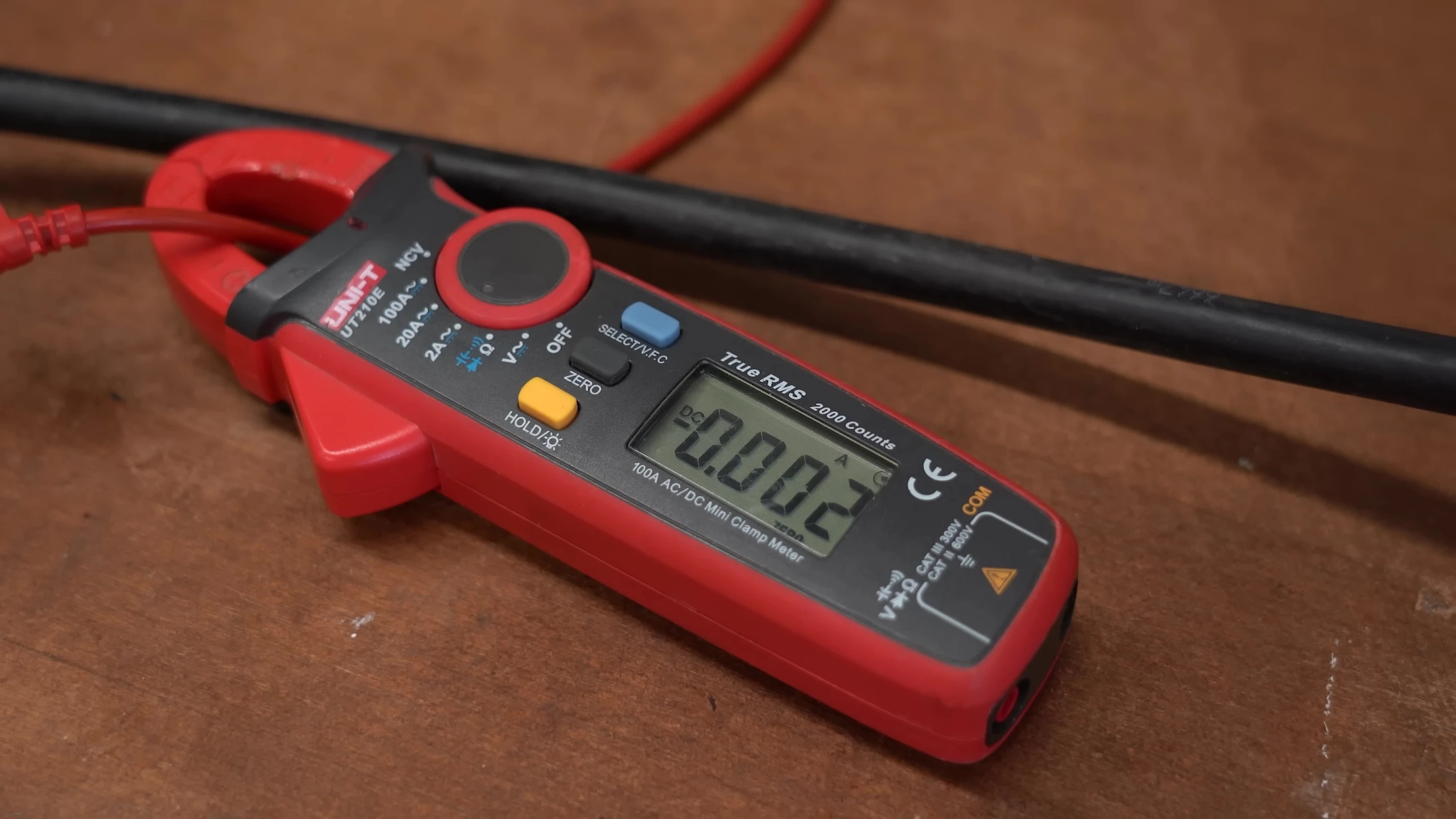

- Able to charge a battery with peaks of up to 100 milliamps at 4-5 m/s wind speed.
- Still produces low power (around 1.5 watts) at moderate wind speeds (4-5 m/s).
- Generates electrical energy from wind.
- Three-phase AC voltage output.
- Initial testing results were unsatisfactory.
- Product page information was inaccurate (regarding the mounting hole diameter).
- Output voltage too low for direct use with 12V DC battery or 48V solar battery system.
- Requires additional power converter to convert AC to suitable DC voltage.
- Needs a Maximum Power Point Tracker (MPPT) for optimal performance.
- Low wind speeds yield insufficient power for practical use. Only produced around 1.5 watts of power at moderate wind speeds (4-5 m/s).
Read more: InnerVenue's Forever Battery: Revolutionizing Renewable Energy Storage

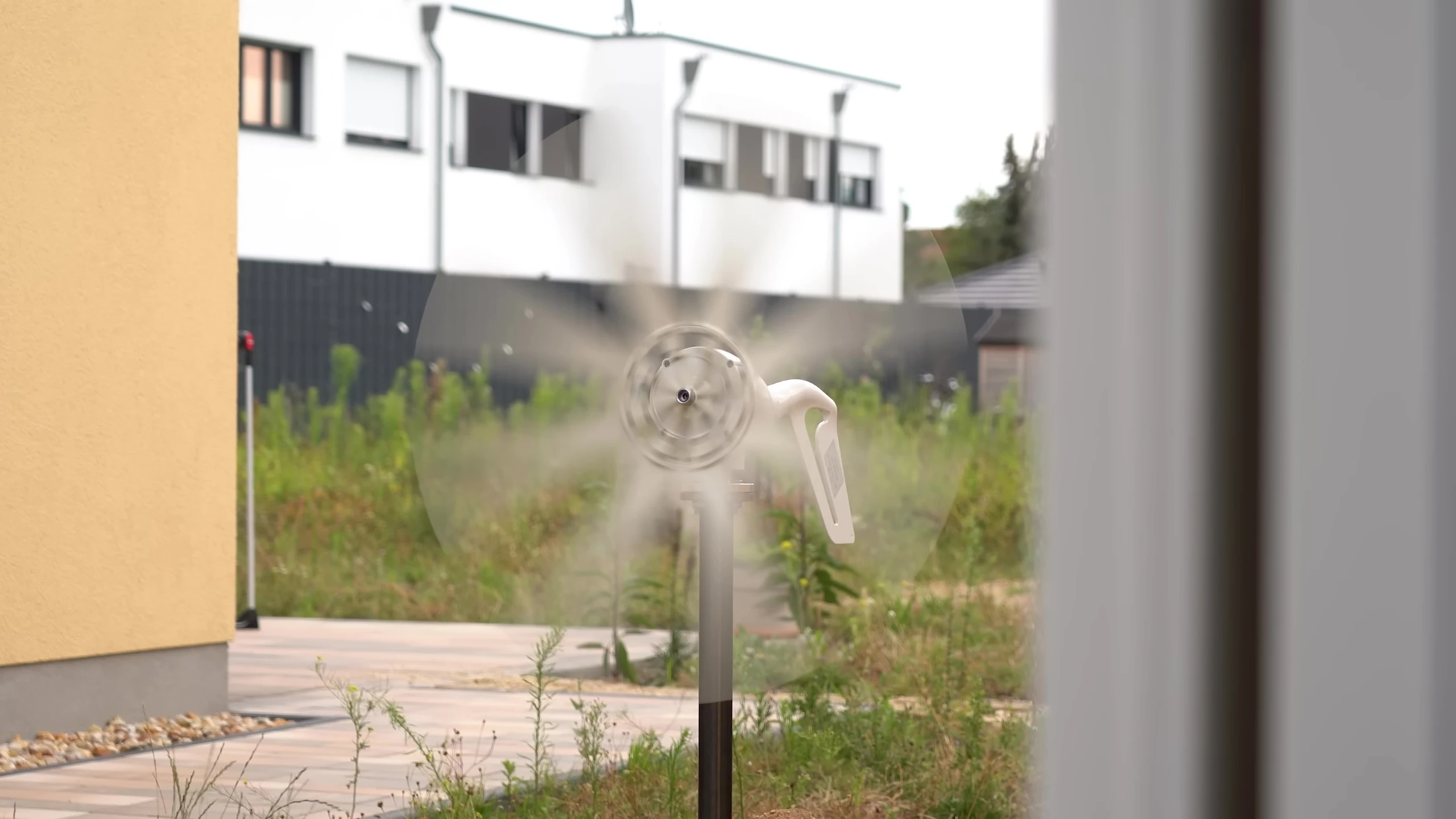

Testing the Wind Generator's Functionality

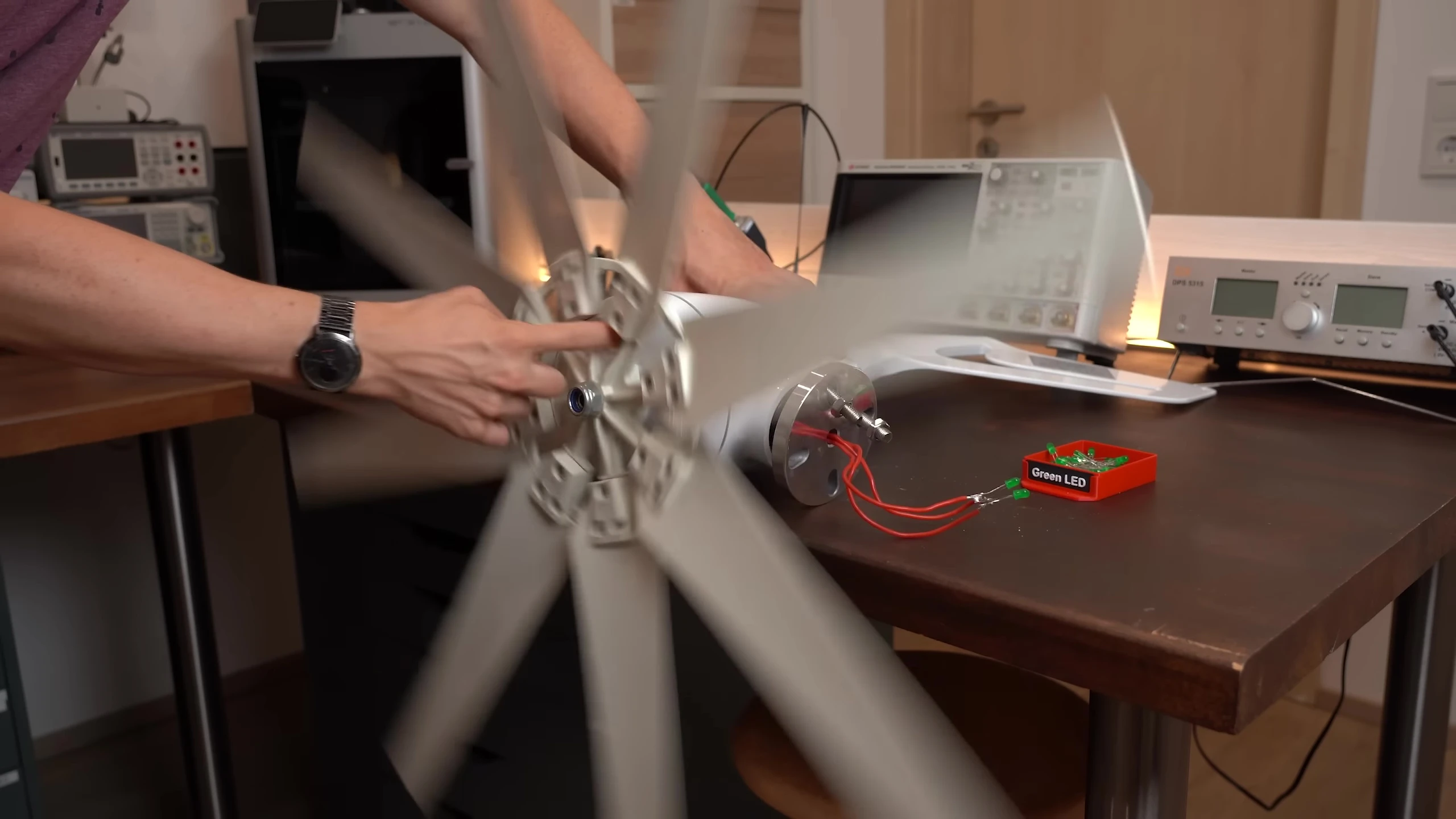

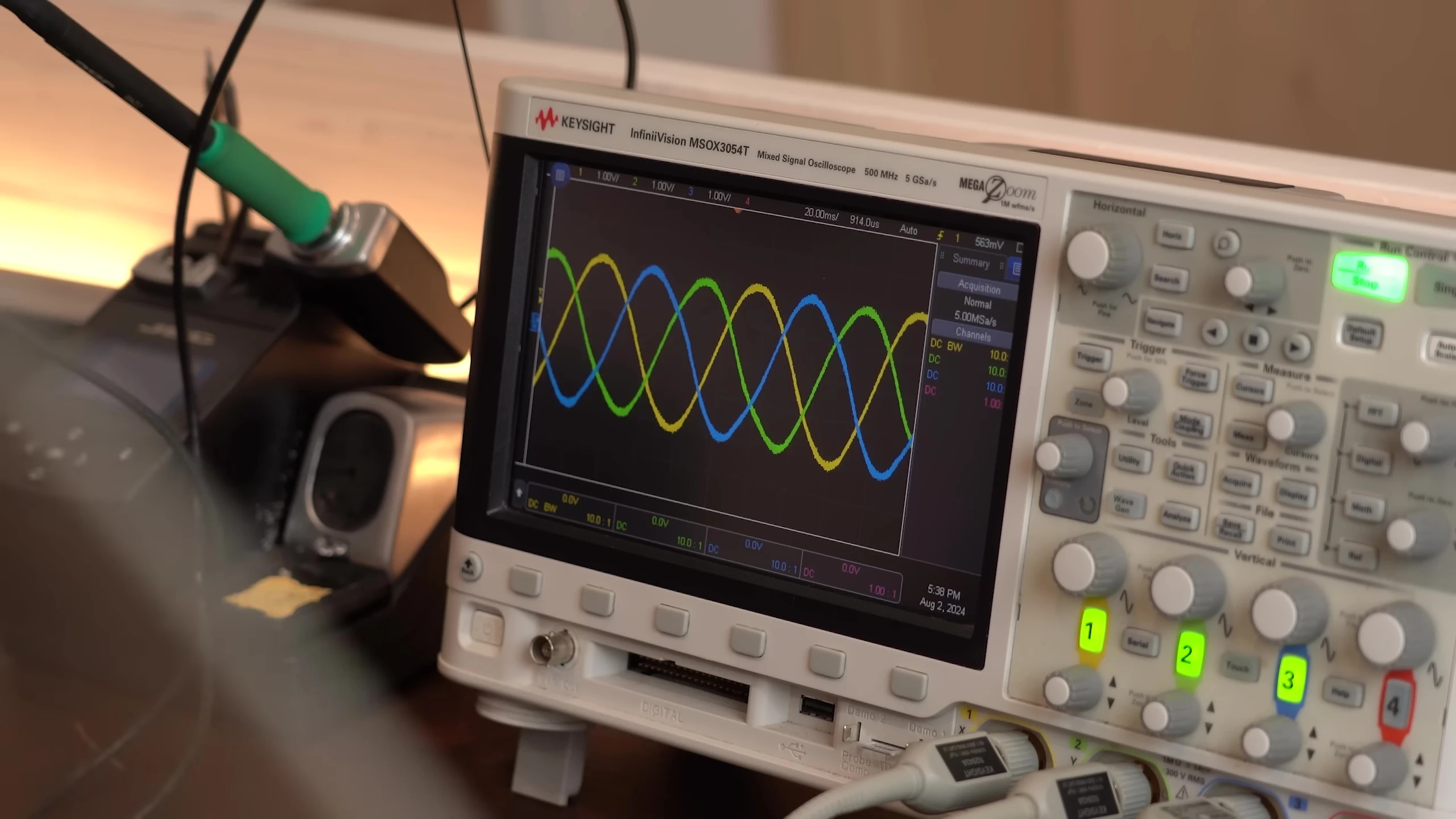

My experiment began with verifying the wind generator's core function: converting wind energy into electricity. Using an LED test, I confirmed the generator produced a three-phase AC voltage. The LEDs illuminated sequentially, demonstrating the alternating current. This confirmed it's functioning as a generator, not just a spinning toy. This basic functionality was a crucial first step before proceeding to more complex tests and modifications.

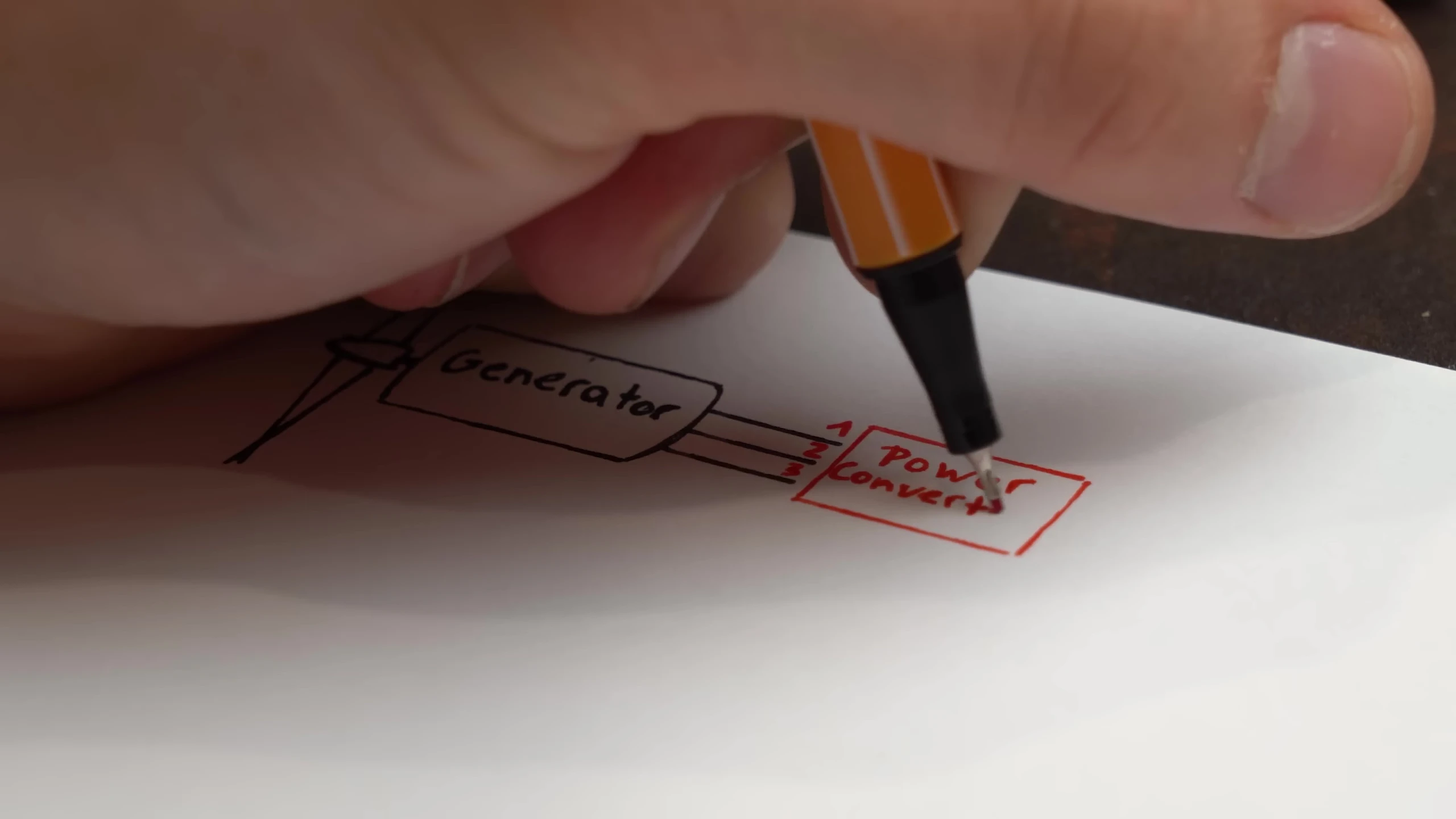

The three-phase AC output is unsuitable for direct use with typical DC batteries. Therefore, I will need a rectifier to convert this AC voltage into a more usable DC voltage compatible with my home energy setup.
Mounting and Installation Challenges

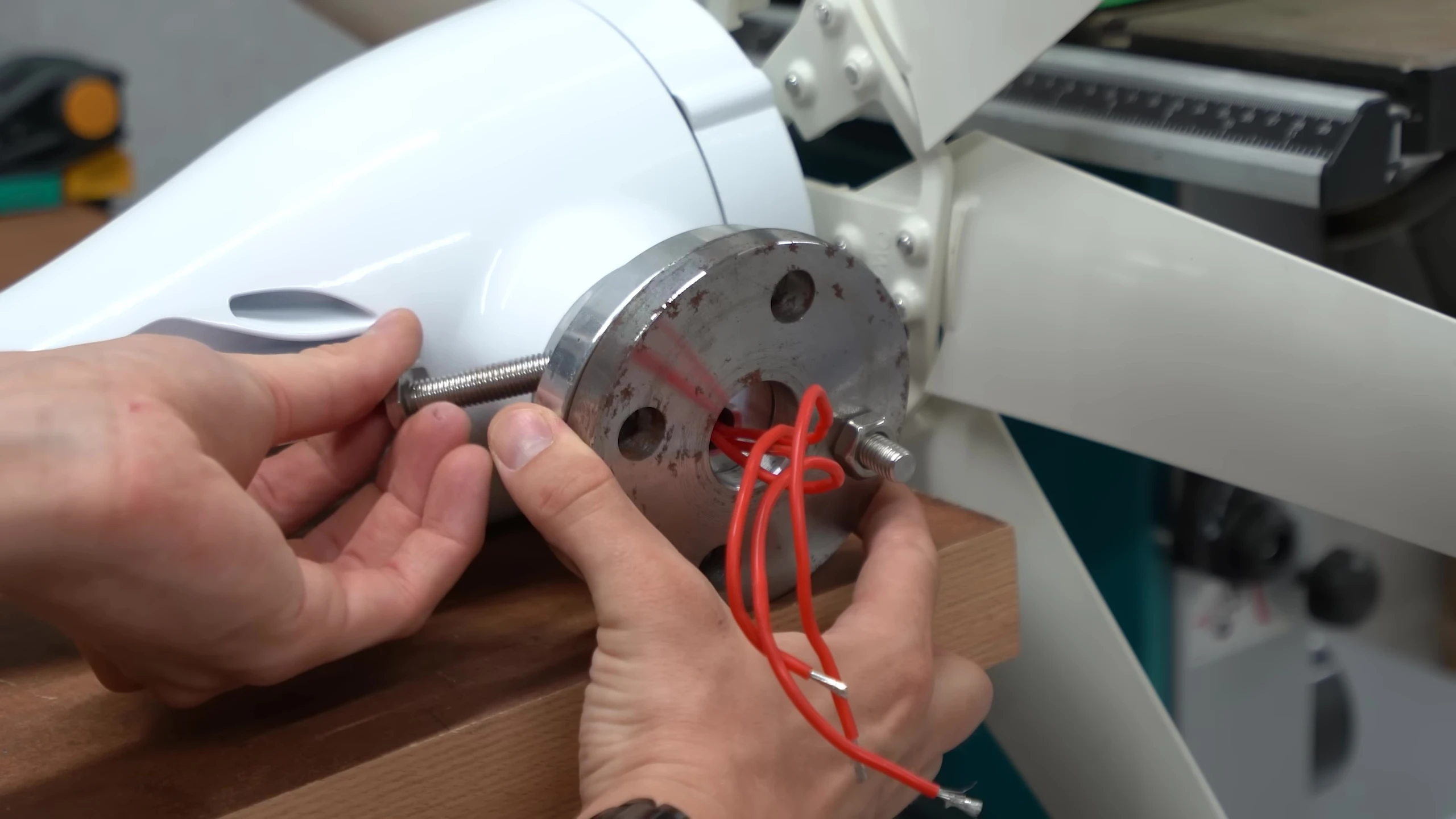

Mounting the wind generator was more complex than expected. The product description misrepresented the mounting hole's diameter, leading to unexpected challenges in securing the generator. I initially planned to use a standard pipe and concrete, but the inaccurate dimensions forced me to adapt. This highlighted the importance of verifying product specifications independently.

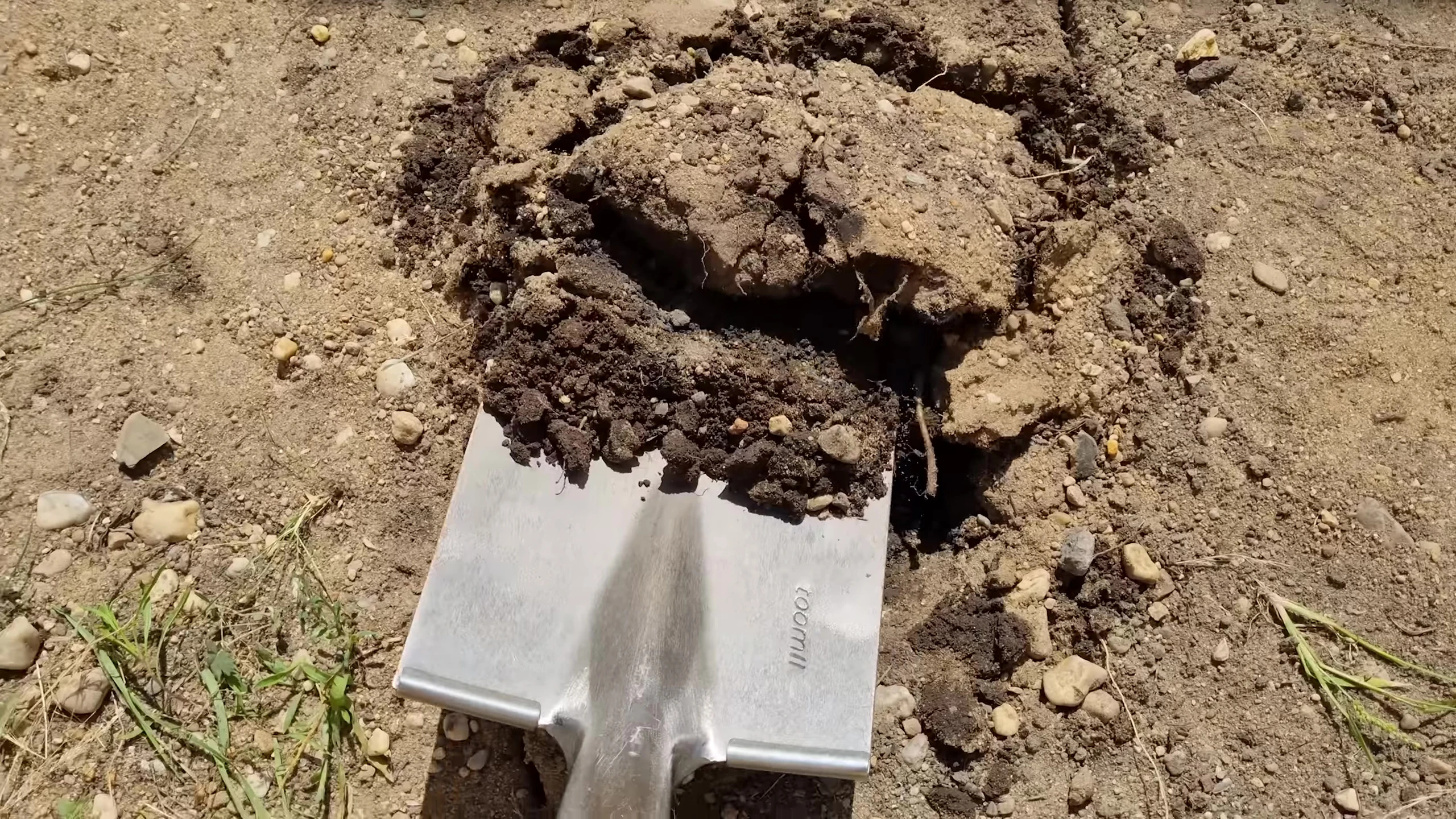

Instead, I utilized a ground sleeve intended for a clothes dryer. This involved digging, creating a concrete base, and integrating the sleeve for a stable and secure mounting. Welding was also necessary to connect the generator to the pipe, a task I tackled for the first time.
Unexpected problems like the inaccurate mounting hole dimensions demonstrated the need for careful planning and attention to detail during the setup and installation. It highlights the potential for unforeseen challenges when working with off-the-shelf components.
Power Conversion and MPPT
Converting the three-phase AC to usable DC required more than just a simple rectifier. I needed a Maximum Power Point Tracker (MPPT) to optimize power transfer and prevent overloading the generator. The initial rectifier provided insufficient voltage.
The MPPT controller I selected proved to have limitations. It only functioned effectively with input voltages above 15V DC, a threshold my wind generator rarely reached under typical wind conditions. This highlighted the need for an MPPT controller compatible with lower voltages.
The experiment underscored that a simple rectifier isn't sufficient and that the right MPPT controller is essential for efficiently using the wind generator's output. MPPT controller selection must take into account typical output voltage from the generator under normal wind conditions.
Testing and Results: A Disappointing Outcome

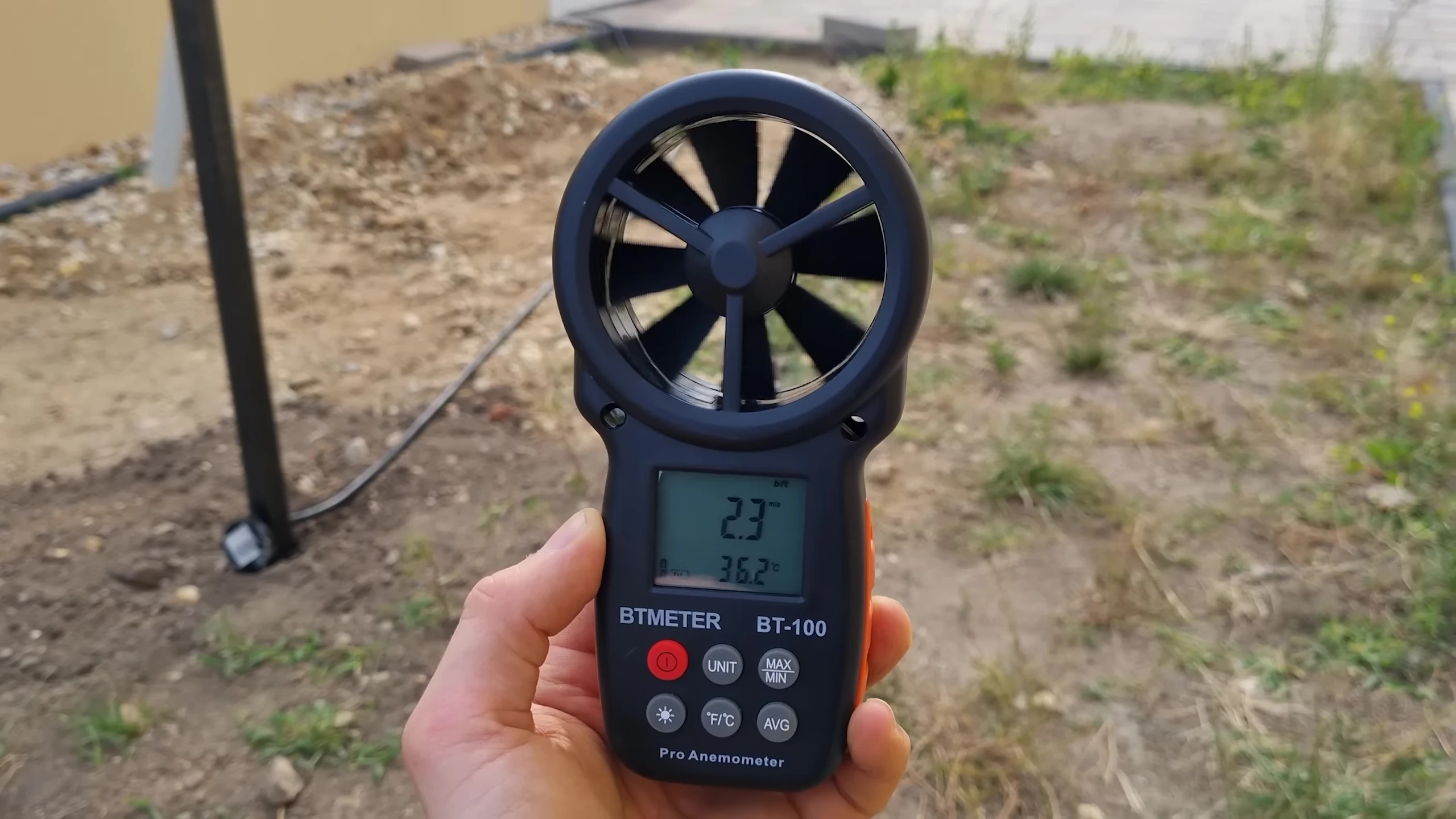

Even with the MPPT controller, the wind generator's performance was underwhelming. At common wind speeds of 3 m/s, there was minimal power output. Higher wind speeds (4-5 m/s) produced slightly better results, but still far from practical for home use.

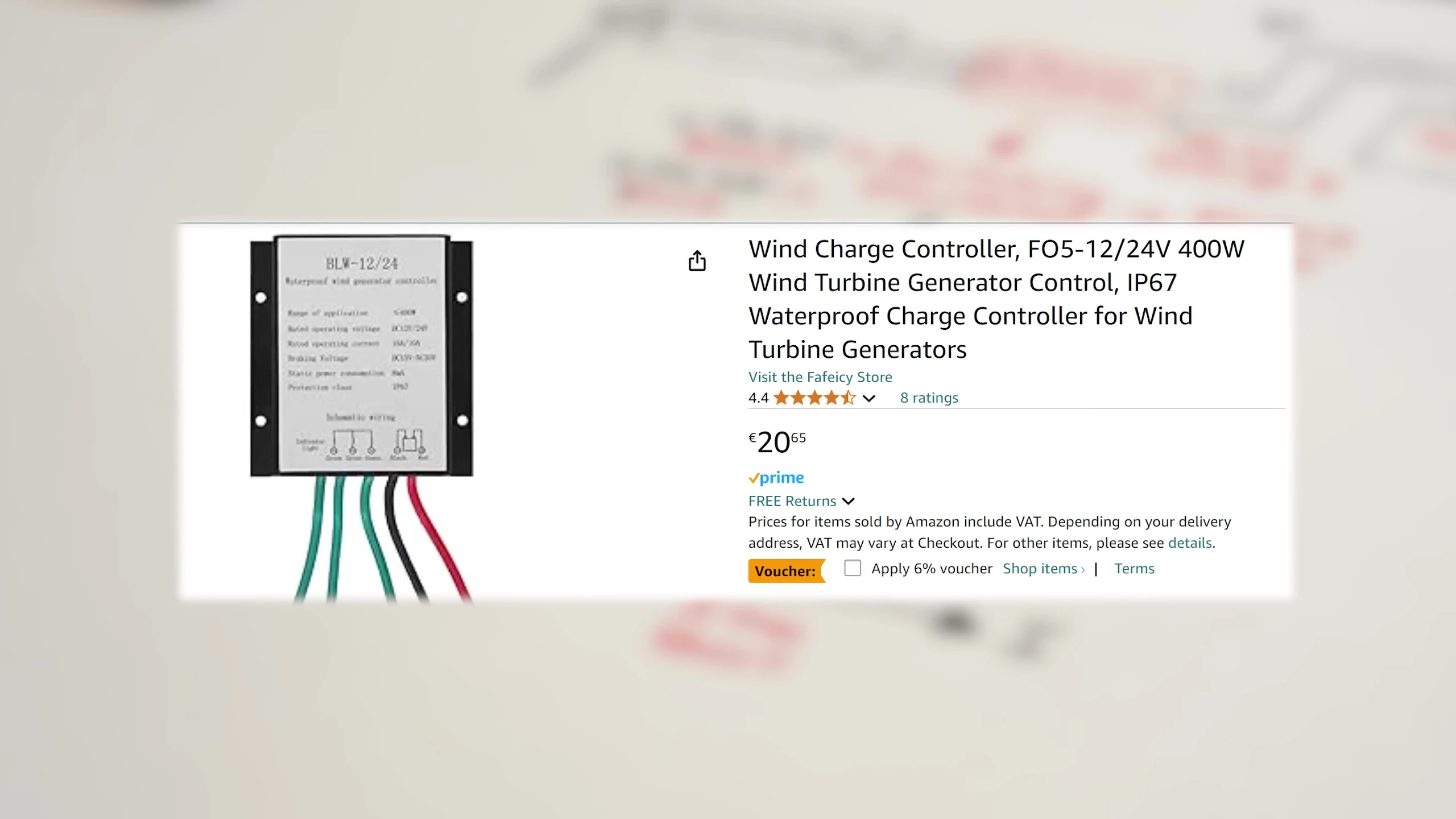

The second wind generator, though cheaper, also yielded disappointing results, even with my original wind controller. This reinforced the fact that small-scale wind generators are insufficient for reliable power generation in areas with moderate wind speeds. Modifications or a completely new approach were considered.
The findings confirm that this small wind generator requires significantly higher wind speeds to be effective. This raises questions about the practicality and efficiency of these devices for general home power generation in most settings.
Conclusion: Are Small Wind Generators Worth It?
Based on my extensive testing and analysis, small-scale wind generators are generally not practical for most home energy needs under normal wind conditions. The cost, installation effort, and reliance on high wind speeds for effective output outweigh the potential benefits. The low power generated at common wind speeds renders these generators ineffective.
For home power, alternatives like solar power are more reliable and efficient. However, these generators might have a place in niche applications where very high, consistent wind speeds are guaranteed.
My experiments demonstrate that while these generators technically function, the low power output at typical wind speeds makes them a poor choice for mainstream household power generation. Further research into higher-efficiency designs or alternative energy solutions is recommended.
