The Anker Solix F3800 portable power station boasts impressive capabilities, but its limitations, such as restricted AC charging and a low solar input voltage limit, can be frustrating for users. This article explores a hidden advantage: direct access to the internal LFP battery via the expansion port. This previously undocumented access point opens up a world of possibilities for overcoming these inherent design constraints. Through independent testing, we demonstrate several advanced charging techniques that significantly enhance the F3800's performance and flexibility.By modifying the expansion cable, we bypass the internal limitations of the F3800, enabling the use of more cost-effective and higher-capacity charging solutions. We detail how this access allows for faster AC charging while maintaining full 240V output, utilizing higher-voltage solar arrays, and integrating external battery banks for dramatically extended runtime. We also explore the potential (and limitations) of connecting multiple F3800 units, offering a comprehensive guide to unlocking the true potential of this powerful power station, albeit with a caveat: modifications void the warranty and require careful consideration of safety.
Pros And Cons
- Allows direct access to the internal battery through the battery expansion port (with modification).
- Shuts off the 240-volt output when AC charging.
- Solar charge controllers have a 60V limit.
- Expensive expansion batteries.
Read more: OUKITEL P2001 PLUS Review: Best Budget Portable Power Station?
Direct Battery Access via Expansion Port
The Anker Solix F3800 power station features a hidden advantage: direct access to its internal Lithium Iron Phosphate (LFP) battery through the battery expansion port. This access, confirmed through independent testing, opens up possibilities for bypassing some of the unit's limitations.
A simple voltmeter connected to the expansion port reveals the internal battery's voltage (around 52.7V). By modifying the expansion cable, you can directly interact with this internal battery.
This direct access isn't just a novelty; it's a key to overcoming the F3800's inherent design constraints, such as AC charging limitations and voltage restrictions on the solar input.
Overcoming F3800 Limitations
The Anker Solix F3800 has certain limitations that many users find frustrating. When AC charging, the 240V output shuts down, limiting usability. The built-in solar charge controllers have a 60V limit, making it difficult to use larger solar arrays efficiently.
Additionally, the official expansion batteries are quite expensive. Direct access to the internal battery, however, offers a solution to these issues.
By using a modified cable, users can potentially bypass the internal restrictions and utilize more cost-effective charging and expansion options.
Testing with External Battery Charger
A 48V LiFePO4 battery charger was connected to the modified expansion port while the F3800's inverter was running a 1000W load. The internal BMS (Battery Management System) recognized and incorporated the incoming power.
The F3800's estimated runtime increased dramatically after connecting the external charger, demonstrating that the system successfully registers and utilizes the extra power.
Leaving the charger connected until fully charged showed that the BMS correctly stopped charging once the battery reached 100%, confirming safe integration.
Bypassing AC Charging Limitations
One of the F3800's biggest drawbacks is its inability to fast charge via AC while maintaining 240V output. This was successfully bypassed using an EG4 charge converter, a 5000W AC battery charger.
Connecting the EG4 to the modified expansion port allowed the F3800 to simultaneously charge and power a 2000W load, demonstrating the effectiveness of the workaround.
This method allows for faster charging speeds and maintains critical 240V output for high-power appliances, solving a significant limitation of the Anker Solix F3800.
External Solar Charge Controllers
Connecting external 40A MPPT solar charge controllers to the expansion port allows for using higher-voltage solar arrays, surpassing the F3800's internal 60V limit.
Two solar arrays (1600W and 1200W) were connected, successfully charging the F3800, demonstrating the compatibility and flexibility with various external solar setups.
This bypass of the internal solar charge controller allows for maximizing the use of larger, more efficient solar panels.
Connecting a 48V Battery Bank
A large 48V battery bank was connected to the expansion port, further expanding the F3800's capacity. This setup allowed the power station to draw power from both its internal battery and the external bank.
The system successfully integrated the external battery bank, providing significantly extended runtime and demonstrating the versatility of this method.
This method provides a cost-effective way to increase capacity significantly, supplementing the F3800's built-in battery.
Connecting Two Anker Solix F3800 Power Stations

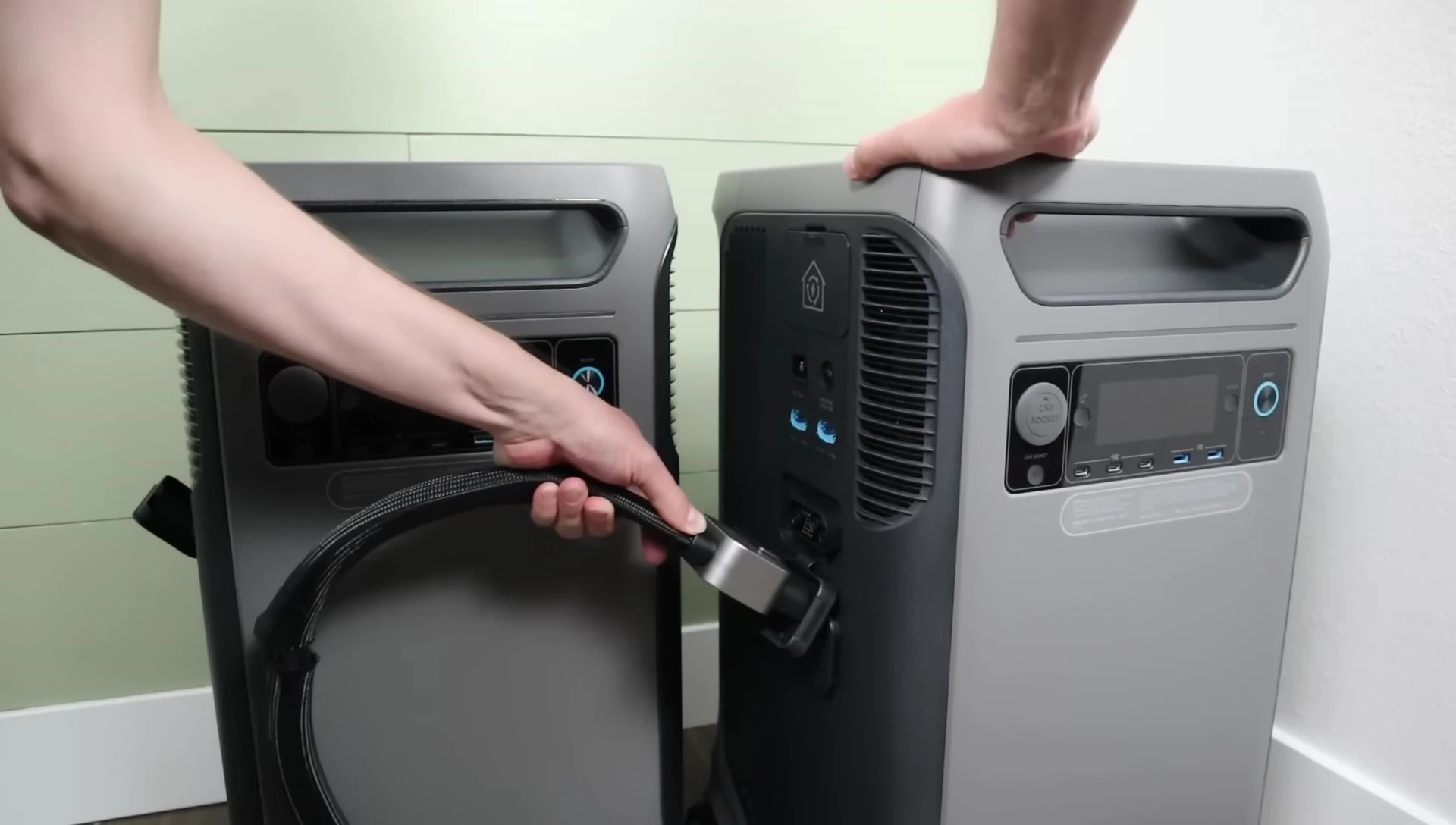

An attempt was made to connect two Anker Solix F3800 power stations (one F3800 and one F3800 Plus) together using a third-party expansion cable. Both units powered on simultaneously.
While initially successful in sharing the load, the setup proved unreliable, with the inverter on the F3800 Plus repeatedly shutting off.
This method shows potential for increased capacity but lacks the stability and reliability necessary for practical use.
Conclusion and Recommendations
Modifying the Anker Solix F3800's expansion port provides versatile charging and expansion capabilities, but comes with risks. Direct battery access allows for using external chargers, higher-voltage solar setups, and adding external battery banks.
While connecting two F3800 units showed potential for increased capacity, inverter shutdowns raise concerns about reliability. Using external solar panels, charge controllers and battery banks is more stable and reliable.
Proceed with caution, always prioritize safety, and understand that any modification voids the warranty. The increased capacity and flexibility are significant benefits, but reliability needs further evaluation for combined system setups.
