Epoch 12V 460Ah V2 Elite Lithium Battery Review: Features, Performance & Verdict

This review dives deep into the Epoch Batteries 12V 460Ah V2 Elite Lithium Iron Phosphate battery, a powerhouse boasting impressive specifications and robust construction. We explore its key features, including its substantial 460Ah capacity, 230-amp continuous charge/discharge rate, and IP67 dust and water resistance. The battery's advanced design incorporates multiple communication protocols (Victron and CAN), a built-in heating system for cold weather operation, and a comprehensive Battery Management System (BMS). We'll examine the intricacies of its internal components, from the massive bus bars and heat sink to the sophisticated wiring harness, and assess its performance through rigorous testing.Our in-depth analysis covers the initial setup, including a necessary firmware update via Bluetooth, and delves into the battery's performance under load. We'll evaluate its capacity, charging behavior at various temperatures, and the overall functionality of its advanced BMS. Ultimately, this review aims to provide a comprehensive assessment of the Epoch V2 Elite battery, weighing its strengths and any potential limitations to help you determine if it's the right choice for your needs.

Pros And Cons

12volt 460 amp V2 Elite Series lithium iron phosphate battery from Epoch batteries
  • Heated
  • Bluetooth support
  • Communication support including two Victron equipment
  • IP67 rated (dust proof and waterproof)
  • High capacity (460 amp hour, 5888 W hours)
  • High continuous charge and discharge current (230 amps)
  • Can be wired in series for 48volt system or parallel for increased capacity
  • Lid held on by Allen screws and sealed with silicone, making it difficult to open.
  • Firmware update required before use.

Read more: OUKITEL P2001 PLUS Review: Best Budget Portable Power Station?

Specifications and Physical Attributes

The Epoch Batteries 12V 460Ah V2 Elite Lithium Iron Phosphate battery boasts impressive specifications. It's a Group 8D size, measuring 20.8 inches in length, 8.6 inches in width, and 12 inches in height. Weighing in at 97 lbs, it offers a substantial 460 amp-hour capacity, translating to 5,888 Wh.

Close-up shot of the battery showing its dimensions
Close-up shot of the battery showing its dimensions

The battery supports a continuous charge and discharge current of 230 amps. For larger systems, four batteries can be wired in series for 48V, or up to 16 can be connected in parallel. Its IP67 rating ensures dust and water resistance, enhancing its durability and suitability for various environments.

Text overlay showing the battery's amp-hour capacity and watt-hours
Text overlay showing the battery's amp-hour capacity and watt-hours

Exterior Features and Connectivity

The battery features robust M8 bolt terminals for positive and negative connections, allowing ample space for multiple cable lugs. A series of dip switches facilitates addressing, detailed in the user manual. A protected on/off power button ensures easy control and safeguards against accidental activation.

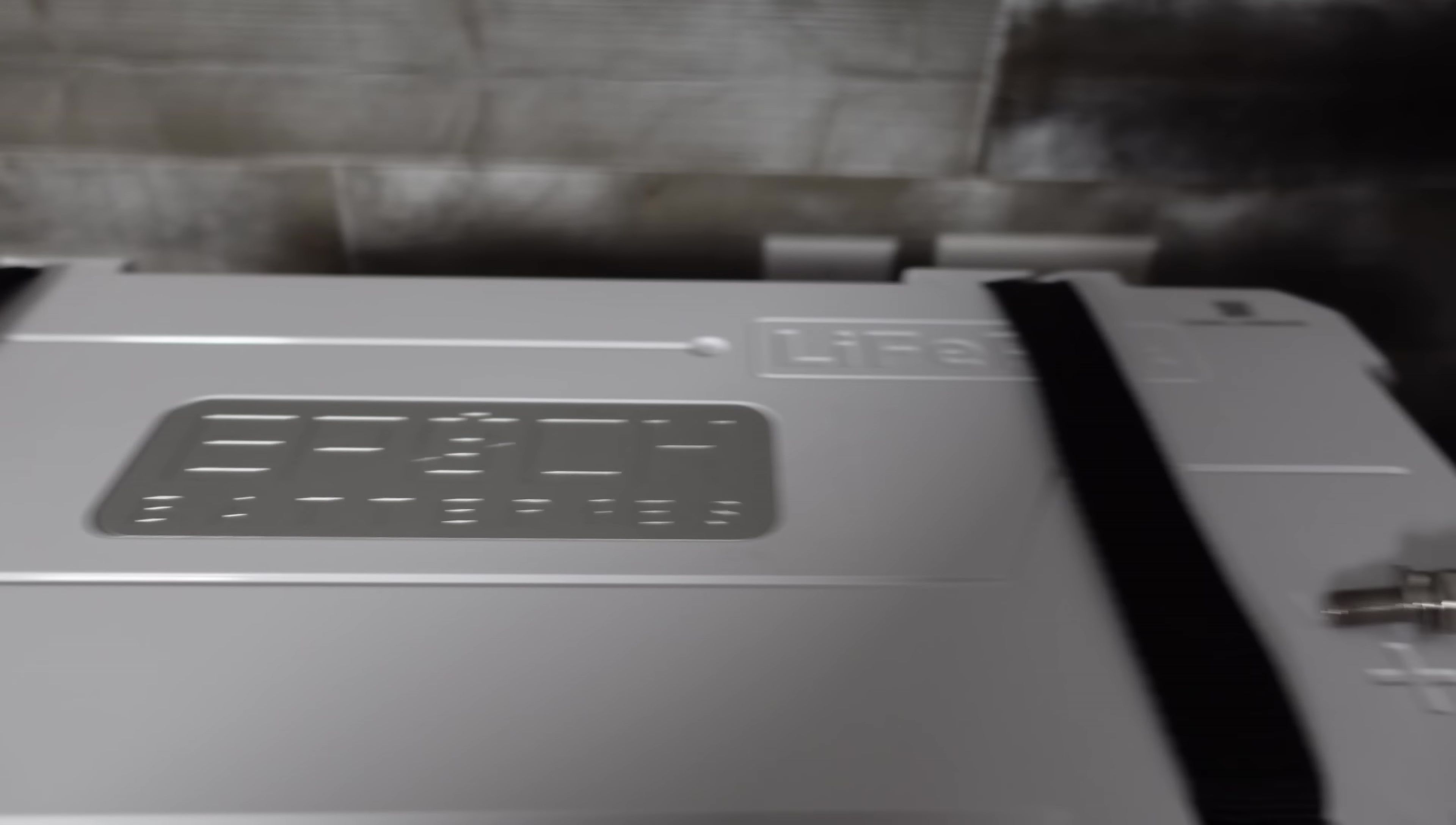

View of the battery terminals and M8 bolts
View of the battery terminals and M8 bolts

Connectivity options include a pressure vent for safety, a four-pin connector for a remote switch, and two RJ45 connections (Victron and CAN) with dust caps. The Victron port supports communication with Victron equipment, while the CAN port enables connection of multiple batteries.

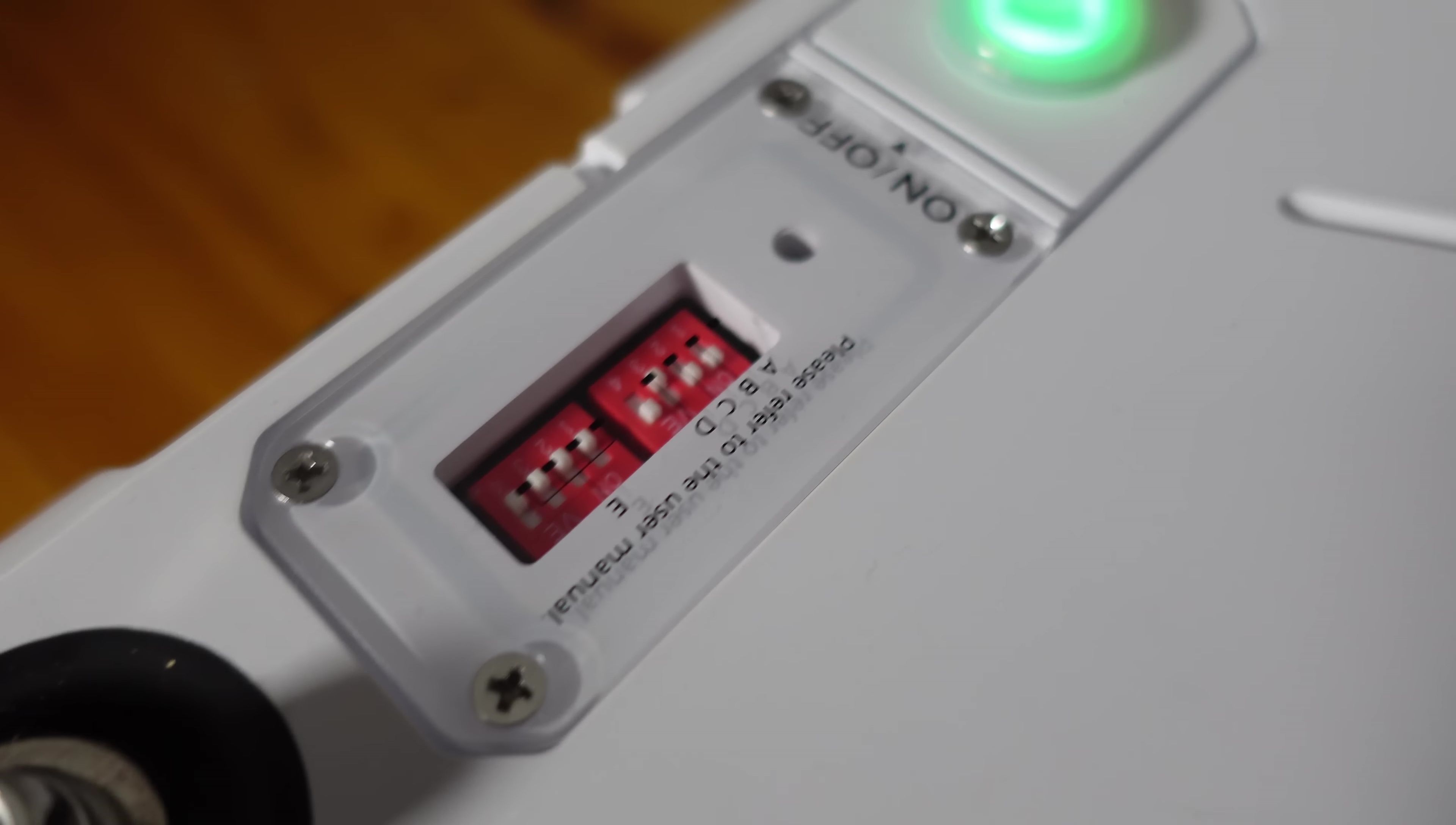

The on/off power button with rubber protector
The on/off power button with rubber protector

Included Accessories and Firmware Update

The package includes a user manual, communication cable, and a remote display with various connections (debug, CAN, Victron, and meter). A mounting bracket and hardware for the remote display are also provided. Before use, a firmware update is required, using the remote display's Bluetooth connectivity and the Epoch Lithium Ion app.

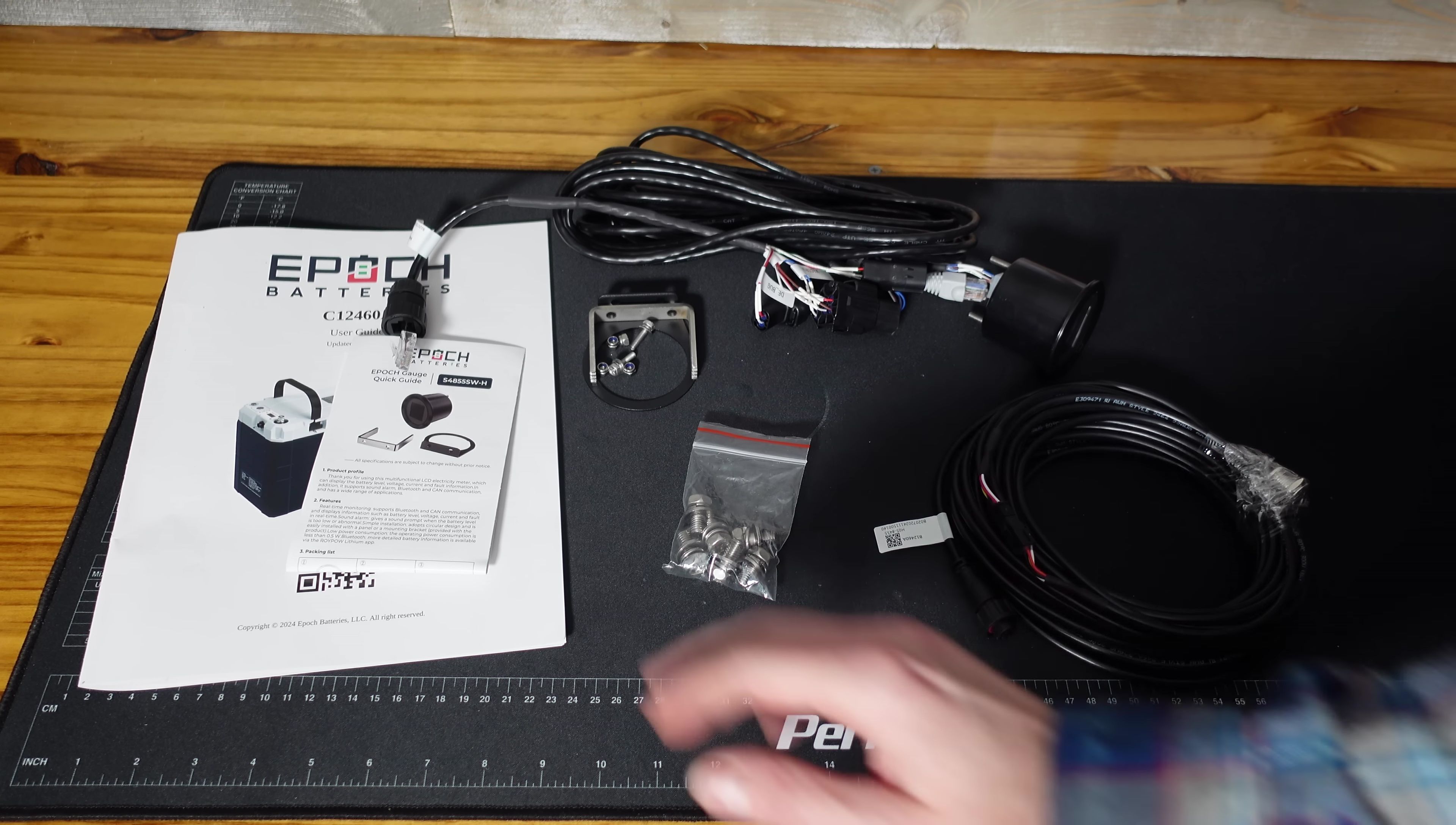

Shot of the included accessories
Shot of the included accessories

The firmware update process involves connecting the remote meter, opening the app, and then initiating the OTA (Over-The-Air) update. The update includes EMS and BMS updates, which might take several minutes. Consult the detailed firmware update guide on the Epoch Batteries website before proceeding.

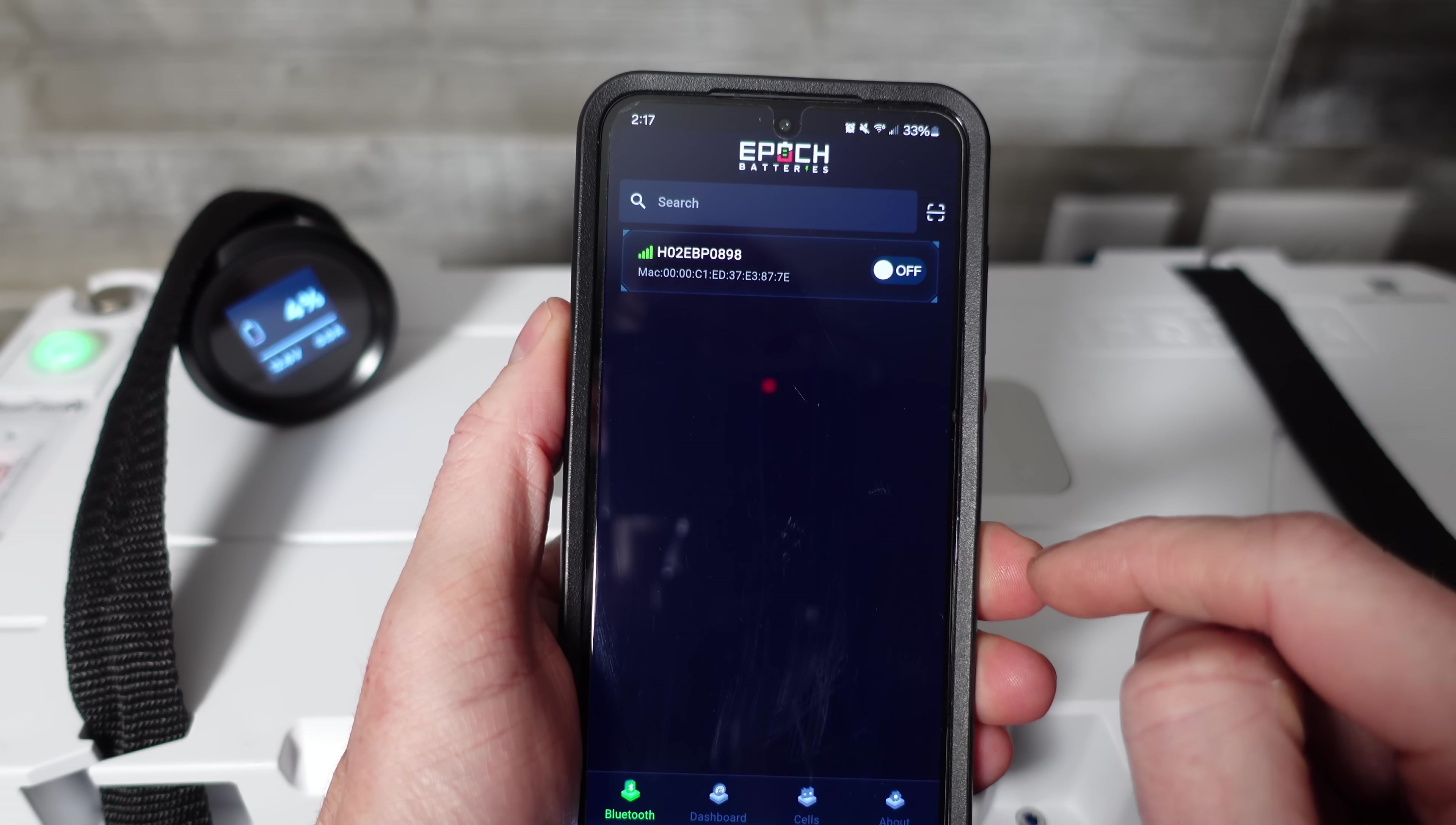

Screenshot of the Epoch Lithium Ion app
Screenshot of the Epoch Lithium Ion app

Capacity Test and Internal Components

A capacity test was conducted using an electronic load, revealing a capacity of 475Ah over a 7-hour and 54-minute discharge. The battery's internal components are exceptionally impressive. Massive bus bars, a large thermopad, and a gigantic aluminum heat sink on the BMS are designed for optimal heat dissipation.

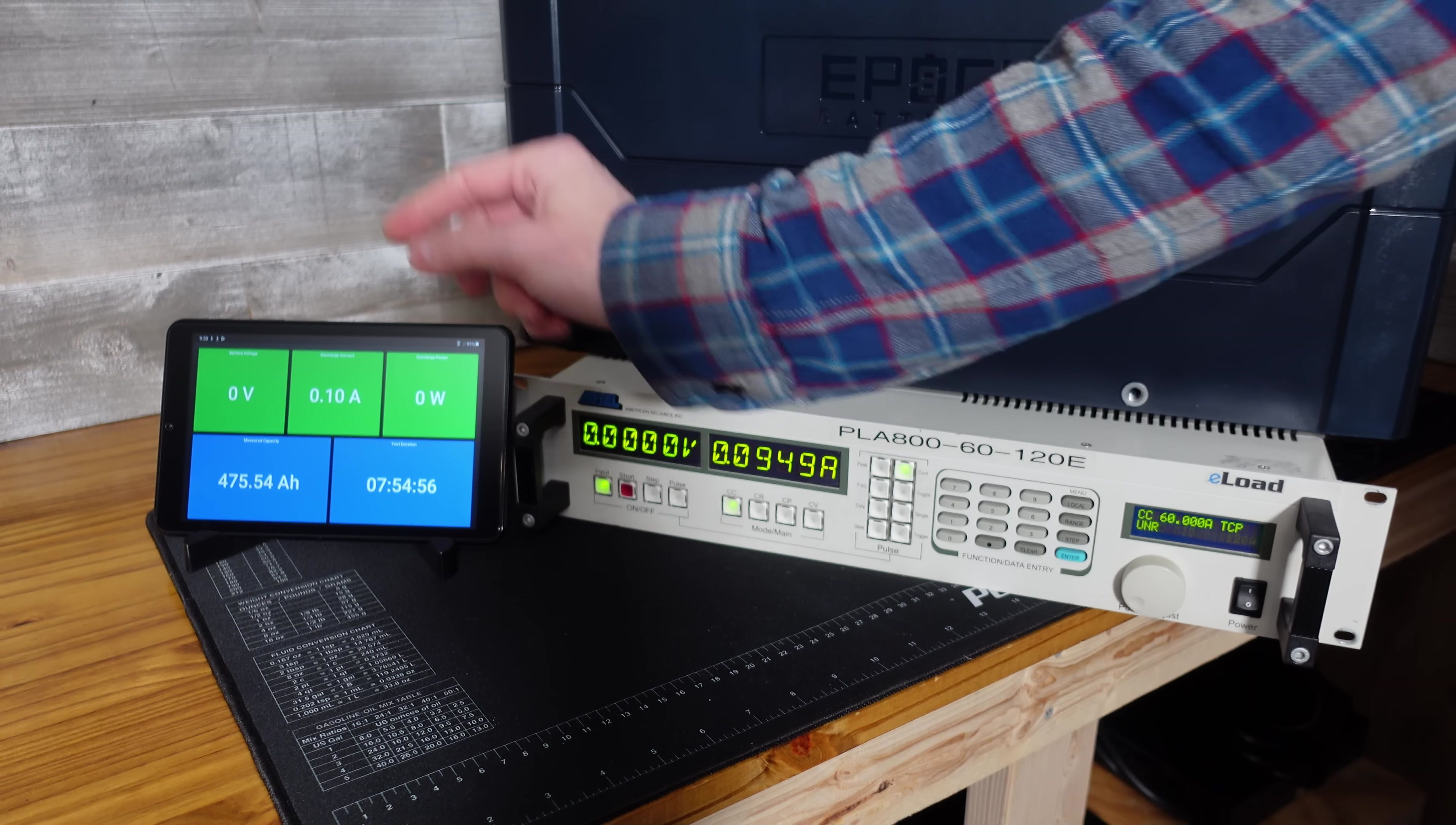

Capacity test results
Capacity test results

A large 400A fuse and what appears to be a current and thermal fuse are also notable features. The intricate wiring harness, including multiple CAN circuits, temperature sensors, and a heater circuit running along the top and one side of the case, highlight the advanced design of the Epoch V2 Elite battery.

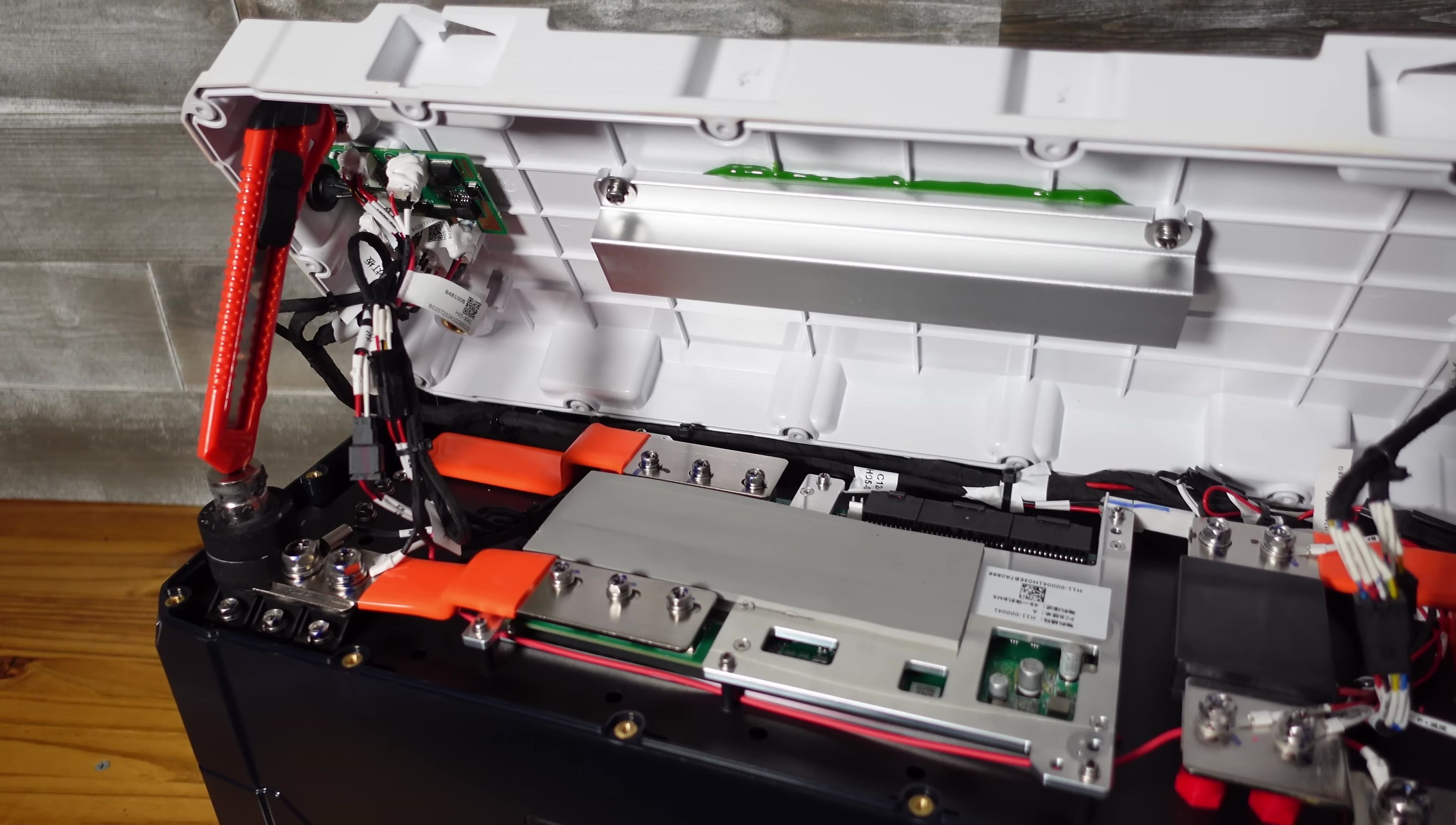

Internal view of the battery showcasing the massive BMS
Internal view of the battery showcasing the massive BMS

BMS and Cell Details

The BMS, possibly manufactured by Roypow, is one of the largest seen in this reviewer's experience and is exceptionally robust. It is a passive BMS, meaning excess energy is bled off as heat during cell balancing. The 4S BMS design, combined with 230Ah cells (likely Eve LF230), achieves the 460Ah rating.

Close-up of the BMS
Close-up of the BMS

The battery pack construction is meticulously engineered, with cells arranged in parallel and series configurations. Heat-insulating shields protect the wiring harness, including cables for the heater. The high build quality with torque marks on nearly every fastener indicates a commitment to durability and precision.

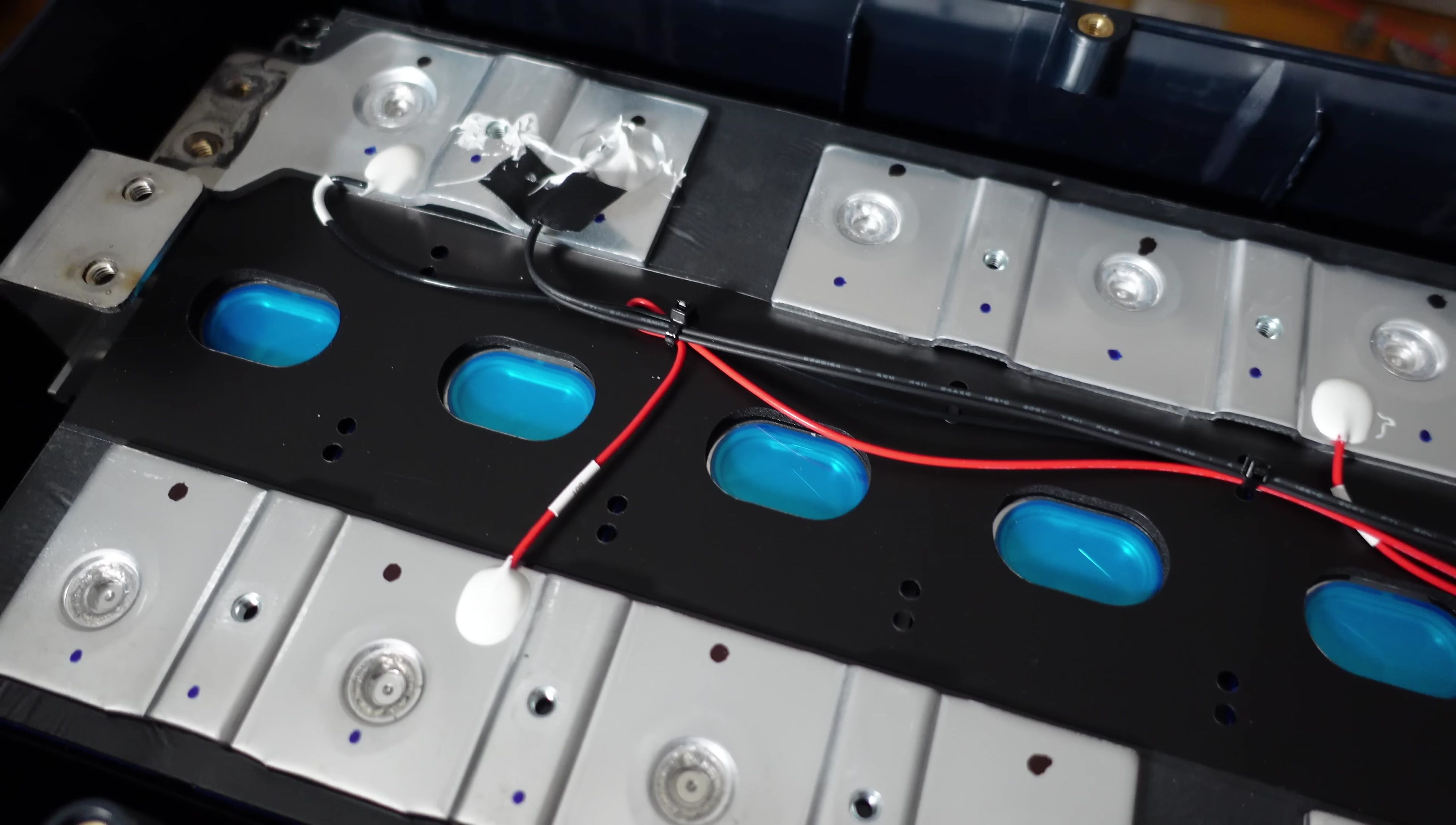

Battery cell and balance leads
Battery cell and balance leads

Low-Temperature Charge Protection and Heating Functionality

The battery's low-temperature charge protection and heating functionality were tested using a controlled freezing environment. The system detected low temperatures, temporarily ceasing charging at higher amperages (54A initially, then dropping to 12A). Once the battery warmed, normal charging resumed at 54A.

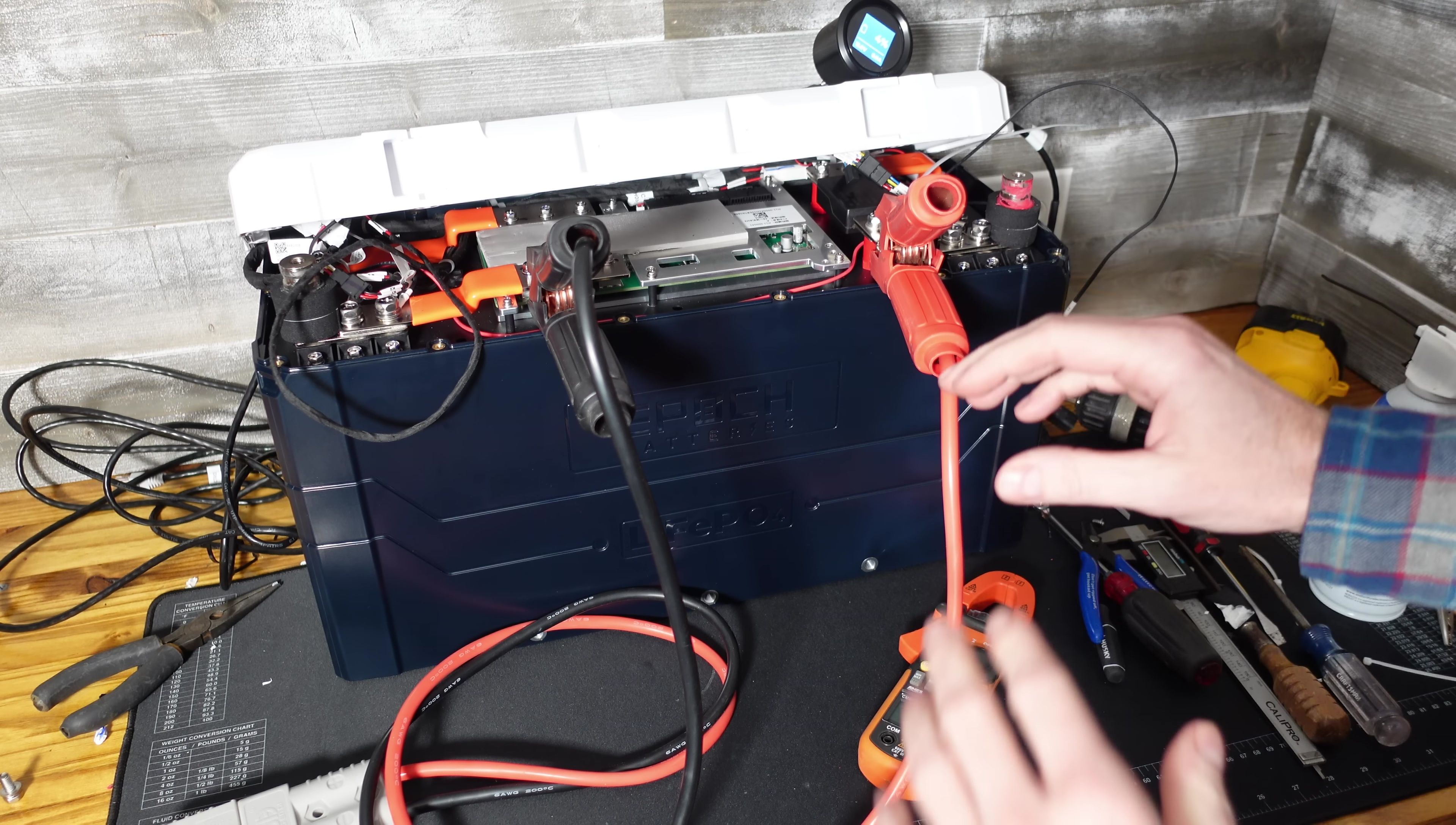

Setup for low temperature charge testing
Setup for low temperature charge testing

While the exact logic behind the temperature sensing and heating activation remains somewhat unclear, the system effectively regulated the charging process based on the detected temperature of different components. It appears feedback from a variety of sensors drives the heater’s on/off behavior.

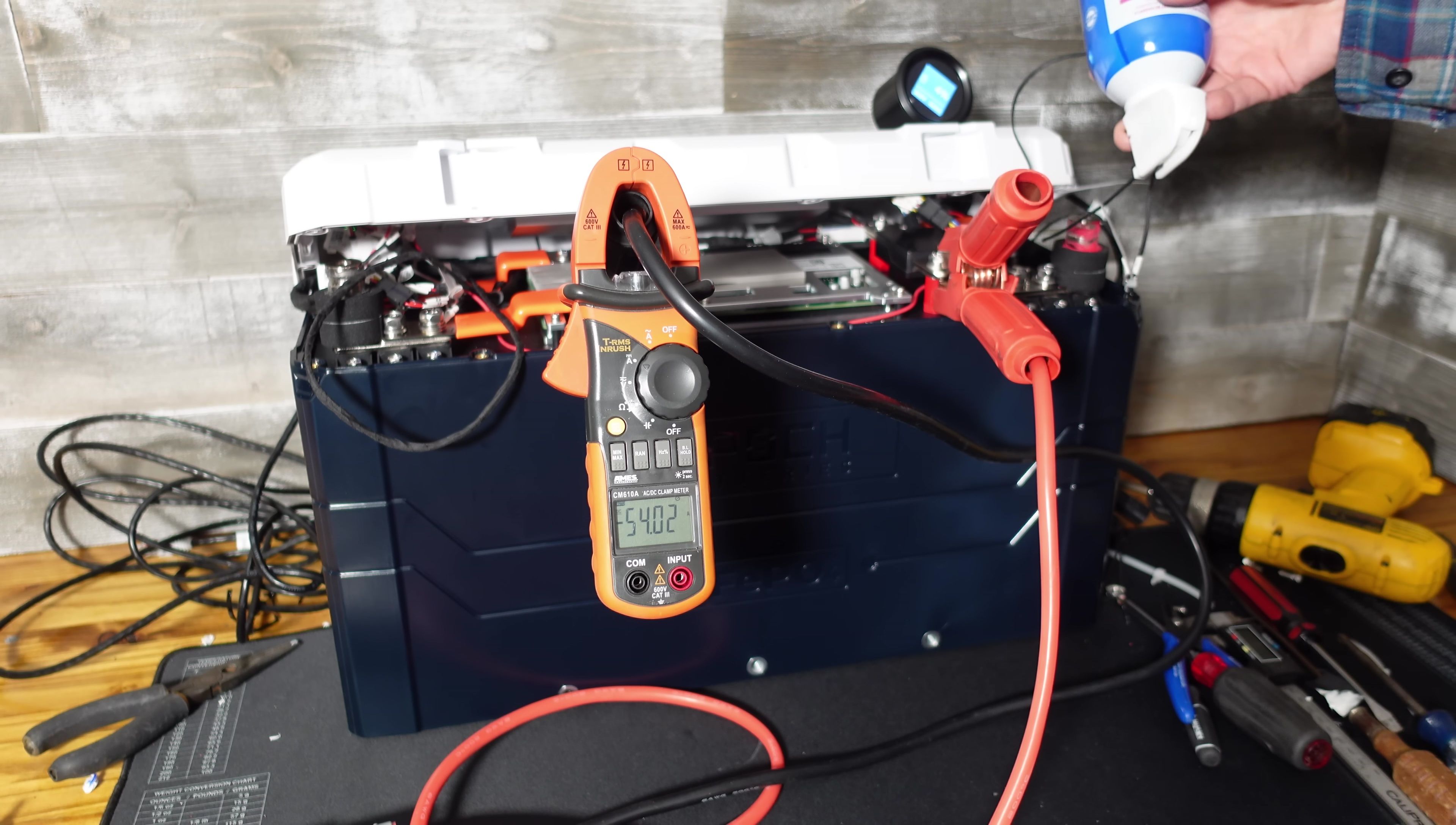

Reading on the display showing CLT, indicating low temperature charge
Reading on the display showing CLT, indicating low temperature charge

Conclusion

The Epoch Batteries 12V 460Ah V2 Elite Lithium battery is a truly impressive piece of engineering. The high amp-hour capacity, robust construction, multiple communication protocols, and integrated heating system make it ideally suited for demanding applications.

While the detailed internal workings are complex and may require additional study, the battery’s performance and features speak for themselves. The meticulous construction, thorough testing, and advanced features all add up to a product that is both durable and high-performing. The intricate design demonstrates a superior level of engineering compared to other batteries reviewed.
