This review dives deep into the LiTime 60 Amp MPPT charge controller, putting its capabilities to the test over several weeks with an 800W solar panel array. We scrutinized its performance under various conditions, including a unique water-cooling experiment designed to boost efficiency. This detailed analysis explores the controller's maximum power output, its compatibility with different voltage systems, and its impressive array of safety features. We also assess the user-friendliness of its Bluetooth app and its overall suitability for DIY solar power projects.From rigorous testing to practical application, this review provides a comprehensive overview of the LiTime 60A MPPT charge controller. We examine both its strengths – high amperage handling, versatile voltage compatibility, and robust safety features – and its minor drawbacks, such as size and brightness. Ultimately, we determine its value proposition for users seeking a reliable and high-performing solution for their larger DIY solar setups, offering a balanced perspective to aid in your decision-making process.
Pros And Cons
- Handles up to 60 amps when charging 100 amp 12-volt batteries
- Can handle 870-900 watts of input power with enough solar panels
- Handles 900-1800 watts depending on 12V or 24V system
- Fanless design with large heat sink
- Includes connectors and mounts for wall mounting
- Includes low temperature cutoff wire for lithium-ion batteries
- Multiple protections: reverse polarity, overvoltage, over-temperature, short circuit, and overpower
- Bluetooth feature with app for monitoring amperage, wattage, and changing settings
- Easy installation with integrated installation guide
- Voltage options: 12V, 24V, 36V, and 48V
- DC load terminal for running lights or pumps
- Three-year warranty
- Bright lights (minor)
- Large footprint
Read more: OUKITEL P2001 PLUS Review: Best Budget Portable Power Station?
Maximum Power Output and Panel Array

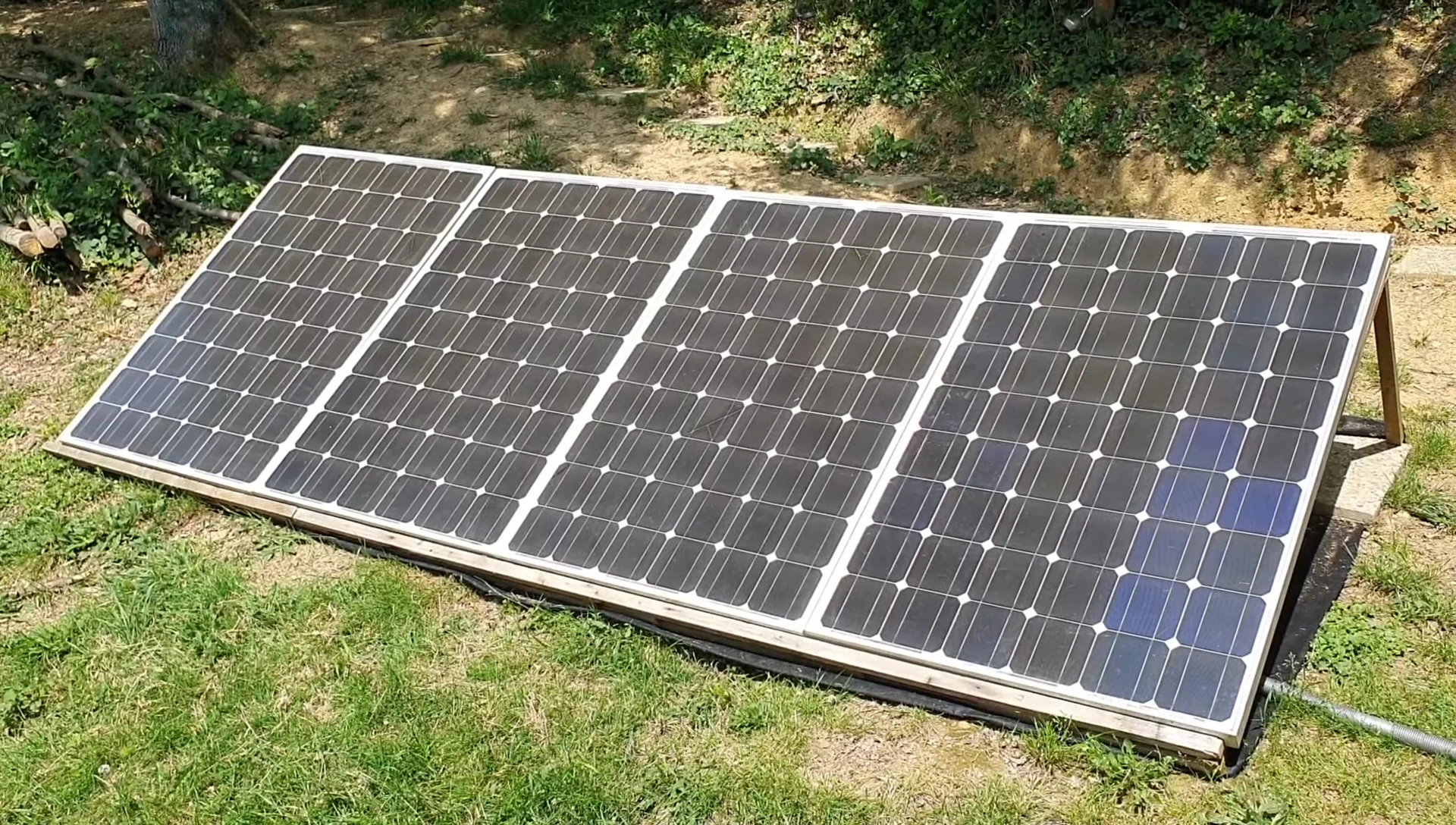

This review focuses on the LiTime 60 Amp MPPT charge controller, tested over several weeks. The controller's ability to handle a significant solar panel array was a key focus. A test was conducted using an 800W solar panel array, demonstrating the controller's capacity and efficiency.
The system's performance was analyzed to determine its maximum power output. This involved measuring the amperage and wattage generated by the solar panel array under various conditions, including a unique cooling method involving water.
The results showed the controller's impressive ability to handle substantial power input, exceeding expectations for a DIY solar system upgrade.

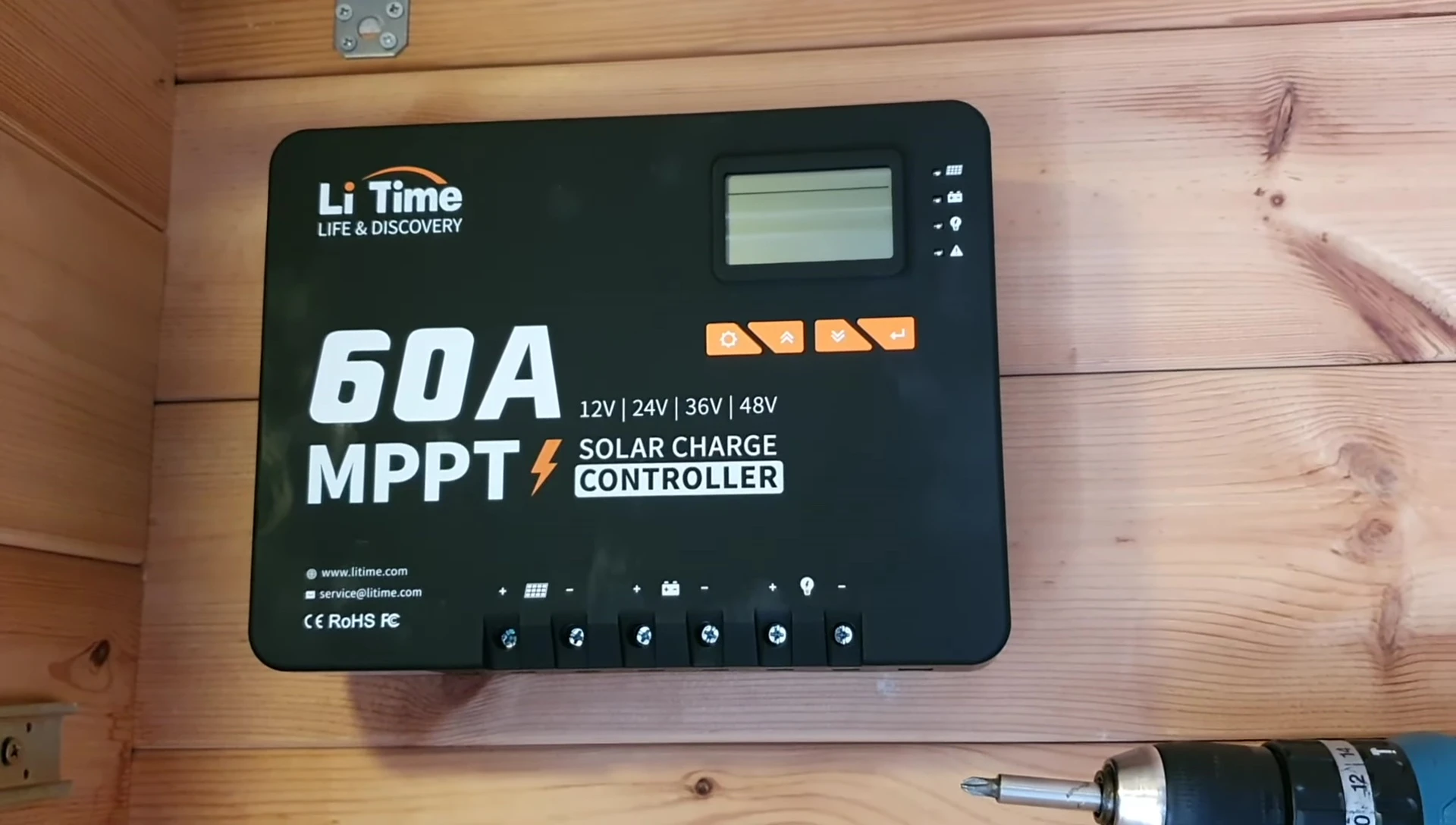

Key Features and Specifications

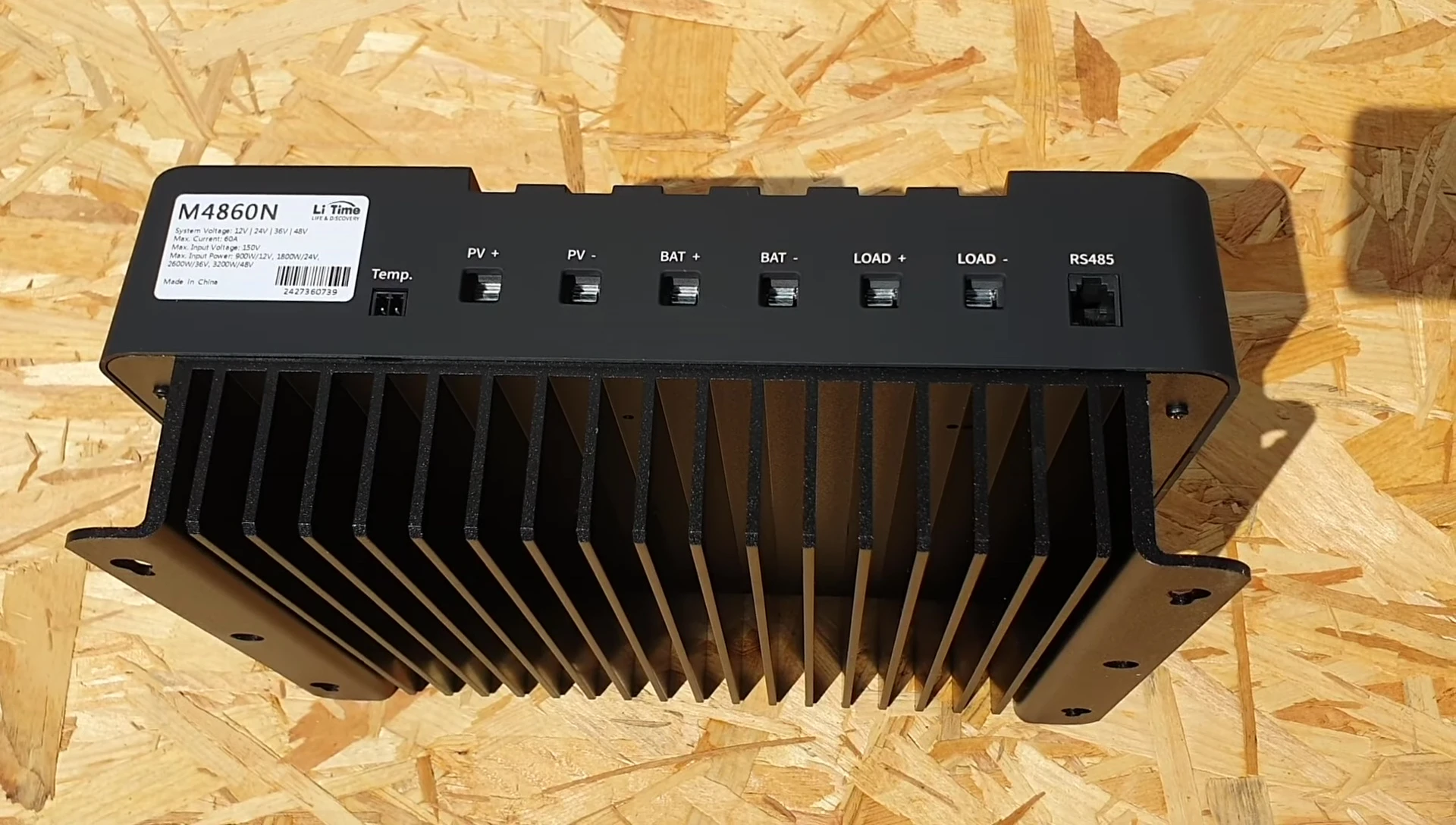

The LiTime 60A MPPT charge controller boasts several impressive features. Its compatibility with various voltage systems (12V, 24V, 36V, and 48V) provides flexibility for different setups. The fanless design with a large heatsink ensures efficient cooling, even under high loads.
The included connectors and mounting hardware simplify installation, while the low-temperature cutoff wire enhances battery protection, especially crucial for lithium-ion batteries. Numerous safety features, including reverse polarity, overvoltage, overtemperature, short circuit, and overpower protection, guarantee system reliability.

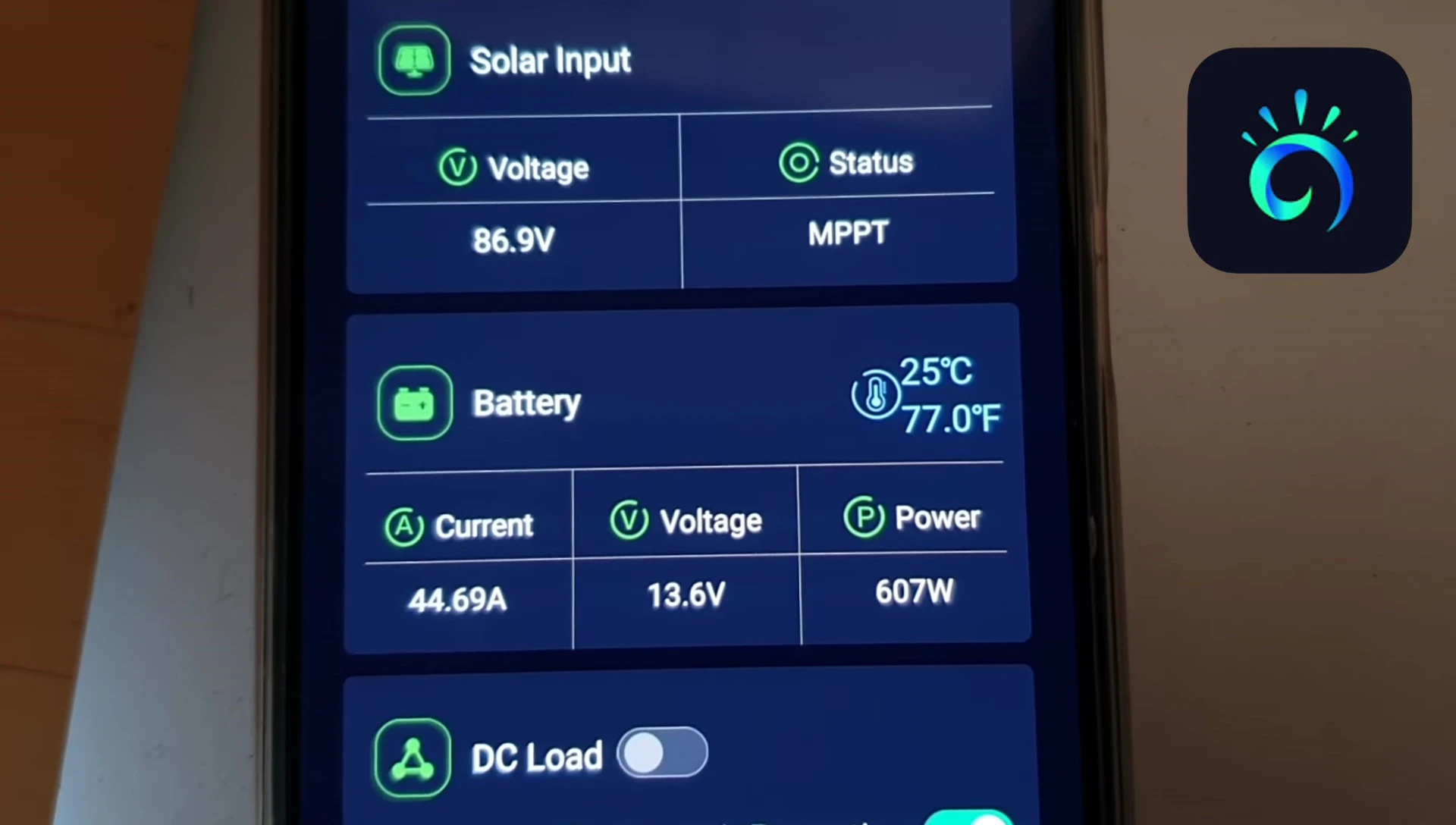

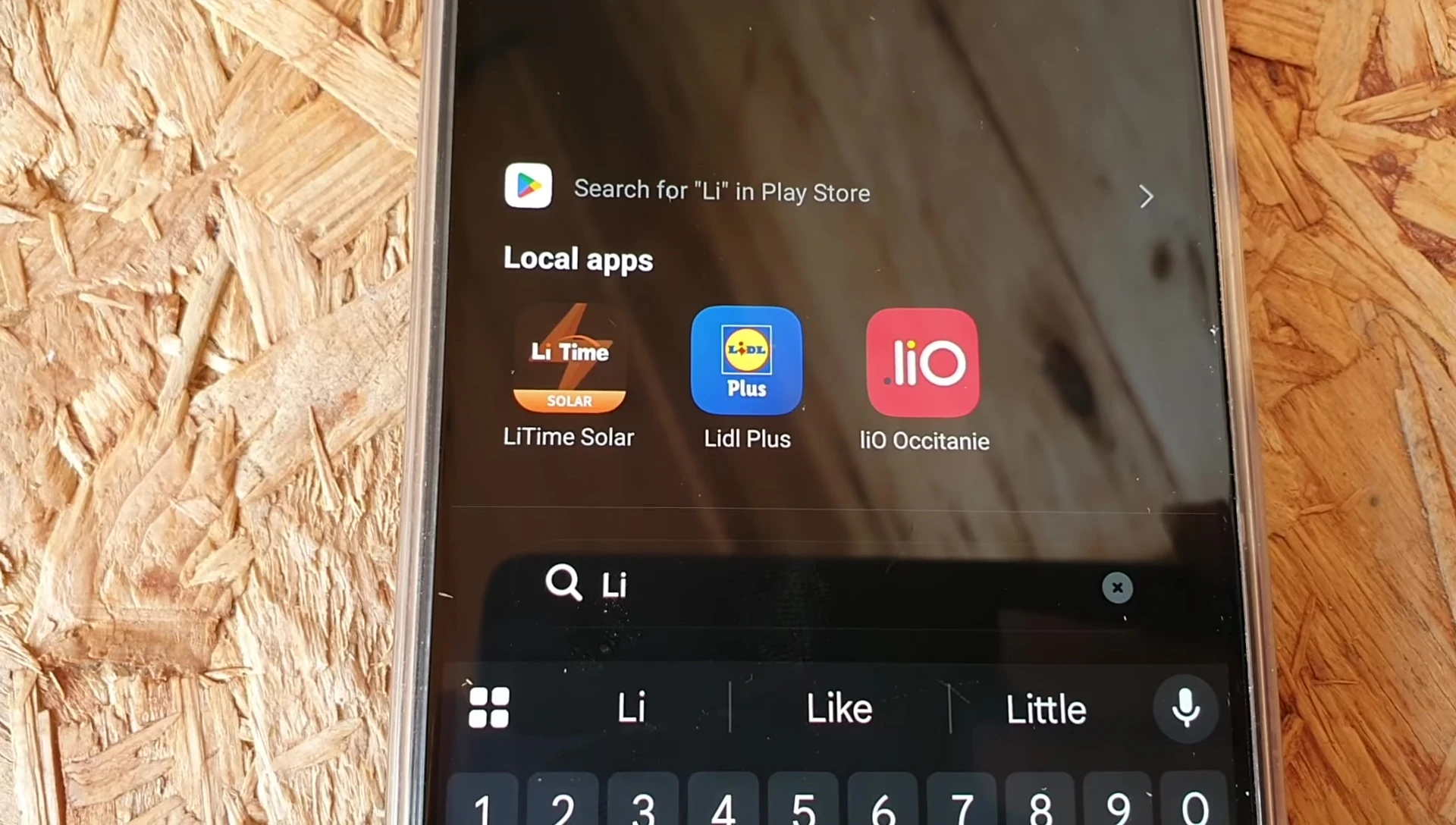

Bluetooth connectivity with a user-friendly app enables convenient monitoring and control of the charge controller's functions, showcasing real-time data like PV input amperage and wattage. Adjustable parameters, accessible both via the app and the controller's physical buttons, offer flexibility to users.
Performance and Cooling Trick

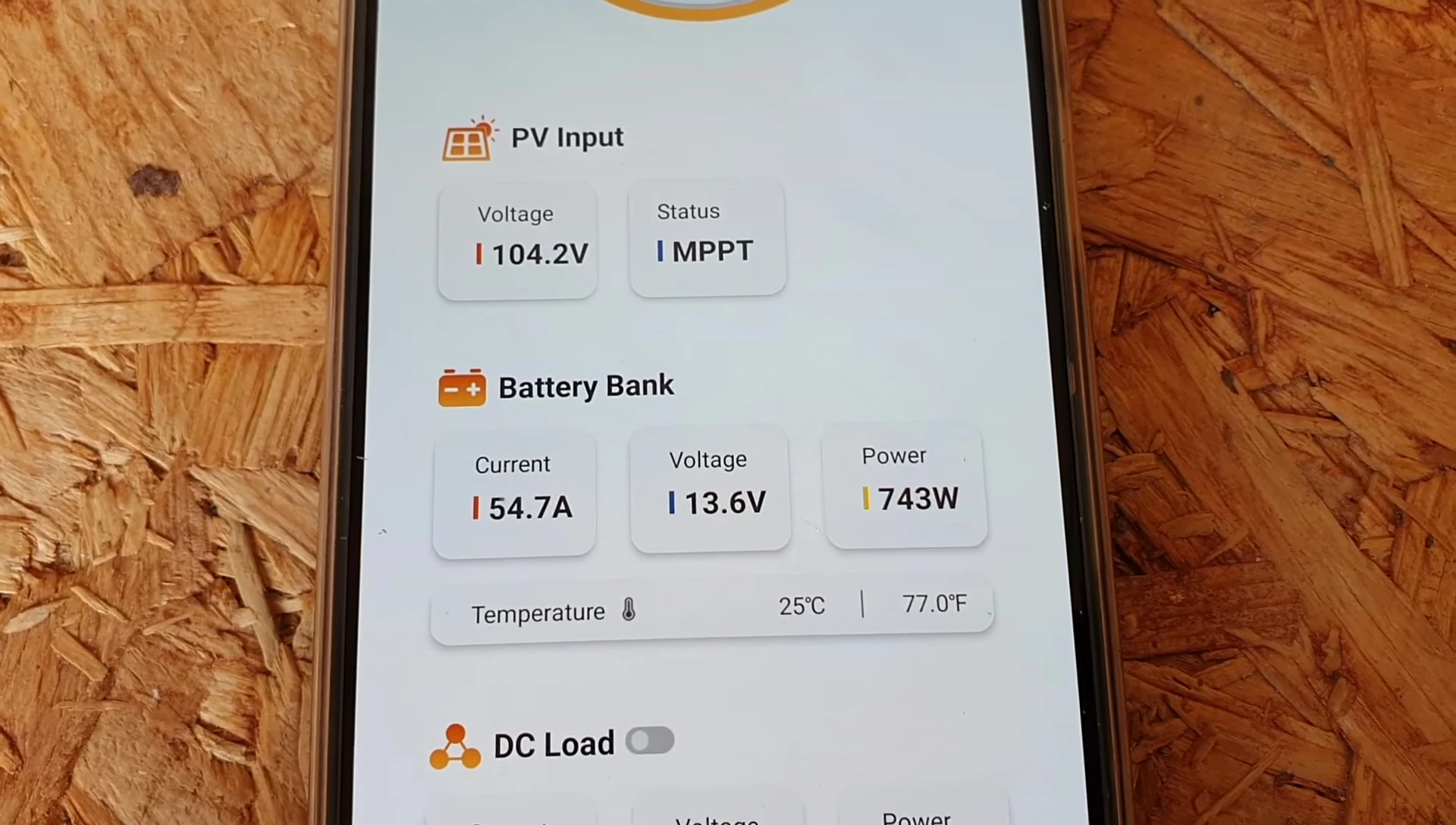

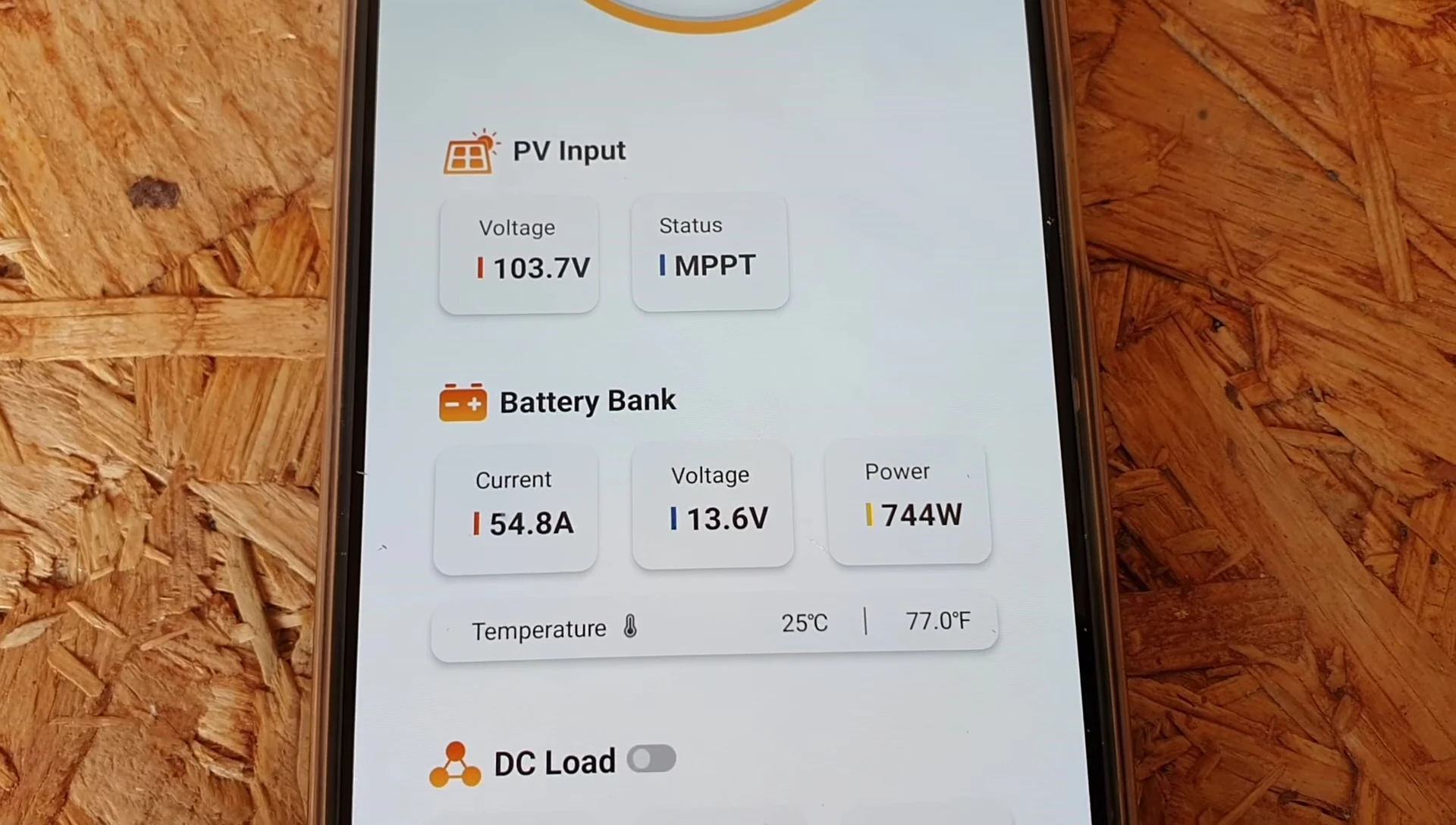

During testing, the controller consistently delivered exceptional performance, achieving a maximum amperage of 54.8 amps (744 watts) from the 800W solar panel array.

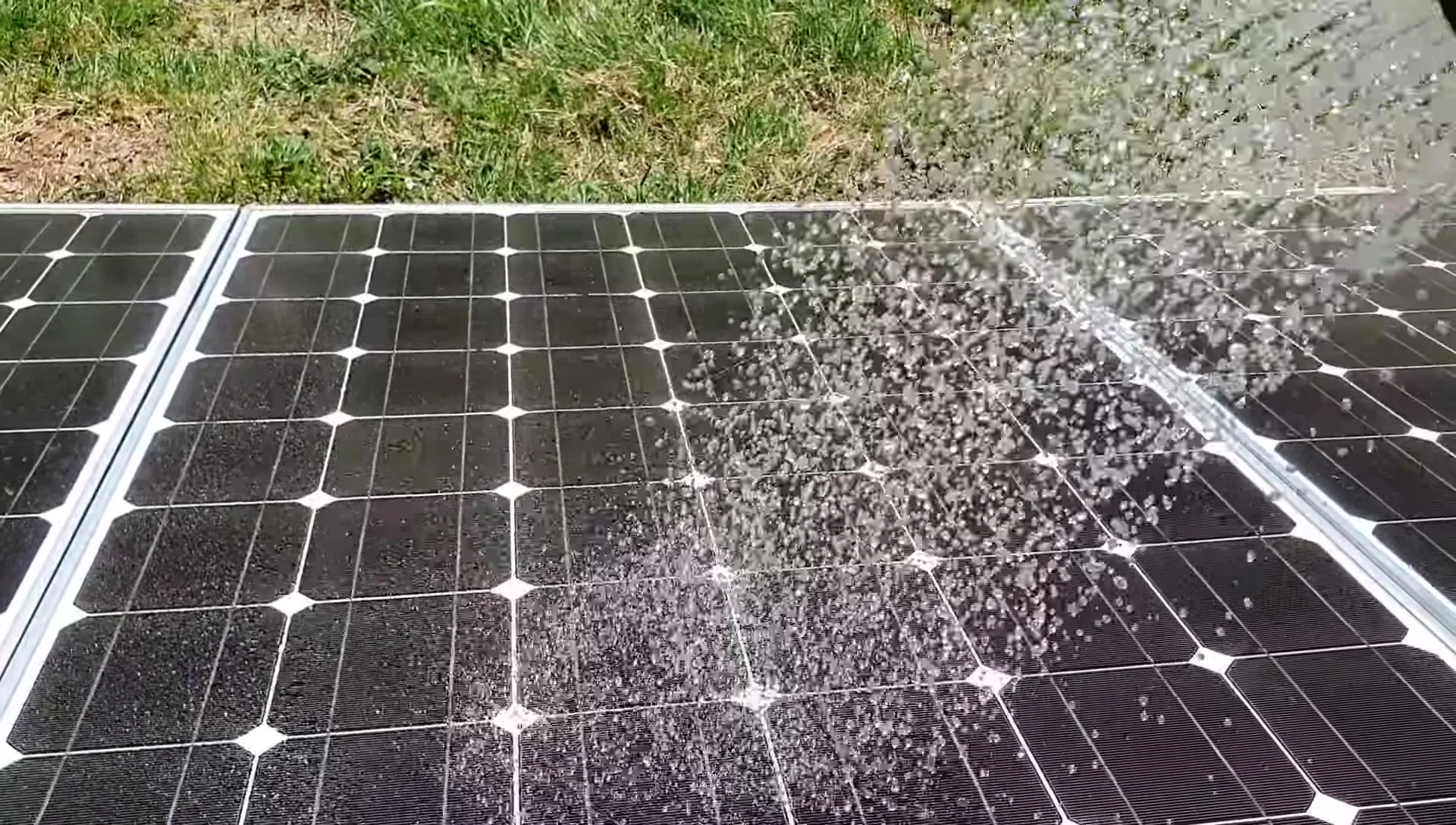

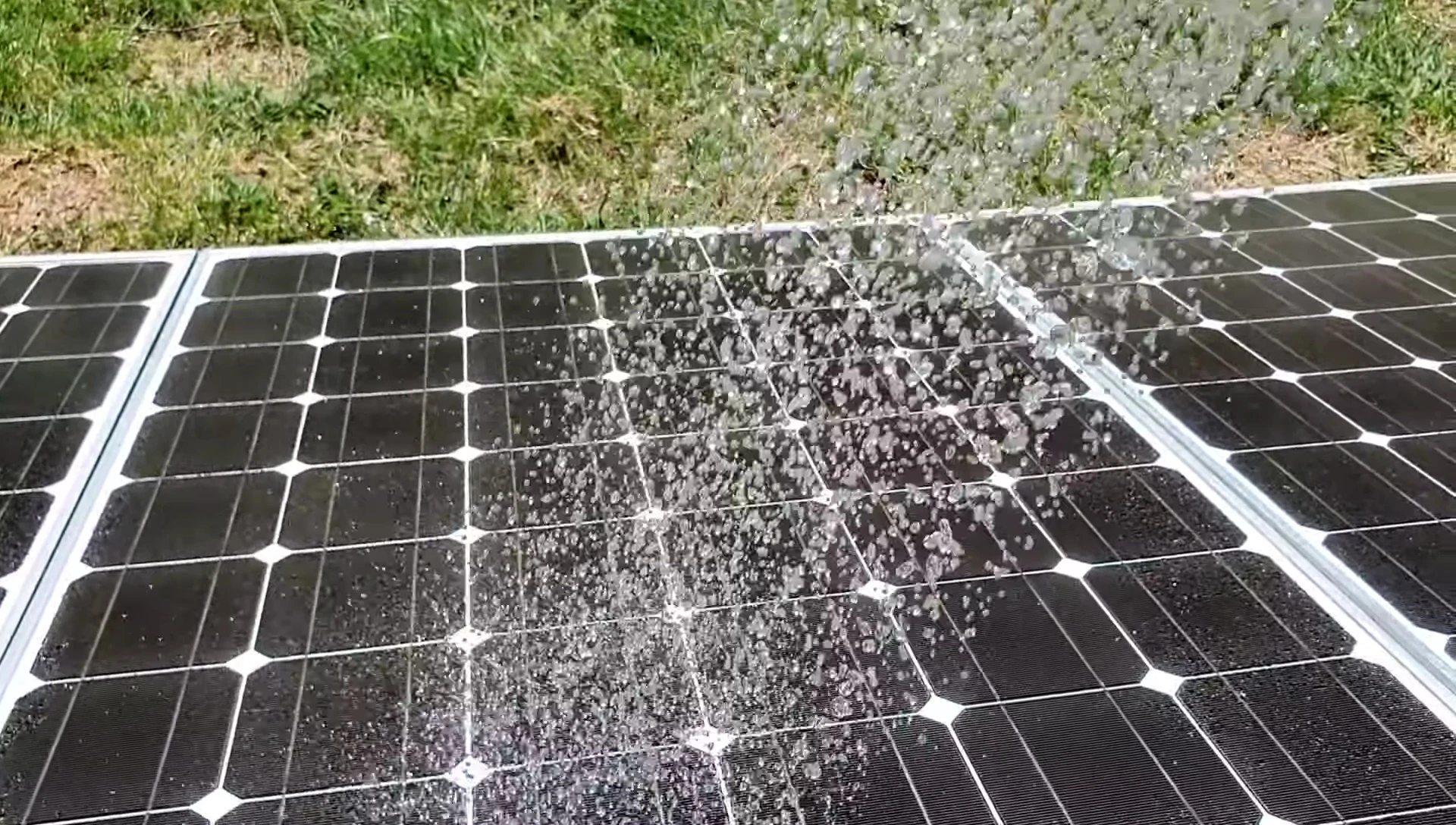

A noteworthy experiment involved cooling the solar panels using water. This resulted in a substantial power boost, increasing output by approximately 100-140 watts. This demonstrates a practical approach to enhancing solar panel efficiency in hot climates.
The increased power output underlines the controller's capacity to handle high input power and underscores the benefits of effective panel cooling for improved system performance.
Considerations and Conclusion
While the LiTime 60A MPPT charge controller offers impressive features and performance, certain aspects deserve consideration. Its bright lights and relatively large size may be factors for some users. However, these minor drawbacks are outweighed by its numerous benefits.
The controller's robust construction, high amperage handling capacity, and extensive safety features make it a valuable asset for larger DIY solar systems. The three-year warranty provides additional peace of mind. For users considering a system upgrade and capable of handling higher voltages, it's a compelling choice.
Overall, the LiTime 60A MPPT charge controller is a high-performing, reliable, and feature-rich option for serious DIY solar enthusiasts. While the water cooling trick isn't always practical, its demonstrated effectiveness highlights the potential for optimization.
