This review delves into the SIMTEK ECO 70A MPPT Solar Charge Controller, a unique device prioritizing DC load management over traditional AC hybrid functionalities. Unlike its AC-capable counterparts, the ECO 70A focuses on directly powering DC appliances up to 50 amps, making it a streamlined and cost-effective solution for off-grid or DC-centric solar setups. Its impressive capabilities include handling both 12V and 24V battery systems with a solar panel input ranging up to 2800W (24V), all while incorporating intelligent battery protection features to prevent deep discharge.We put the SIMTEK ECO 70A MPPT through rigorous real-world testing, evaluating its performance under demanding conditions. This review will detail its efficiency in handling high current loads, the effectiveness of its built-in cooling system, and the responsiveness of its current adjustment. We will also compare its performance and design philosophy to other hybrid controllers on the market, highlighting its advantages and limitations to provide a comprehensive assessment of its suitability for various applications.
Pros And Cons

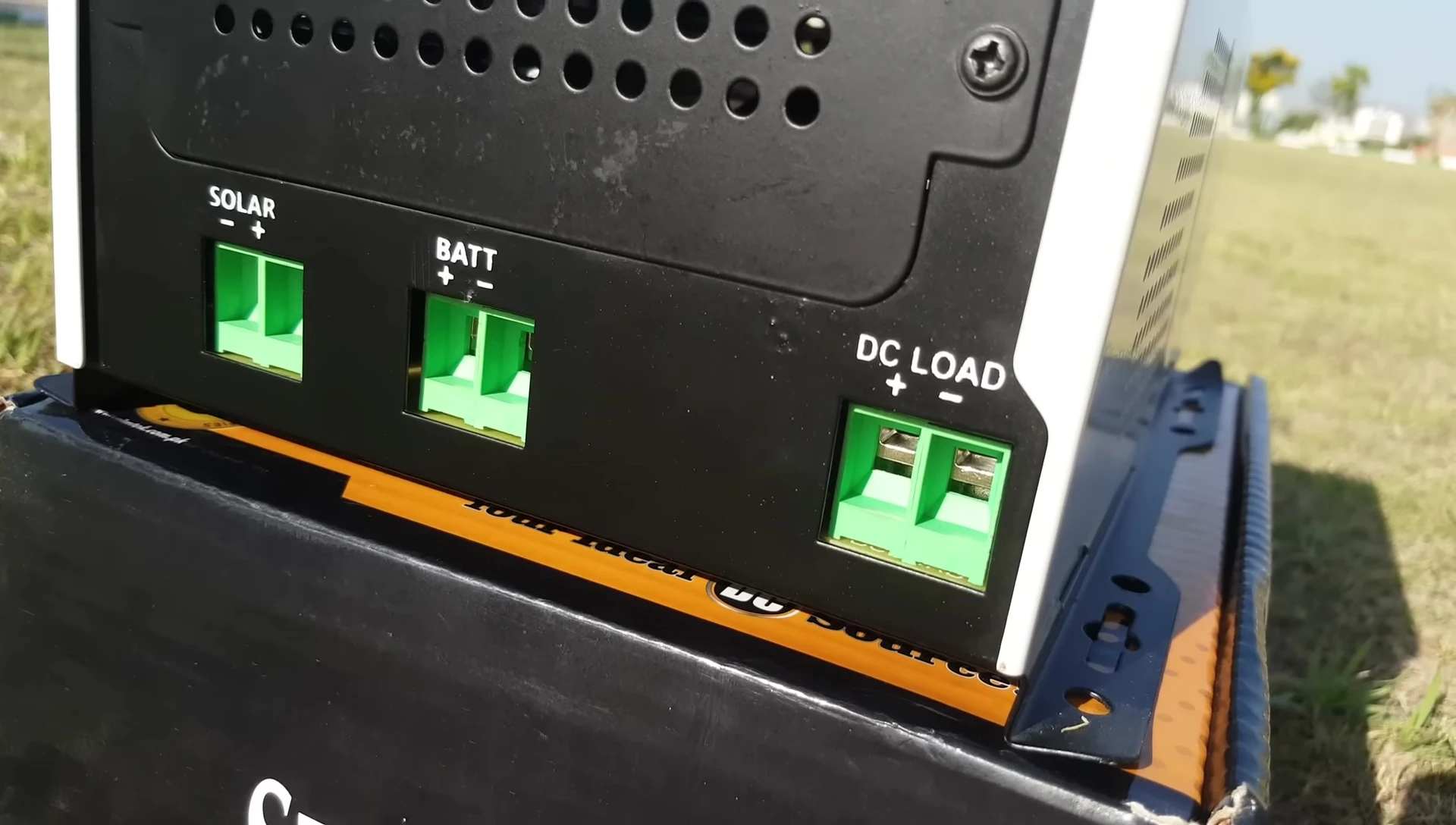

- Can run DC loads up to 50 amperes directly.
- Works with battery and can run DC loads without battery.
- Auto adjusts between 12 and 24 volt configurations.
- In 12V mode, PV capacity is 1400 watts; in 24V mode, PV capacity is 2800 watts.
- Protects battery from deep discharge by cutting off load when battery voltage is above 10.5 volts.
- Cheaper than other Simtec hybrid solar charge controllers.
- Includes a cooling fan that activates when current exceeds 50 amperes.
- Only for running DC loads; AC loads can only be run indirectly through a UPS.
Read more: OUKITEL P2001 PLUS Review: Best Budget Portable Power Station?
Key Features of the SIMTEK ECO 70A MPPT Solar Charge Controller
The SIMTEK ECO 70A MPPT Solar Charge Controller is a notable addition to the market, boasting a unique blend of features.
Unlike traditional AC hybrid models, this controller prioritizes DC load management, offering direct connectivity for DC appliances up to 50 amps.

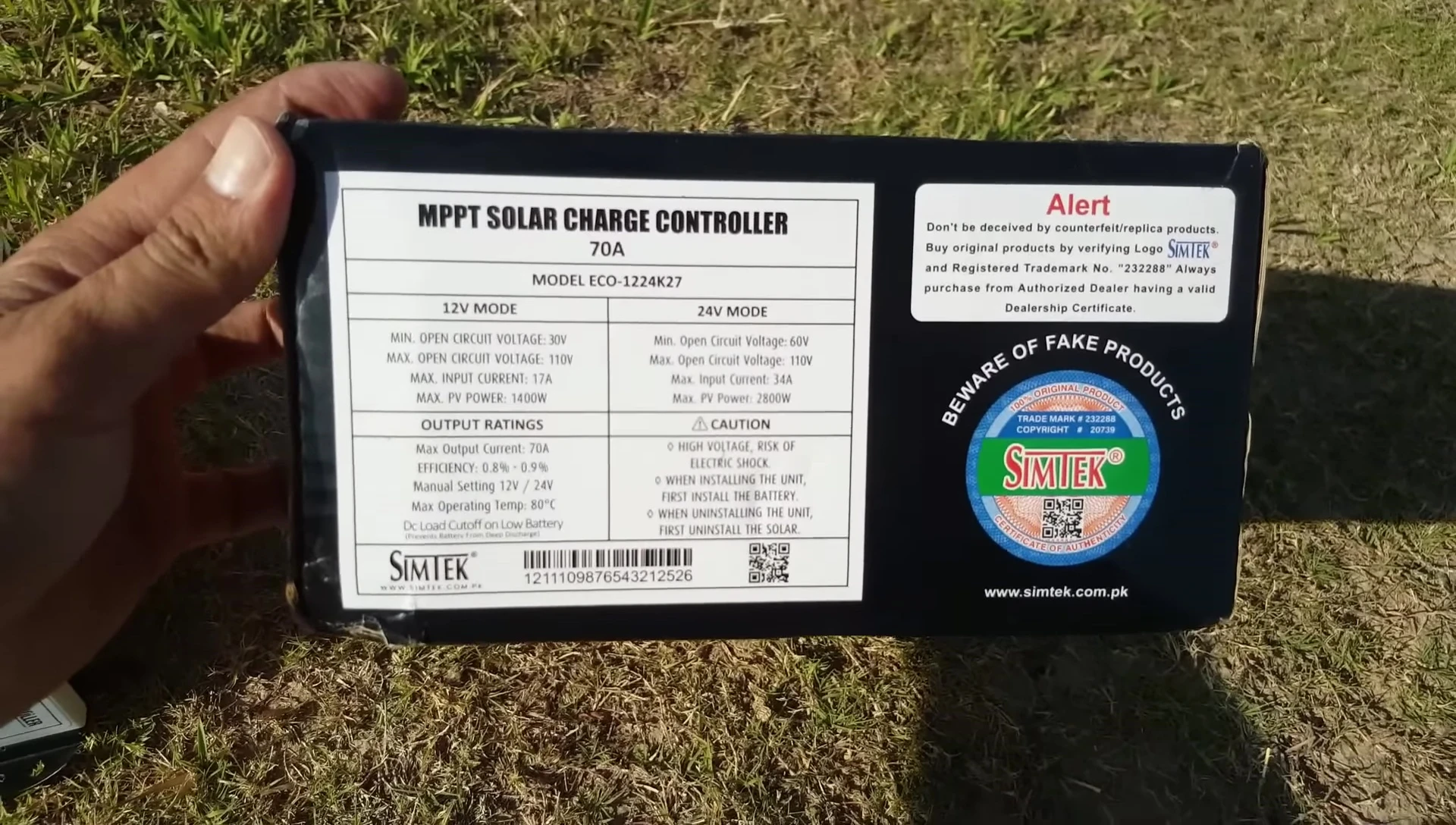

It intelligently handles both 12V and 24V battery systems, supporting up to 1400W (12V) or 2800W (24V) of solar panel input.
A built-in safety mechanism prevents battery deep discharge by automatically cutting off the DC load when the battery voltage drops below a critical threshold, typically around 10.5 volts.

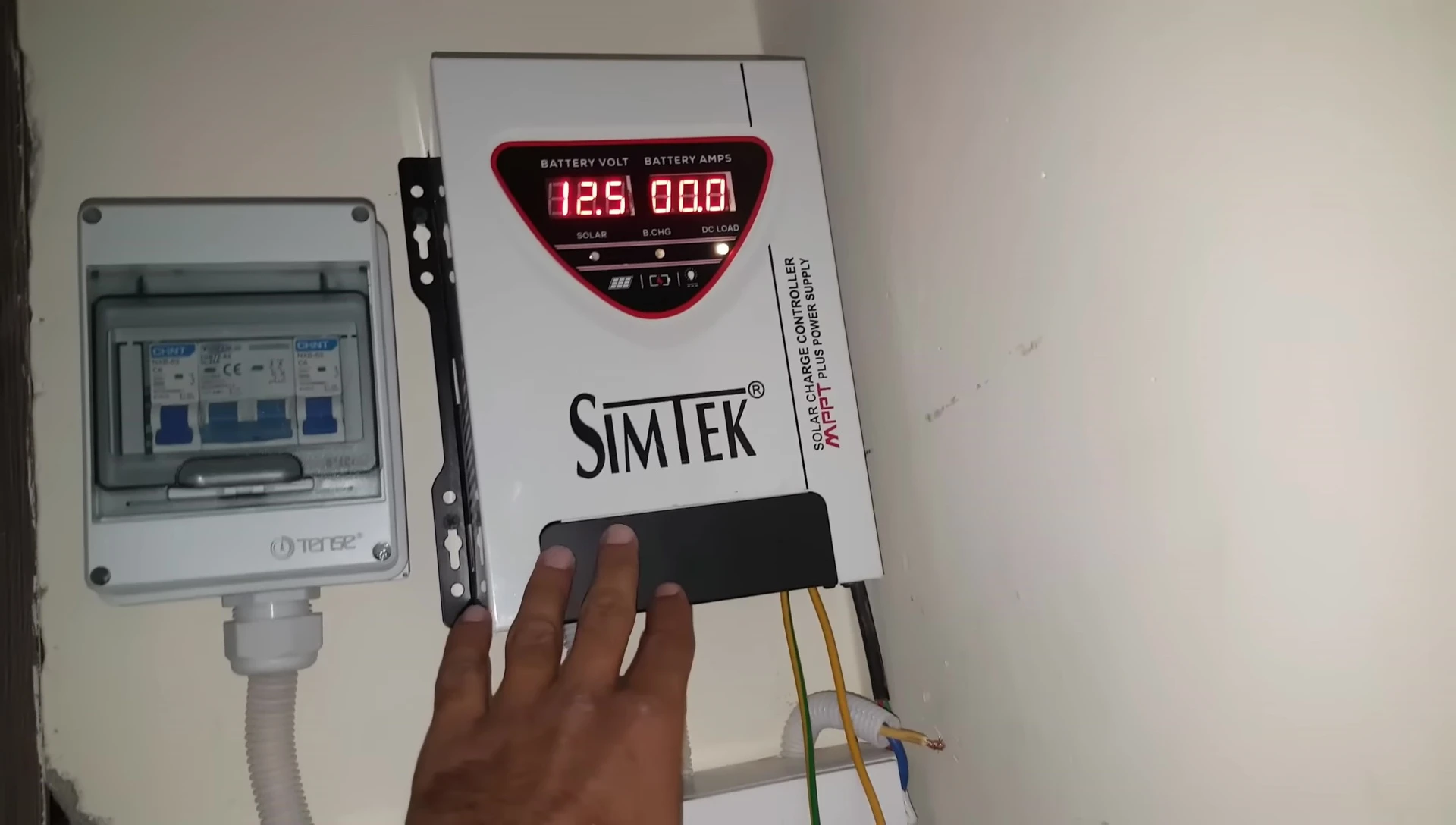

Practical Review and Load Testing

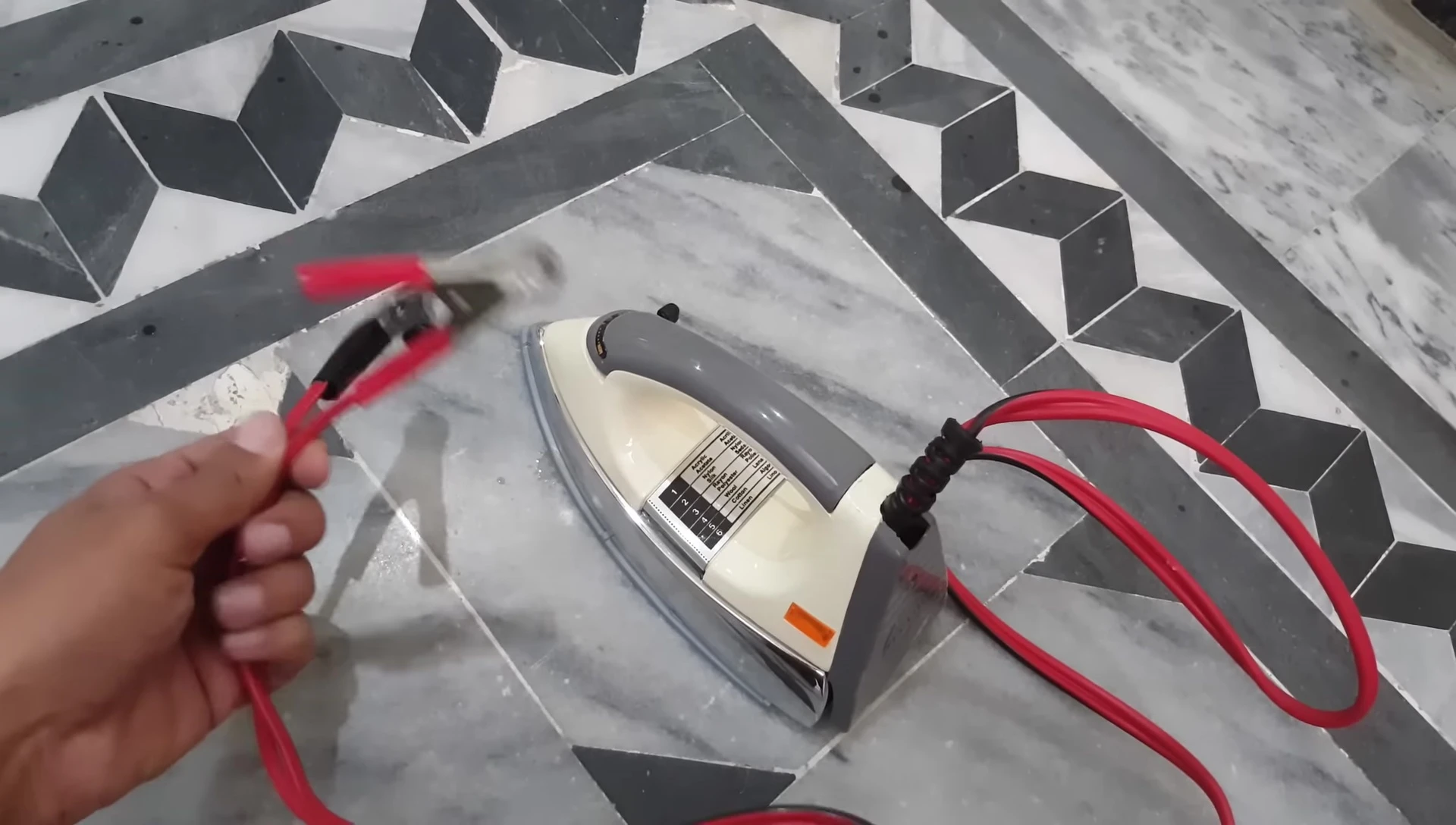

The controller's performance was tested under real-world conditions using a 12V DC electric iron.

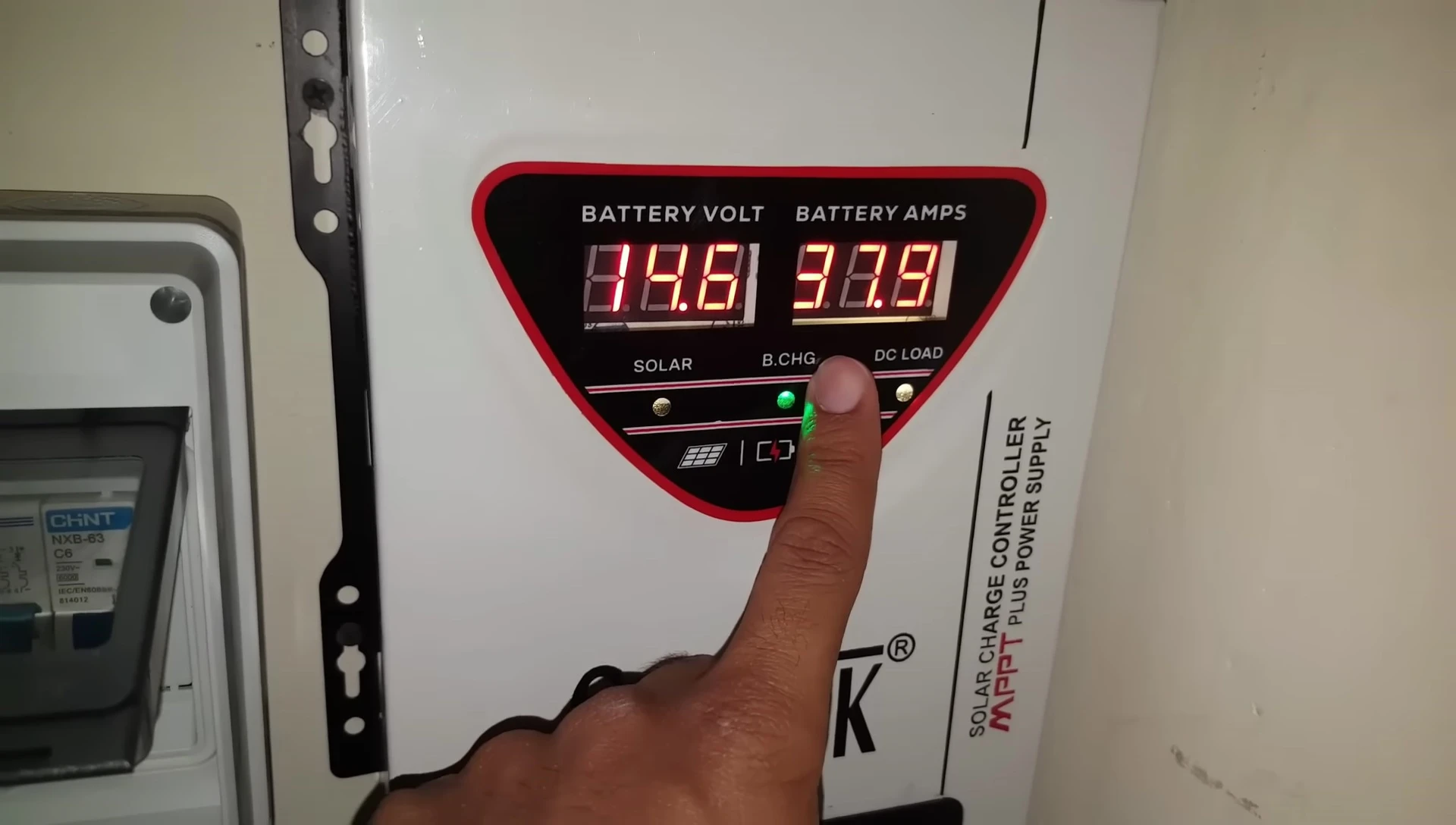

With the iron connected, the controller readily supplied the required power, drawing approximately 36-37 amps from the solar panels.

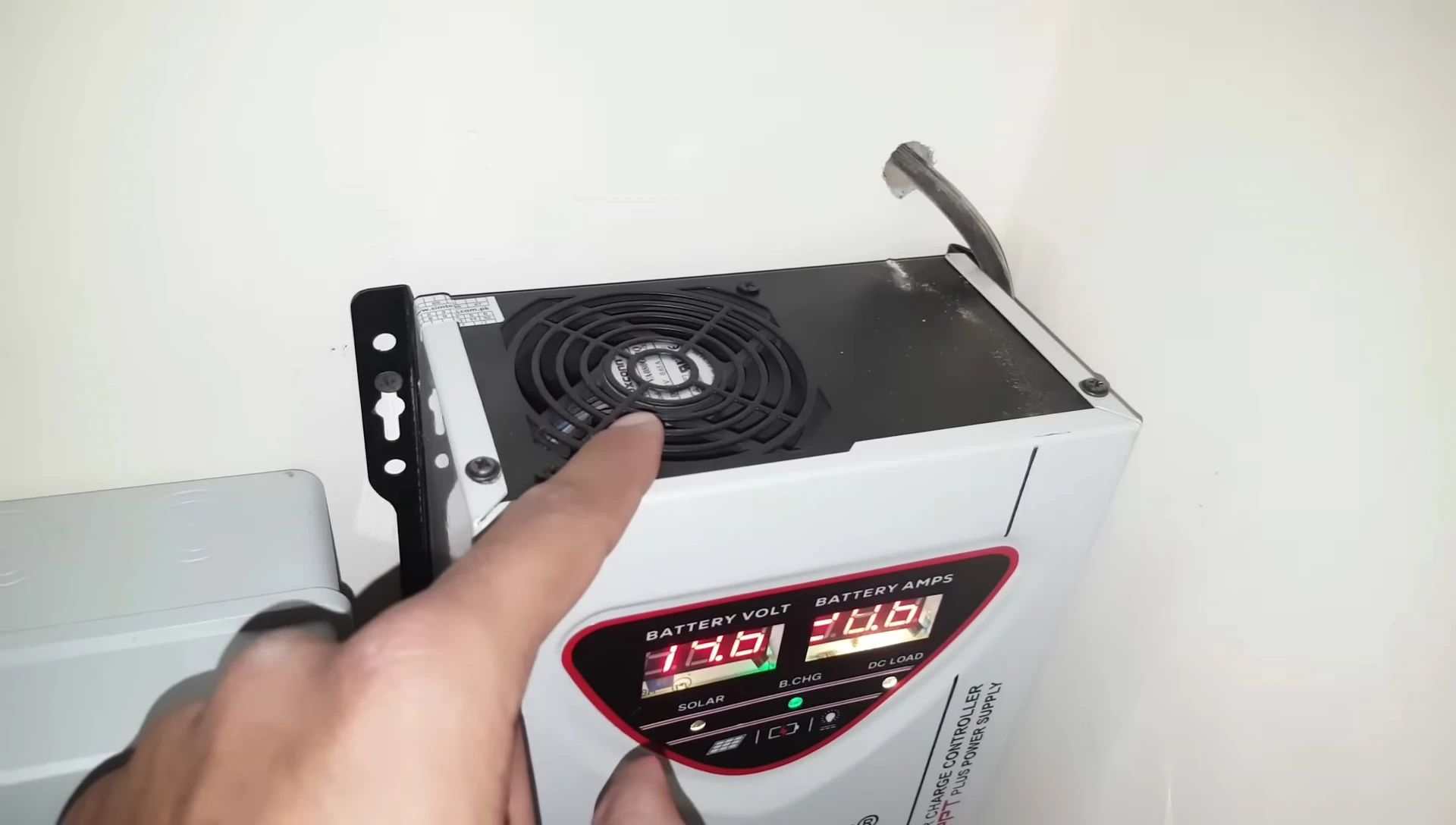

The built-in cooling fan activated when the current exceeded 50 amps, ensuring efficient thermal management.
Switching the iron on and off demonstrated the controller's responsiveness, quickly adjusting the current draw accordingly.
Comparison with Other SIMTEK Hybrid Controllers
The SIMTEK ECO 70A MPPT stands apart from other SIMTEK hybrid controllers by focusing solely on DC load management.
It omits grid connectivity and UPS integration, resulting in a simpler, more cost-effective design.
While other hybrid models allow indirect AC load operation via UPS, the ECO 70A excels in direct DC load control, eliminating the need for additional PWM controllers.
Conclusion and Verdict
The SIMTEK ECO 70A MPPT Solar Charge Controller is a well-designed product ideal for applications requiring reliable DC load management.
Its direct DC load capabilities, coupled with intelligent battery protection features, make it a practical and cost-effective solution.
Compared to AC hybrid models, it offers a streamlined approach to solar power utilization, particularly for systems focusing on DC appliances.
The controller's ability to efficiently handle high current loads without compromising battery health makes it a worthwhile investment.
