This review delves into the TechCella 12.8V 320Ah LiFePO4 battery, subjecting it to rigorous testing and a thorough teardown analysis. We explore its capacity, examining its performance under various loads, and ultimately determine its real-world output against its advertised specifications. Beyond raw capacity, the review assesses the battery's build quality, including an examination of its internal components and the quality of its wiring and construction. Safety features, such as the integrated Bluetooth BMS and temperature protection mechanisms, are thoroughly tested and their effectiveness evaluated.The TechCella battery's compact size and competitive price point make it an attractive option in the LiFePO4 market. This in-depth review provides a balanced perspective, highlighting both its strengths – impressive capacity, robust performance under load, and functional safety features – and its weaknesses – concerns about wire quality and potential assembly defects. We aim to provide readers with the information necessary to make an informed decision about whether this battery is the right choice for their needs, emphasizing the importance of careful inspection before use.

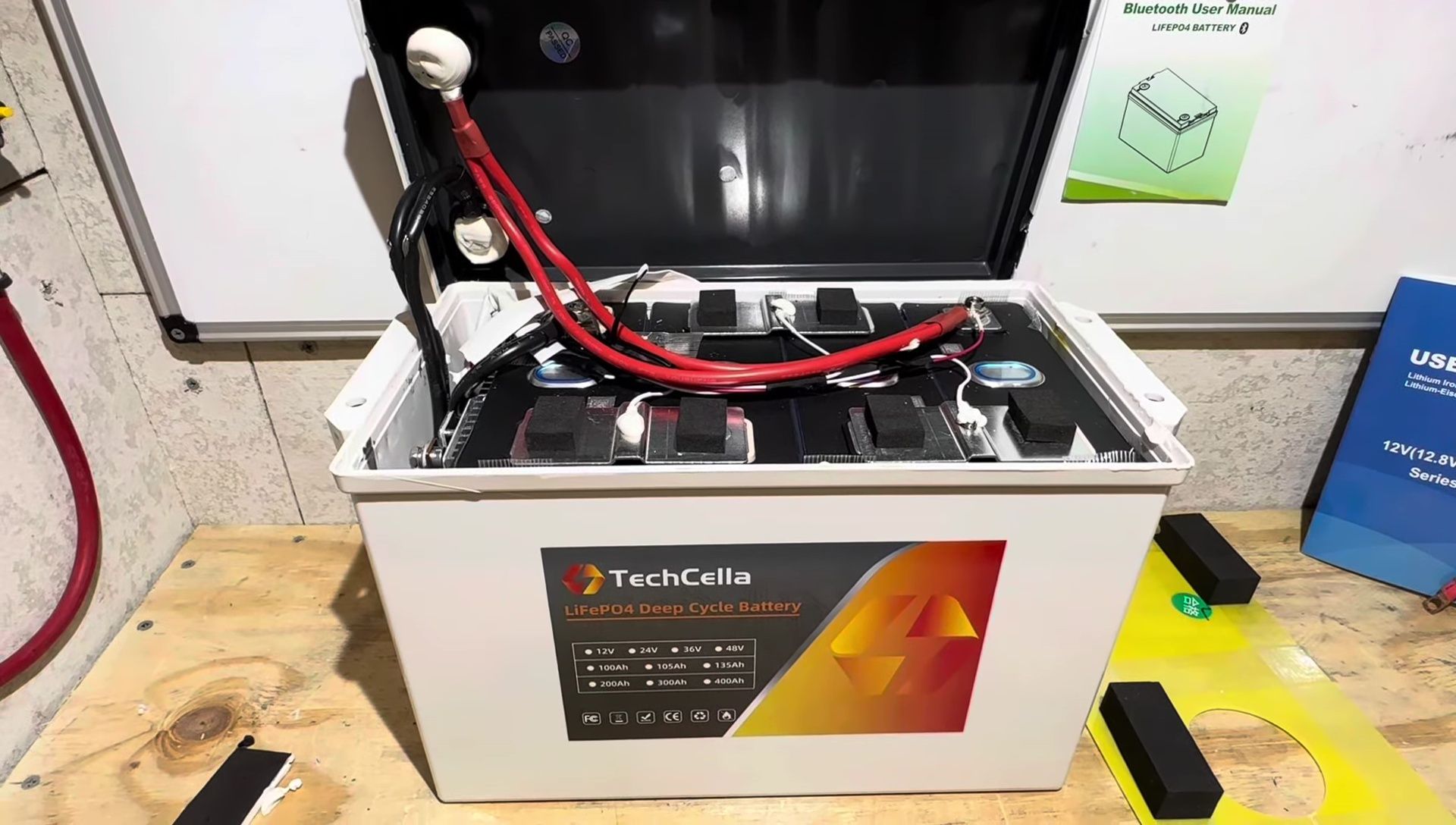

Pros And Cons
- Compact size
- High capacity (4318 Wh delivered, exceeding rated 4096 Wh)
- Bluetooth BMS
- Includes user manual
- Low temperature protection
- High temperature protection
- Small gauge wires (dual 7 gauge)
- Wire near positive terminal pinched during assembly, potentially creating a short circuit risk
- Wire jacket brittle and easily damaged
Read more: OUKITEL P2001 PLUS Review: Best Budget Portable Power Station?
Capacity Test Results
The TechCella 12.8V 320Ah LiFePO4 battery underwent a rigorous capacity test. Initially, a 682-watt load was applied, revealing a strong performance. The battery comfortably exceeded the halfway mark of its rated 4096Wh capacity.
Further testing involved increasing the load to 100 amps to assess the BMS's ability to handle higher currents. Even under this heavy load, the battery performed admirably, demonstrating its robustness.
The final capacity test pushed the battery to its limits using a portable power station, culminating in a remarkable 4318Wh output - exceeding its rated capacity by 5.4%. This impressive result solidified its position as a top performer.
Battery Specifications and Features

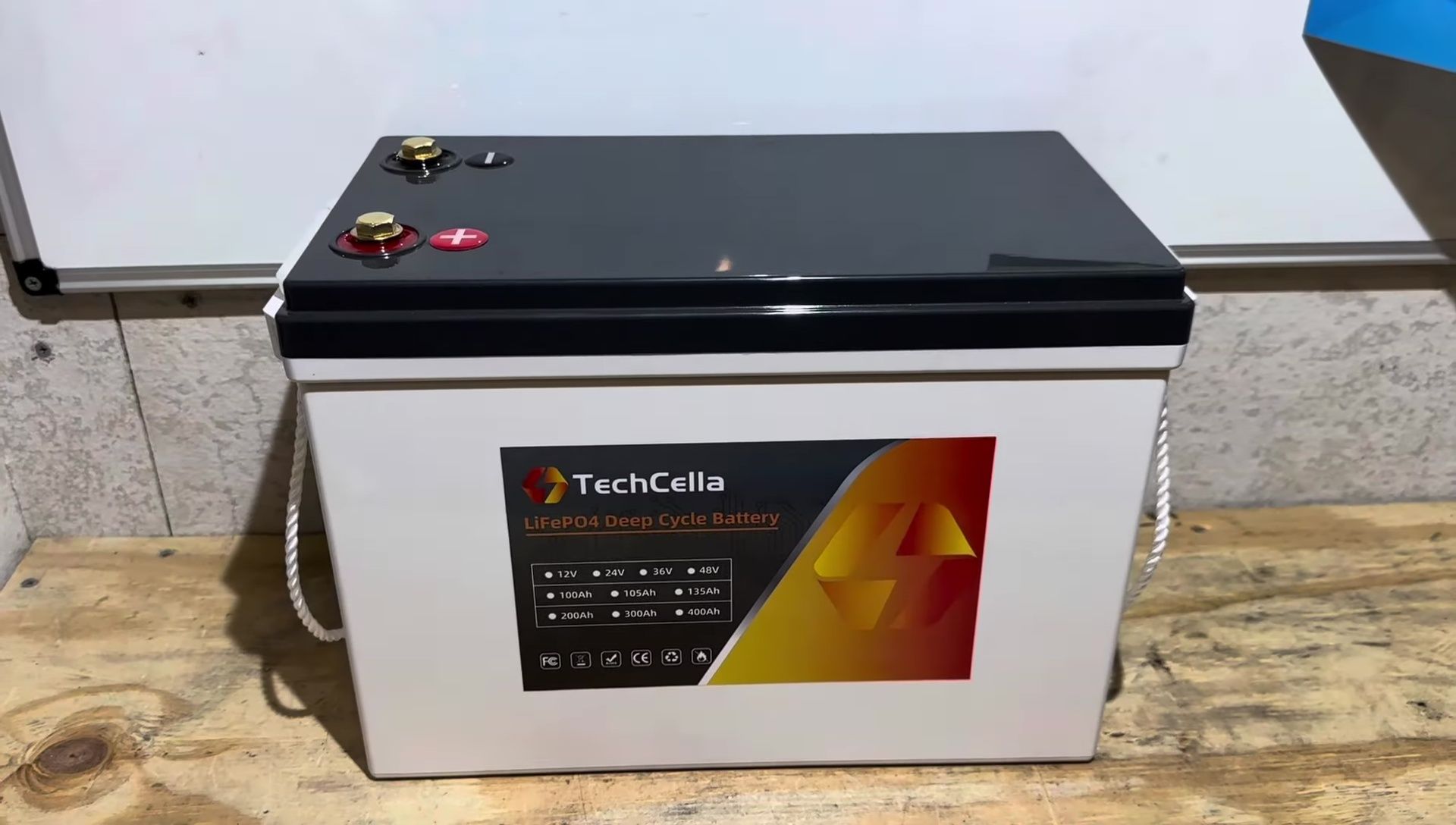

The TechCella battery boasts a compact design, slightly larger than a Group 31 battery. Despite its small size, it packs a substantial 4096 watt-hours of power.

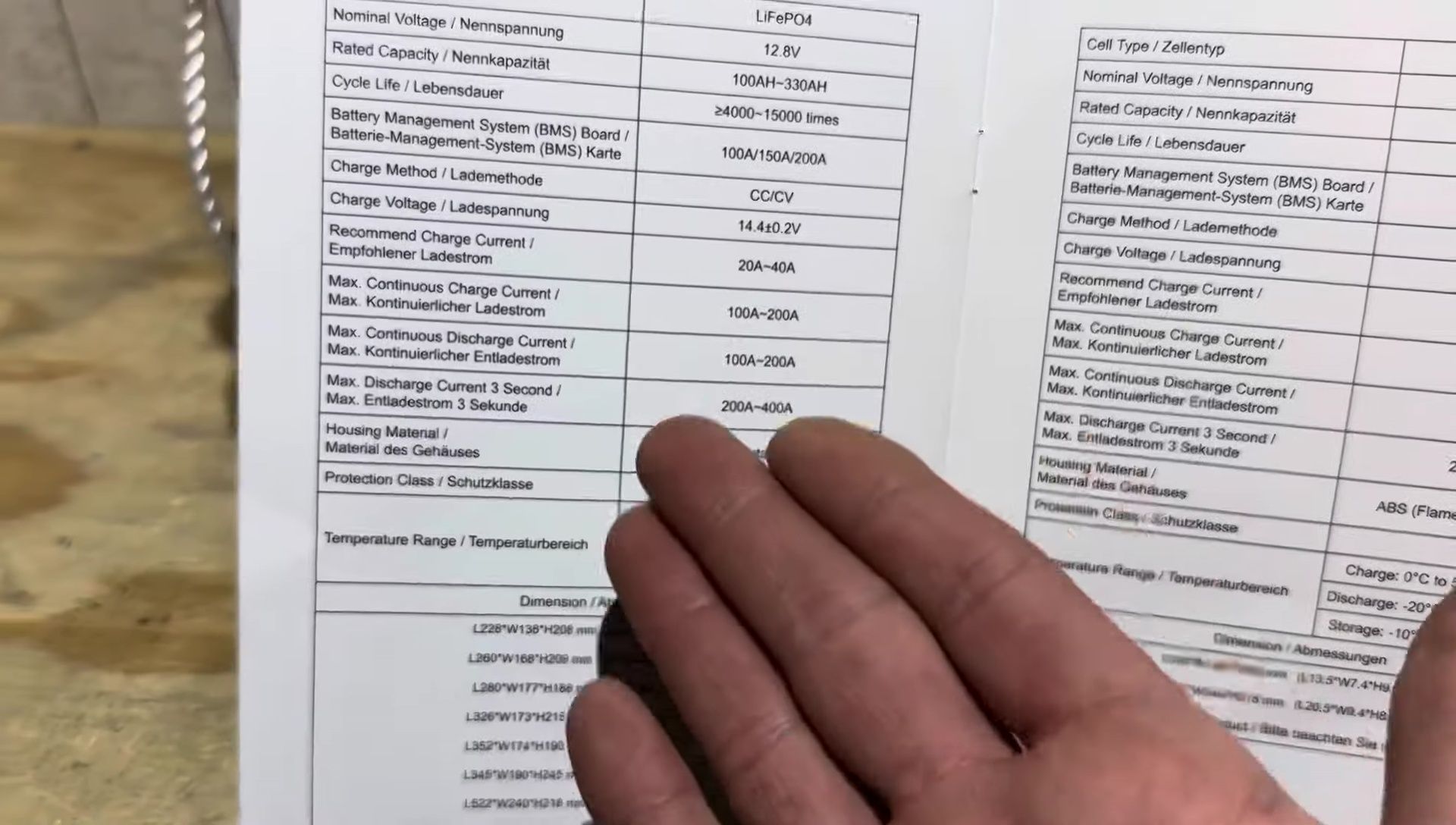

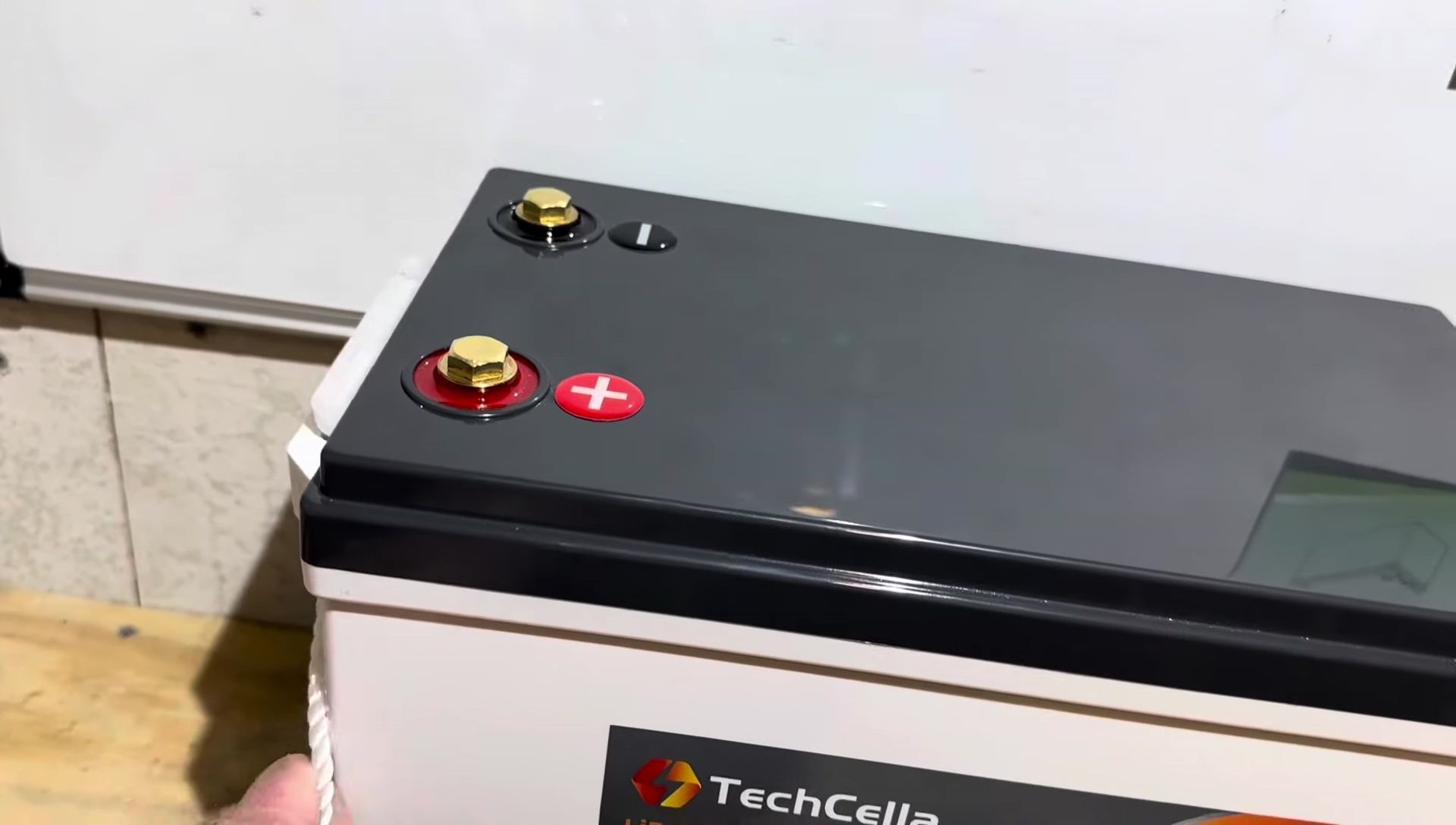

A key feature is the integrated Bluetooth BMS, allowing for convenient monitoring of battery parameters. A comprehensive user manual is included, providing detailed specifications and operational information.
The battery incorporates safety features such as low-temperature protection, ensuring safe and reliable performance across various environmental conditions. The 200 amp BMS further contributes to its safety and operational stability.

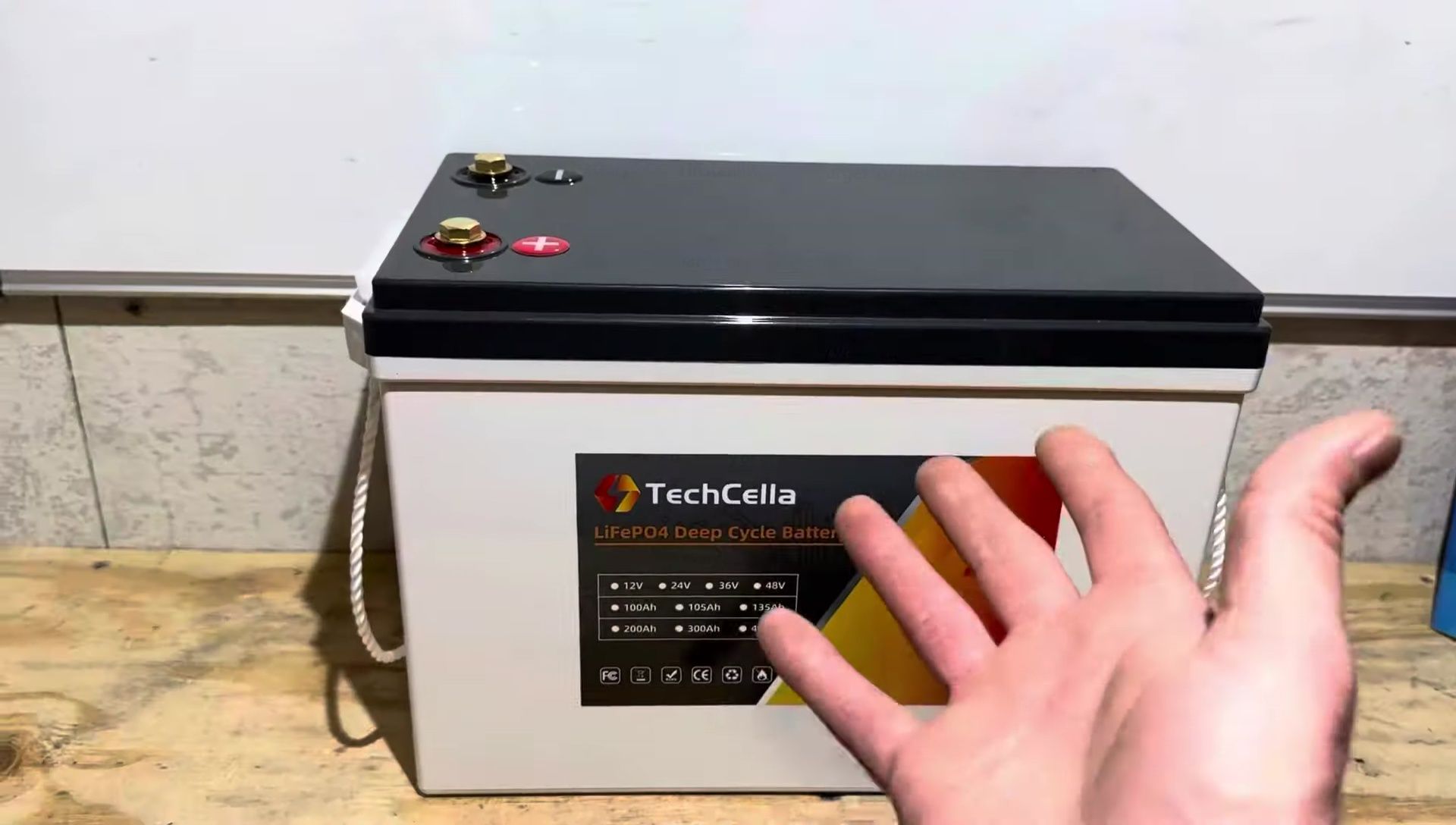

Teardown and Internal Components

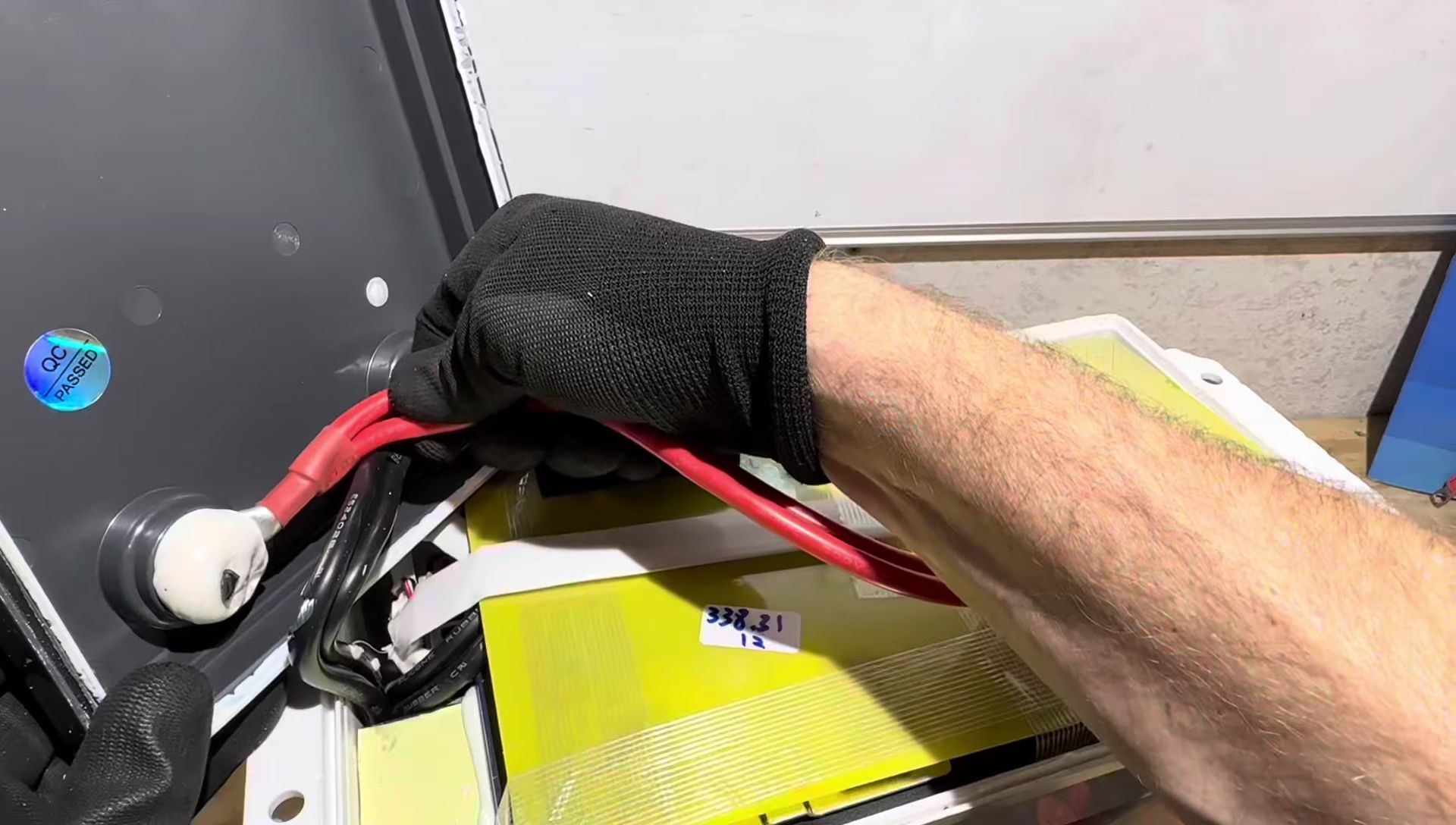

The teardown revealed a well-constructed battery pack with dual number seven gauge wires. However, concerns arose about the wire jacket quality, which appeared brittle and prone to tearing, potentially posing a safety hazard.

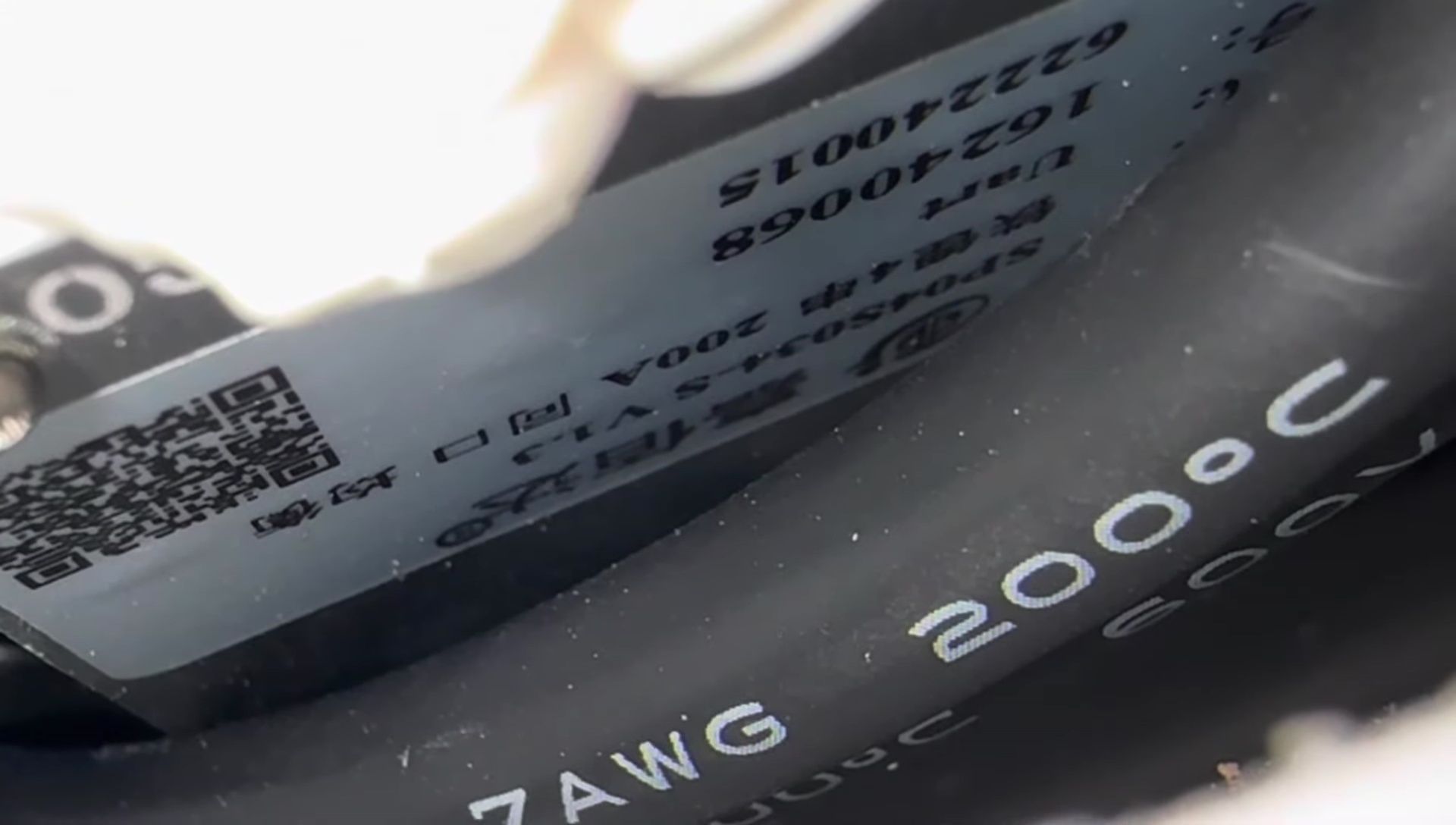

The cells were securely embedded in epoxy, making it difficult to access them individually. The BMS was identified as a JBD 200-amp unit, confirming its legitimacy.
The battery incorporates two NTC temperature sensors located closely together, which could potentially be optimized for better temperature monitoring. QR codes on the cells were unfortunately indecipherable.
High and Low Temperature Protection Test

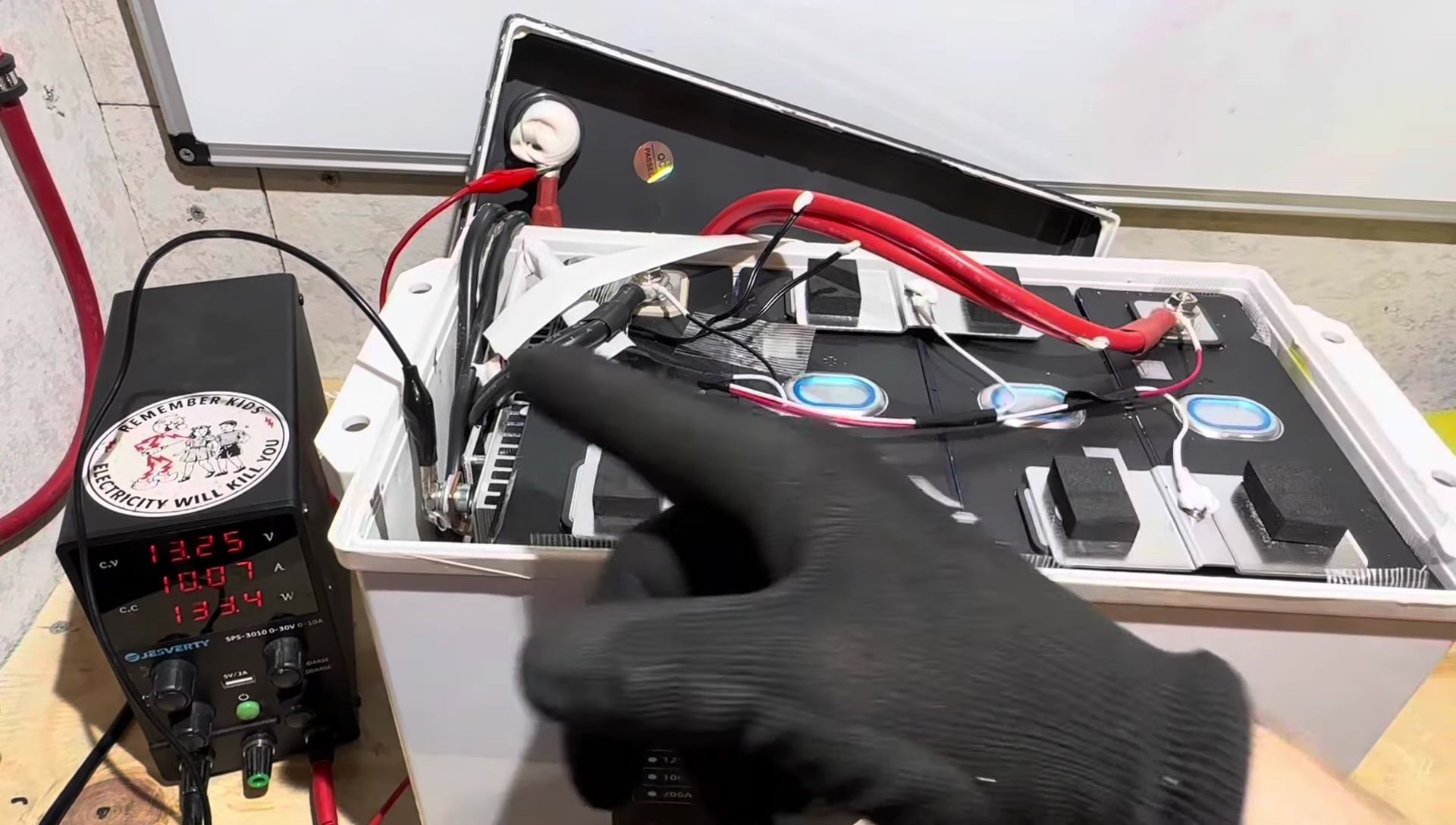

The high-temperature protection test successfully triggered a charging dropout when heat was applied to the sensors, confirming its functionality.

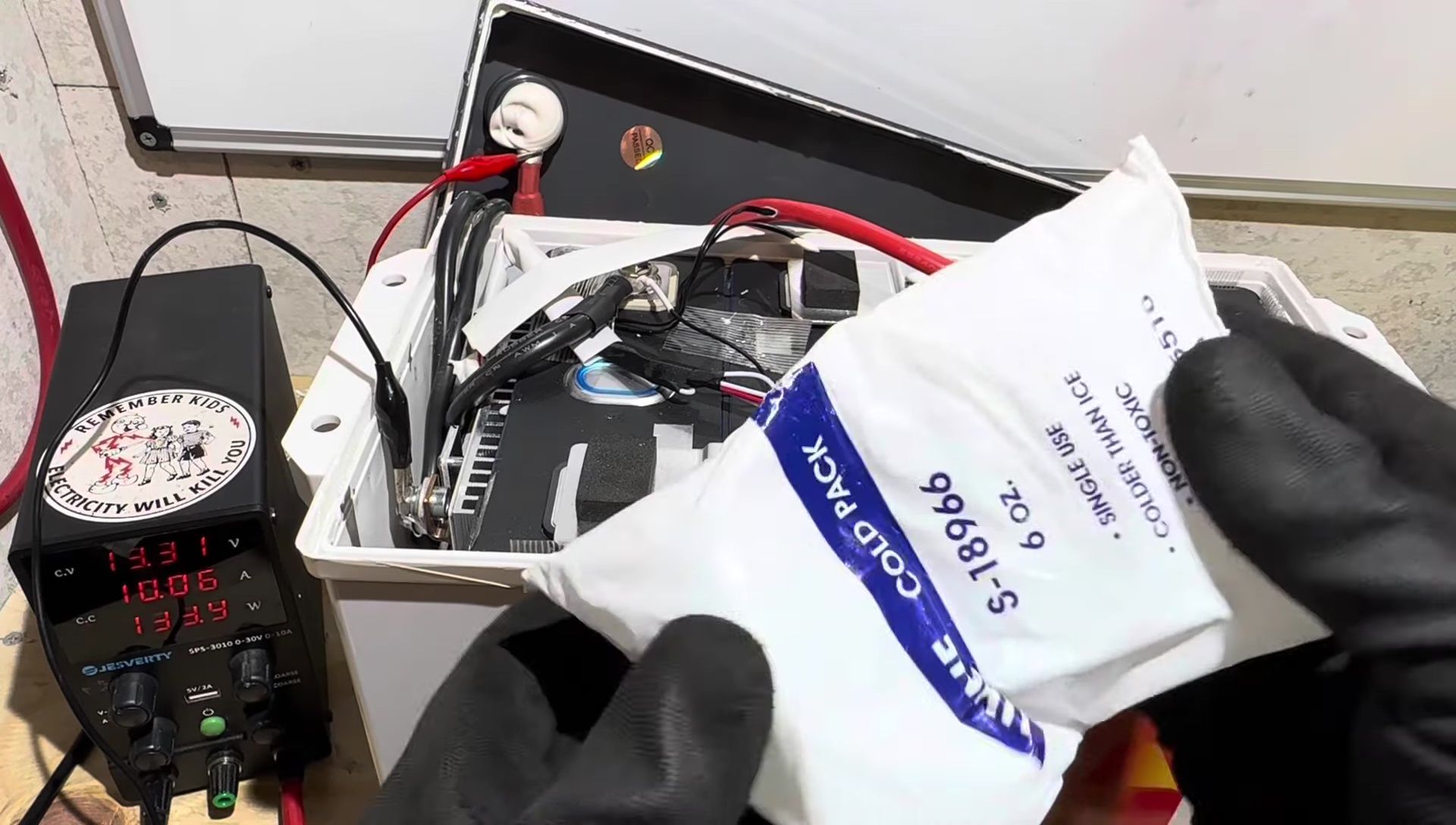

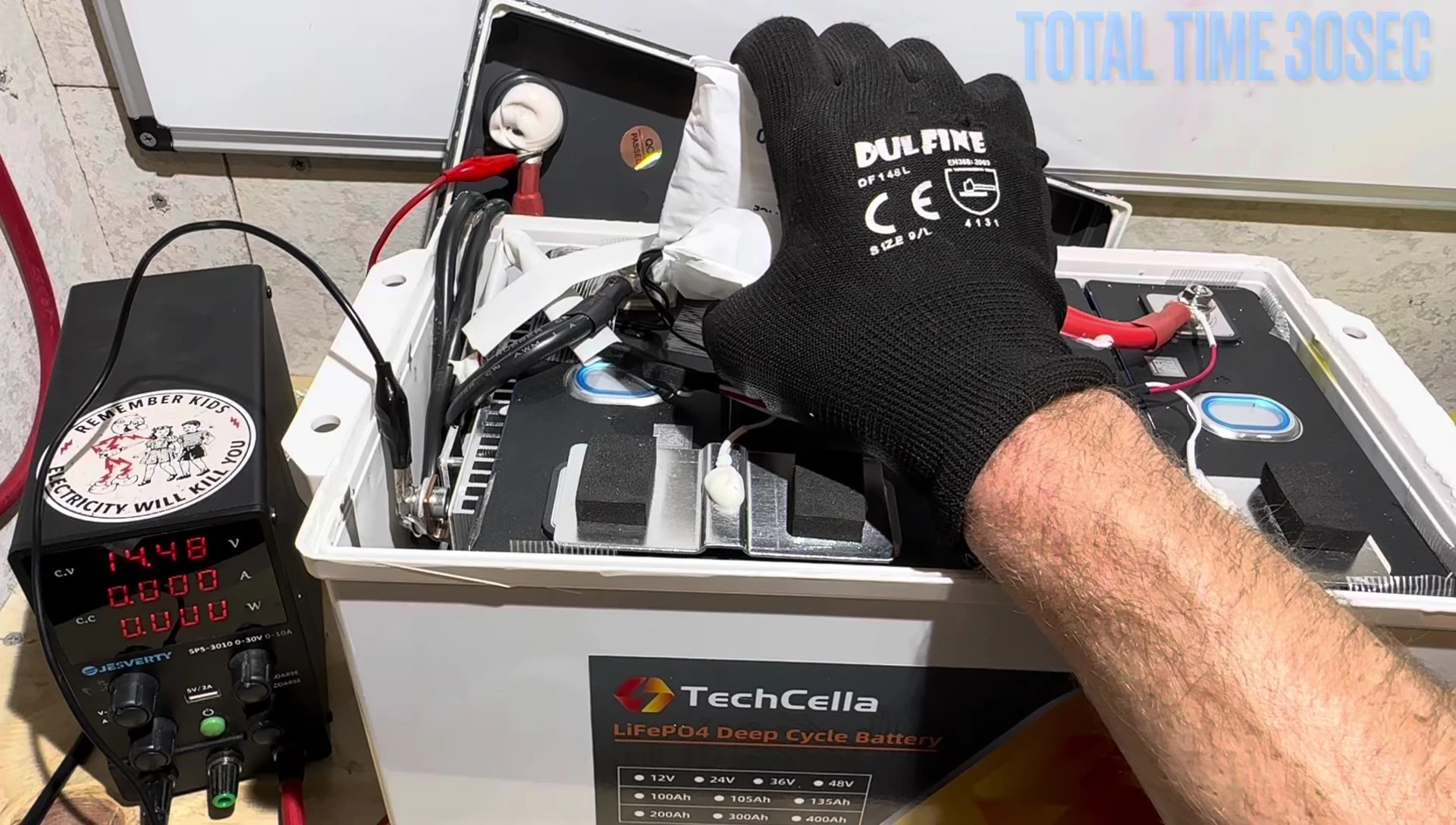

Similarly, the low-temperature protection test was performed using an ice pack. The system promptly shut down within approximately 30 seconds of the sensors reaching the threshold temperature, further demonstrating the protection's effectiveness.
These tests confirmed that the battery's temperature protection mechanisms function correctly and ensure the safety and longevity of the battery under various temperature conditions.
Final Verdict

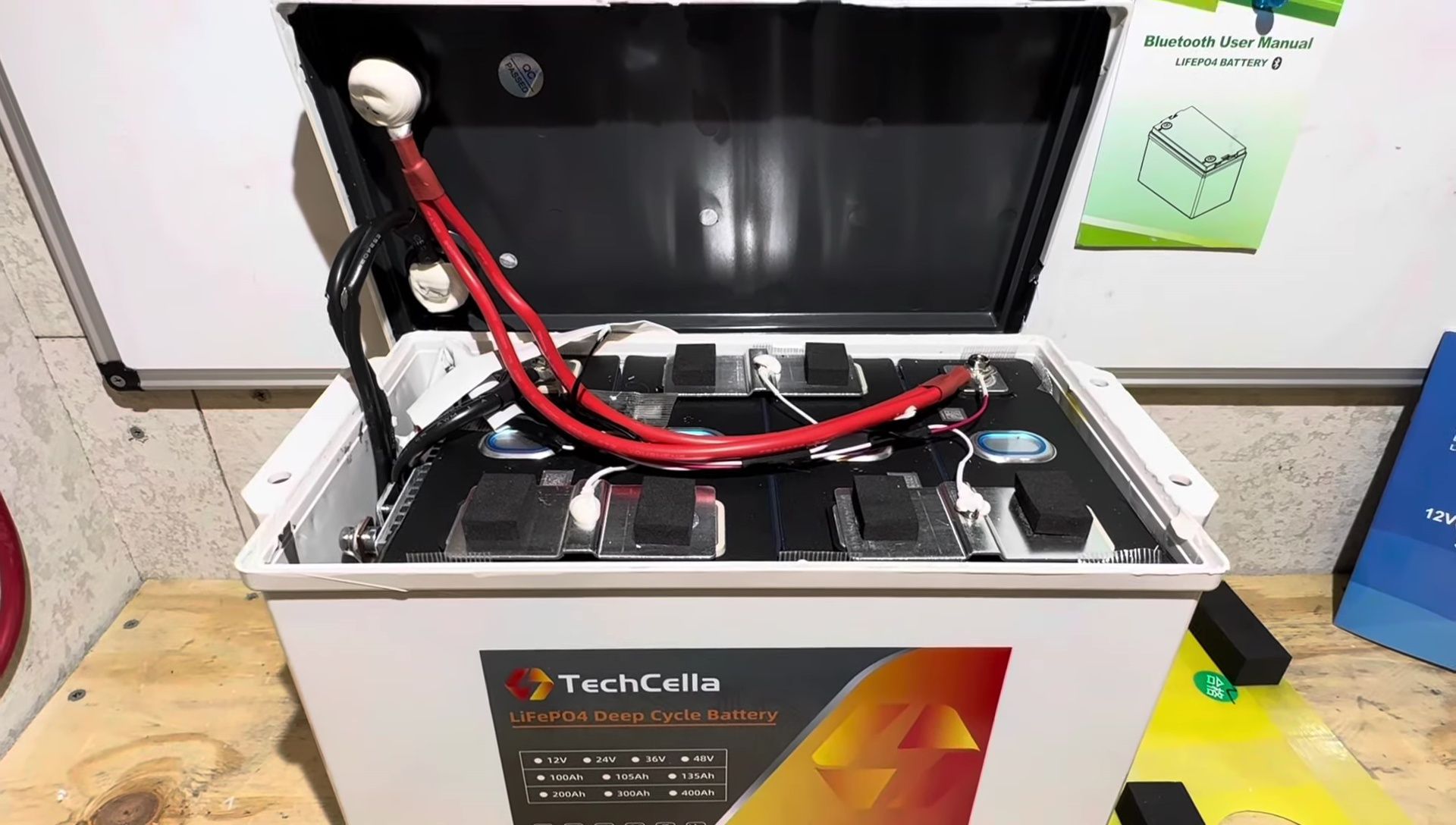

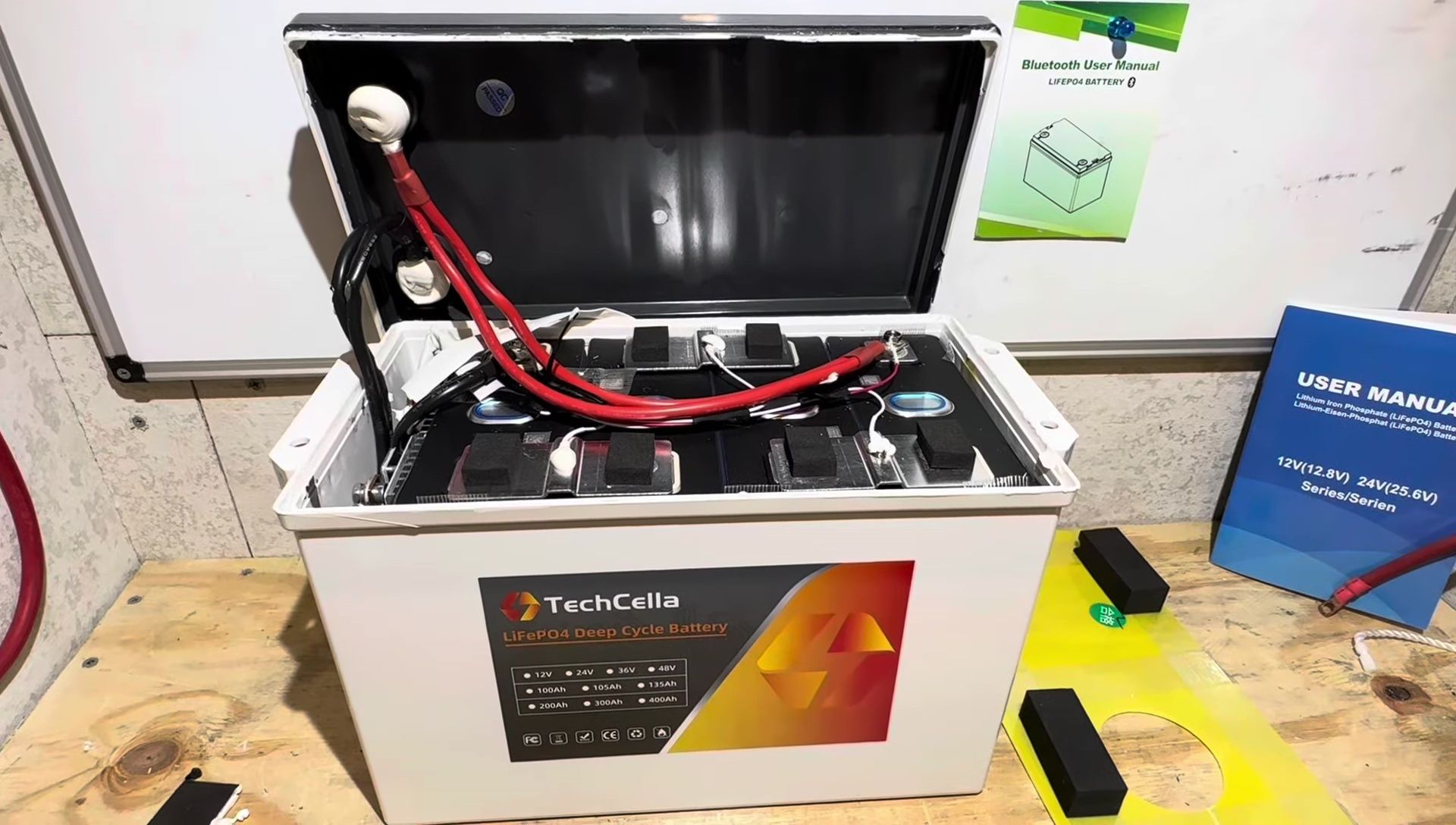

The TechCella 320Ah LiFePO4 battery offers impressive capacity at a competitive price point. However, concerns regarding the wire quality and a potential safety issue due to wire pinching during assembly necessitate cautious consideration.
The battery's performance in capacity tests and its functioning temperature protection mechanisms are positive attributes. However, the reviewer expresses some reservations due to the observed wire issues.
Overall, the battery is a strong contender in the budget-friendly LiFePO4 market, but potential buyers should carefully inspect their unit for any assembly defects before putting it into use.
