TP4056 Charging Module Review: A Comprehensive Look at this Lithium Battery Charger

This review delves into the TP4056 charging module, a compact and convenient solution for charging lithium-ion batteries. This particular model boasts a modern Type-C input for charging, offering ease of use and compatibility with widely available charging sources. Beyond its simple design, the module incorporates crucial safety features, including integrated protection ICs, ensuring safe and efficient charging of your lithium-ion cells. Its dual LED indicator system provides clear visual feedback throughout the charging process, eliminating guesswork and promoting peace of mind.The review covers both the module's functionality and its practical application. A detailed test showcases the charging process, highlighting the charging time and the clear visual cues provided by the LEDs. While the listed price of ₹2500000 is flagged as an apparent error, the review emphasizes the module's value for hobbyists and small projects due to its versatility, compact design, and robust safety features. Ultimately, this assessment aims to provide a comprehensive understanding of the TP4056's capabilities and potential drawbacks.

Pros And Cons

TP4056 Charging Module
  • Charges lithium batteries
  • Includes overcharge protection (indicated by two ICs)
  • Has charging and full-charge indicators (LEDs)
  • Offers both charging input via Type-C and direct battery input terminals

Read more: OUKITEL P2001 PLUS Review: Best Budget Portable Power Station?

Unboxing and Overview

The TP4056 charging module is a compact device designed for charging lithium-ion batteries. This particular version features a convenient Type-C input for charging. The module includes a TP4056 main IC and additional protection ICs on the reverse side to ensure safe and efficient charging.

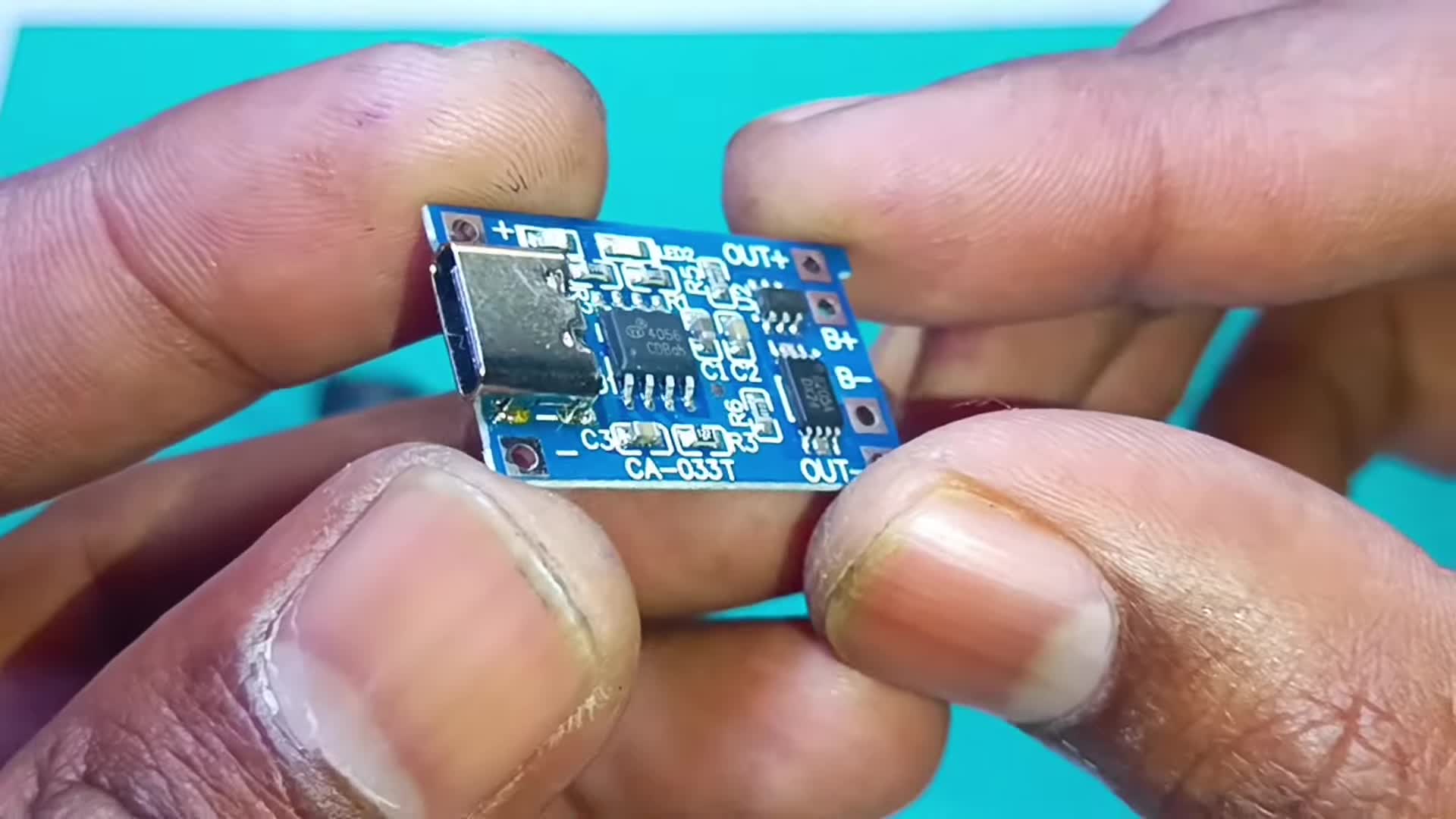

Close-up of the TP4056 charging module, highlighting the Type-C port
Close-up of the TP4056 charging module, highlighting the Type-C port

The front panel sports two LEDs: one indicates the charging status, and the other lights up once the battery is fully charged. The rear of the module provides four terminals for connecting the battery, with output terminals conveniently located on either side of the battery terminals.

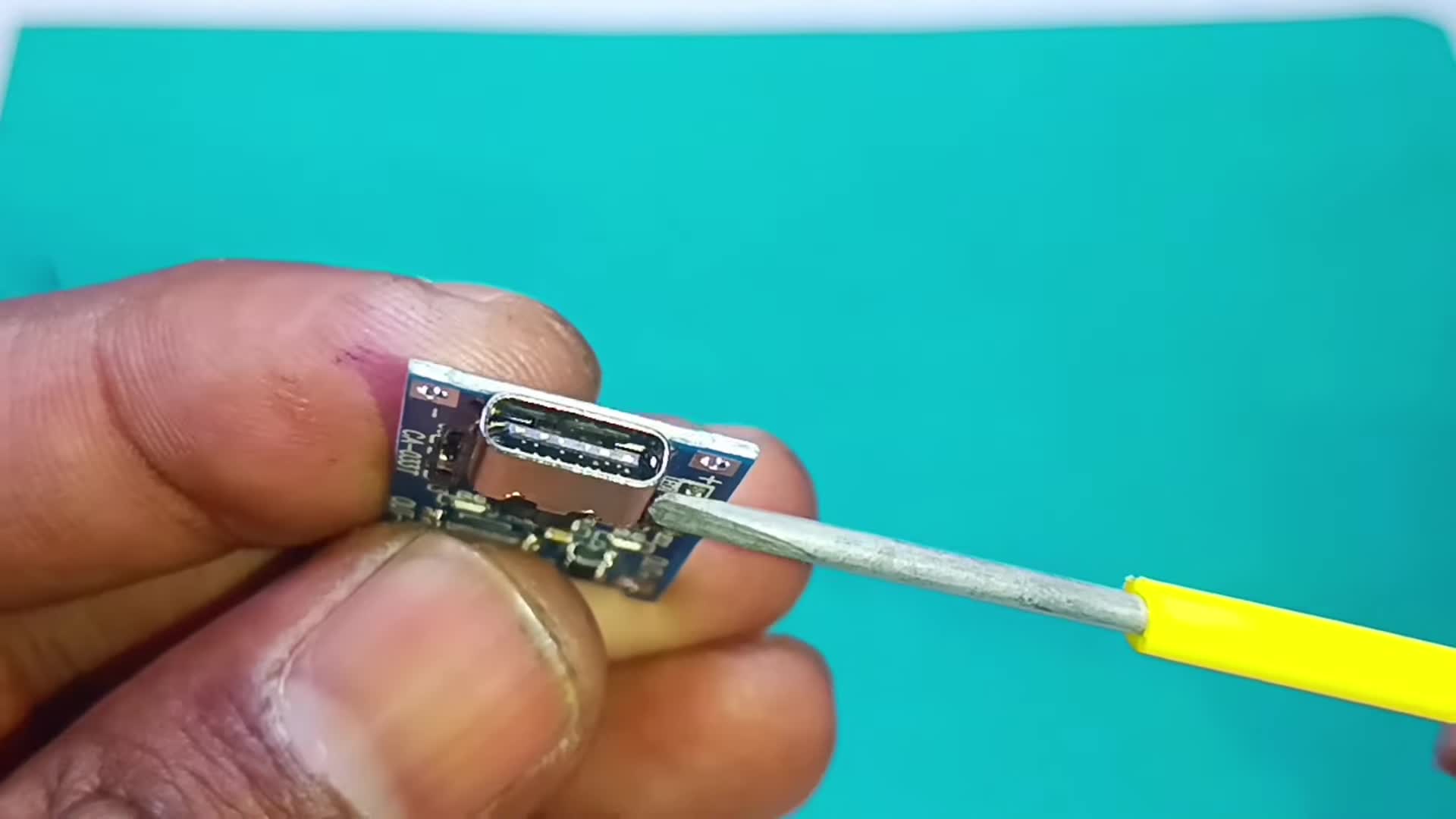

View of the Type-C port on the module
View of the Type-C port on the module

This module offers flexibility: you can charge the lithium battery directly via the Type-C port or connect an external power supply to the input terminals, making it versatile for various charging scenarios.

Close-up of the two LEDs on the module
Close-up of the two LEDs on the module

Charging Process and Performance

To test the module, a lithium-ion cell was connected to the terminals. The red LED illuminated, confirming that the charging process had begun. The charging time was approximately one hour, and the blue LED illuminated after the charging cycle was complete indicating a fully charged battery.

Connecting the lithium-ion battery to the module
Connecting the lithium-ion battery to the module

The module efficiently and safely charged the battery. The dual LED indicator system provided clear visual feedback throughout the charging process, confirming both the charging status and the completion of the charge.

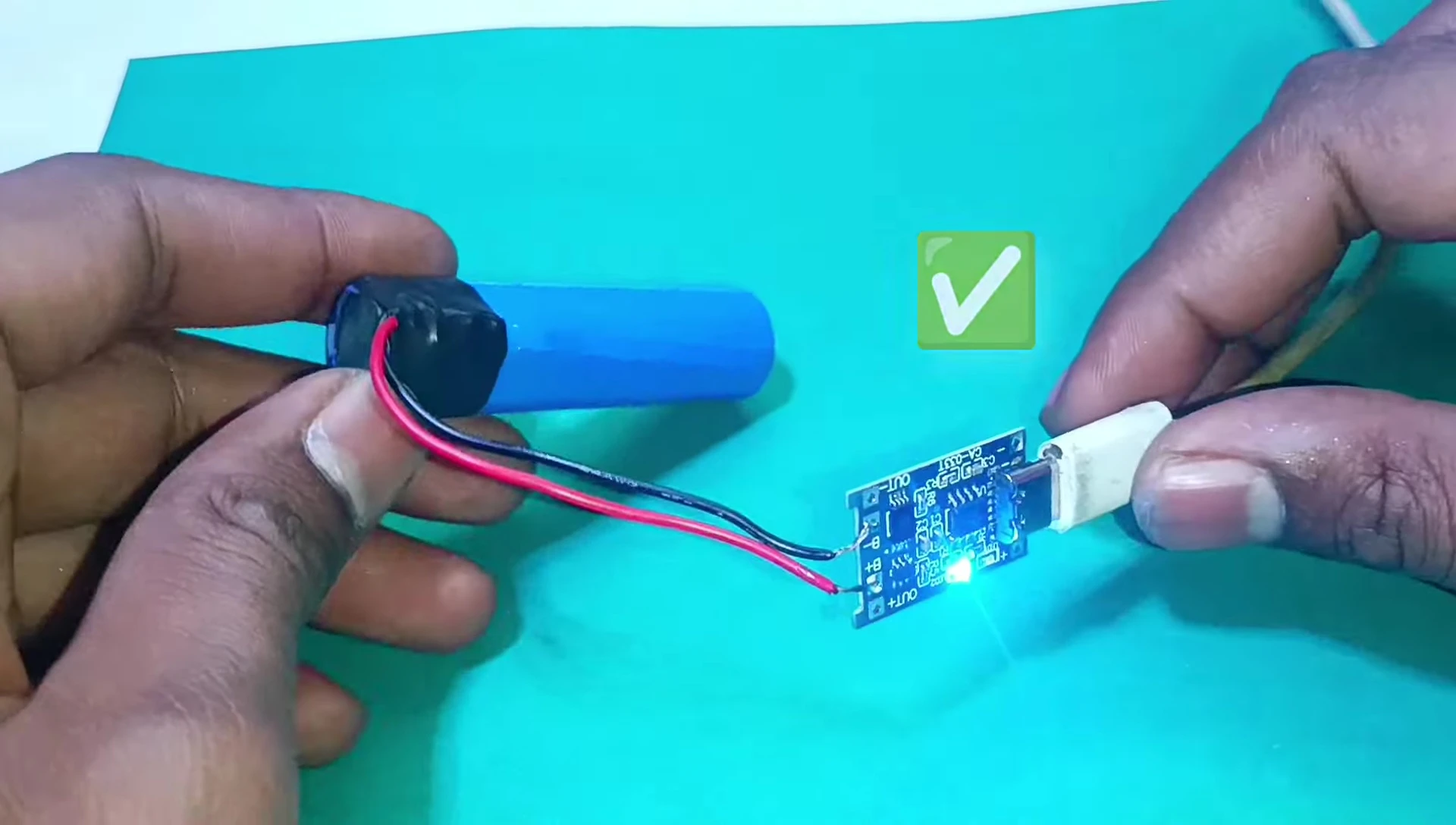

Blue LED indicating a fully charged battery
Blue LED indicating a fully charged battery

Conclusion and Verdict

The TP4056 charging module offers a simple yet effective solution for charging lithium-ion batteries. Its compact size, Type-C input, and clear LED indicators make it user-friendly. The additional protection circuitry provides peace of mind, ensuring safe charging.

Overall shot of the TP4056 module
Overall shot of the TP4056 module

While the review mentions a price of ₹2500000 which seems inaccurate, the functionality and ease of use make it a valuable tool for hobbyists and small-scale projects. The ability to charge via Type-C or an external power supply adds to its versatility. However, it's vital to note that the claimed price of ₹2500000 is extraordinarily high and likely an error.

Overall, the TP4056 is a reliable and convenient charging module, although potential buyers should verify the actual price before purchasing.
