This in-depth review and teardown of the Vader 460Ah LiFePO4 battery explores its performance, construction, and safety features. We subjected the battery to rigorous testing, including a high-load capacity test far exceeding typical benchmarks, to evaluate its real-world capabilities. This review also includes a detailed examination of the battery's internal components, revealing the high-quality cells, robust BMS, and thoughtful design elements contributing to its overall performance and longevity.Beyond the capacity test, we thoroughly investigated the battery's self-heating and high-temperature protection mechanisms. This analysis provides a comprehensive understanding of the Vader 460Ah's functionality and reliability. Our findings offer valuable insights for anyone considering a high-capacity LiFePO4 battery for off-grid power solutions, RV applications, or other demanding uses. We conclude with an overall assessment of the battery's strengths and weaknesses, offering a definitive recommendation.

Pros And Cons

Vader 460 Amp Hour Lithium Iron Phosphate Battery

High capacity (480 amp hours)
Self-heating functionality
App connectivity via Bluetooth
10-year warranty from battery manufacturer
High-quality cells (EVE LF230s)
Robust construction (steel case, large wires, name-brand BMS)
Compact size compared to equivalent smaller batteries
Good build quality
High-temperature and low-temperature protection
Serviceable cell connections

Large size and weight (104.7 lb)

Capacity Test Setup and Initial Readings

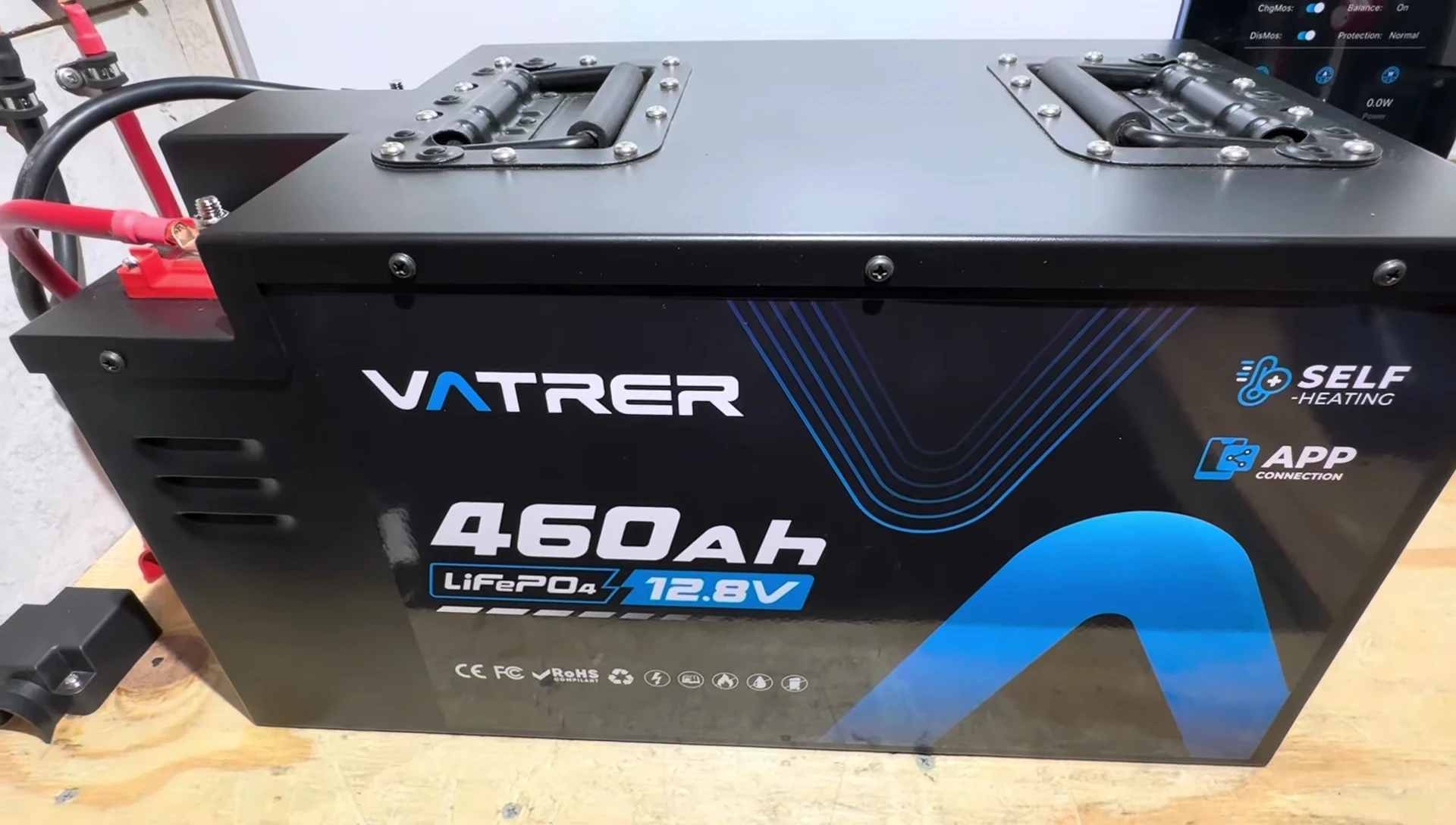

The Vader 460Ah battery was fully charged and connected to a capacity test rig, including an inverter and energy meter.

Capacity test setup showing the Vader 460Ah battery connected to the inverter and energy meter.

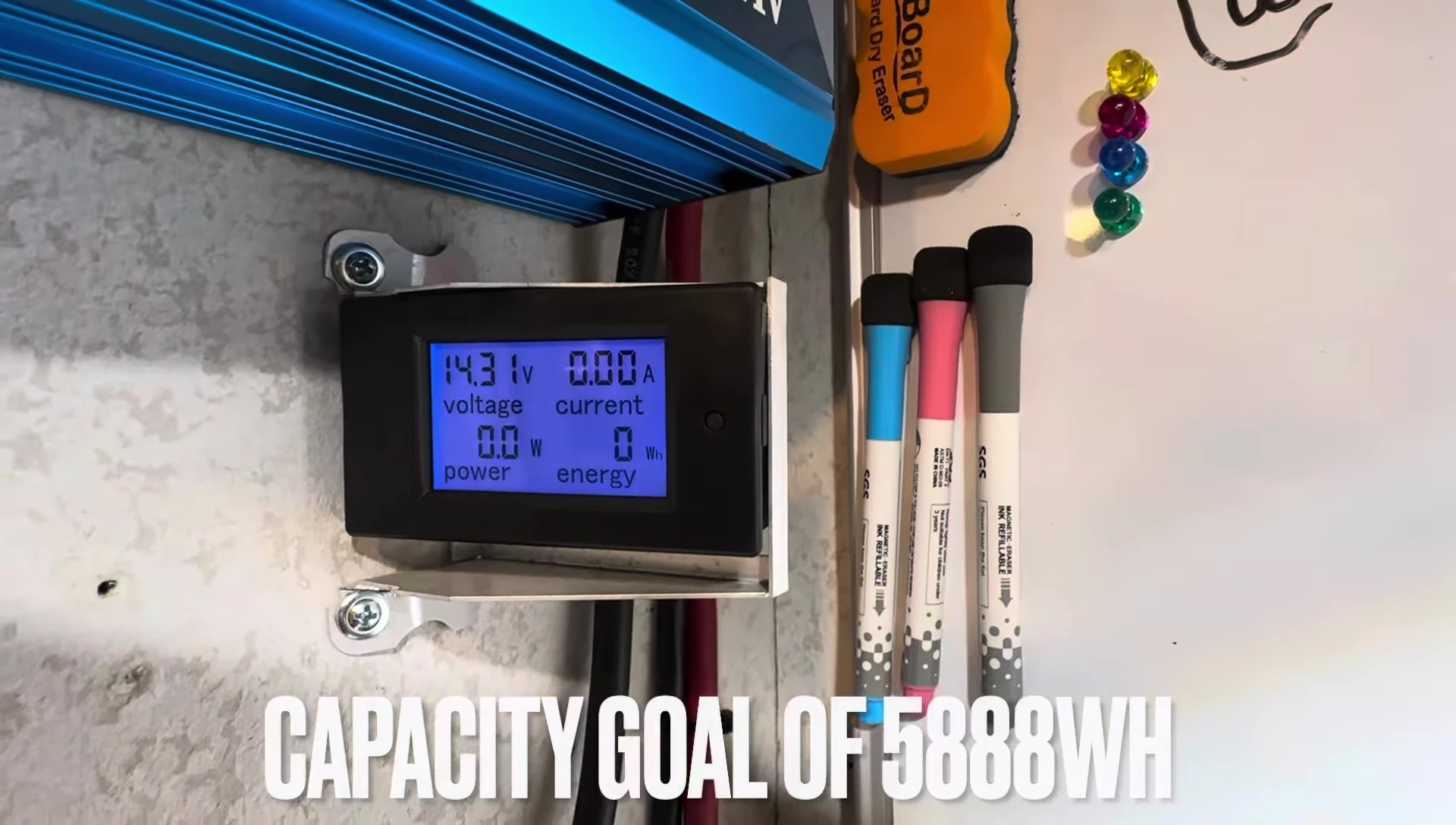

Initial readings showed 14.31 volts on the display and 14.3 volts on the app, with no energy consumed yet.

Initial voltage readings displayed on the test equipment and Vader app.

A significant load of approximately 1025 watts (77.54 amps) was applied to simulate real-world usage, significantly higher than typical tests due to the battery's high capacity.

Load test in progress showing high amperage draw from the battery.

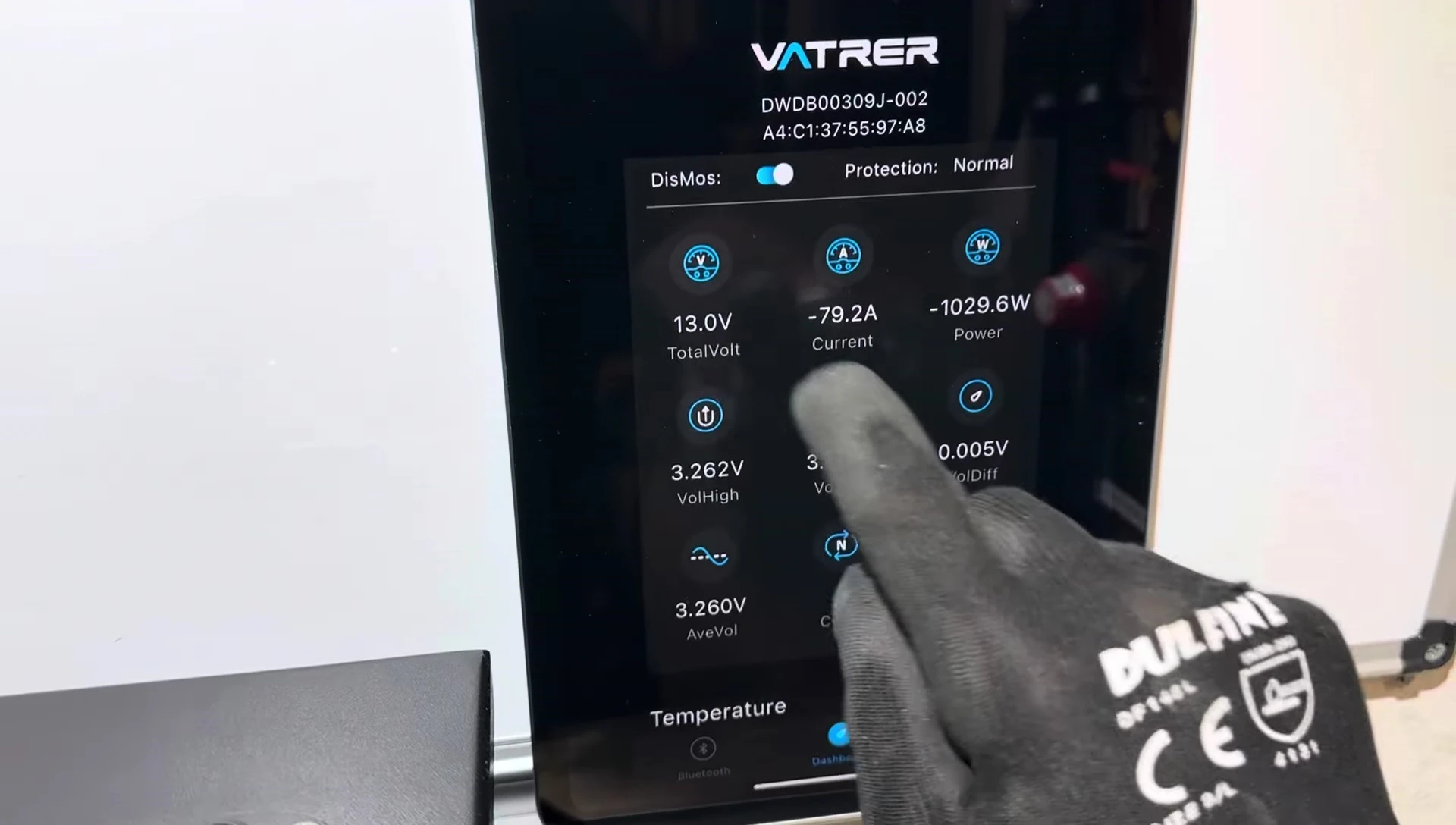

The app displayed consistent readings, showing 13.4 volts, 76 amps, and 1022 watts during the initial phase of the load test.

App readings during the load test showing voltage, amperage, and wattage.

Mid-Test Analysis and Bluetooth Data

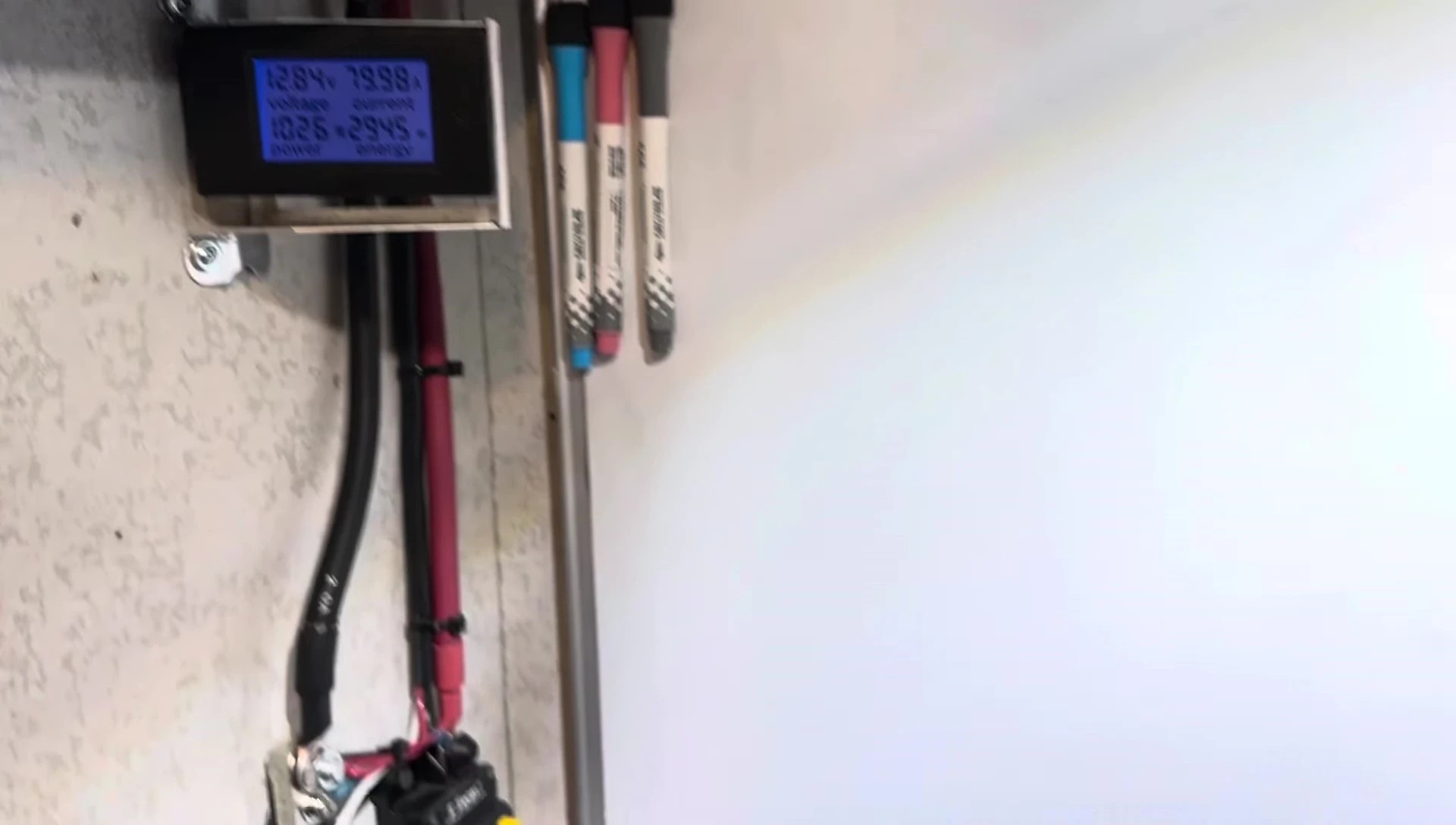

At the estimated halfway point, the battery delivered 2944 watt-hours.

Watt-hour reading at the halfway point of the capacity test.

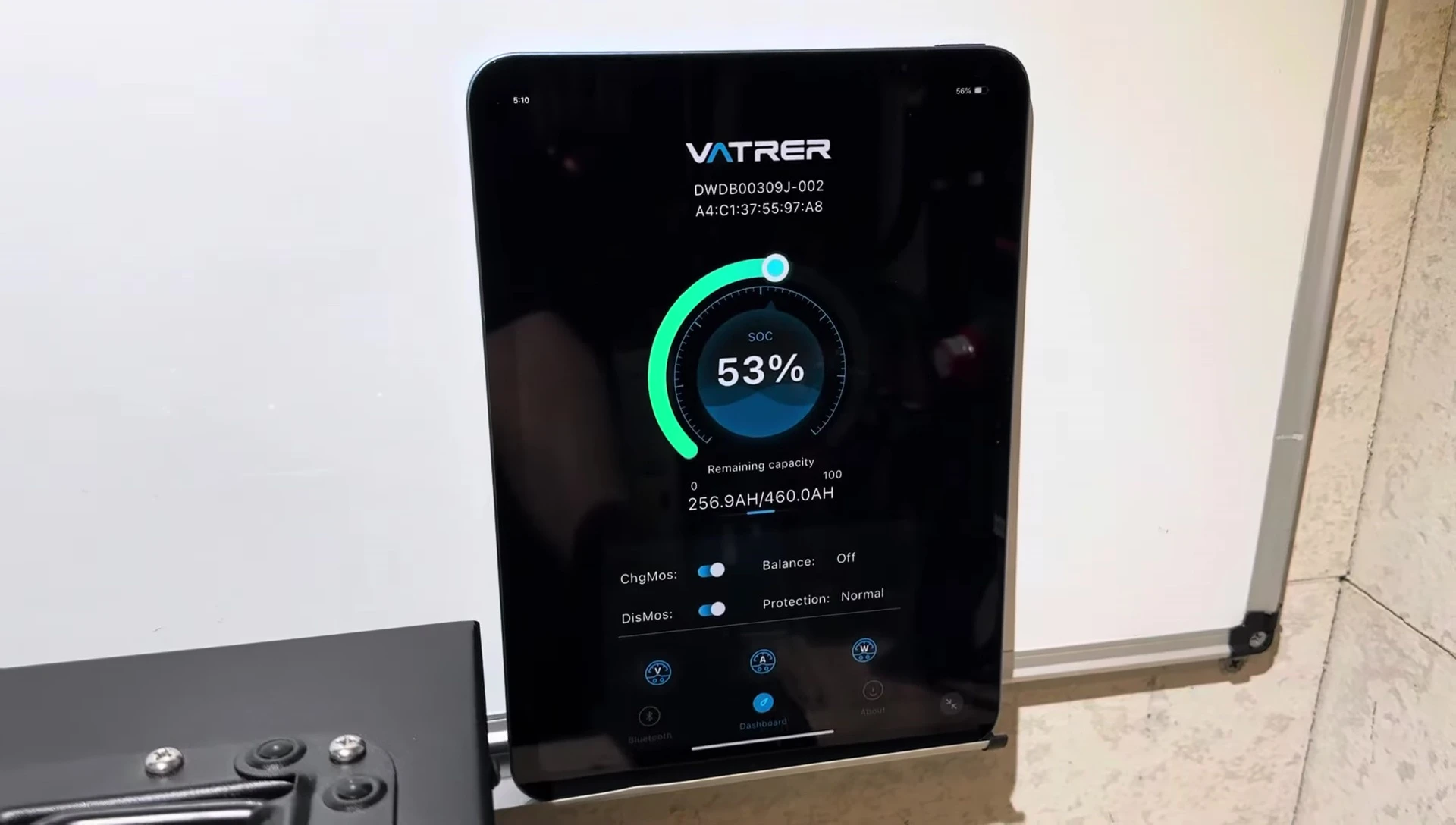

Bluetooth data indicated 53% remaining capacity (256 amp-hours out of 460).

Bluetooth app data showing remaining capacity and amp-hours.

The voltage remained stable around 13 volts, and the amperage stayed consistent at approximately 78 amps.

Voltage and amperage readings during the mid-test phase.

The test continued until exceeding the rated capacity of 460 amp-hours.

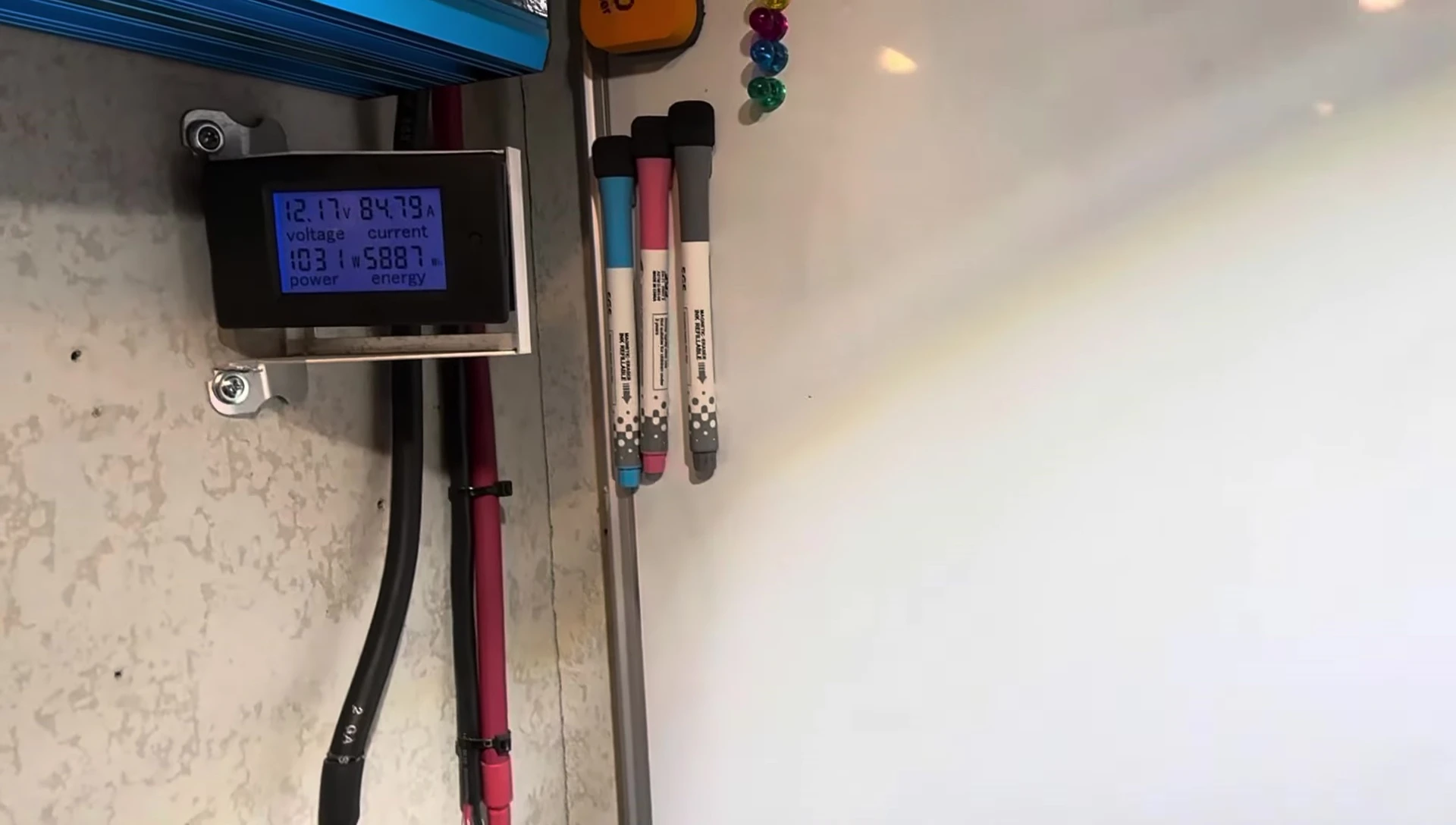

Approaching the rated capacity of 460 amp-hours.

Final Results and Battery Performance

The capacity test concluded when the inverter shut off due to low voltage.

Inverter shutting off due to low voltage at the end of the capacity test.

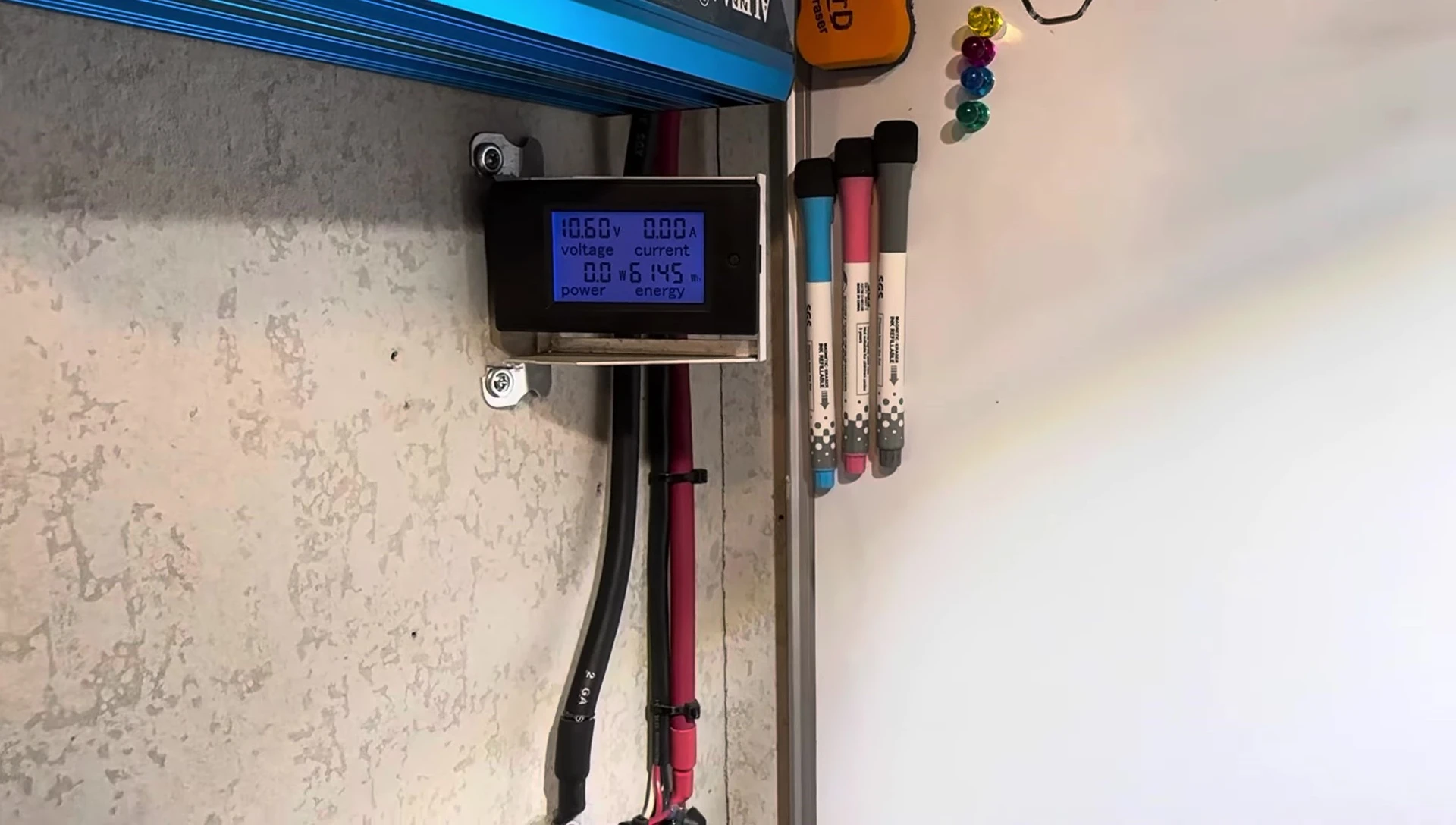

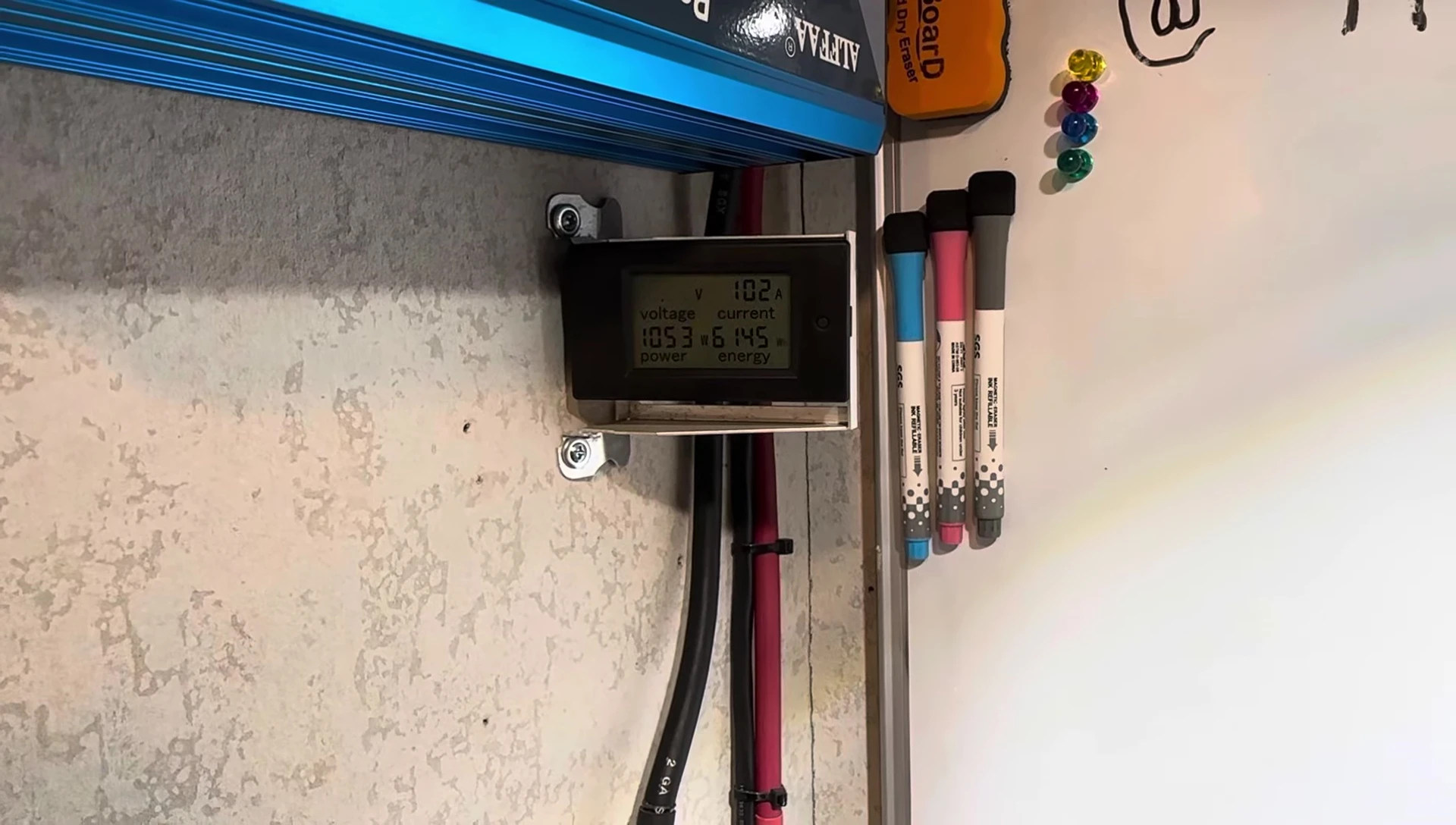

A total of 6145 watt-hours was recorded, translating to approximately 480 amp-hours.

Final watt-hour reading after the capacity test.

This represents approximately 4% more than the rated capacity, demonstrating excellent real-world performance.

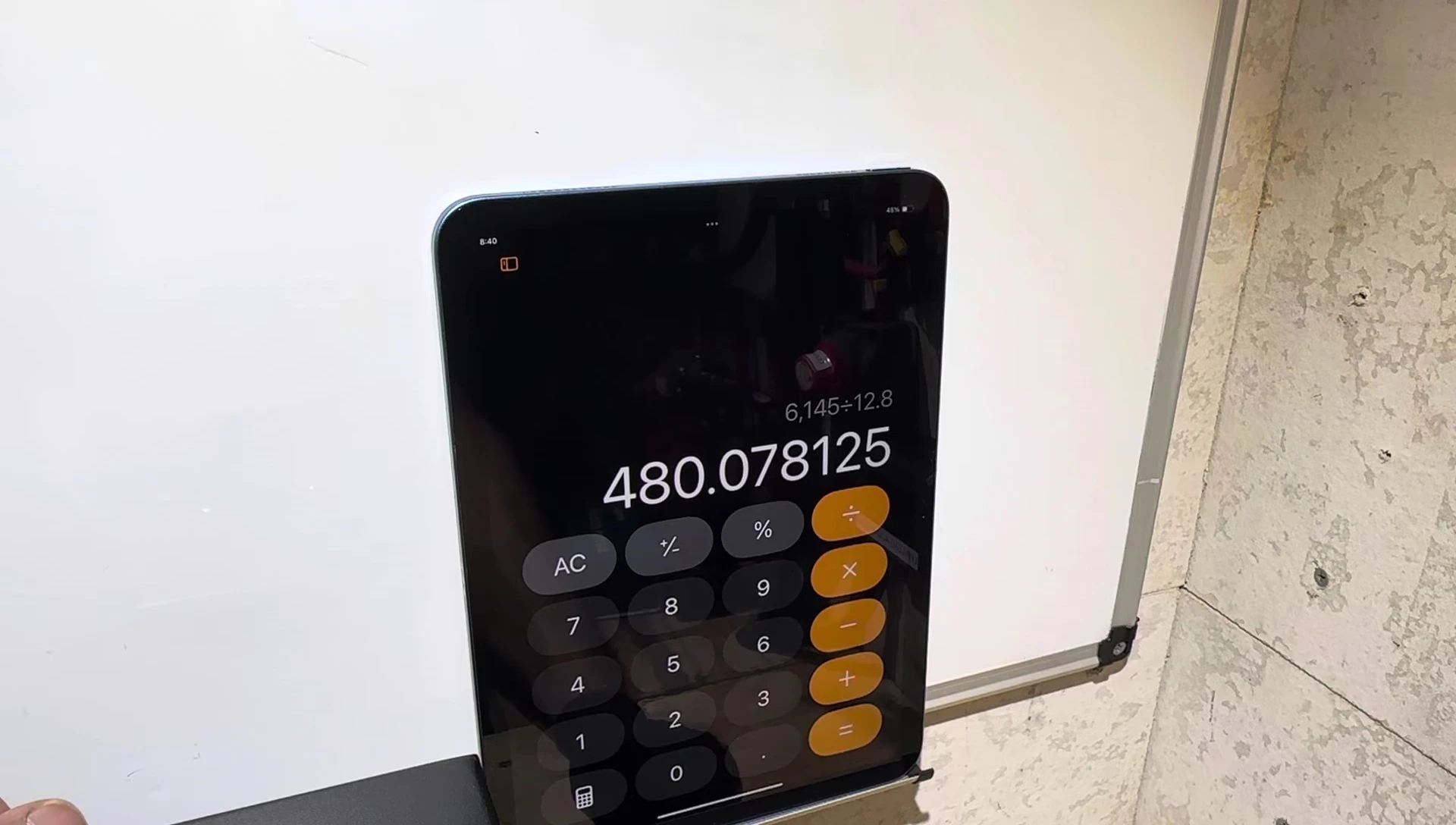

Calculation of amp-hours from the total watt-hours.

The test did not reach the BMS cut-off; only the inverter's low-voltage protection triggered.

Percentage over the rated capacity, showing excellent performance.

Unboxing and Accessory Overview

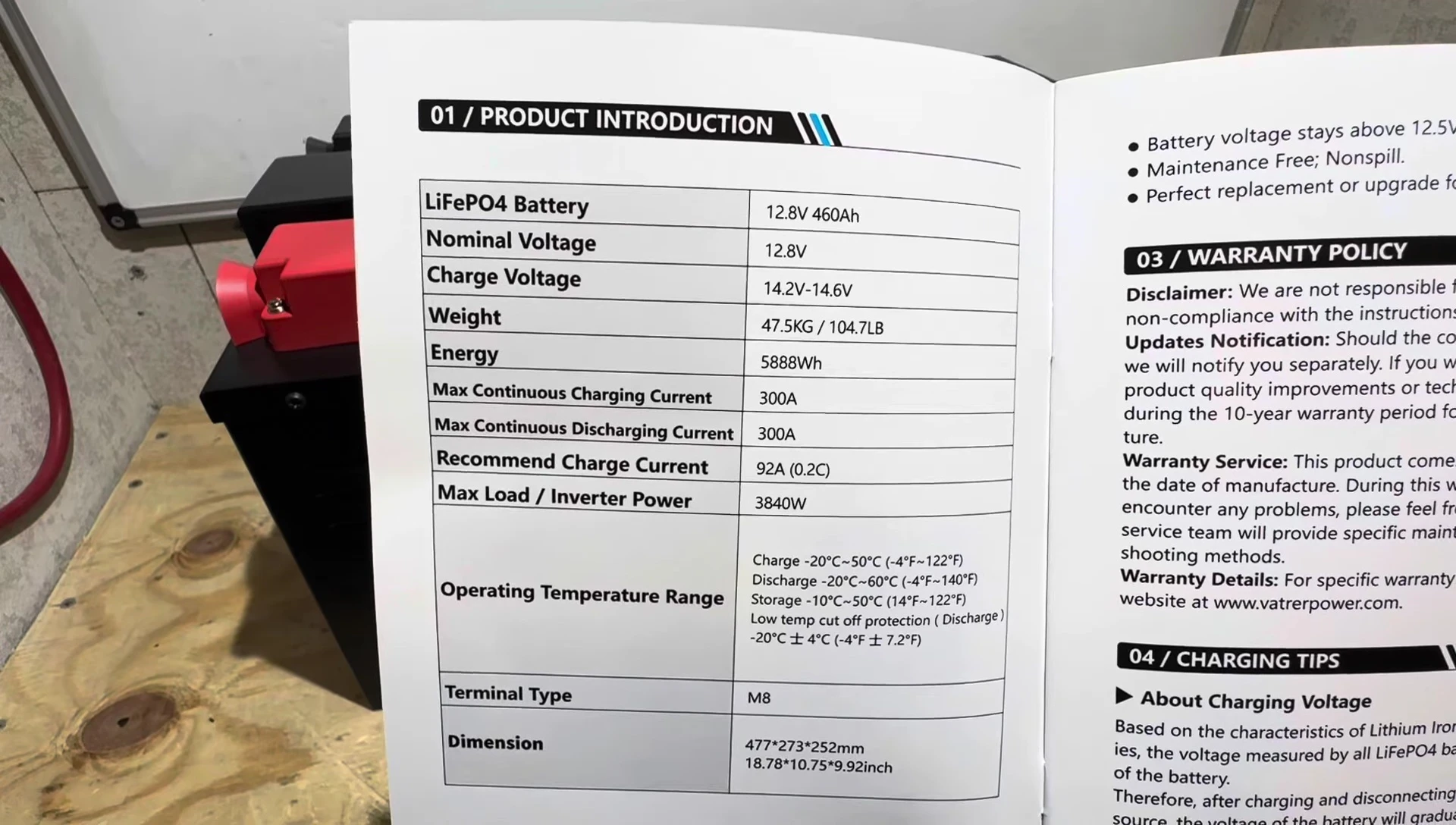

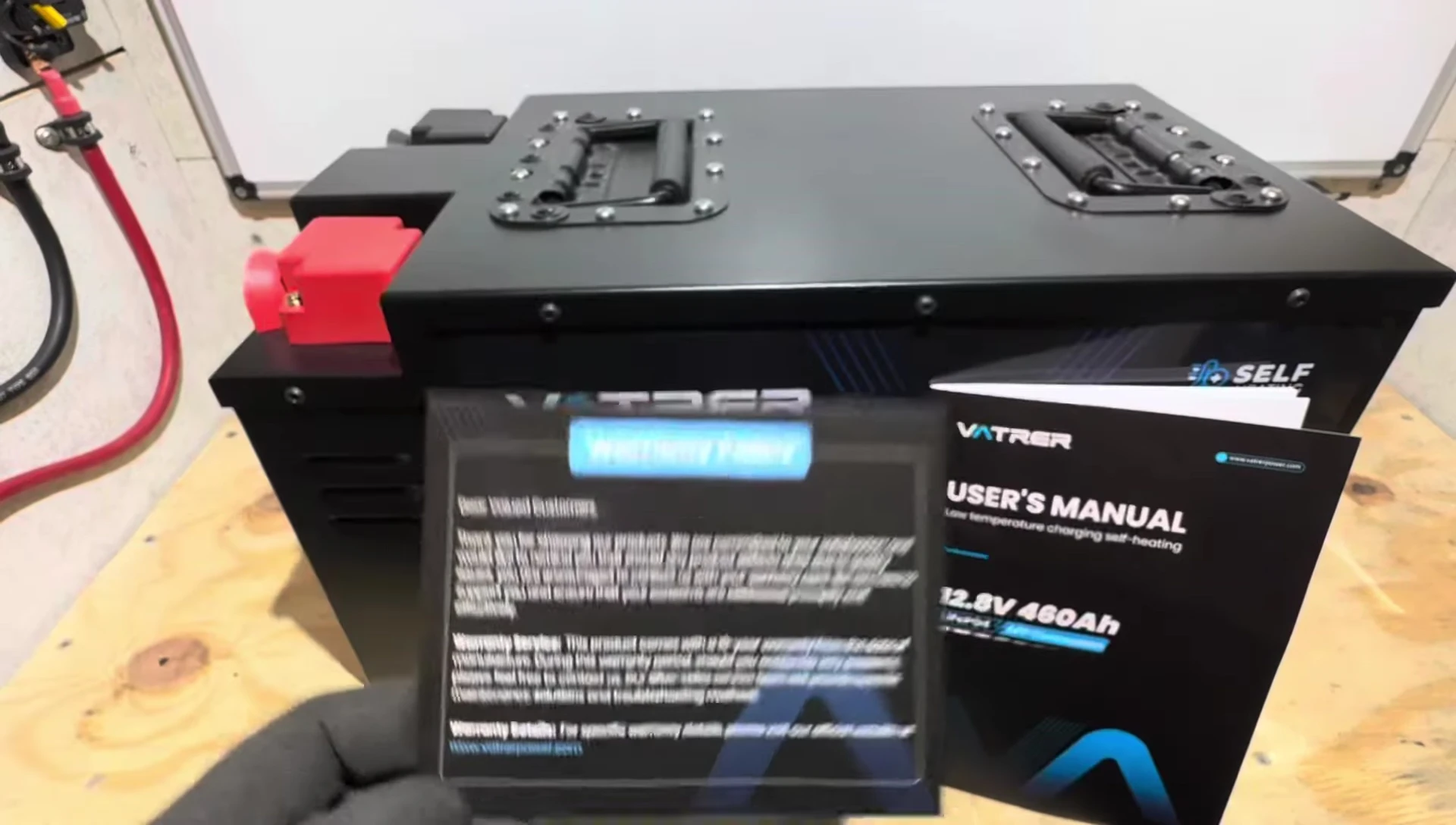

The Vader 460Ah battery package includes a warranty card, user manual, and a sticker kit.

Warranty card and user manual included in the package.

Vader has upgraded its warranty to a 10-year warranty from the cell manufacturer.

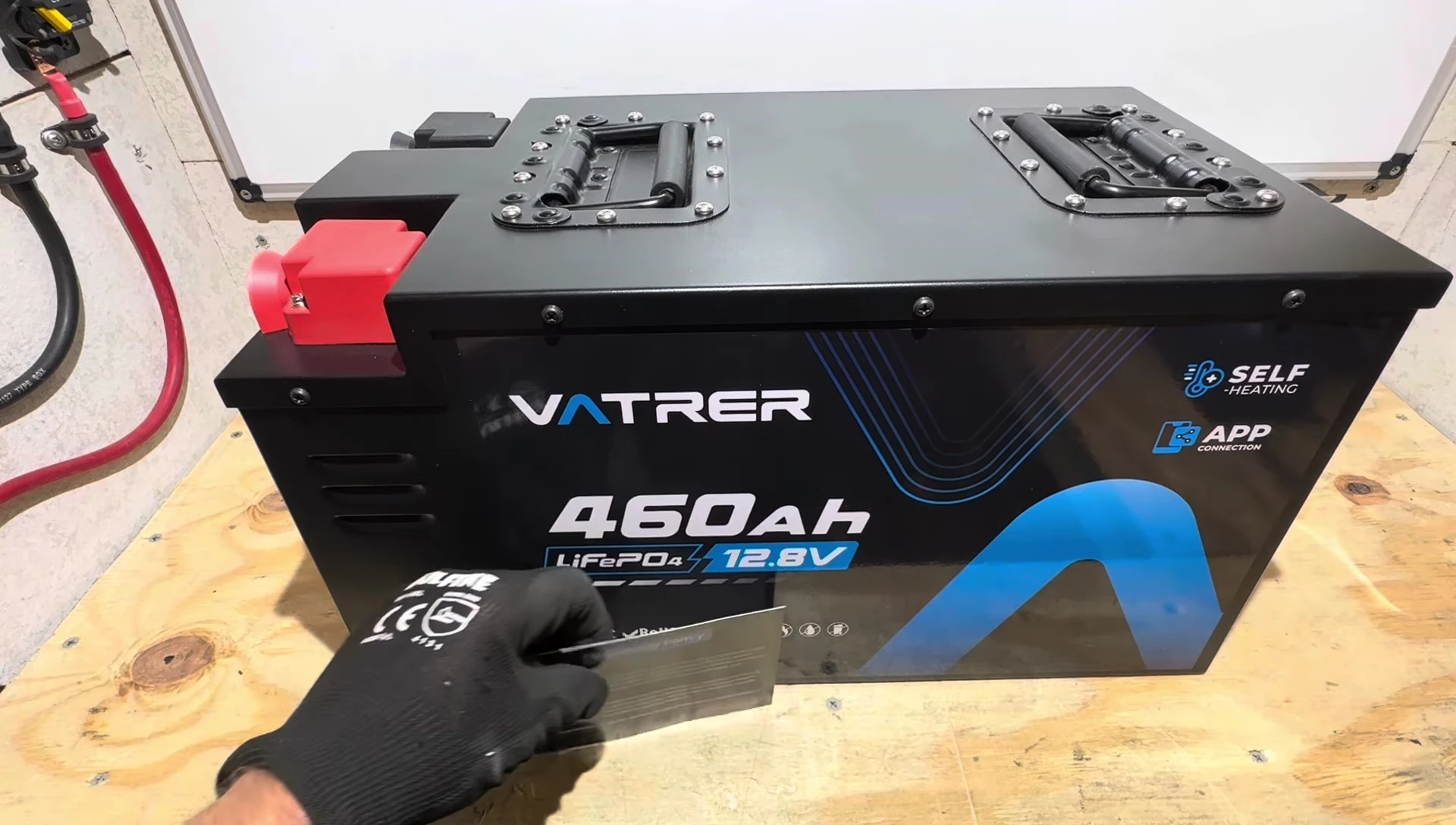

The battery's dimensions were measured and noted to show relative size.

Size comparison showing relative dimensions.

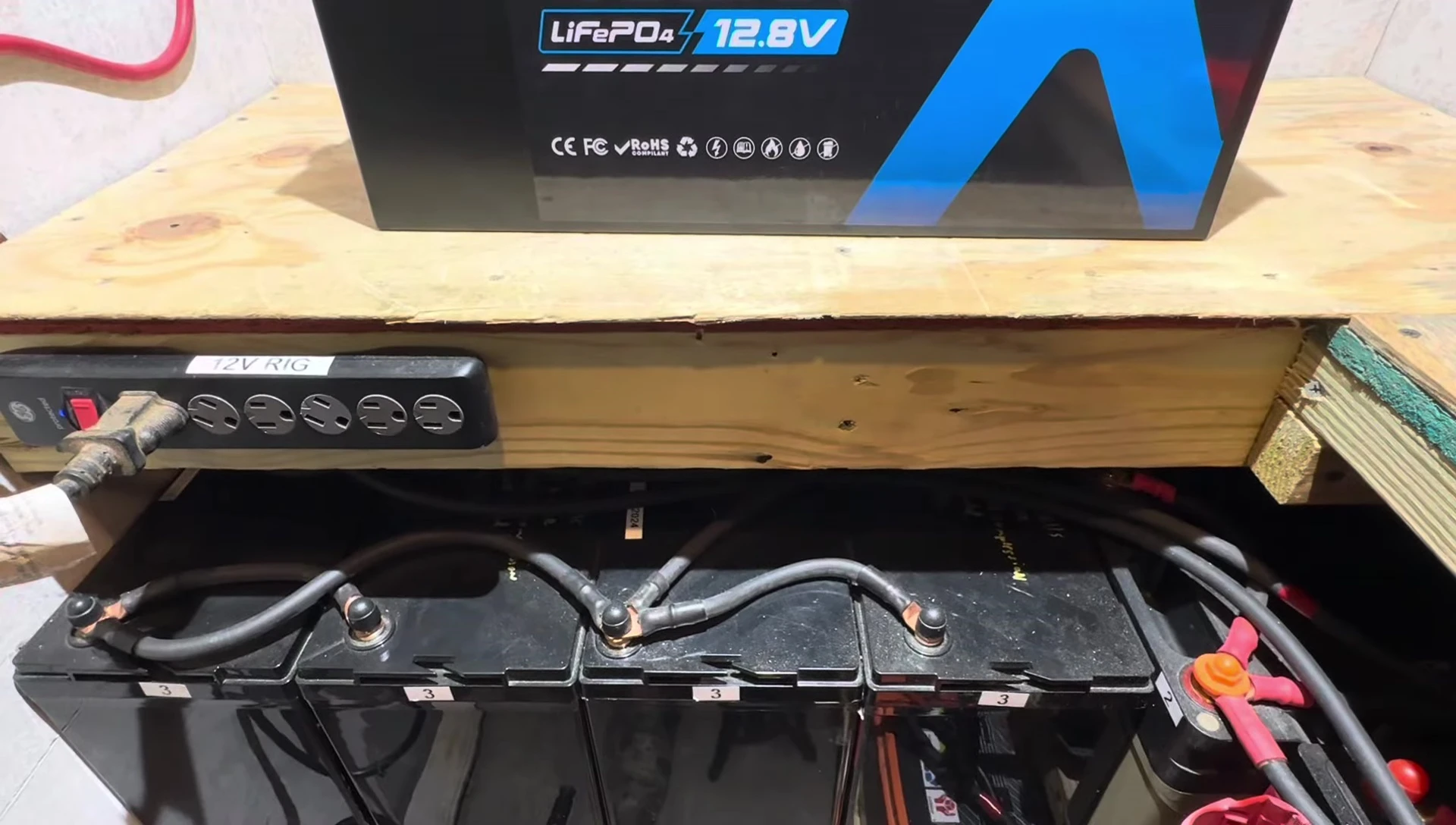

Despite its large capacity, the battery is smaller than four 12V 100Ah batteries.

Size comparison with four Group 24 batteries

Battery Construction and Teardown

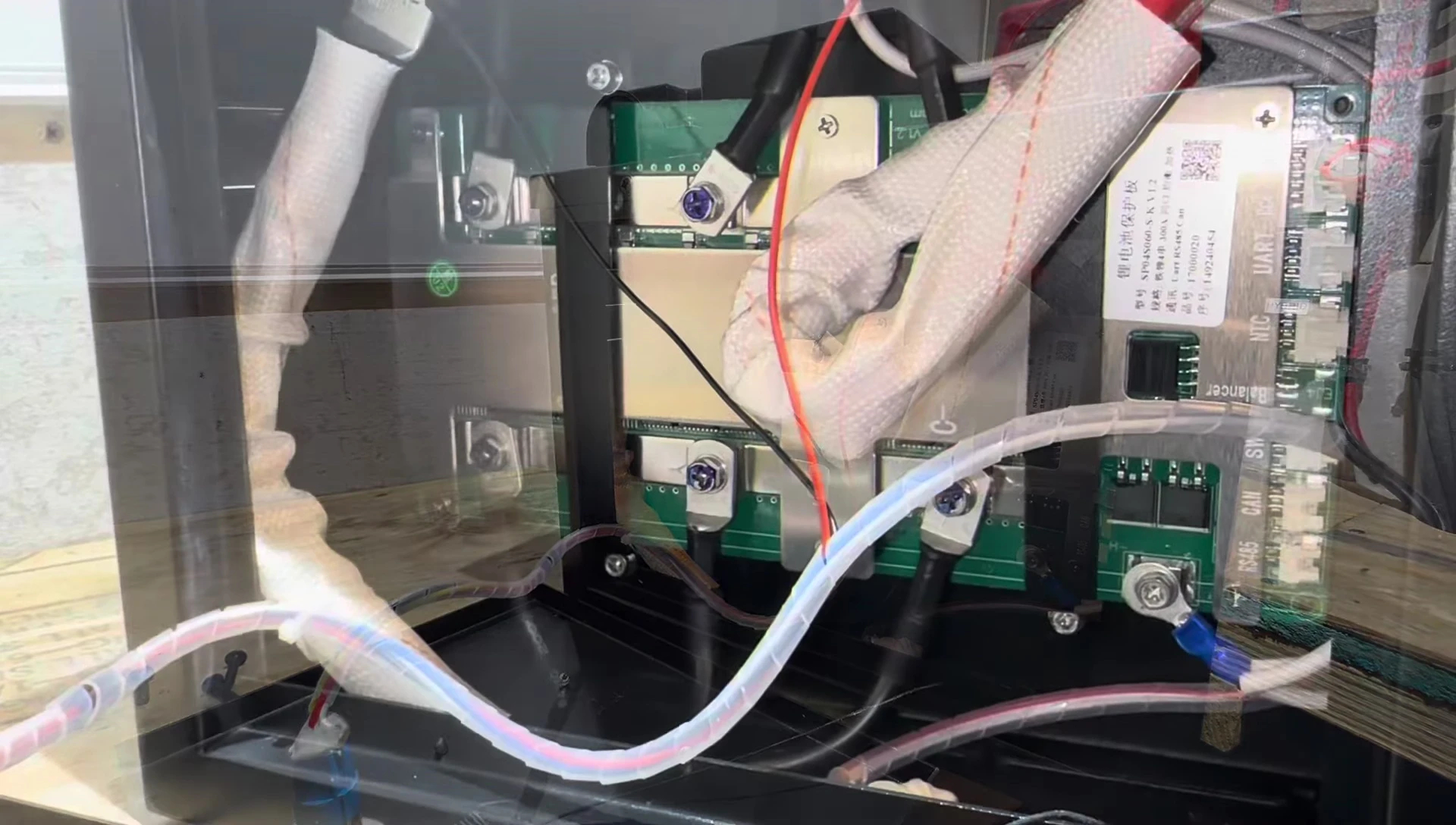

The teardown revealed a JBD SPO4S060 300A BMS securely mounted inside the battery case.

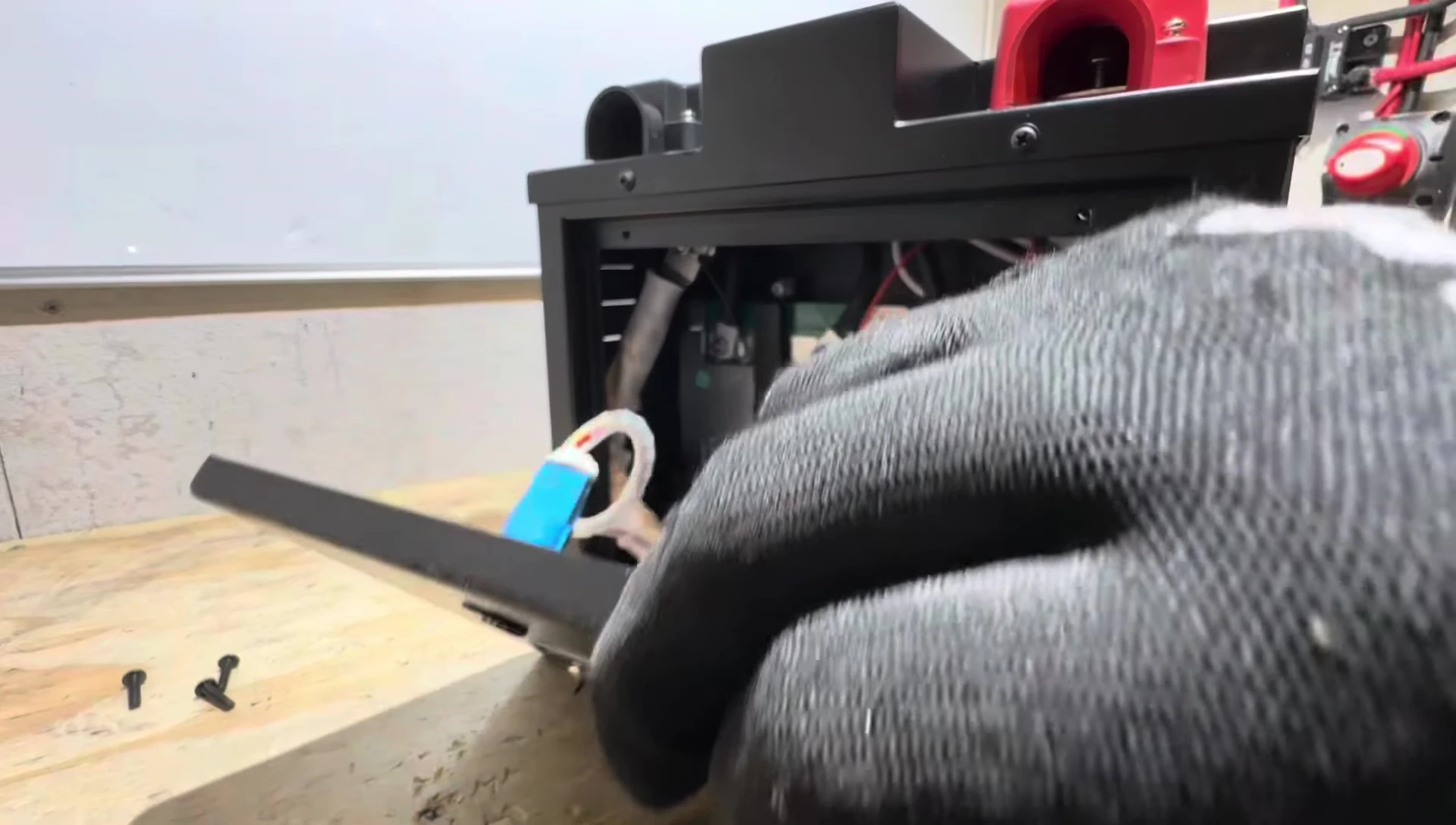

BMS visible after removing the side cover.

High-gauge wiring and robust connections were observed throughout the battery's internal components.

Close-up shot of the JBD 300A BMS.

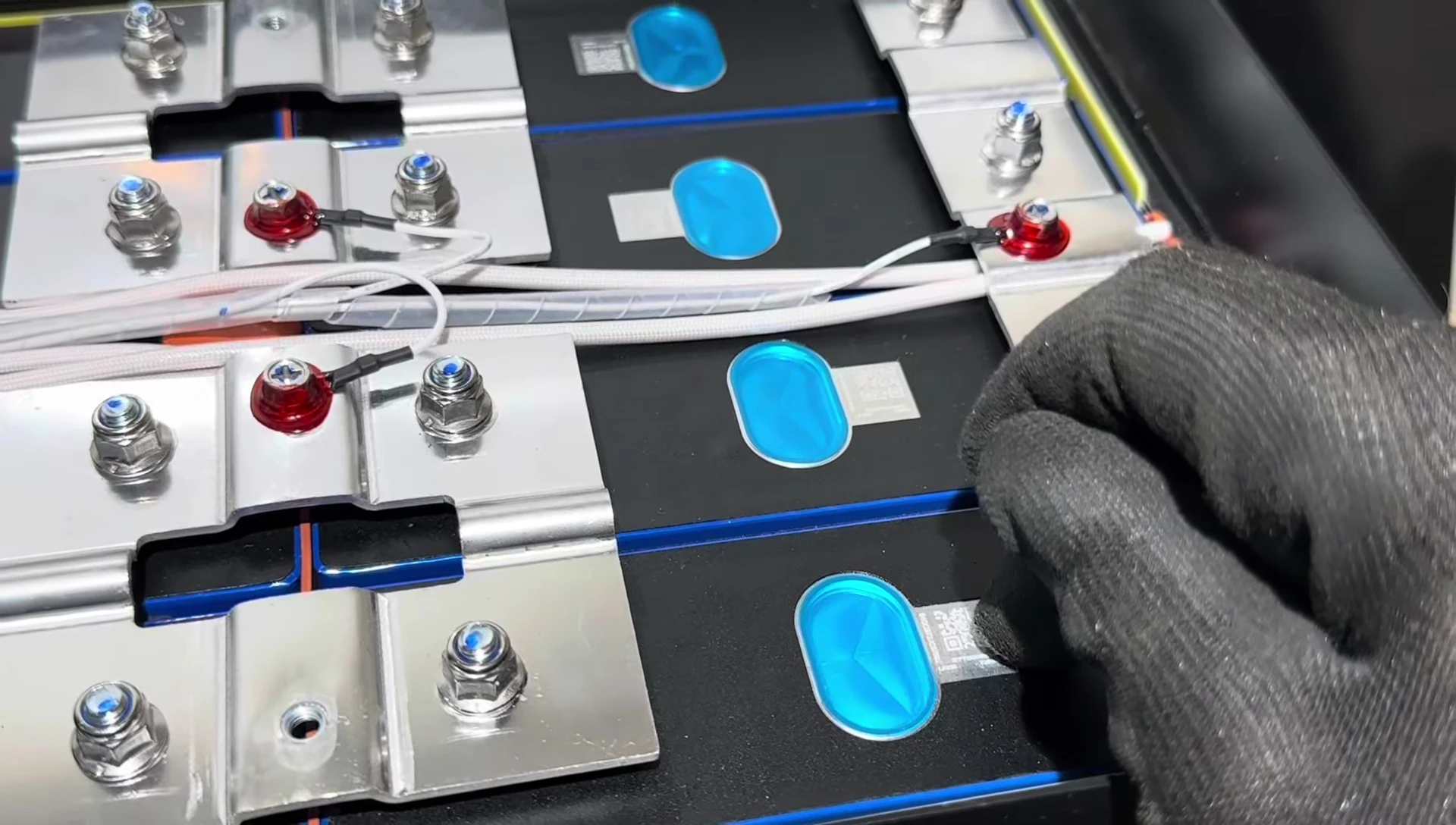

The cells were identified as EVE LF230s, known for their high quality and durability.

Close-up of the EVE LF230 cells.

The internal design featured excellent thermal management and protective measures.

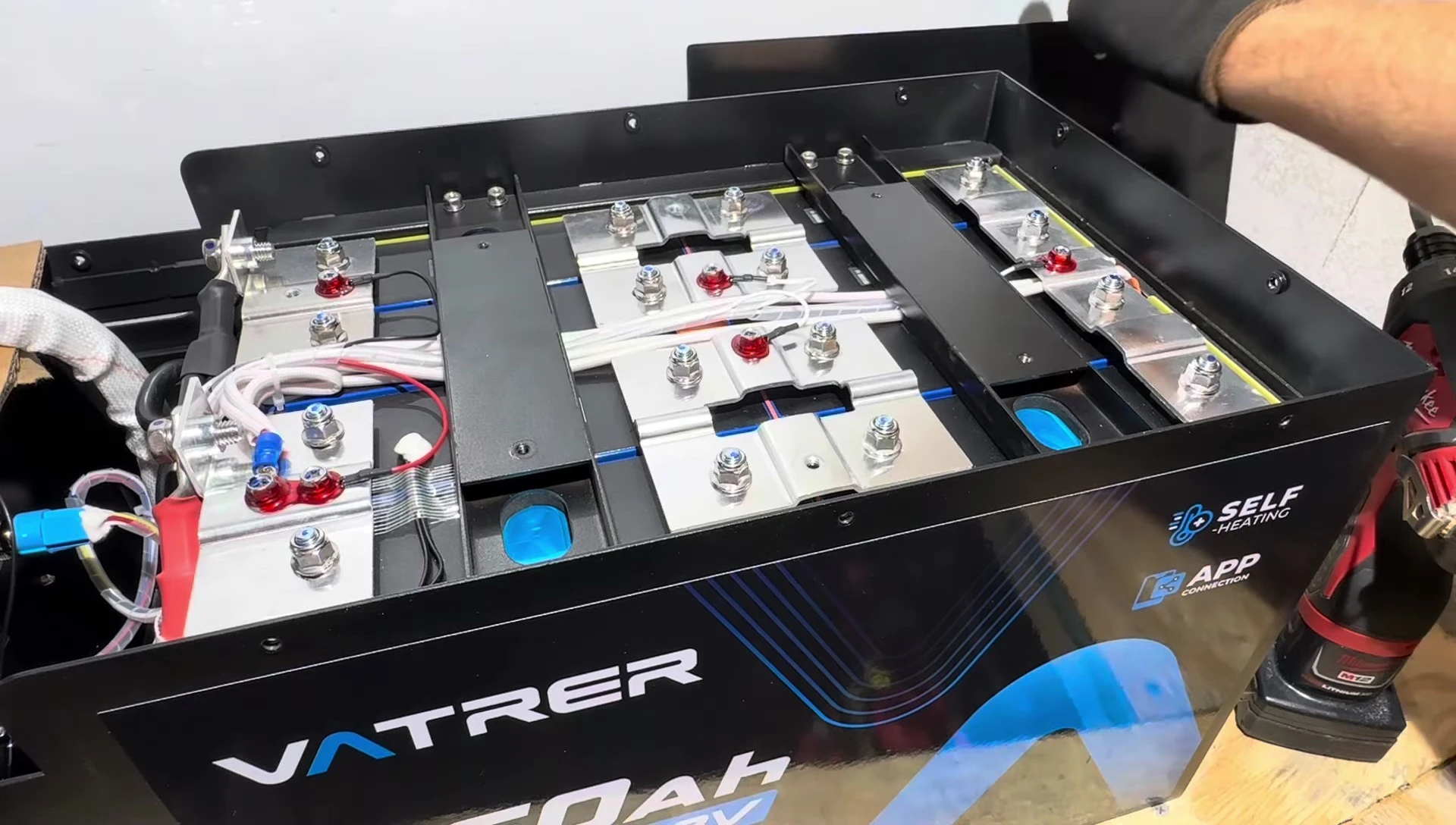

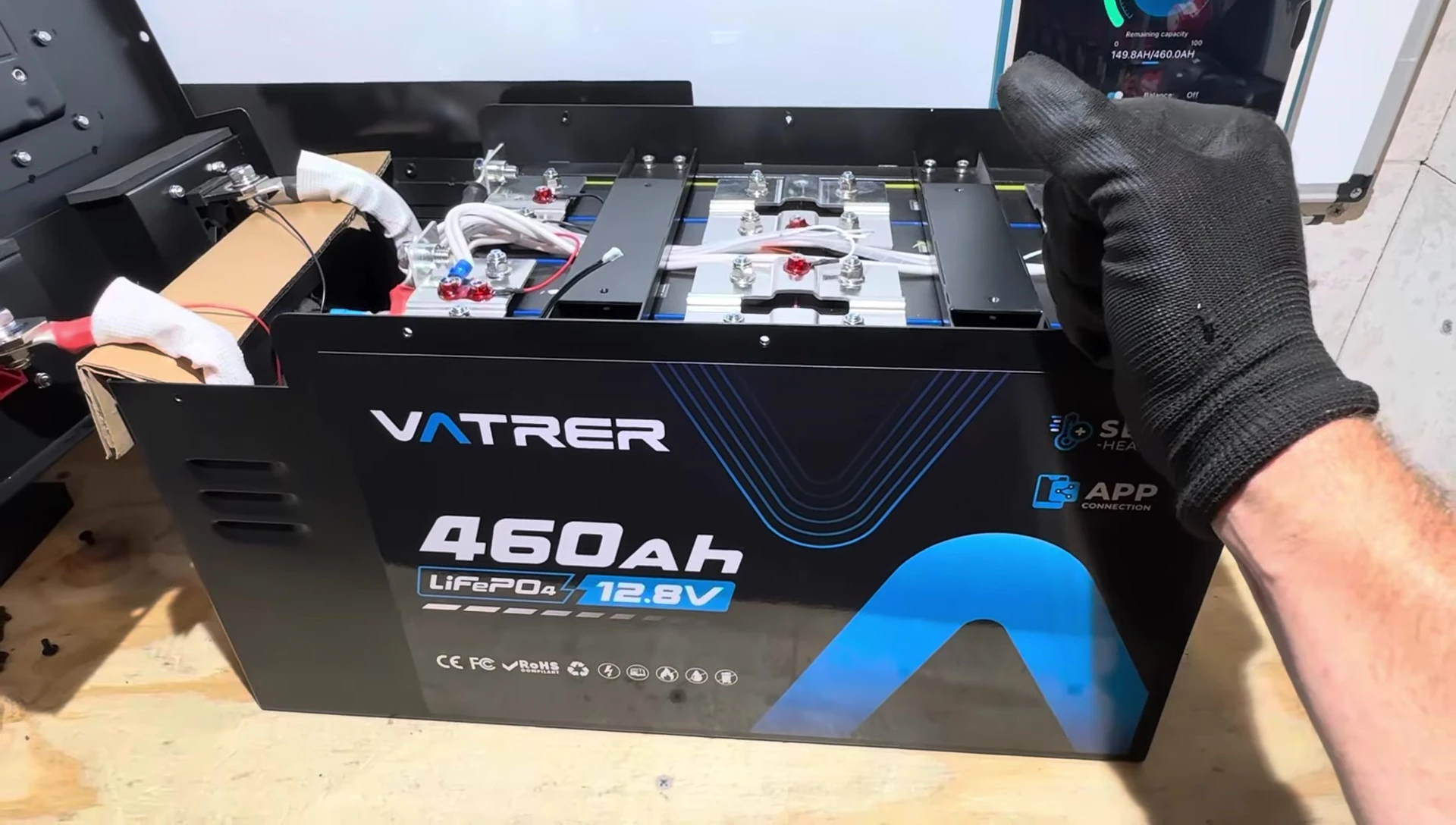

Internal components visible after removing the plastic cover

Self-Heating and Temperature Protection Testing

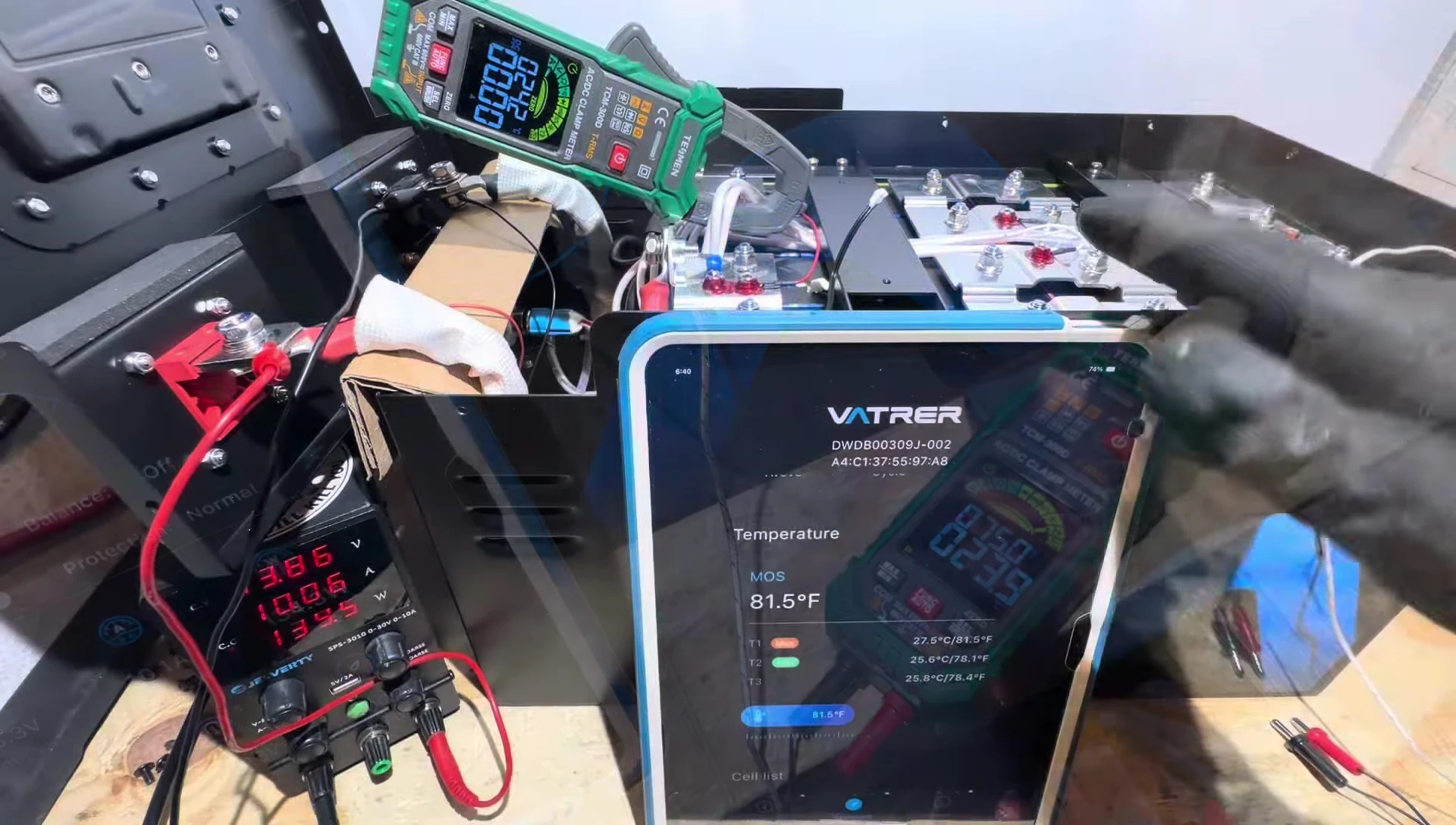

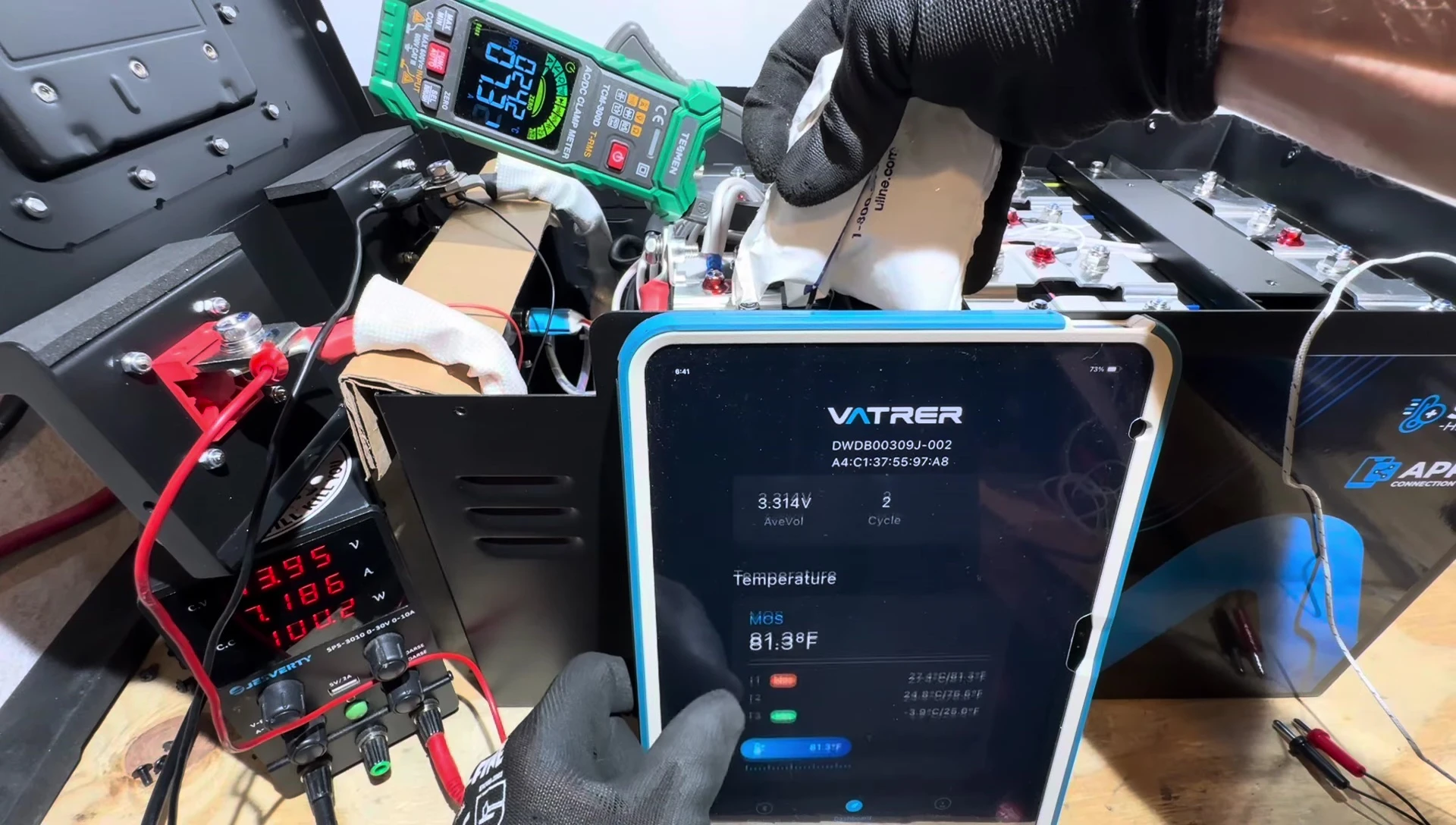

Testing of the self-heating function involved applying an ice pack to a temperature sensor.

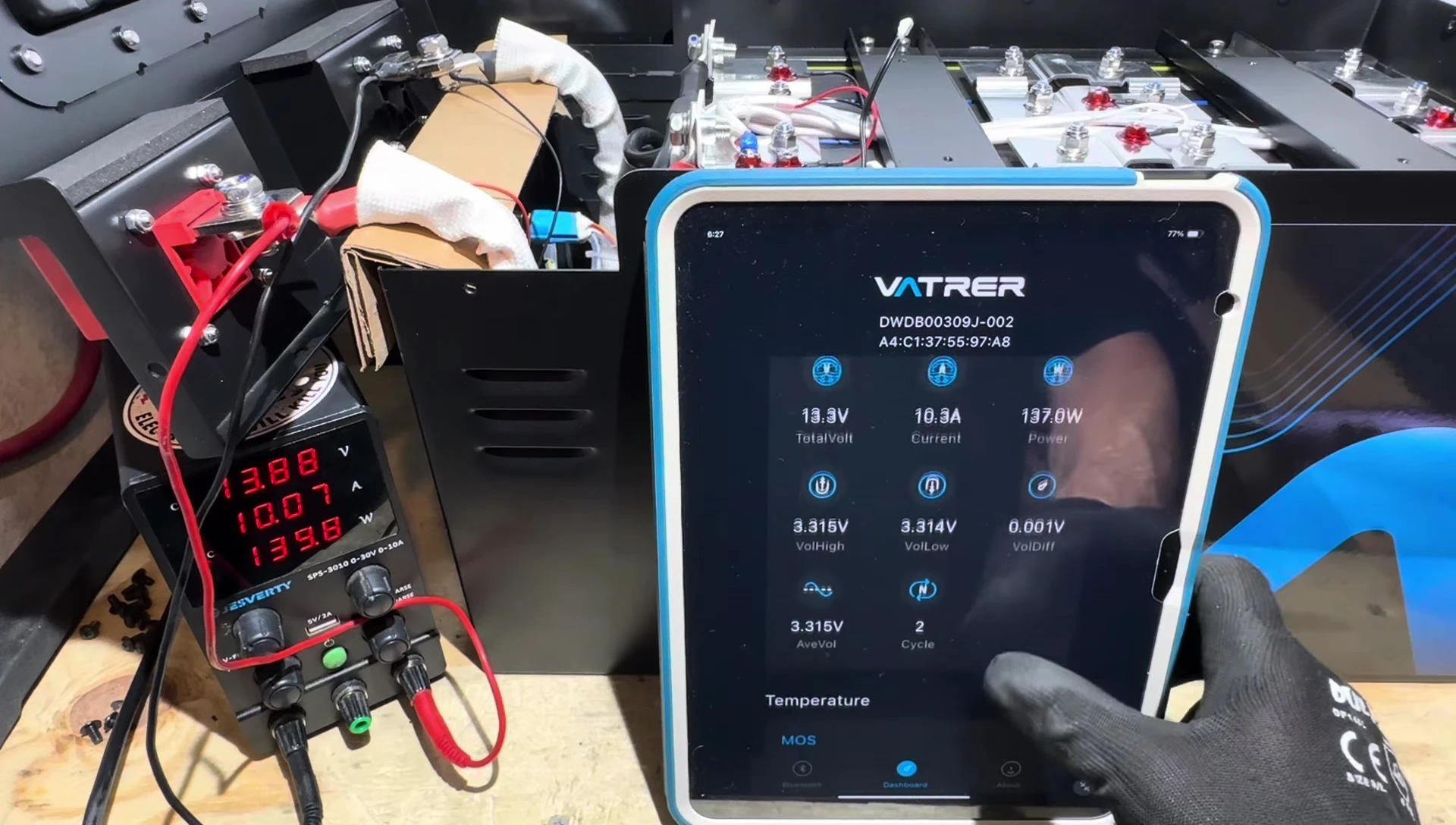

The battery's self-heating system activated, drawing approximately 100 watts to maintain temperature.

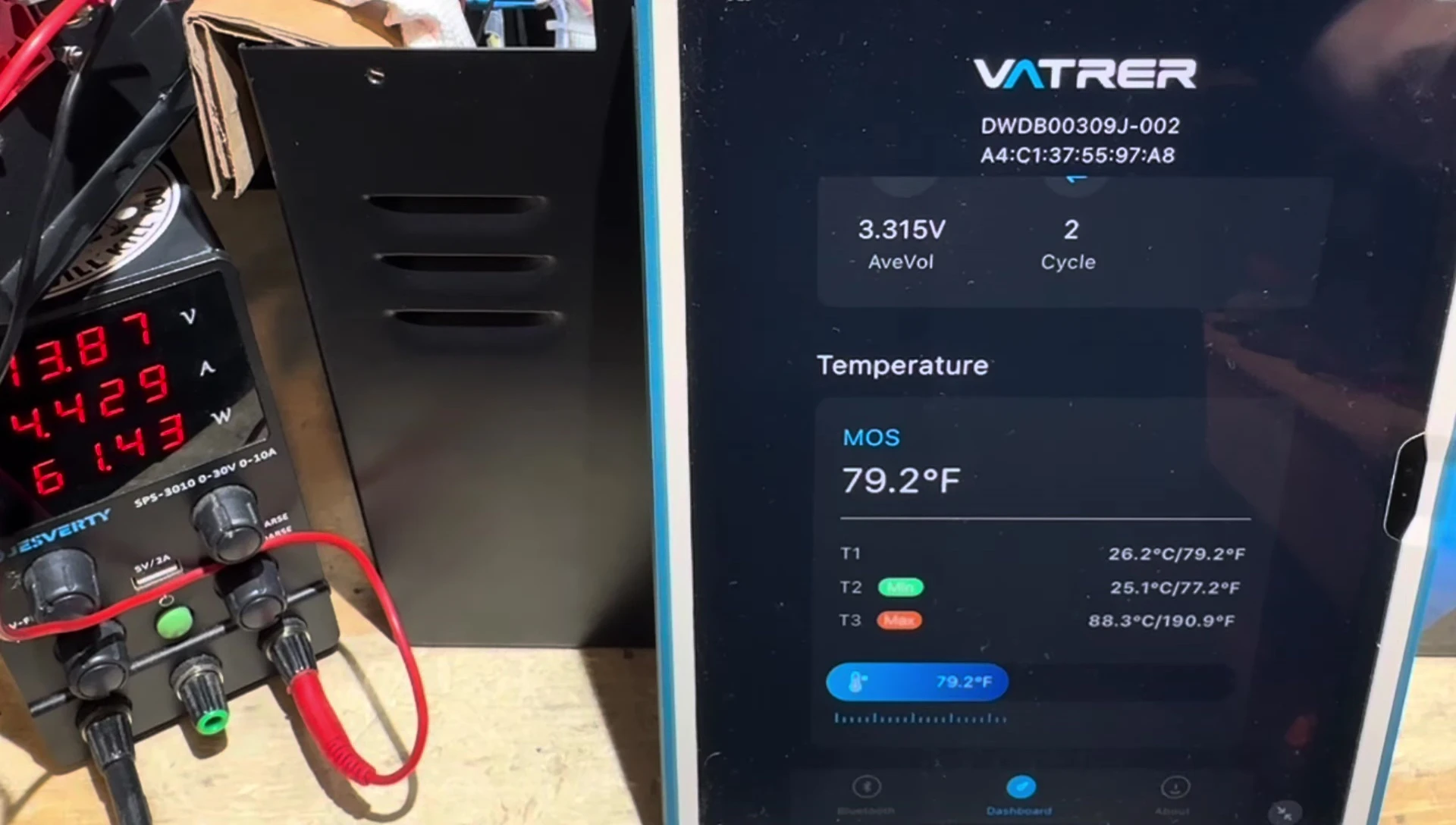

The high-temperature protection feature was tested by applying heat to the battery’s temperature sensor.

The system successfully shut down charging when the high-temperature threshold was reached.

Conclusion and Final Thoughts

The Vader 460Ah LiFePO4 battery demonstrated exceptional performance and build quality.

Final thoughts on the Vader 460Ah battery

It outperformed its rated capacity by approximately 4% and showed reliable self-heating and temperature protection.

The use of high-quality components and robust construction makes this a top-tier battery.

Overall, the Vader 460Ah is highly recommended for those seeking a reliable, high-capacity 12.8V battery.
