This review delves into the Waaree 580W Topcon N-type bifacial solar panel, examining its performance, build quality, and overall value. We unpack the panel, inspect its construction, and conduct initial testing to assess its power output and efficiency. Key features like the half-cut cell design, 16 busbars, and bifacial technology are explored, highlighting their impact on energy generation. The review also analyzes the panel's specifications, comparing them to the observed performance during testing, and noting any discrepancies. Finally, we assess the panel's price-to-performance ratio and offer a concluding opinion on its suitability for residential and commercial applications.The Waaree 580W panel promises high efficiency and substantial power generation, thanks to its advanced technology. This review provides a comprehensive look at the panel’s strengths and weaknesses, including an in-depth analysis of testing results. We also discuss the panel’s physical attributes, build quality, and ease of handling. The review aims to provide readers with a balanced perspective to help them make an informed decision about whether this high-powered solar panel is the right choice for their needs.
Pros And Cons
- Large size (though this is also a con due to handling difficulties)
- High maximum power (575 watts)
- Half-cut cells for improved performance
- 16 bus bars per cell for efficient electricity generation
- Bifacial design allows for electricity generation from both sides
- Uses tempered glass for reflection and strength
- Good build quality despite large size
- Two separated panels allow continued operation even if one side is shaded
- Very large and difficult to handle alone (requires rope for roof installation)
- One side of the rear panel was not functioning properly during the demonstration
Read more: OUKITEL P2001 PLUS Review: Best Budget Portable Power Station?
Unboxing and Initial Impressions
The Waaree 580W Topcon N-type bifacial solar panel arrived in a large, well-protected box. Initial inspection revealed no damage during shipping. The panel's impressive size immediately stood out; it's significantly larger than standard panels, requiring careful handling and potentially specialized installation equipment.

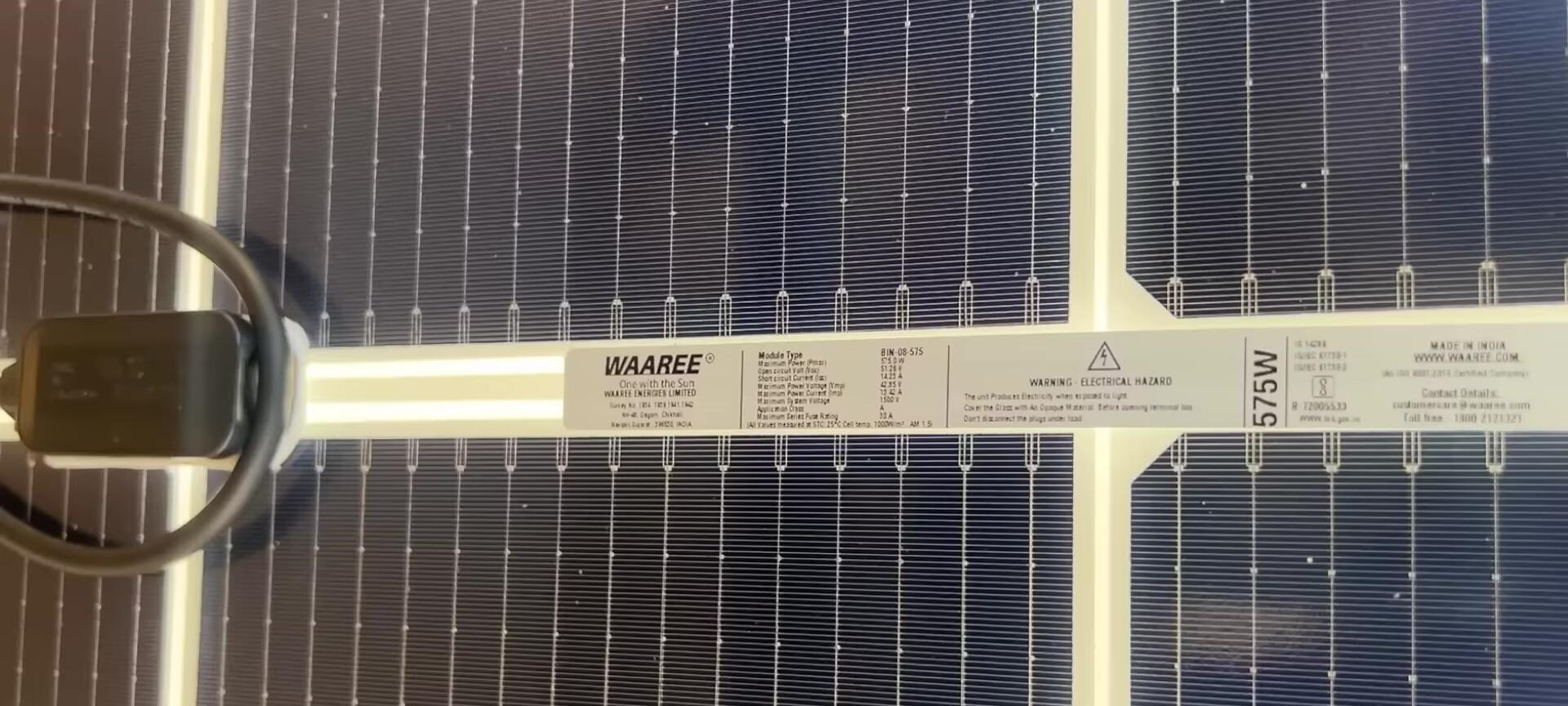

The front of the panel features the ‘One with the Sun’ branding, a clear indicator of Waaree's commitment to quality and sustainability. The build quality appears excellent, especially considering its substantial dimensions. The panel's construction seems robust enough to withstand the rigors of outdoor use.
Panel Design and Features
The Waaree 580W panel employs a half-cut cell design, improving efficiency and reducing power loss from shading. This design, coupled with its 16 busbars, enhances the panel’s performance, particularly in less-than-ideal lighting conditions. The bifacial nature of the panel allows it to generate electricity from both the front and the back, maximizing energy production.

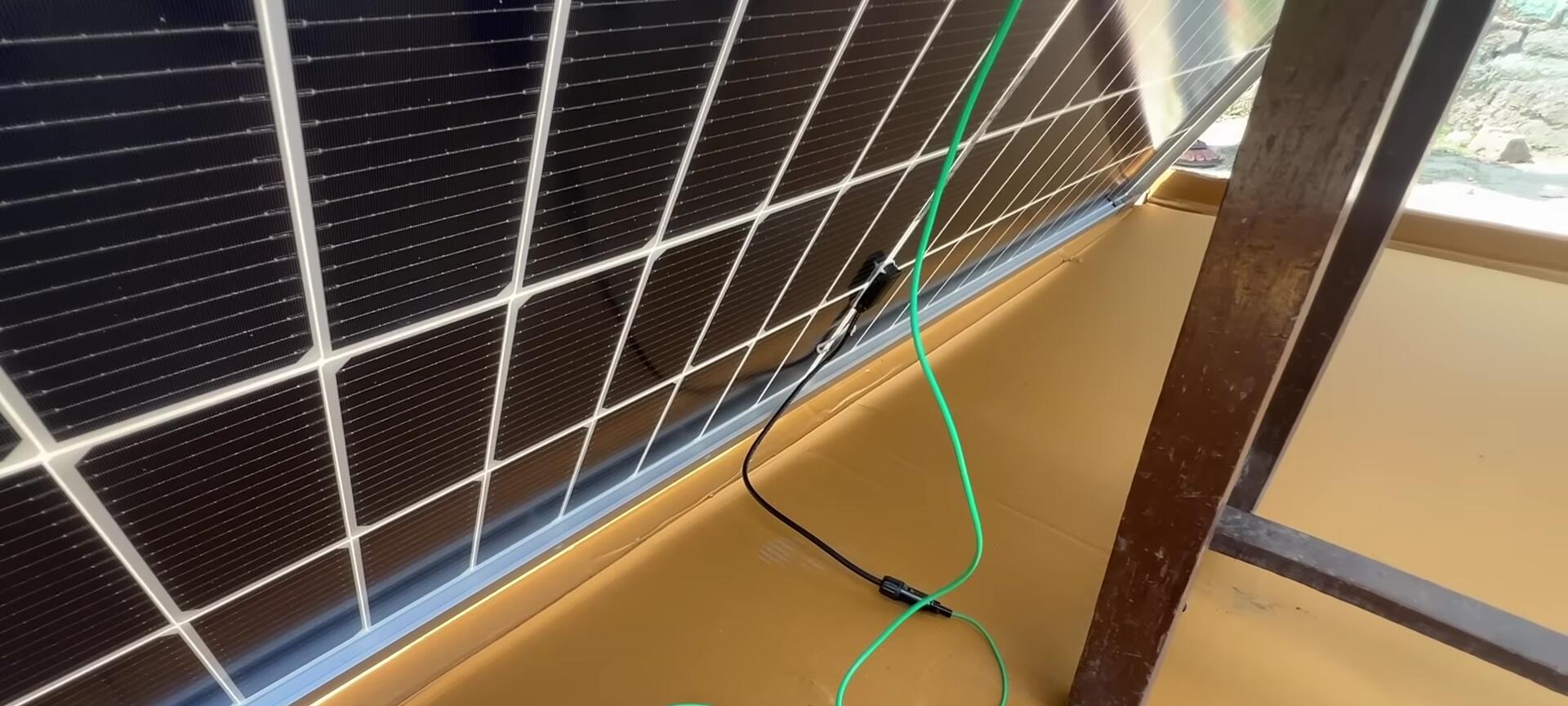

The panel's unique design separates the cells in two parts, effectively mitigating shading losses. If part of the panel is shaded, the unshaded sections will continue to generate electricity effectively. The use of tempered glass further reinforces the panel’s durability and resistance to external elements.
Performance Testing and Results

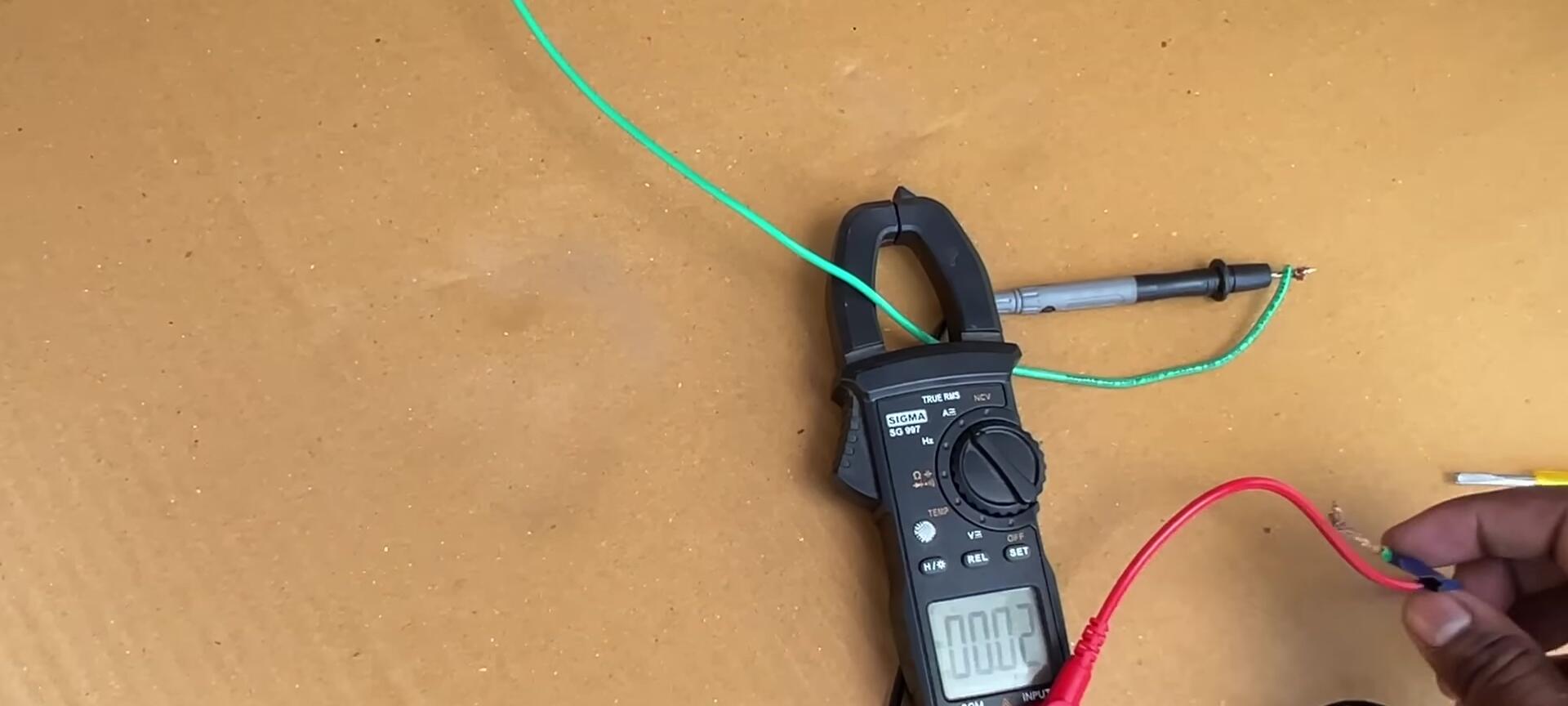

The open-circuit voltage measured approximately 47.8 volts during testing. A short-circuit current test showed a reading of around 11.92 amperes, close to the expected 12 amperes. These readings suggest good performance from the panel; however, the back side cell appeared to not be functioning at full capacity during the test.
In ideal conditions, with both front and rear cells fully operational, the panel should deliver approximately 15 amperes. The slightly lower current reading during testing may indicate a partial performance reduction, potentially due to testing conditions or minor factors.
Specifications and Pricing
The Waaree 580W panel boasts a maximum power output of 575 watts, a maximum voltage of 51.2 volts, and an open-circuit current of 14.23 amperes. Other key specifications include a maximum voltage of 42.85 volts and a power current of 13.42 amperes. These specs indicate a high-performing panel suitable for various applications.
The reviewer mentions purchasing the panel from Flipkart for approximately 14000. He recommends buying quickly as solar panel prices tend to increase during summer. The pricing appears competitive, particularly considering the panel's advanced features and high power output.
Conclusion
The Waaree 580W Topcon N-type bifacial solar panel shows considerable promise. Its half-cut cell design, high power output, and bifacial technology contribute to its impressive performance. The build quality seems excellent, and the price point appears competitive, especially when considering its features.
Despite a minor issue during the current test (where rear cell performance was suboptimal), the overall performance is positive. The panel’s potential for significant power generation in favorable conditions makes it a strong contender for homeowners or businesses seeking high-efficiency solar power solutions. Further testing under optimal sunlight conditions would be beneficial to fully assess its capacity.
