This comprehensive guide provides a step-by-step setup tutorial and review of the RainPoint WiFi Water Timer, a smart irrigation solution designed for effortless lawn and garden watering. We'll walk you through the process of connecting the timer to your home Wi-Fi network, using the RainPoint Home app for both Android and iOS devices. From initial equipment preparation to configuring watering schedules and utilizing advanced features, this guide ensures a smooth installation experience.Learn how to maximize the timer's functionality, including its various irrigation modes (Normal, Interval, and Cycle & Soak), rain delay options, and seasonal adjustments. Discover the benefits of remote monitoring and control, allowing you to manage your watering schedule from anywhere with an internet connection. We'll delve into the user-friendly app interface and address any potential setup challenges, ultimately demonstrating how the RainPoint WiFi Water Timer offers a convenient and efficient way to manage your outdoor watering needs.
Pros And Cons
- Three irrigation modes: Normal, Interval, and Cycle and Soak
- Five watering frequencies: Everyday, Odd days, Even days, Ind, Cost
- Two ways for manual watering without interrupting schedule
- 24/48/72h rain delay
- Seasonal adjustment by month
- Ability to create smart scenes
Read more: AMI Meter Reading Guide: Understanding Your Smart Electricity Meter
Prerequisites & Setup Preparation

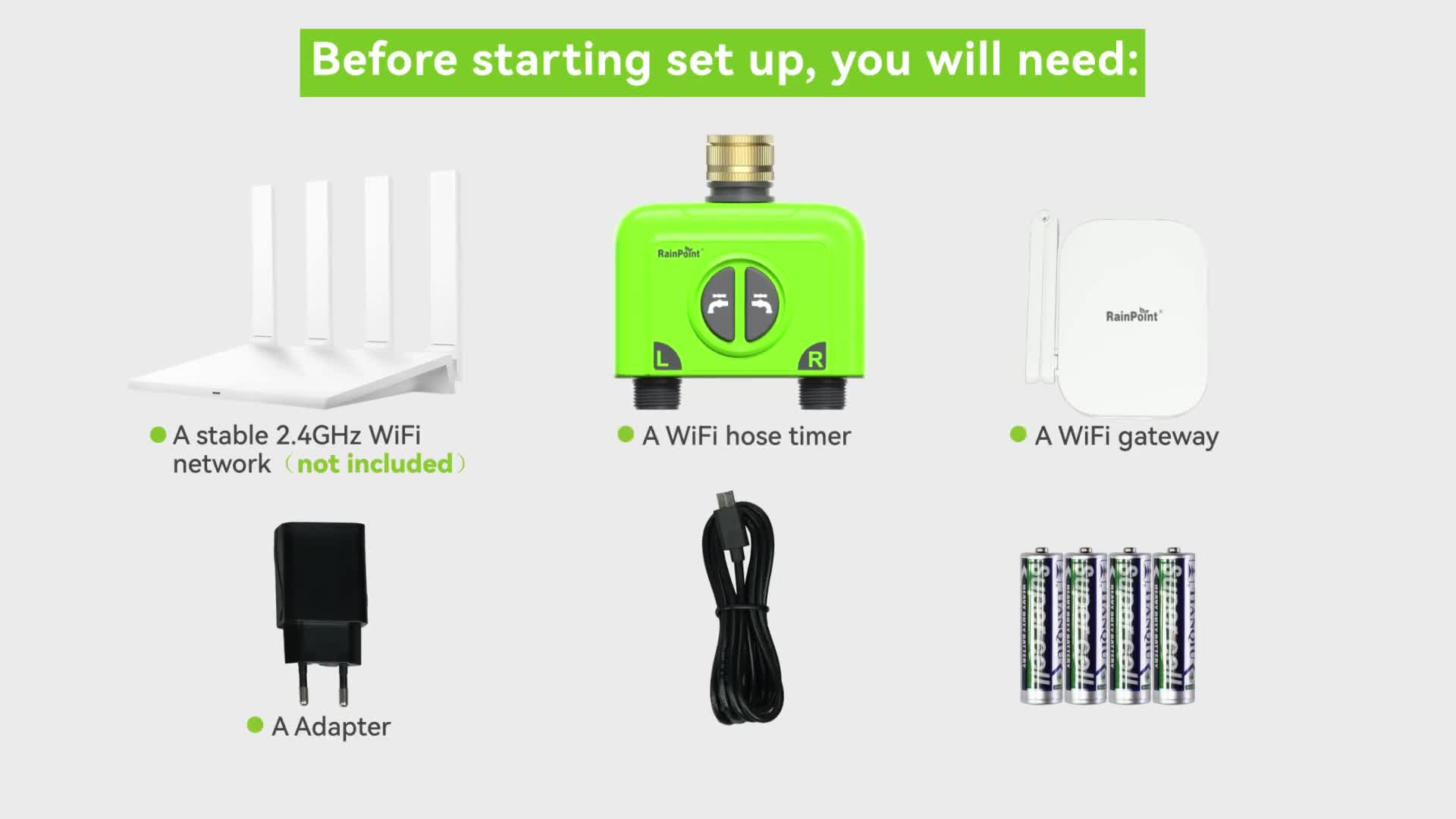

Before starting the RainPoint WiFi water timer installation, ensure you have the necessary equipment readily available. This includes your smartphone, router, Wi-Fi gateway, and the water timer itself. Proximity is key for optimal connection; keep these devices close together to ensure a strong Wi-Fi signal. This will significantly reduce the risk of setup errors.
The 2.4 GHz Wi-Fi network is crucial for the initial setup. Make sure your phone is connected to your 2.4 GHz network. This frequency is more stable for the initial pairing process of the smart devices.
Installing the RainPoint Home App

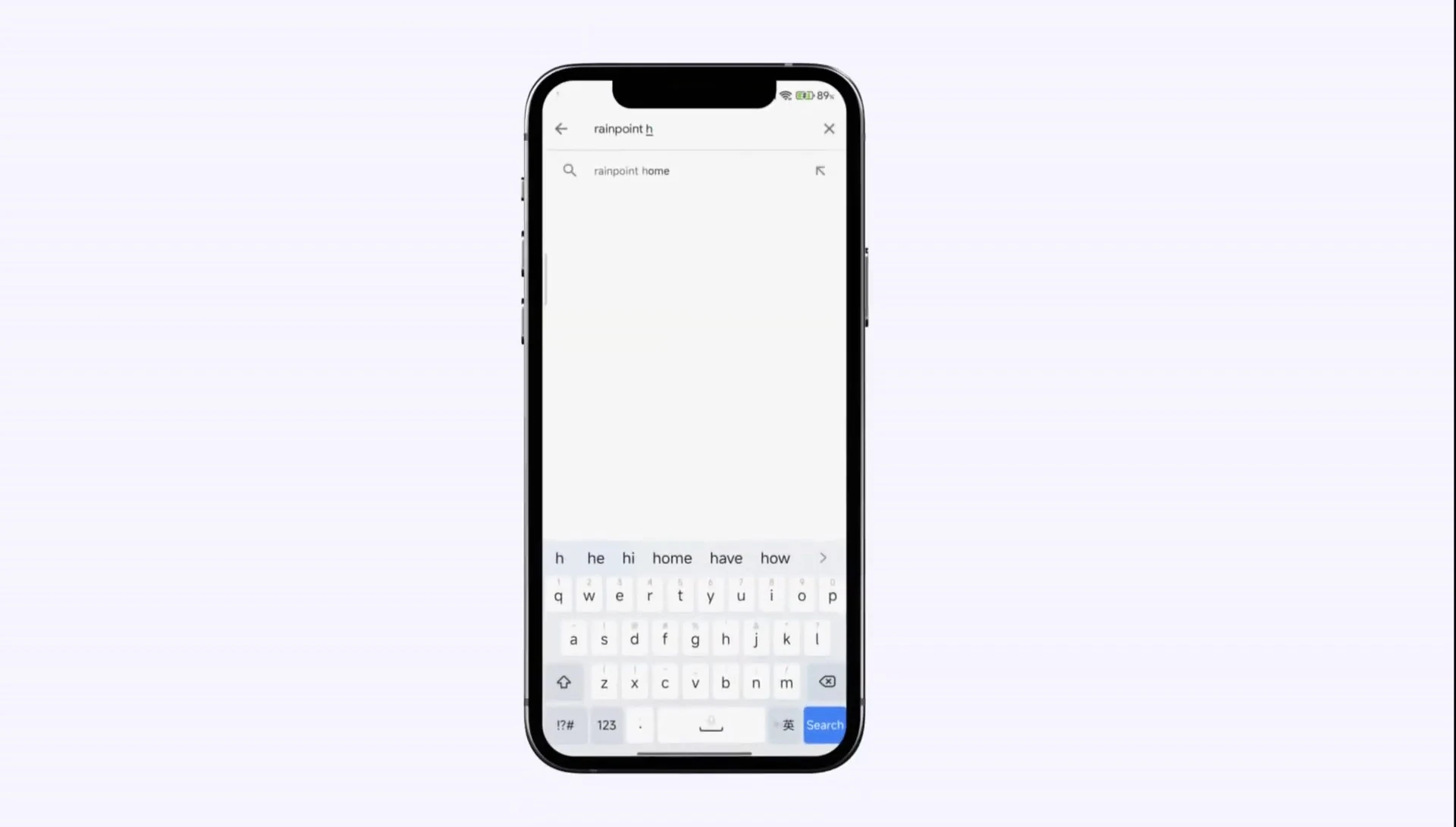

Download the RainPoint Home app from the App Store (iOS) or Google Play (Android). Alternatively, scan the QR code provided in the instructions. Once installed, register a new account or log in with your existing account credentials. This app will be your central hub for controlling the timer.
The app allows you to manage all aspects of your irrigation system, from scheduling to monitoring water usage. After registration/login, you will be able to add devices and start the setup process for your RainPoint timer.
Connecting the Wi-Fi Gateway
Power on the Wi-Fi gateway using the provided Type-C USB cable. Position it near the router and the water timer for optimal connectivity. Press and hold the button on the gateway until the Wi-Fi indicator light rapidly flashes blue. This indicates the gateway is ready for pairing.
Within the RainPoint Home app, select 'Add Device,' search for 'HWG023 WBRF,' and follow the on-screen instructions. The app will guide you through the necessary steps to establish a successful connection between the gateway and your home Wi-Fi network.

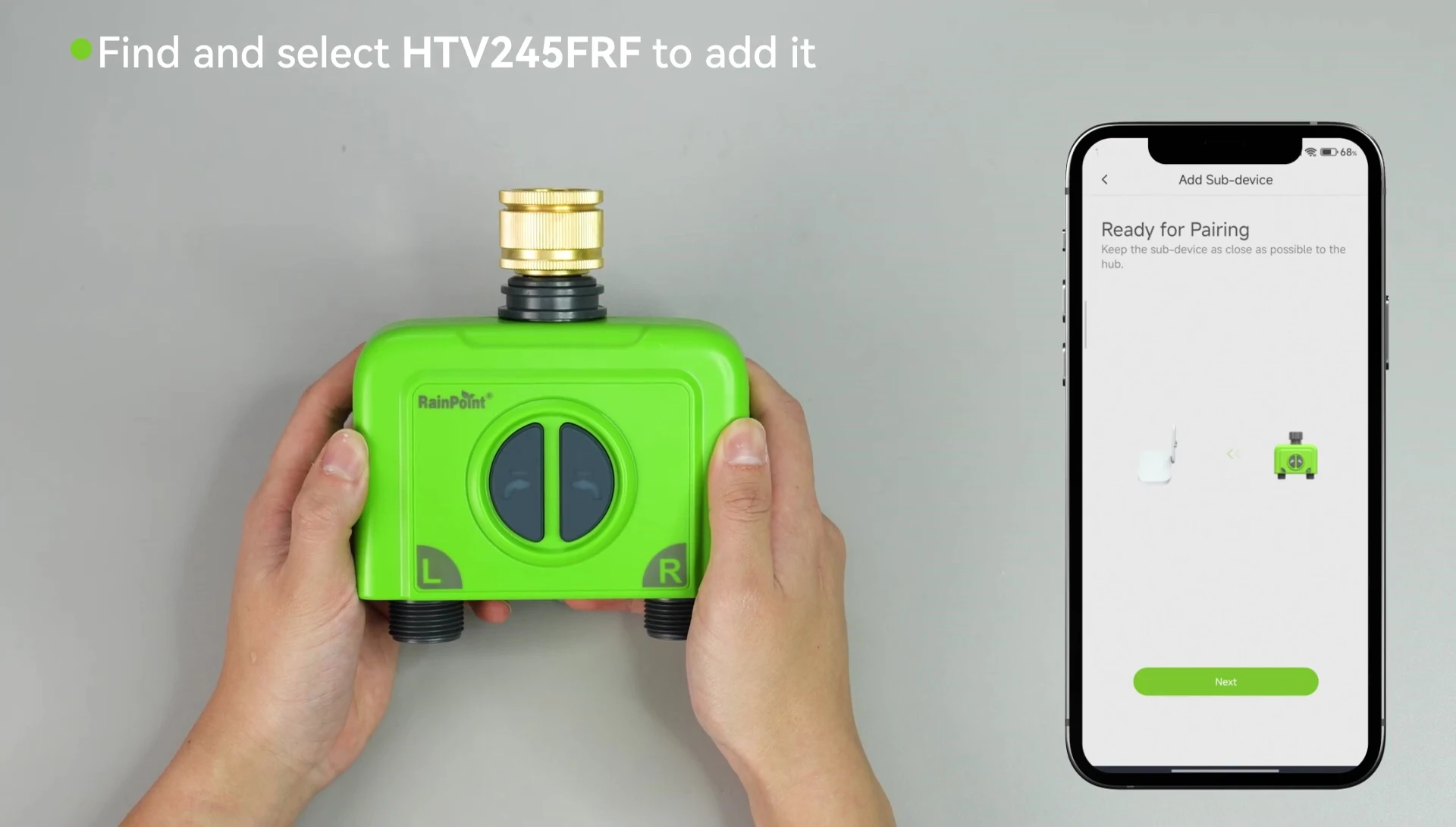

Connecting the Water Timer to the Gateway

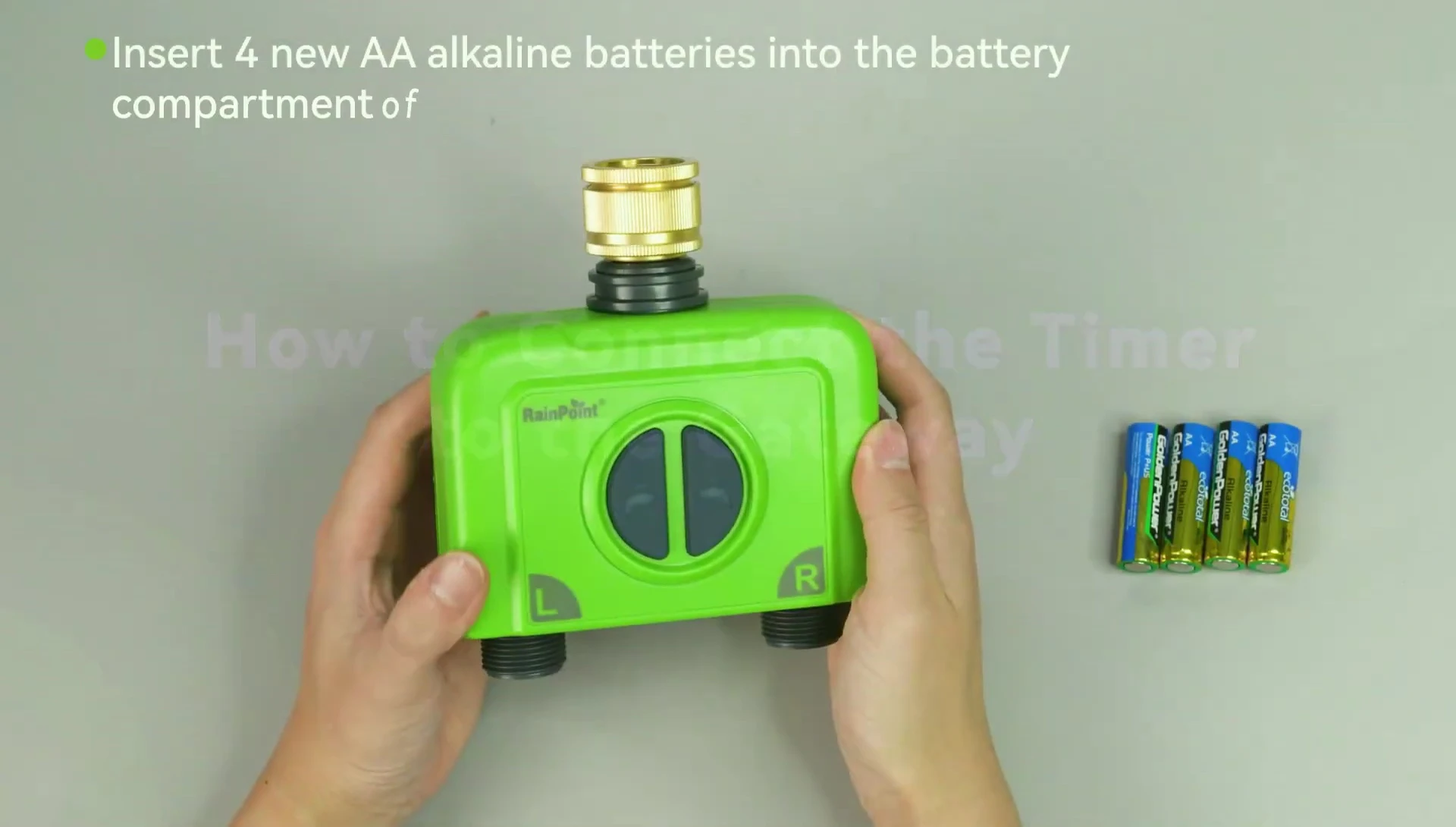

Insert four new AA alkaline batteries into the timer's battery compartment. On the RainPoint Home app, go to the gateway homepage, tap 'Add Device,' then 'Add New Devices.' Select the Wi-Fi timer.
Press and hold the button on the timer until the red LED indicator flashes rapidly (twice per second). The app will automatically start the pairing process, indicating that it is ready for setup. Once paired, you can attach the timer to your outdoor faucet.
Programming and Features

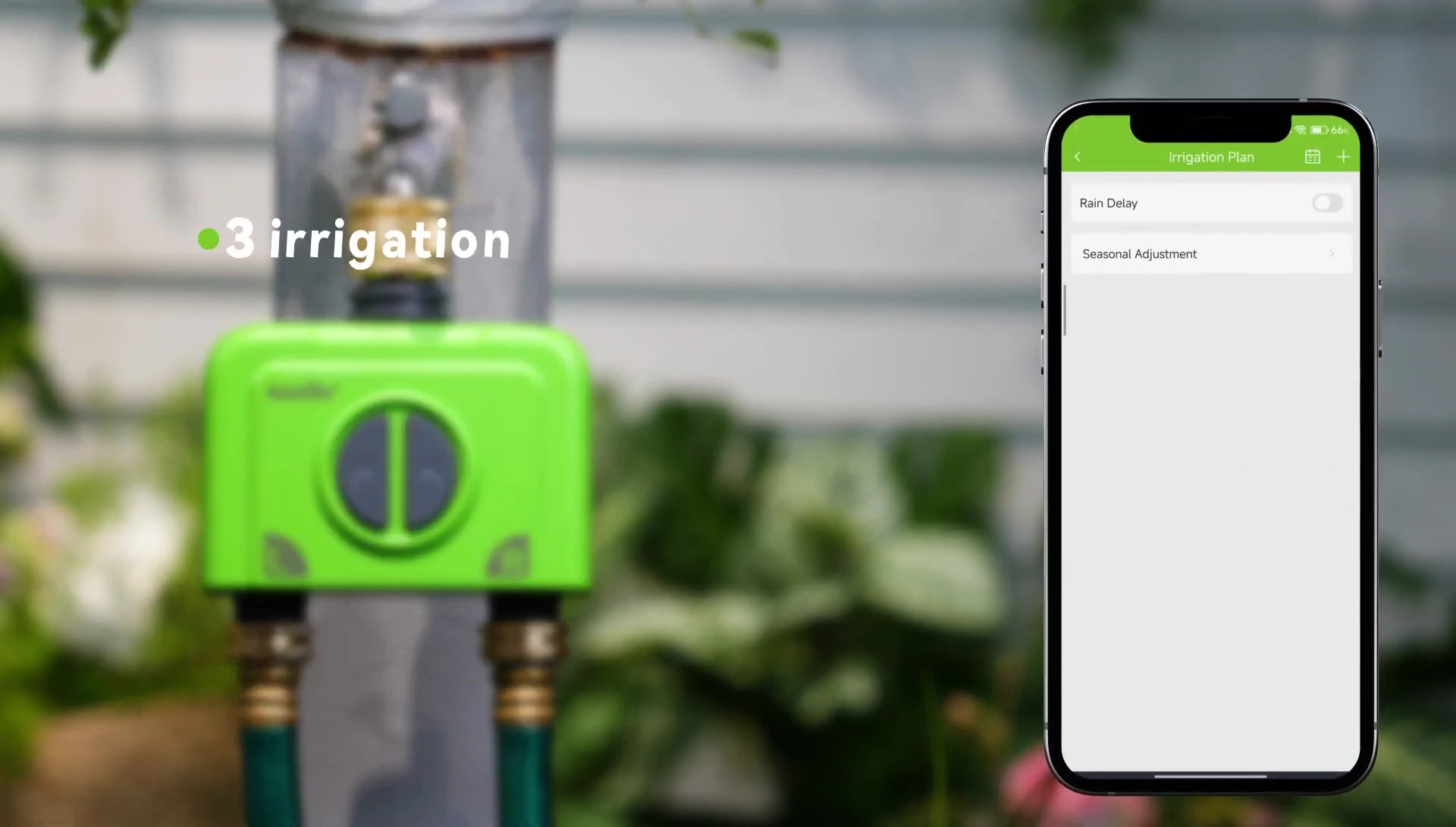

The RainPoint timer offers three irrigation modes: Normal, Interval, and Cycle & Soak. You can set watering frequencies (daily, odd days, even days, etc.). Manual watering is also possible without disrupting the scheduled watering.
Additional features include 24/48/72-hour rain delay, seasonal adjustment (allowing you to modify your watering schedule monthly), and the ability to create smart scenes for customized irrigation. This allows for precise control over your watering needs.
Conclusion & Review
The RainPoint WiFi water timer offers a comprehensive suite of features, making it a convenient and versatile option for smart irrigation. The app is intuitive and user-friendly, guiding you through the setup process seamlessly. The various irrigation modes, flexible scheduling options, and smart features such as rain delay and seasonal adjustment ensure efficient and precise water management.
While the setup requires some initial configuration, the resulting control and convenience make it a worthwhile investment for those seeking automated, efficient watering solutions. The ability to monitor and manage your irrigation remotely adds to its appeal. Overall, the RainPoint WiFi water timer is a robust and well-designed smart home device.
