This article explores the critical role of power system inertia in maintaining grid stability, particularly in the context of increasing renewable energy integration. Power system inertia, the resistance to frequency changes, is primarily provided by the rotating masses of synchronous generators and is crucial for preventing rapid frequency fluctuations following disturbances like load changes or generator outages. The inherent inertia of traditional generators helps to buffer these events, providing crucial time for other control mechanisms to respond and maintain grid stability.However, the proliferation of renewable energy sources, such as wind and solar, introduces significant challenges. These sources often connect to the grid via power electronic inverters, lacking the inherent inertia of synchronous generators. This reduction in system inertia leads to faster frequency changes after disturbances, increasing the risk of blackouts. Consequently, real-time inertia monitoring becomes essential for maintaining grid stability and ensuring reliable power delivery in a rapidly evolving energy landscape. This article will delve into the measurement, implications, and mitigation strategies related to power system inertia.
Pros And Cons
- Measure total real-time inertia available in the grid.
- Provide operators with insight into how much inertia is online at any moment.
- Crucial for real-time decision-making (e.g., determining whether fast frequency response mechanisms need to be activated).
Read more: AMI Meter Reading Guide: Understanding Your Smart Electricity Meter
Understanding Power System Inertia
Power system inertia is the resistance to changes in the system's frequency. It's crucial for maintaining stability, particularly during disturbances like sudden load changes or generator loss. This resistance is primarily provided by the kinetic energy stored in the rotating masses of synchronous generators.
When a disturbance occurs, this stored kinetic energy helps to prevent rapid frequency fluctuations. The amount of inertia directly impacts how quickly the frequency changes after a disruption. Larger inertia means slower frequency changes, providing more time for other control mechanisms to respond.
Inertia Measurement and the Inertia Constant (H)
Inertia in power systems is measured in terms of stored energy (gigajoules) or gigavolt-ampere seconds (GVA-s). The inertia constant, denoted by 'H' and expressed in seconds, represents the energy stored in a machine's rotating mass relative to its rated power.

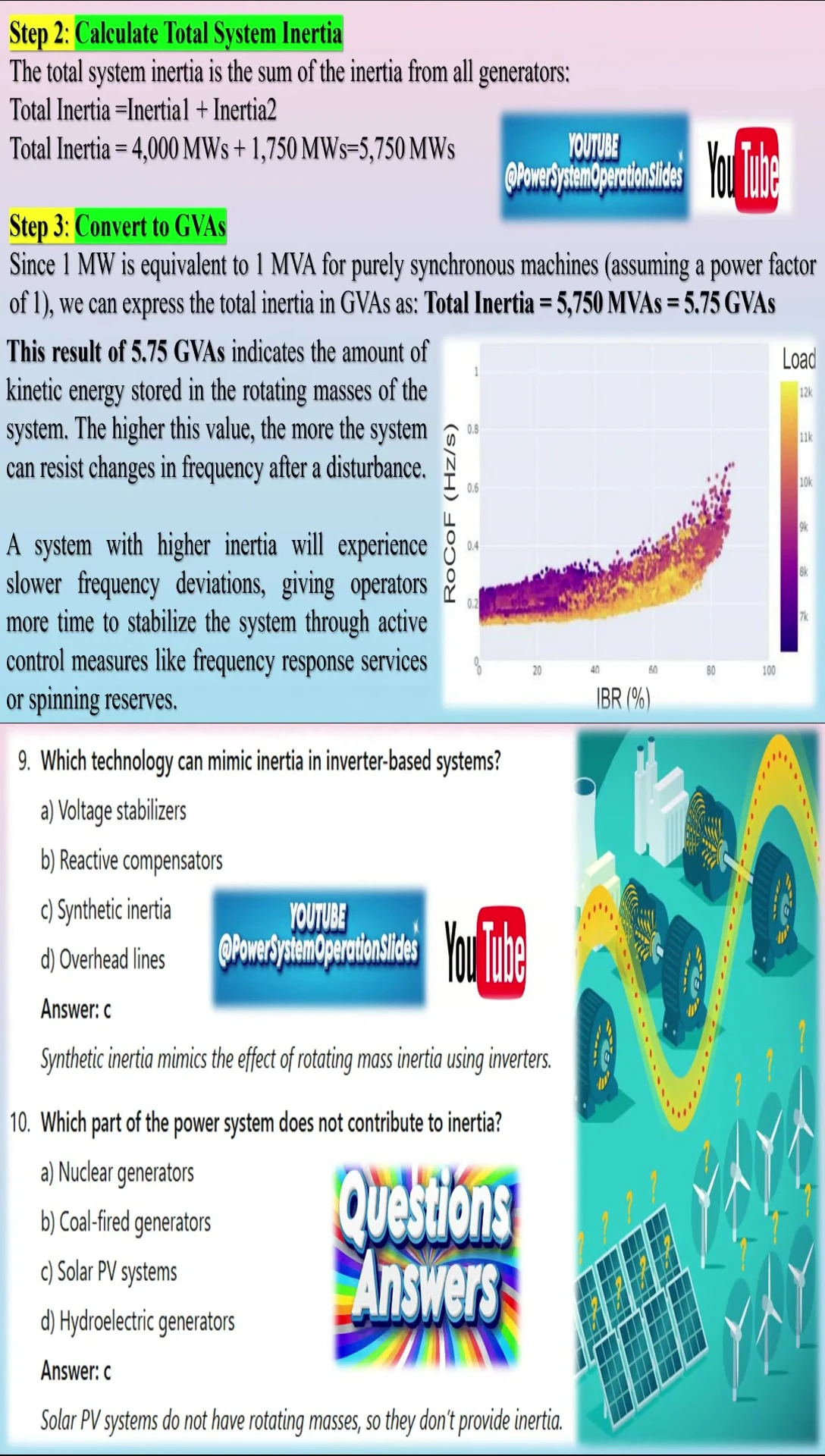

Multiplying the apparent power (GVA) by the inertia constant (H) gives the total inertia of the system. This total inertia is calculated by summing the individual contributions of all generators on the grid. A higher H-constant indicates greater inertia and better stability.
The Impact of Renewable Energy Integration
The increasing integration of renewable energy sources like wind and solar presents challenges to power system inertia. Unlike traditional synchronous generators, renewables often connect to the grid via power electronic inverters, which do not inherently provide inertia.

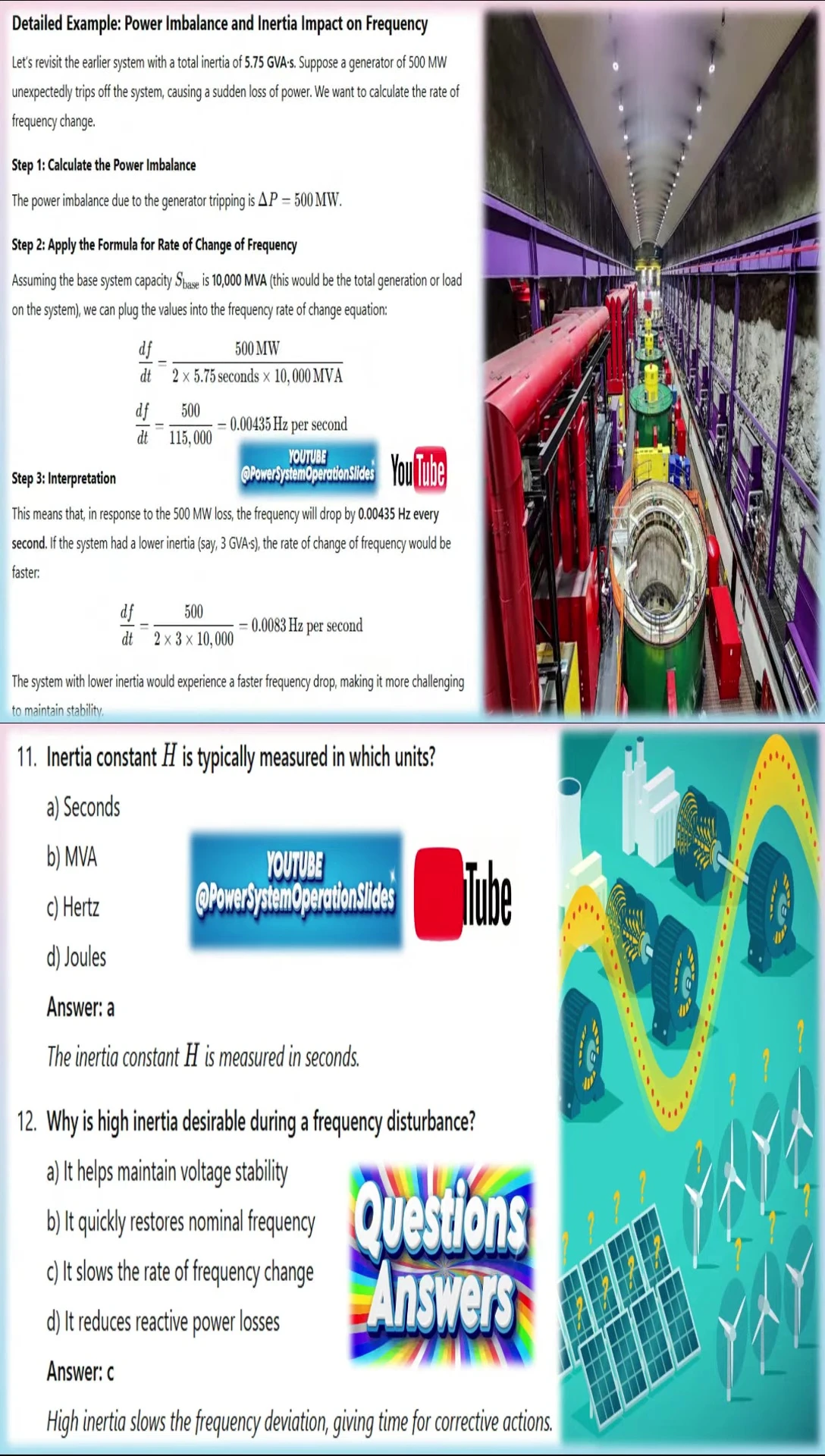

This leads to a decrease in overall system inertia, resulting in faster rates of frequency change (RoCoF) after disturbances. This poses a significant threat to frequency stability and increases the risk of blackouts.
To mitigate this, power system operators must employ advanced control mechanisms and reserves to compensate for the lack of inertia from renewable sources.

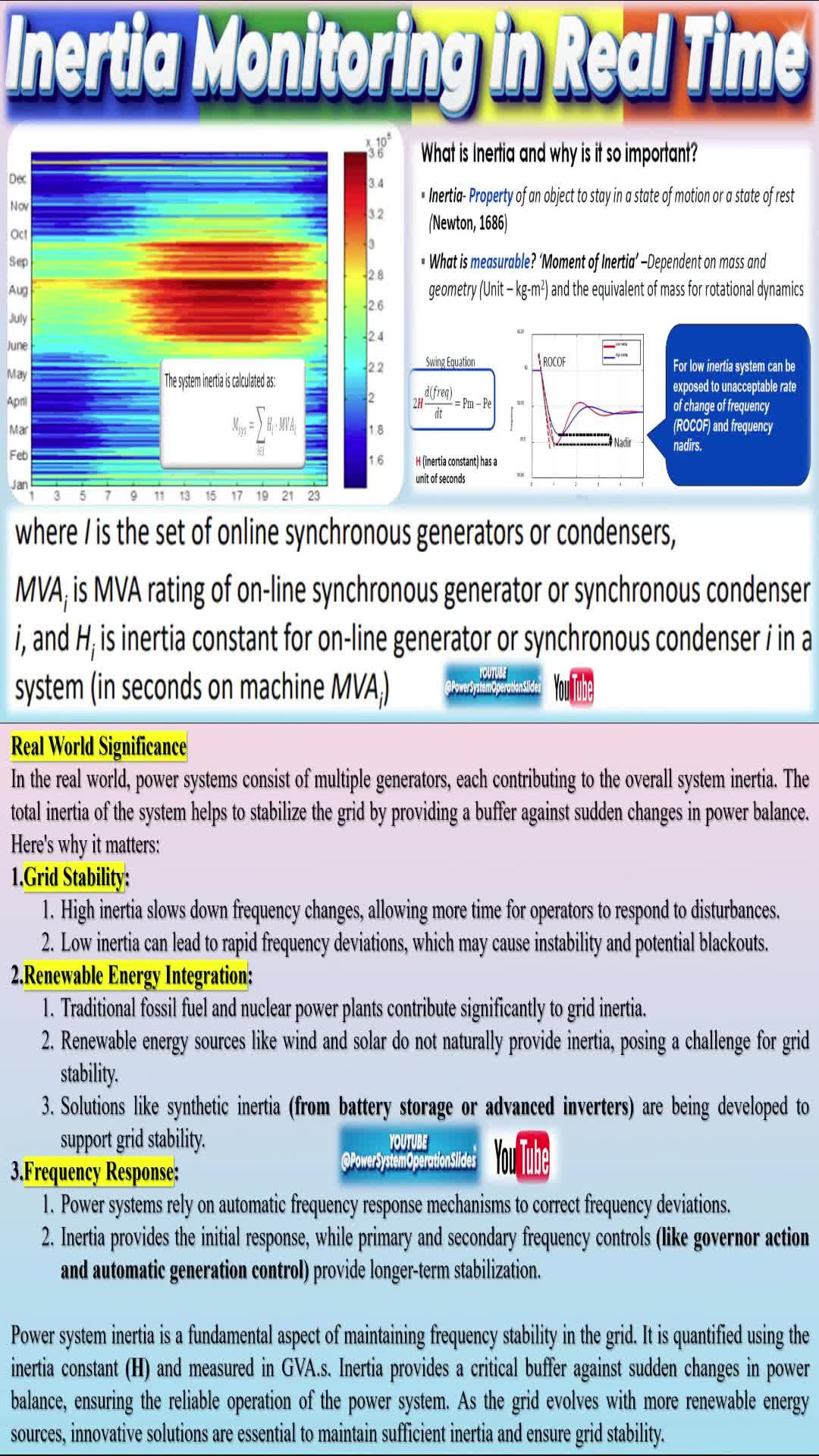

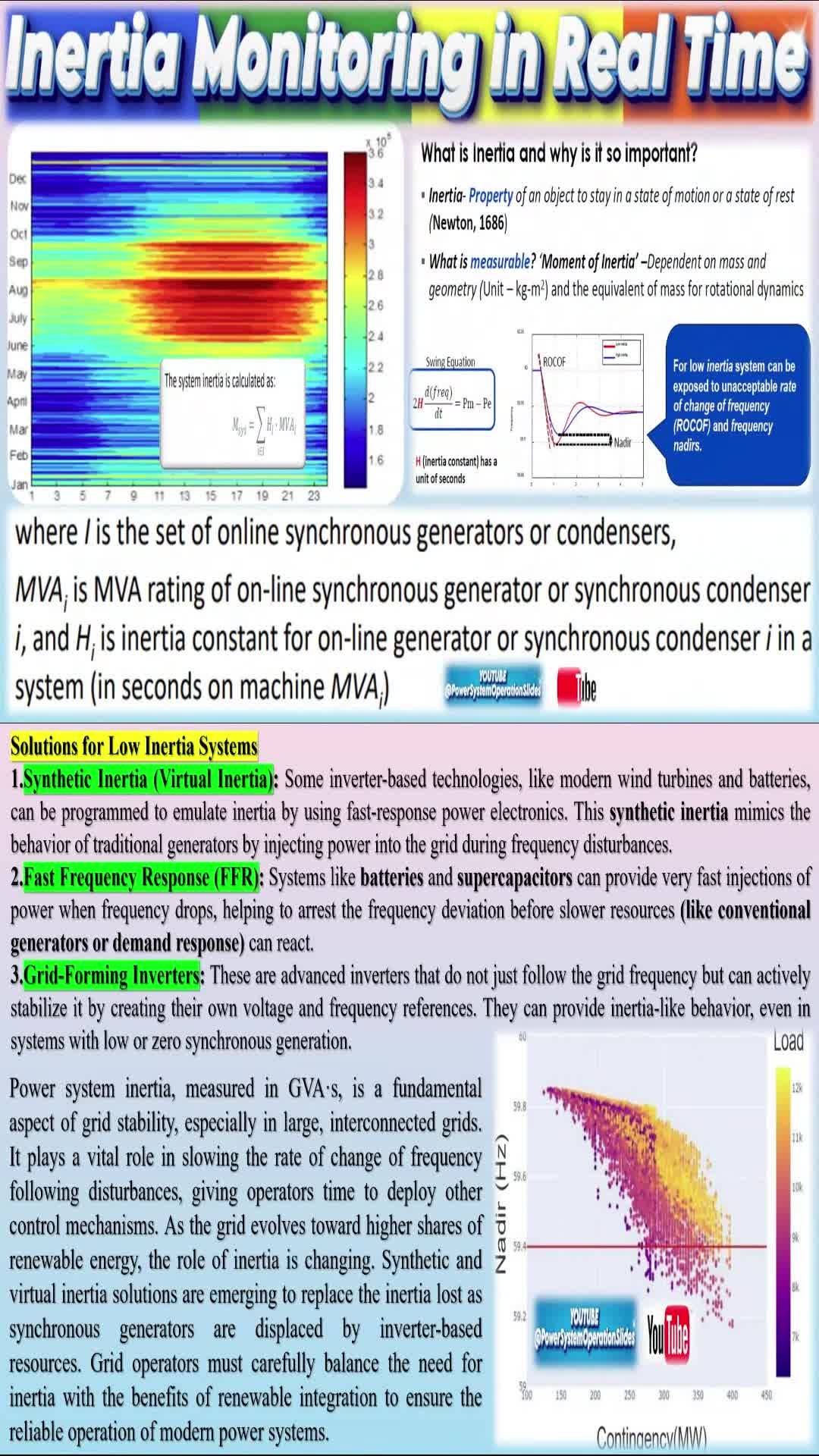

Real-Time Inertia Monitoring and Control
Real-time inertia monitoring is critical for maintaining grid stability, especially in systems with high renewable energy penetration. Monitoring systems measure the total inertia available in real-time, providing crucial insights for operators.
These systems utilize various methods, including wide-area measurement systems (WAMS) employing phasor measurement units (PMUs) and system identification techniques. This data allows for real-time decision-making, such as activating fast frequency response mechanisms when needed.
By understanding available inertia, operators can proactively manage and enhance grid stability, ensuring reliable power delivery even with increasing reliance on intermittent renewable sources.
Conclusion: The Necessity of Inertia Monitoring
The shift towards renewable energy sources necessitates advanced power system monitoring and control strategies. Real-time inertia monitoring is no longer a luxury but a vital component for ensuring grid stability and preventing widespread blackouts.
By actively tracking system inertia and employing appropriate control mechanisms, operators can maintain reliable power delivery even in the face of significant changes in generation mix and increased variability.
Investing in advanced inertia monitoring technologies and control strategies is a crucial step towards a secure and sustainable energy future.
