This article details the design and functionality of a smart energy meter built using an Arduino Uno, a GSM SIM900A module, and various supporting components. This innovative system offers a cost-effective solution to monitor energy consumption and actively deter power theft. The core functionality relies on pulse signals from an energy meter, processed by the Arduino to track usage and send alerts via SMS. A key feature is the integrated prepaid system managed through SMS commands, allowing for remote recharging and balance monitoring.The system's power theft detection capabilities are a significant advantage. By monitoring energy consumption patterns and reacting to anomalies, the meter can automatically cut off power to the load and send immediate alerts to the user. This proactive approach combines both preventative measures and real-time responses to unauthorized access, offering a robust solution for safeguarding energy resources and reducing financial losses. The article also explores potential future enhancements, including cloud-based data logging and smart home integration.
Pros And Cons
- Detects power theft and sends SMS alerts.
- Provides prepaid energy metering.
- Has an internal memory to store data even when power is off.
- Sends low balance and zero balance SMS alerts.
- Allows for remote recharging via SMS.
- Requires a SIM card for SMS functionality.
Read more: AMI Meter Reading Guide: Understanding Your Smart Electricity Meter

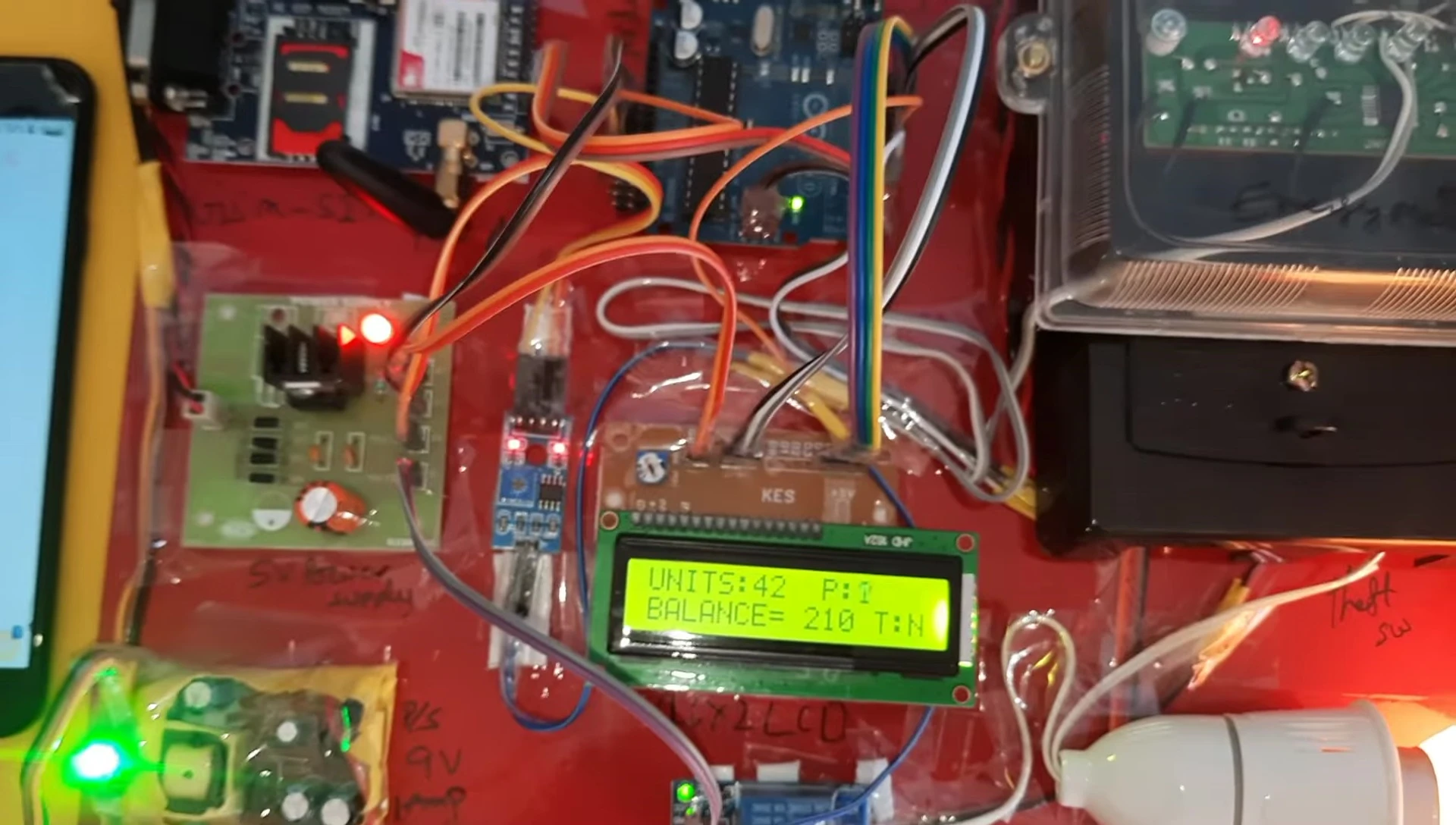

Hardware Components and Connections

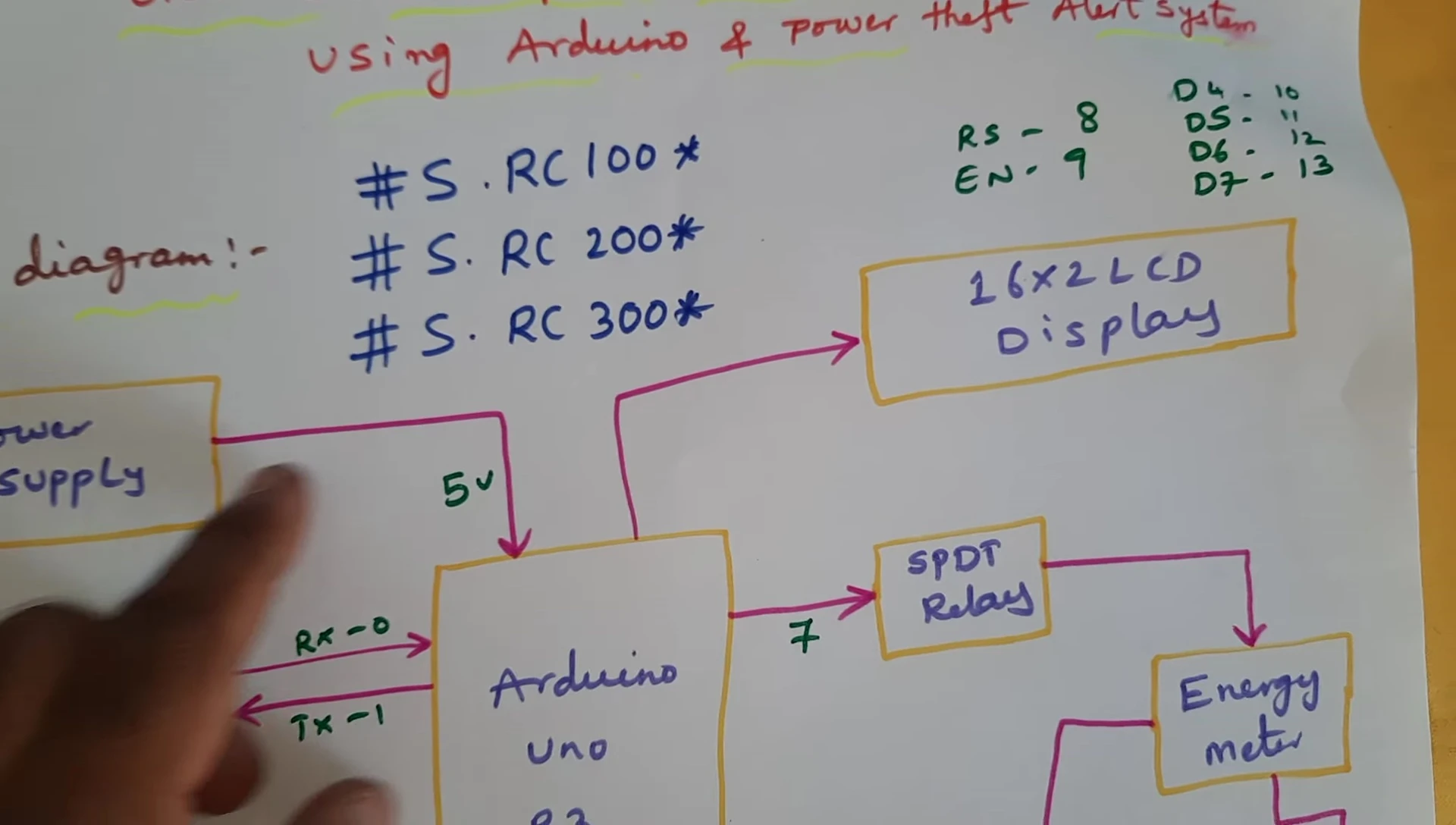

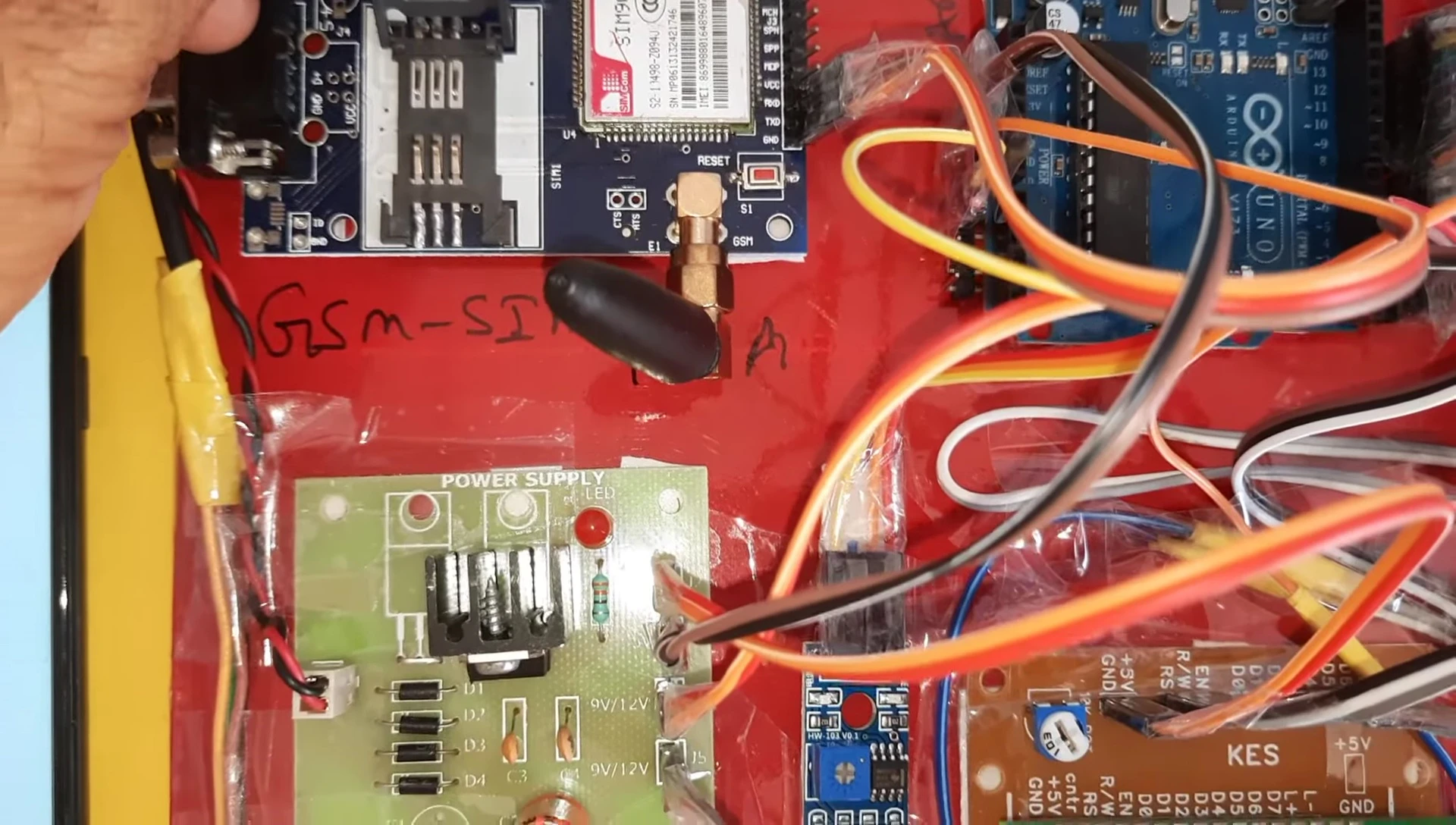

The core of this system is an Arduino Uno R3, acting as the brains of the operation. It's interfaced with a GSM SIM900A module for SMS communication, allowing for remote monitoring and alerts. Power is supplied via a 0-9V adapter, regulated down to 5V for the Arduino and GSM module.

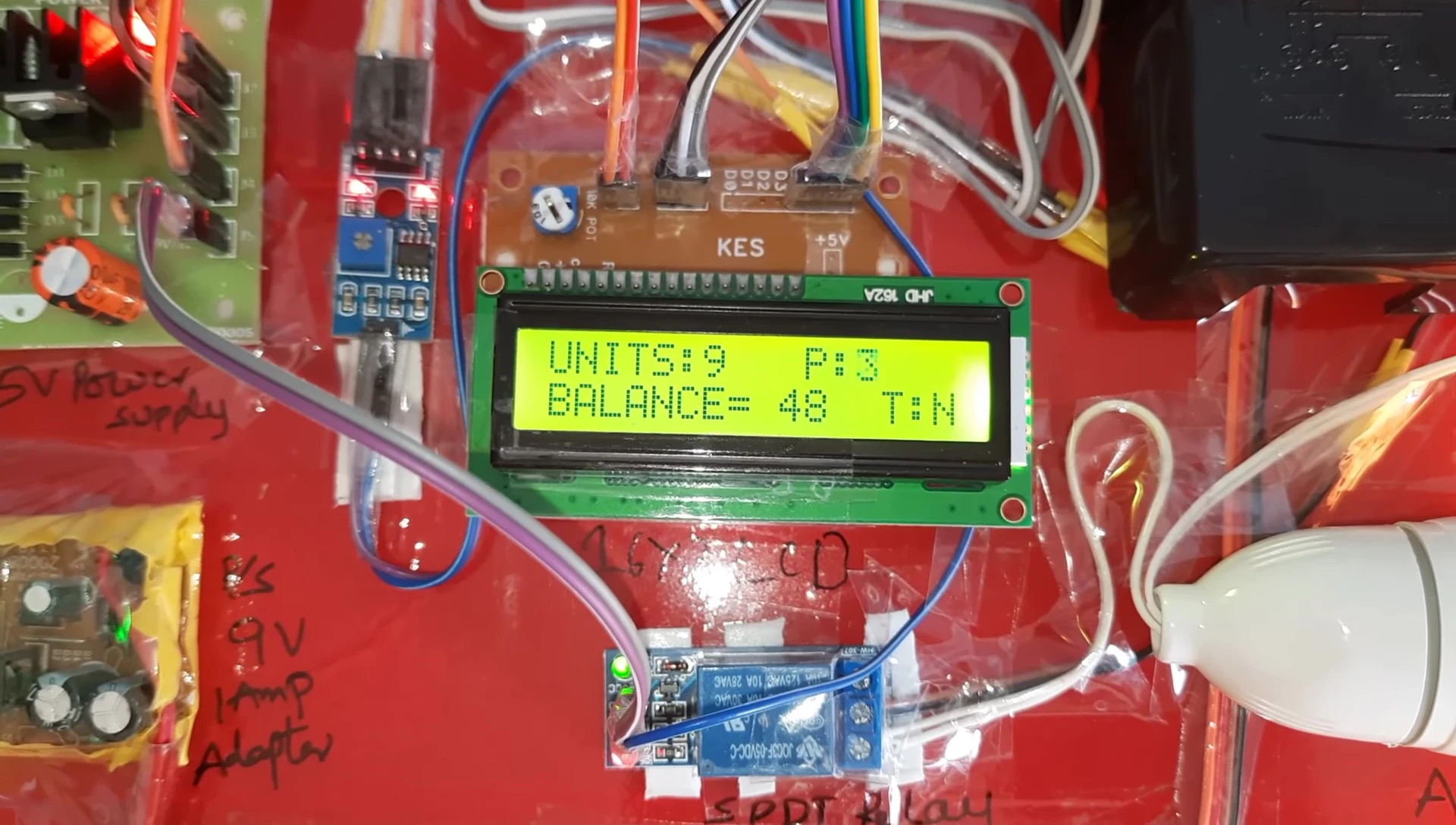

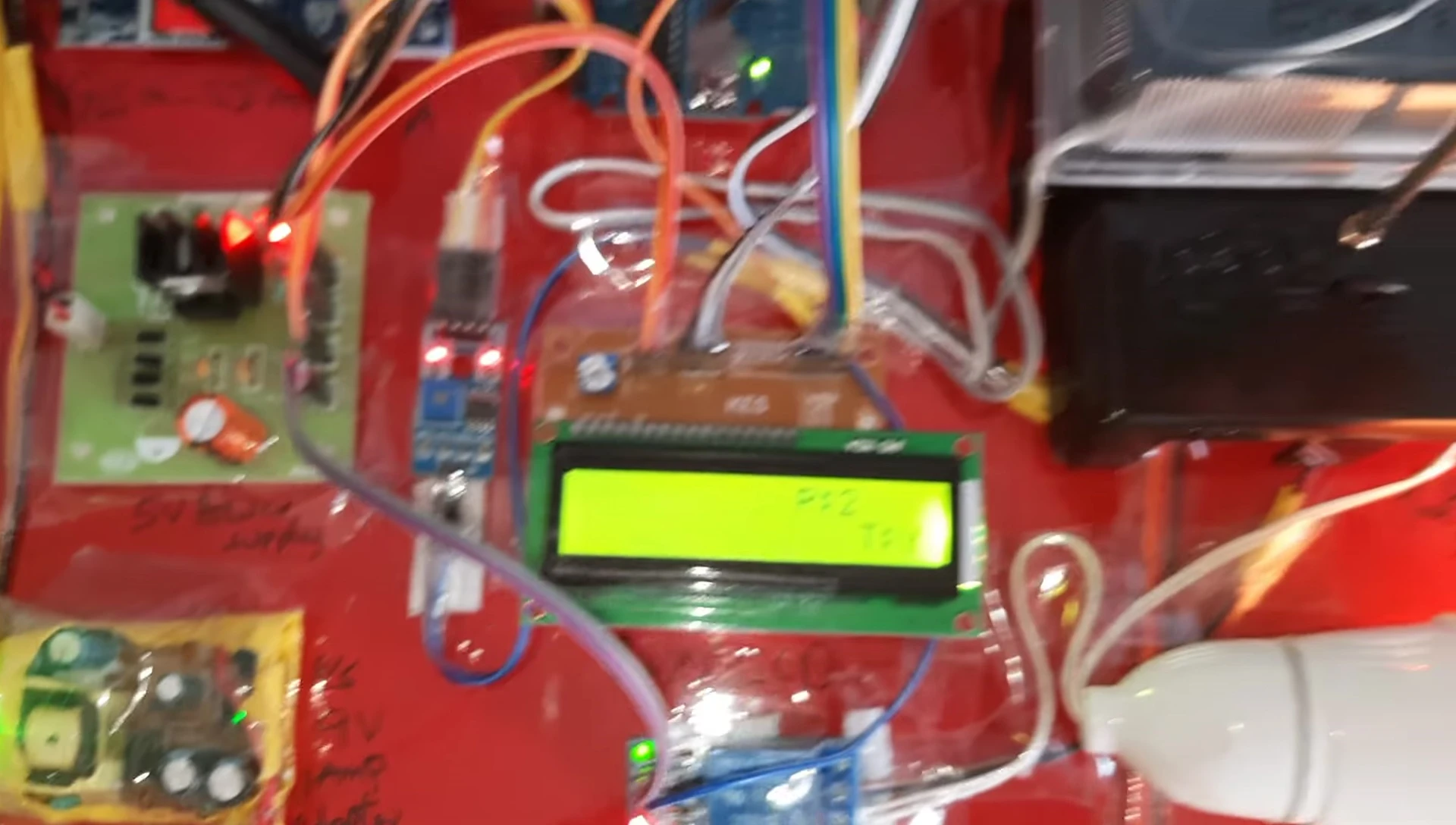

A crucial component is the energy meter itself, providing pulse signals indicative of energy consumption. These pulses are processed by an LM358 operational amplifier before being fed to the Arduino. An LCD display (16x2) is used to show real-time energy usage and system status.

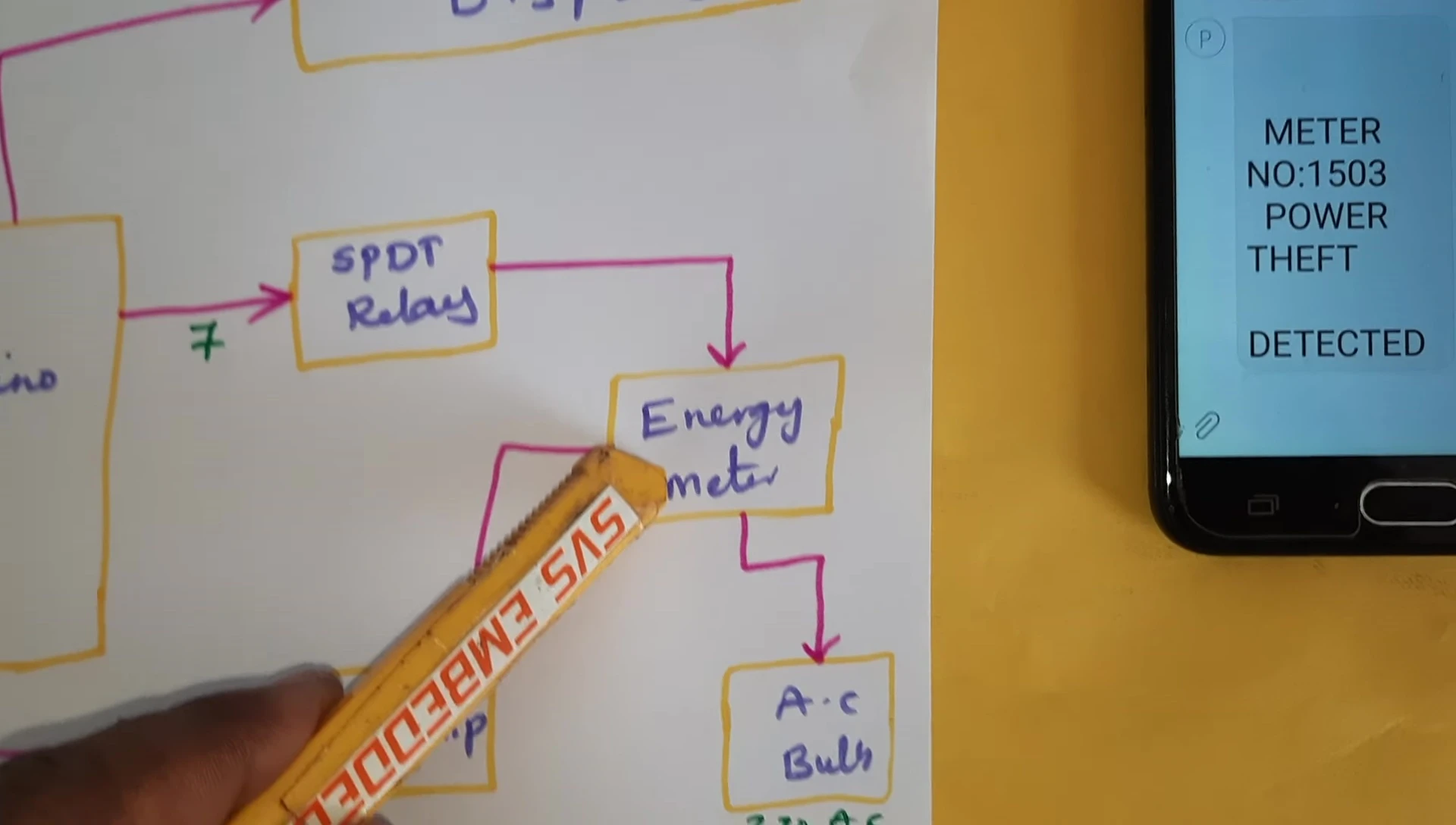

The system also incorporates a SPDT relay to control power to a connected AC bulb, enabling remote switching and theft detection. All components are carefully wired, ensuring proper functionality and safety. Additional components like a bridge rectifier, filter capacitor, and 7805 regulator ensure stable power supply.
SMS-Based Monitoring and Alerts
The GSM SIM900A module enables the system to send SMS alerts to a designated phone number. These alerts can signify low balance, power theft attempts, or any other critical events. The SIM card needs to be properly inserted for the module to function.

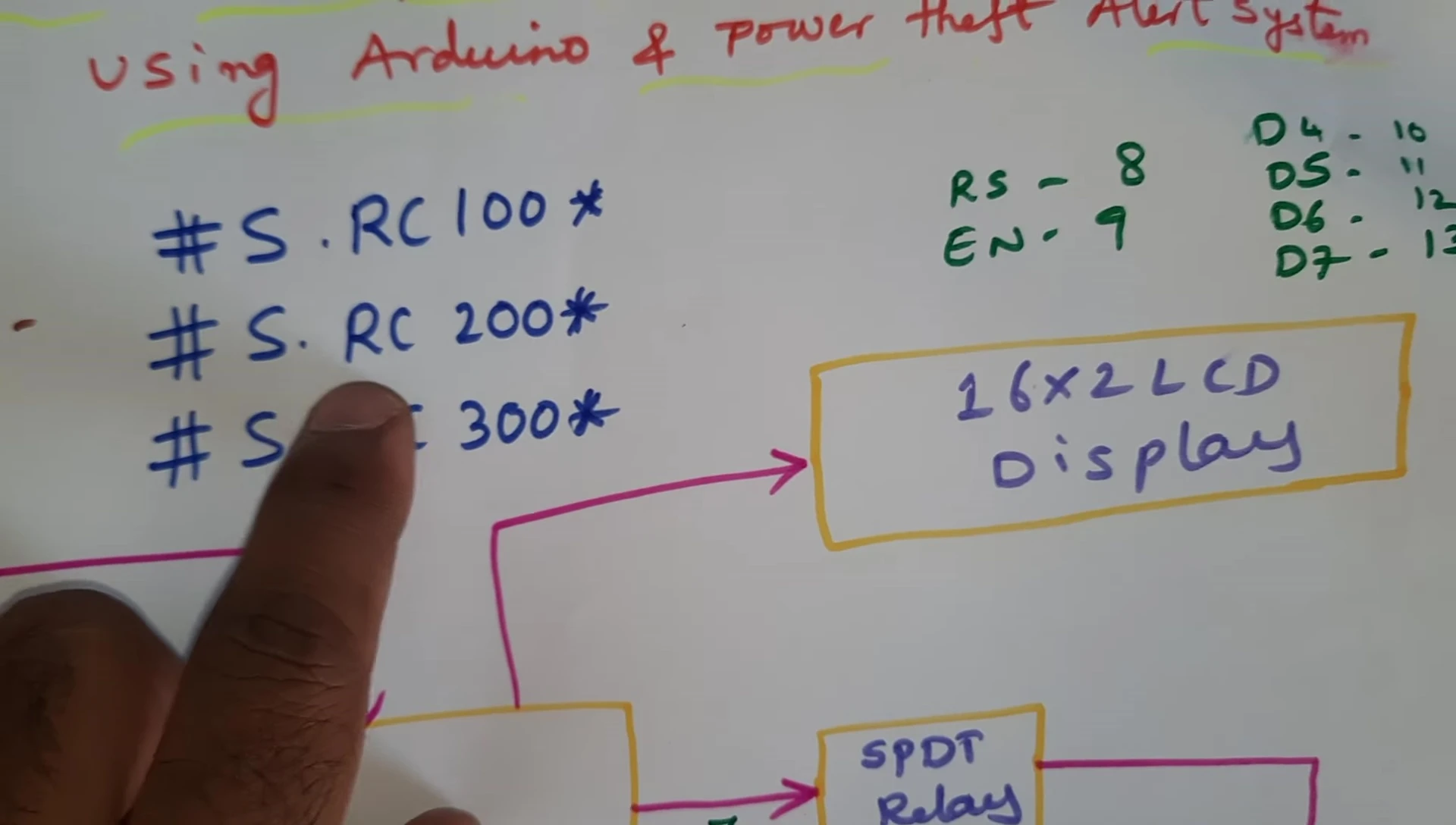

A key feature is the pre-paid system, requiring users to recharge the system via SMS. A specific format is used for recharging, for example, "ASH CAPITAL S.RC100" for adding 100 units. The system tracks the remaining balance and sends alerts when it falls below a certain threshold.
The SMS alerts provide crucial information, including the time of the event, the type of alert (low balance, theft detection), and relevant meter readings. This ensures timely intervention and prevents significant energy loss.
Power Theft Detection and Response

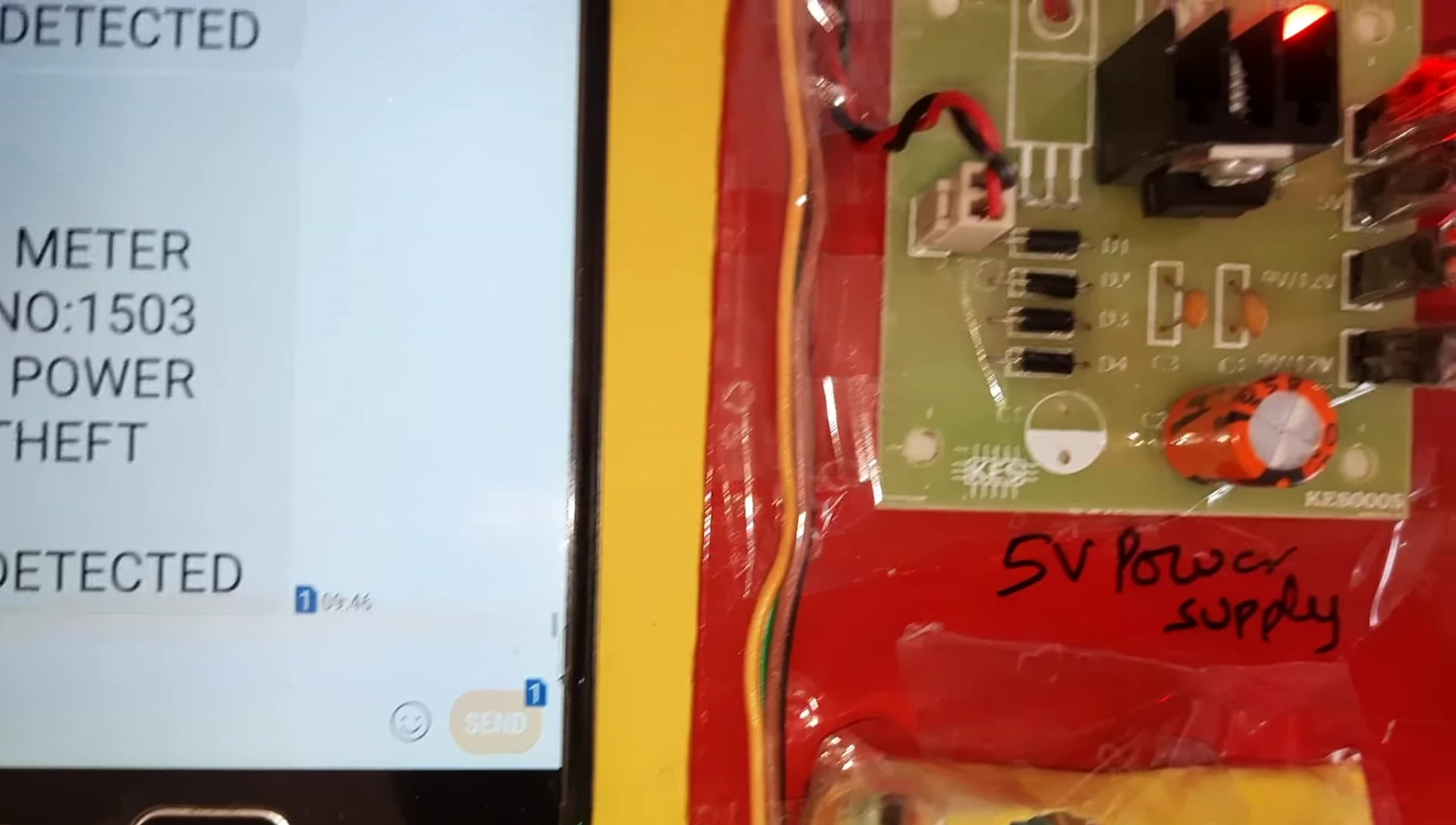

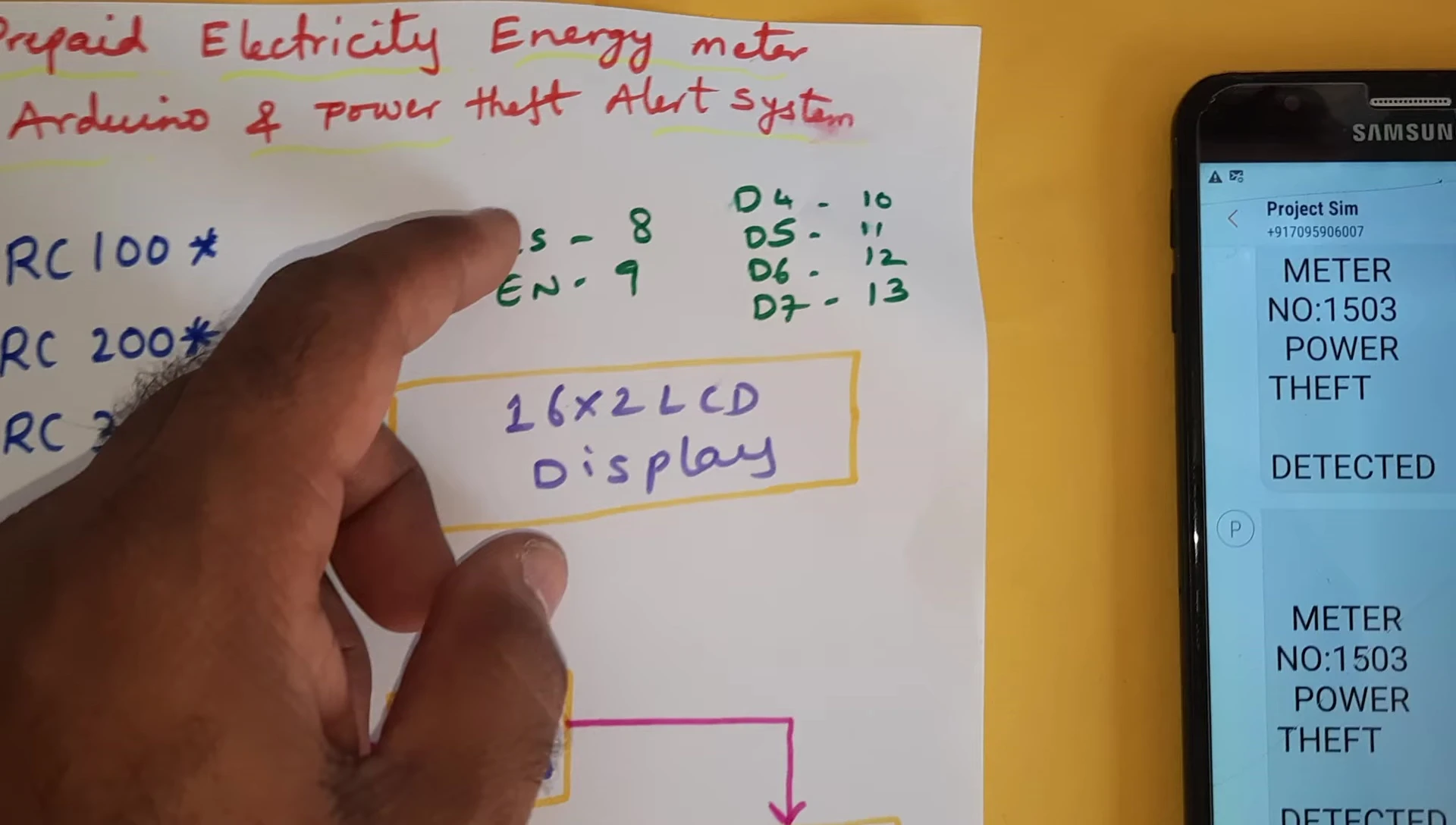

The system actively monitors for power theft attempts. When a theft is detected, an alert is instantly sent via SMS. This proactive approach helps prevent unauthorized energy usage.

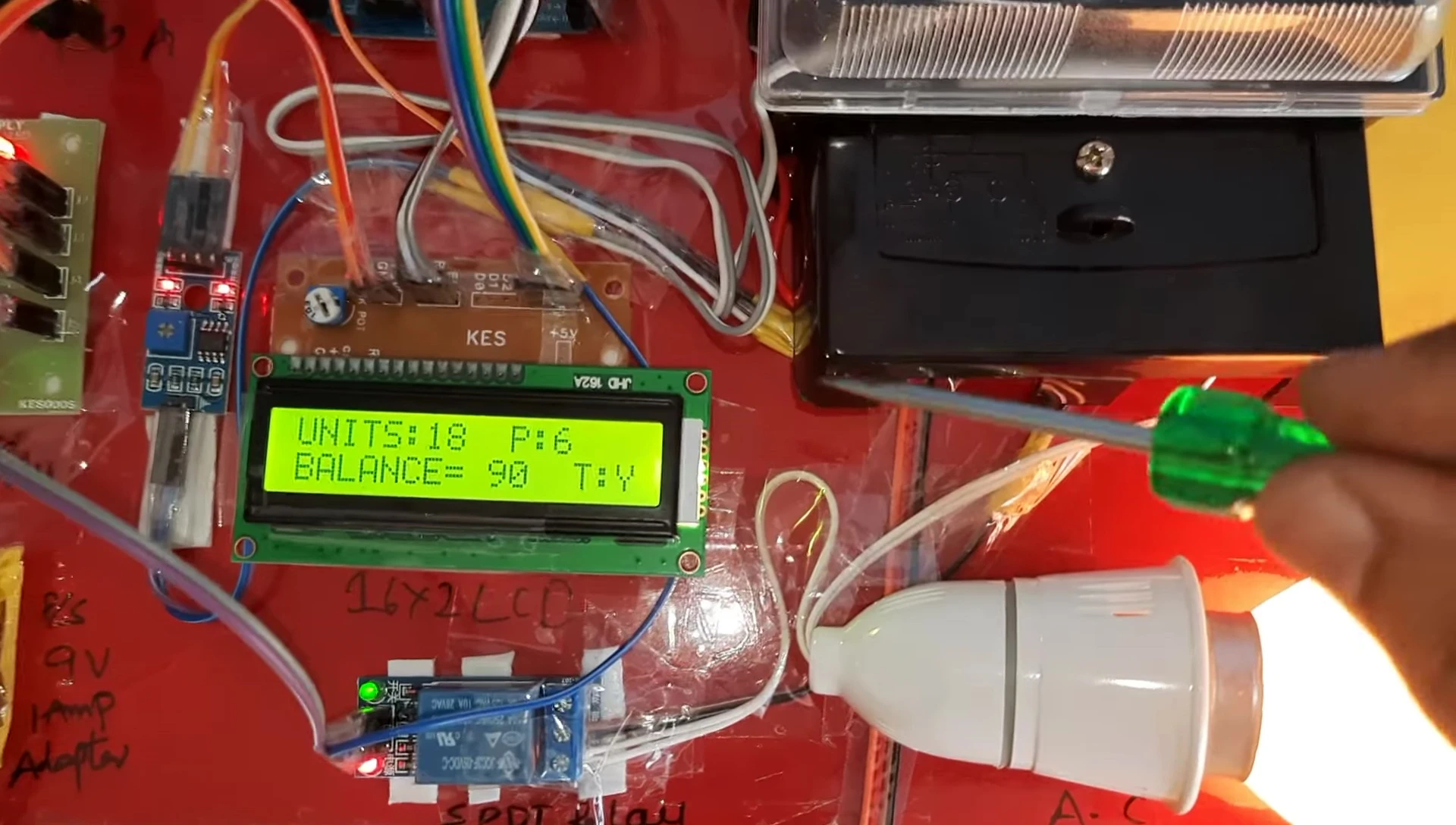

The relay is activated in response to a theft attempt, cutting off power to the connected load. This prevents further energy loss and can act as a deterrent. The system also displays the theft status on the LCD screen.
The combined use of SMS alerts and automatic power shutoff makes this system highly effective in combating power theft. This provides a layered security approach to ensure integrity of the energy system.
Conclusion
This smart energy meter offers a comprehensive solution to monitor energy consumption and prevent power theft. The combination of an Arduino-based microcontroller, GSM module for remote communication, and a power theft detection mechanism make it highly effective.
The system's user-friendly SMS-based recharge and alert system simplifies management and ensures timely intervention. The ability to remotely monitor and control energy usage adds a layer of convenience and security.
While the system is clearly effective at addressing power theft and providing monitoring capabilities, future iterations could incorporate features such as data logging to a cloud platform for long-term analysis and potentially integrate with smart home systems for improved control and automation.
