This review examines a smart plug featuring high and low voltage cut-off protection with auto-restart, alongside surge protection capabilities. The plug is rated for 6 amps, making it suitable for lower-power appliances but unsuitable for high-power devices. Rigorous testing, using a variable AC voltage source and multimeter, was conducted to assess the effectiveness of its voltage protection mechanisms. While the low voltage cut-off and auto-restart functions were successfully tested, limitations in the testing equipment prevented a complete evaluation of the high voltage cut-off point. Despite this, the testing revealed promising results for low-voltage protection.The review delves into the smart plug's internal components, offering insights into its likely design and functionality. The analysis suggests a robust design incorporating crucial safety features. Overall, the review provides a balanced assessment of the smart plug's performance, highlighting both its strengths and limitations. The 6-amp current limit is emphasized as a crucial consideration for potential users. The review concludes with an evaluation of the plug's value proposition considering its price and functionality.
Pros And Cons
- Provides protection against dangerous voltage fluctuations.
- Features high and low voltage cut-off with auto-restart.
- Not a voltage stabilizer; only cuts off power during voltage issues.
- 6-ampere rating limits usage; cannot be used with high-power appliances like geysers or air conditioners.
Read more: AMI Meter Reading Guide: Understanding Your Smart Electricity Meter
Voltage Cut-off Levels and Auto-Restart

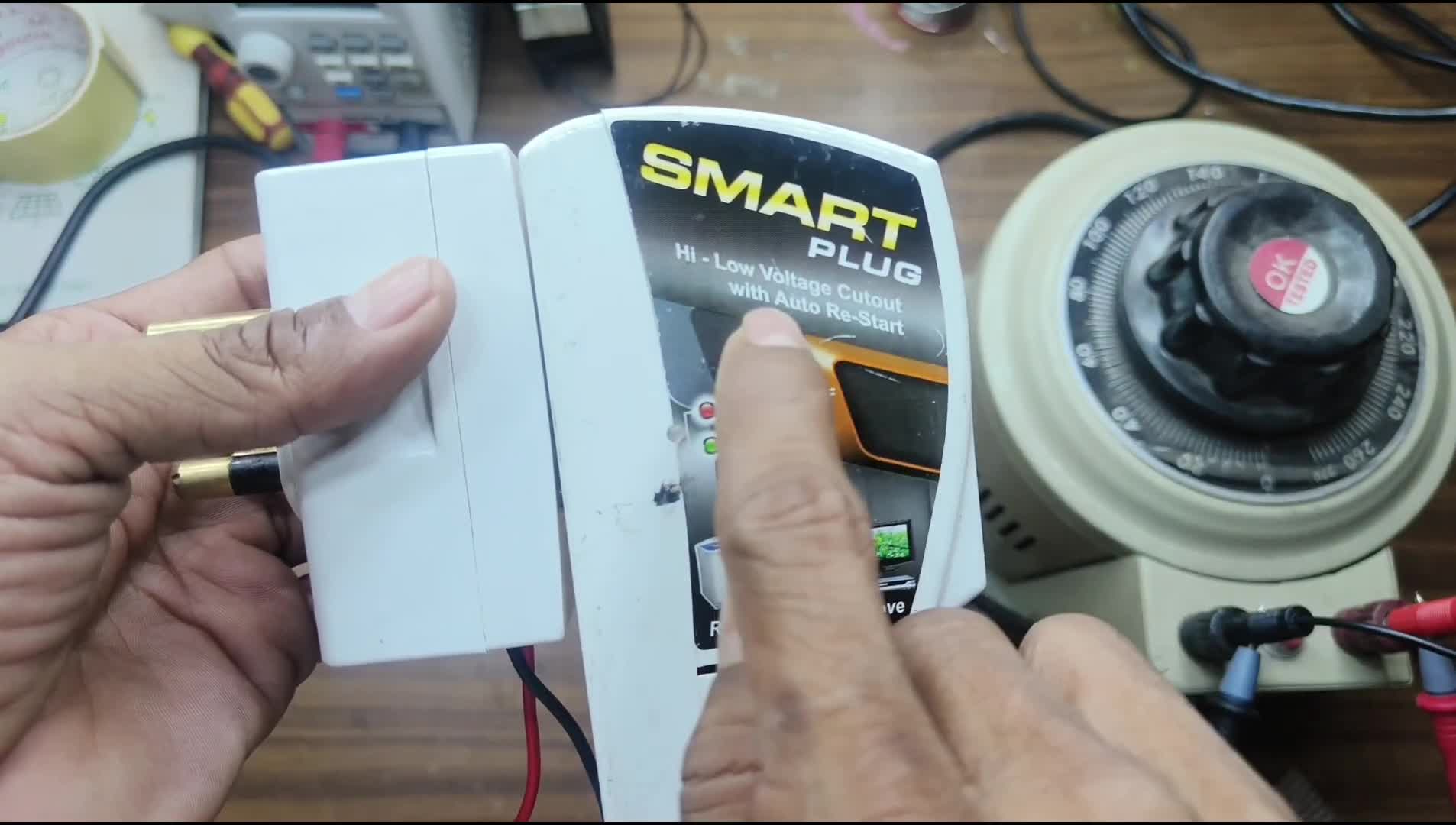

This smart plug boasts high and low voltage cut-off features with auto-restart. The device automatically shuts off when voltage surpasses a pre-defined high limit or falls below a specific low limit. After a short interval, it attempts to restart automatically. This is a crucial safety feature that protects connected appliances from voltage fluctuations.

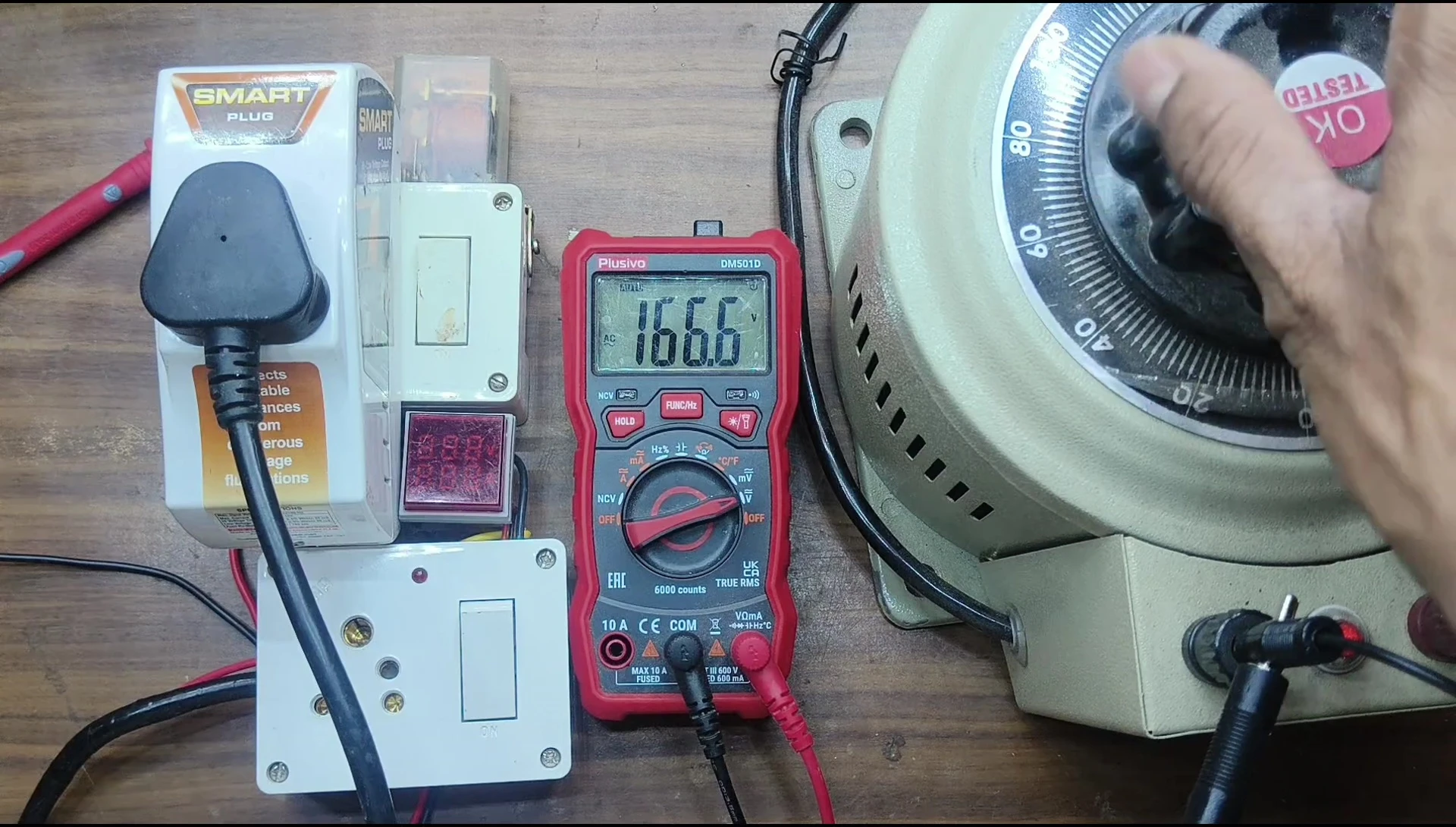

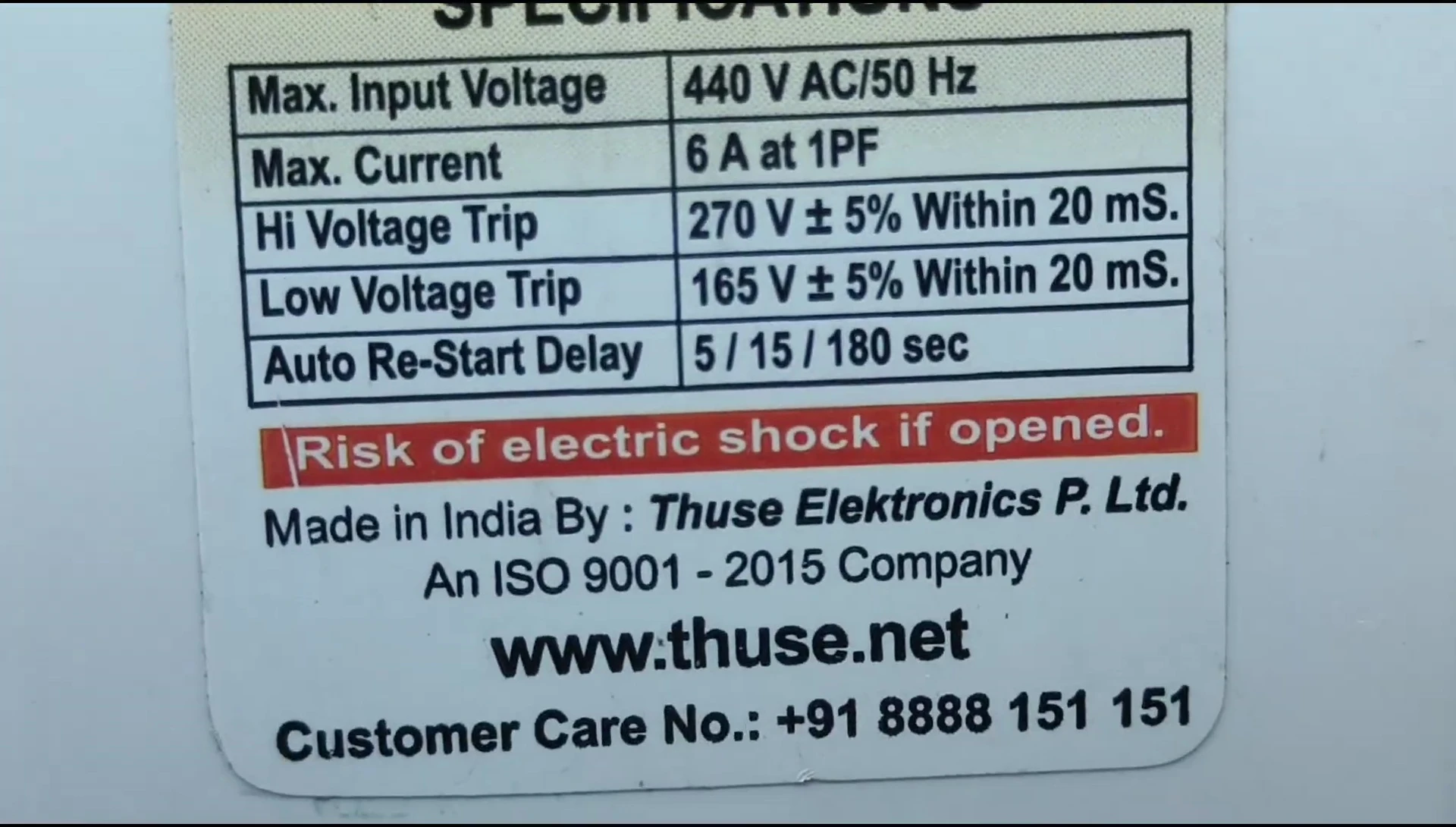

Testing reveals a low voltage cut-off around 166 volts and a restart around 180 volts. The high voltage cut-off point couldn't be fully determined due to limitations in the testing equipment, although it did function up to at least 240 volts.
Amperage Rating and Appliance Compatibility

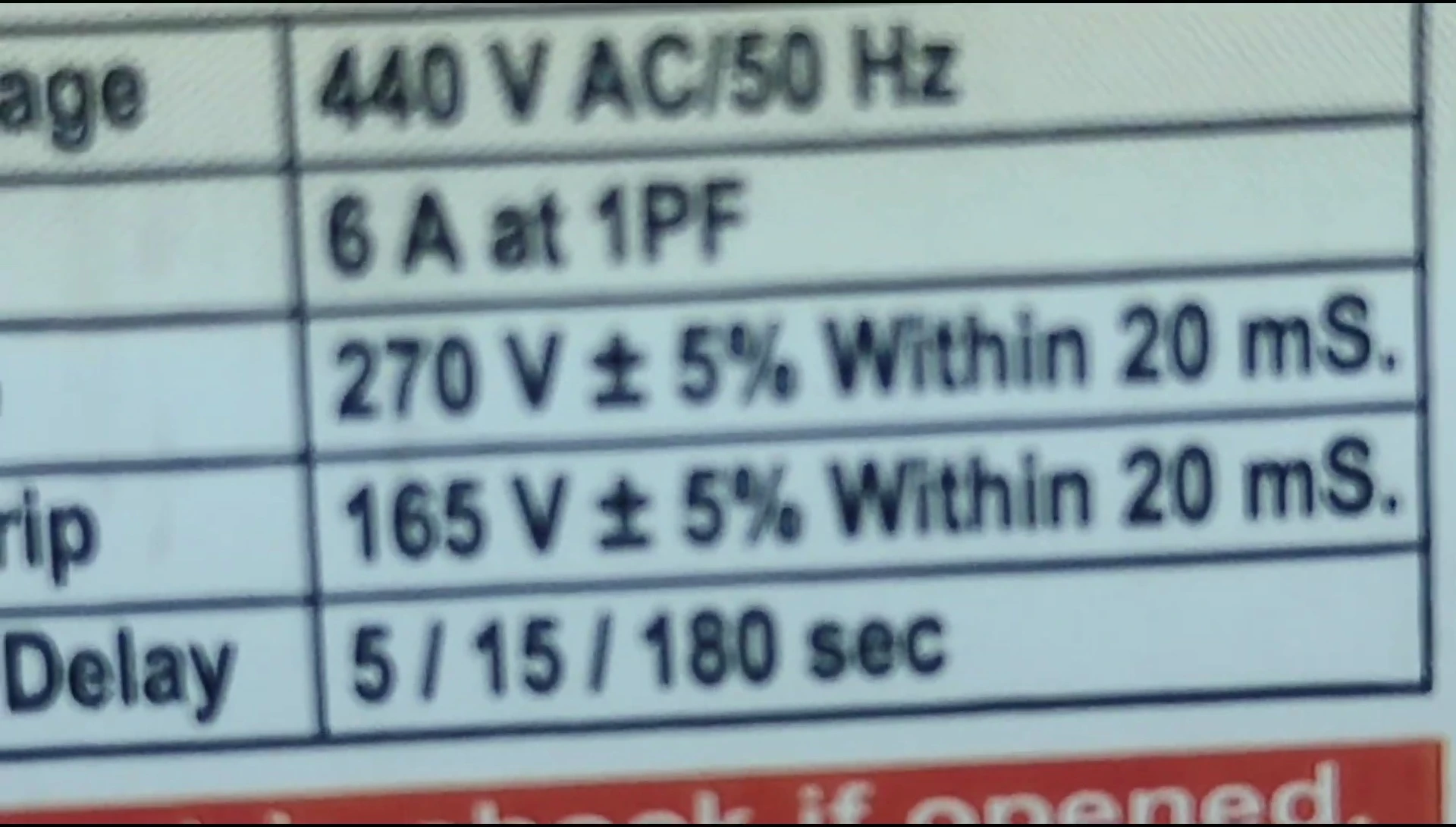

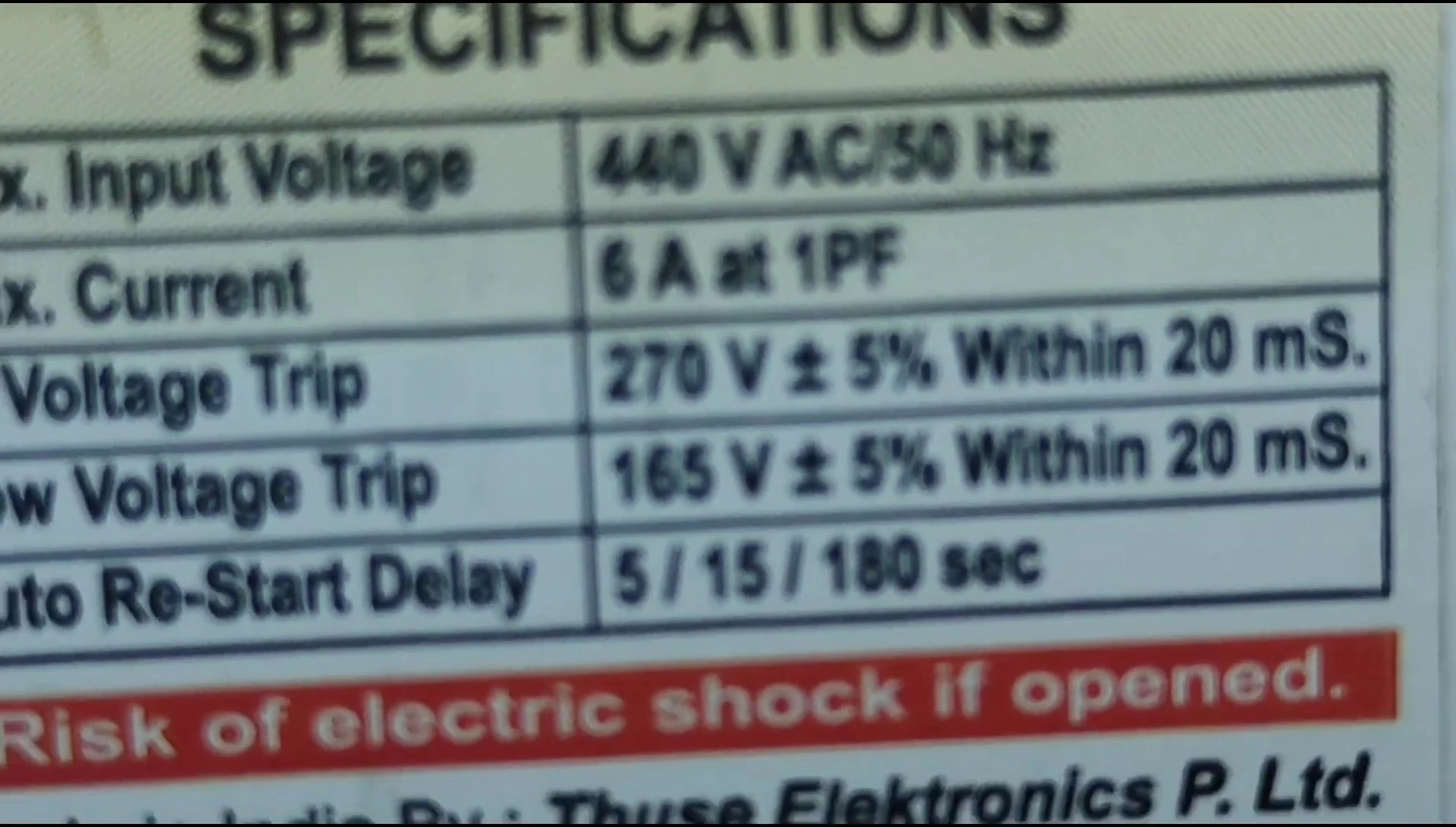

The smart plug has a 6-ampere rating. This means it's suitable for appliances with lower power consumption like refrigerators. However, it's not recommended for high-power devices such as geysers or air conditioners due to the risk of exceeding the amperage limit.
The 6-amp rating is a critical factor to consider when choosing which appliances to plug into the device, ensuring you avoid overloading the plug and protecting your appliances from damage.
Testing Methodology and Results

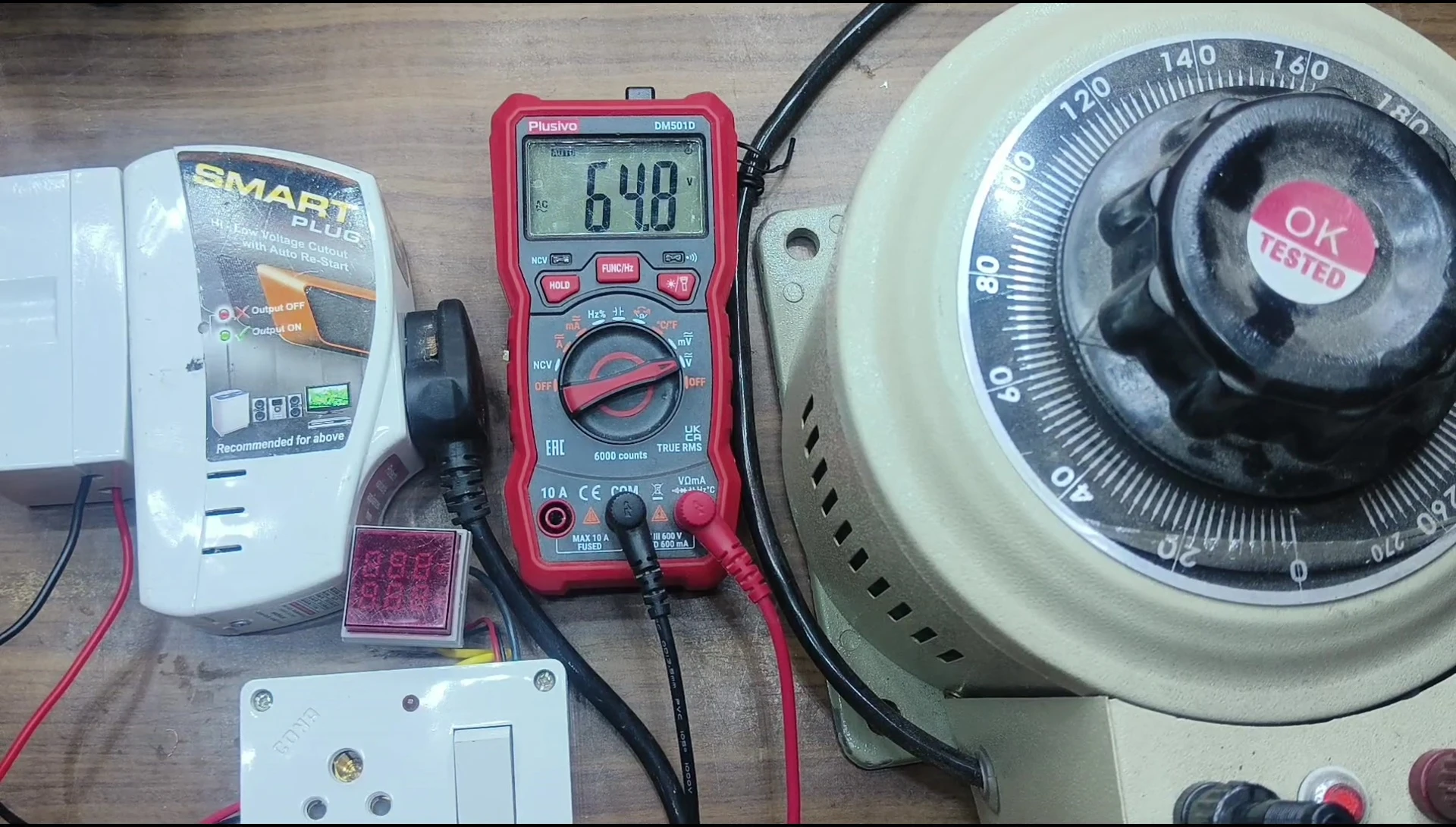

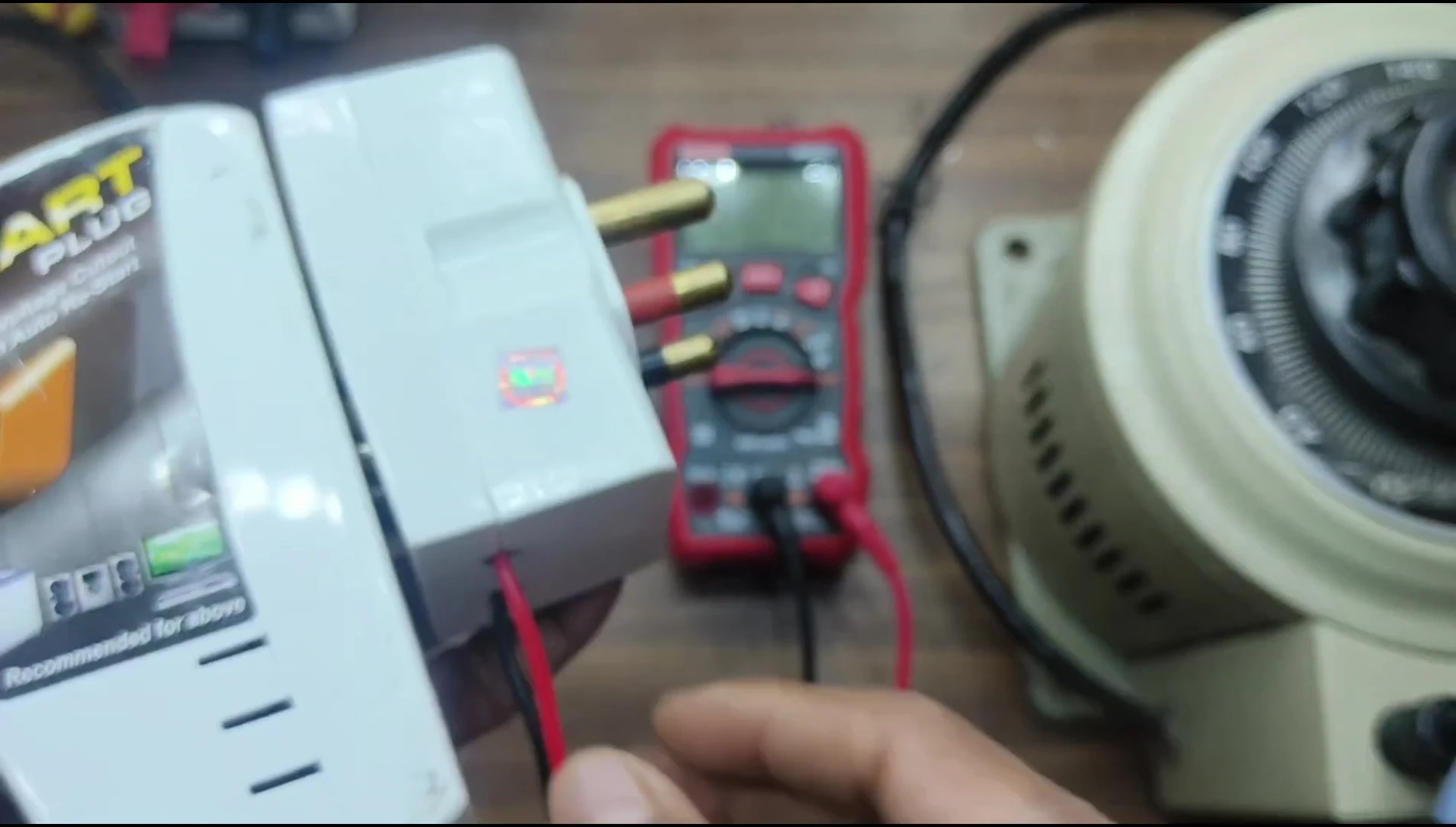

The reviewer utilizes a variable AC voltage source to test the smart plug's voltage protection capabilities. A multimeter is employed to monitor input and output voltage. The testing process involves gradually increasing and decreasing the voltage to observe the cut-off and auto-restart functionality.
Several challenges were encountered during the testing process due to a loose connection, but the reviewer overcame them and successfully tested the low voltage cut-off and restart functions. The high voltage cut-off remained partially untested, however.
Internal Circuitry Analysis

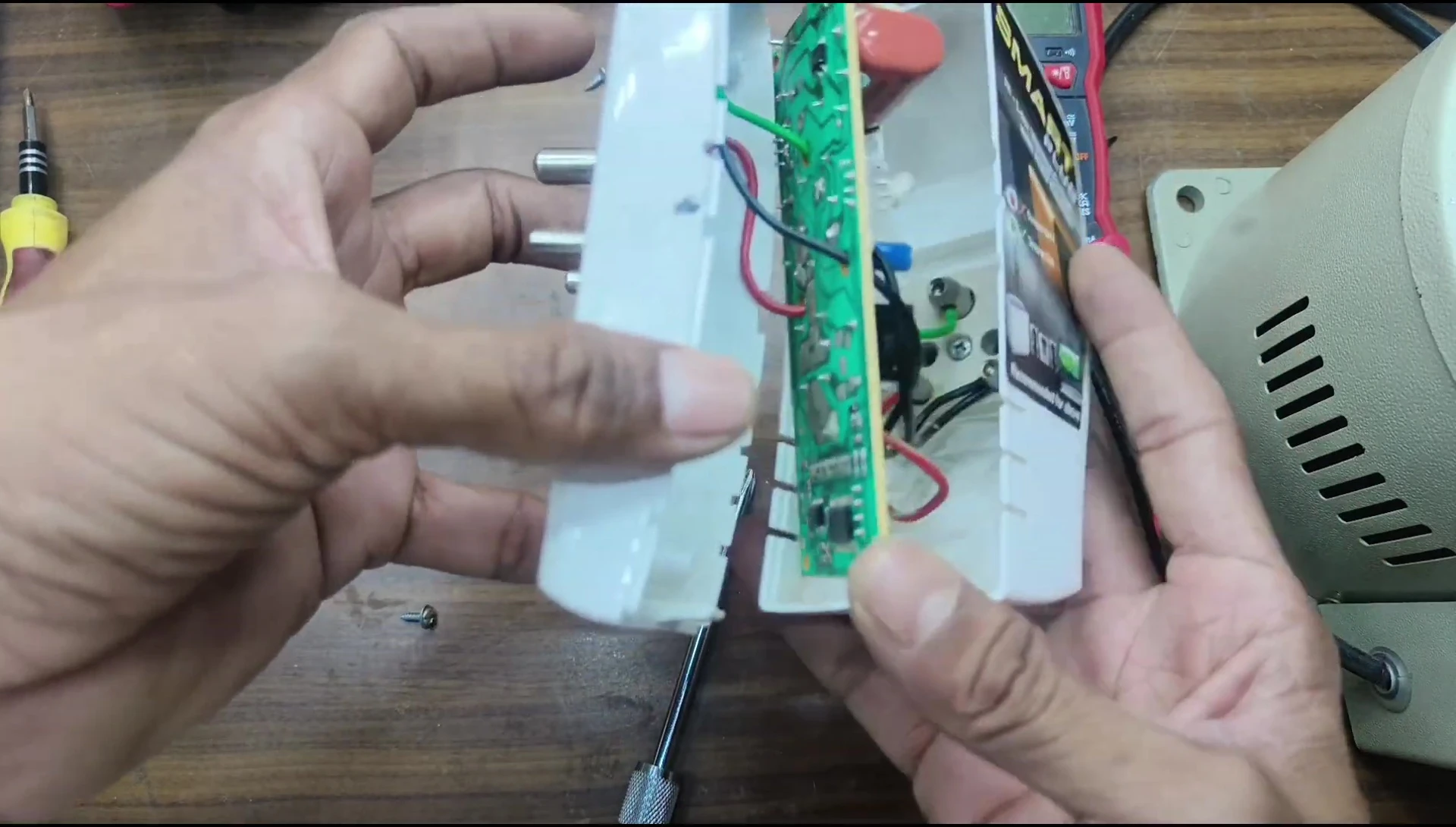

A brief examination of the smart plug's internal circuitry is conducted. The reviewer identifies a rectifier, a relay, and speculates about a zero-crossing detector playing a key role in the voltage protection functionality. The components suggest a robust design for safety and protection.
While a detailed analysis isn't possible, the reviewer provides insights into the likely components involved and their respective functions. This gives a general understanding of the inner workings of the smart plug.
Conclusion and Overall Assessment
The smart plug effectively protects connected appliances from low voltage fluctuations, as demonstrated by the testing. The high voltage protection function needs further evaluation due to testing limitations. Considering the price and features, the smart plug offers decent value, provided its 6-amp limit is carefully observed.
While the higher voltage cut-off testing was incomplete, the low voltage protection is clearly effective. The 6-amp limit is a major constraint, but for compatible appliances, it presents reliable protection against power surges and fluctuations. Users should always be aware of their connected appliance's current draw before usage.
