This review dives into the capabilities of a Zigbee 3.0 smart energy meter, focusing on its ease of use, accuracy, and versatile application in both single-phase and three-phase systems. We explore the setup process, highlighting the straightforward connection of wires and current transformers, along with seamless integration into a smart home ecosystem via the Homie app. The meter's high accuracy, exceeding 99% factory calibration, ensures reliable data for comprehensive power consumption monitoring.The review examines the meter's ability to track energy from various sources, including renewable energy like solar and wind power. We detail how the Homie app provides real-time data, insightful statistical overviews, and allows users to monitor individual phase readings for a thorough understanding of their energy usage patterns. Ultimately, we assess the meter's value proposition as a robust and user-friendly solution for optimizing energy consumption within the smart home.
Pros And Cons
- Works with Zigbee 3.0 protocol
- Offers four-quadrant measurement
- Handles up to 200 amps per phase
- Compatible with solar and wind power
- Factory calibrated with over 99% accuracy
Read more: AMI Meter Reading Guide: Understanding Your Smart Electricity Meter
Product Overview: Accurate and Versatile Power Measurement

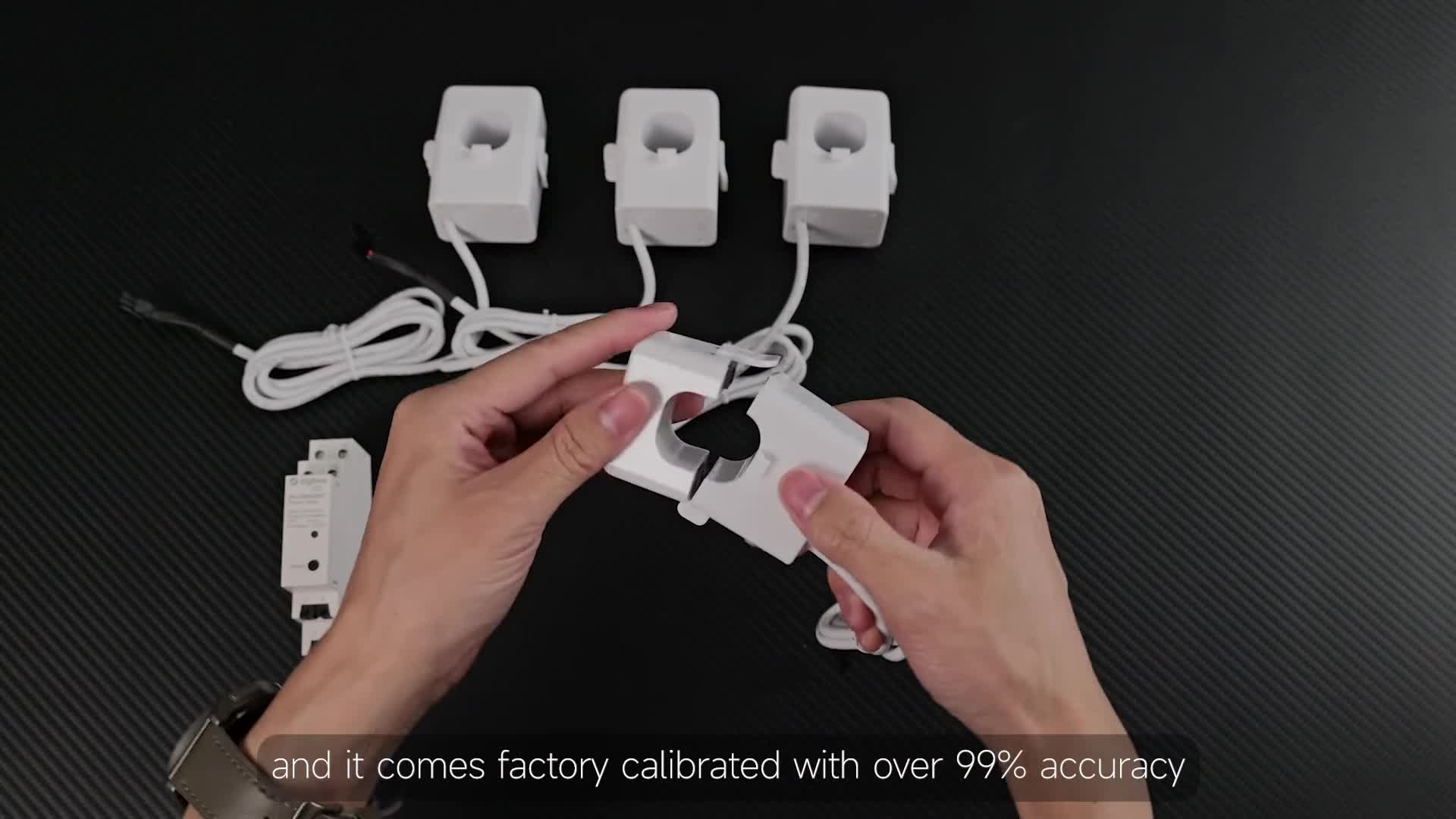

This smart energy meter utilizes the latest Zigbee 3.0 protocol for seamless integration into your home automation system. It boasts impressive accuracy, exceeding 99% factory calibration, ensuring reliable power consumption data. This device is designed to handle demanding applications, supporting up to 200 amps per phase and offering four-quadrant measurement for both energy consumption and generation.
Beyond standard power monitoring, it features compatibility with renewable energy sources like solar and wind power, making it a versatile solution for various energy setups. This versatility makes it ideal for users looking to monitor their overall energy consumption while also tracking renewable energy generation.
Installation and Setup: Simple Connection and Homie Integration

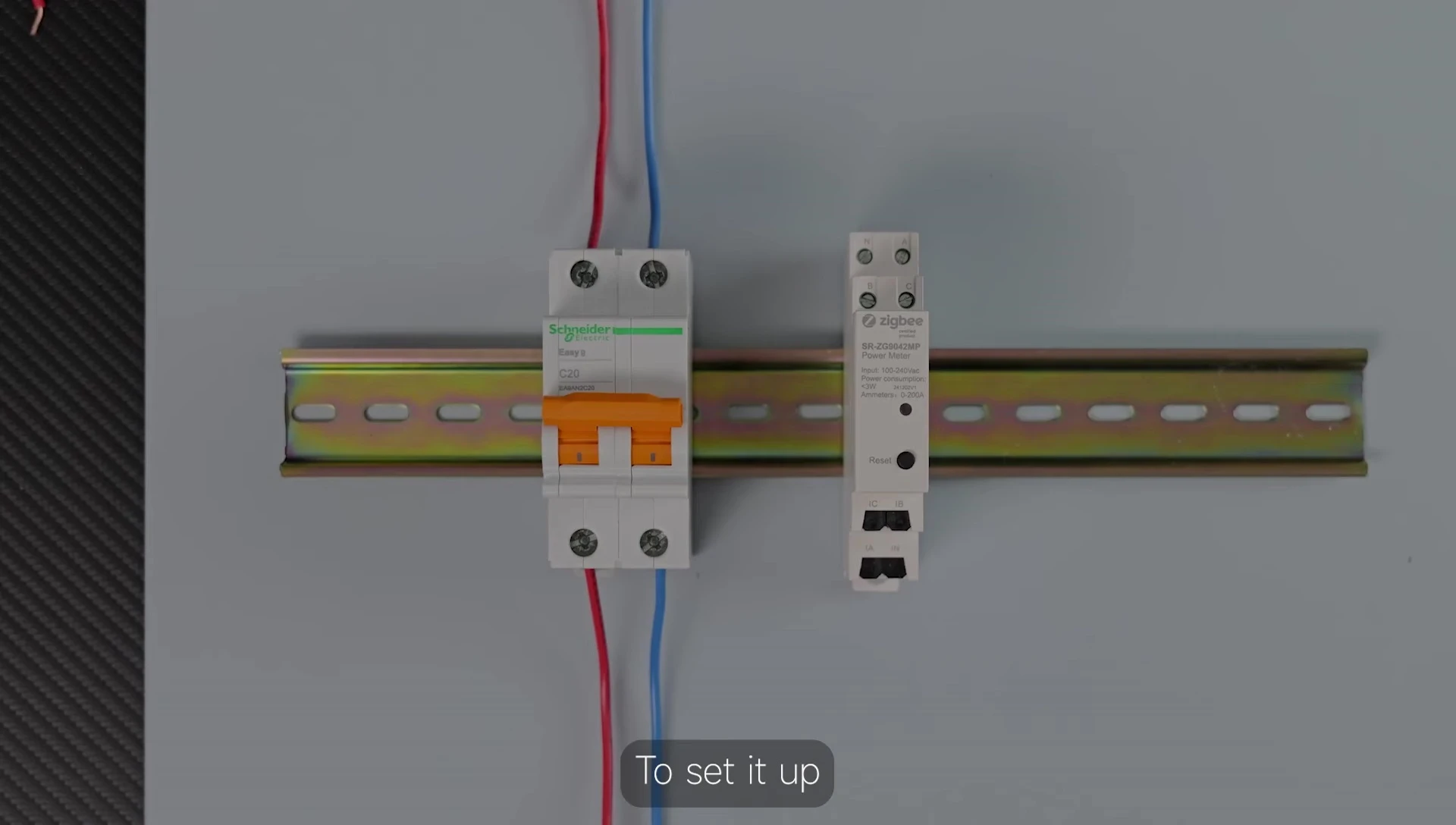

Setting up the meter is straightforward. Begin by connecting the neutral and live wires for phase A, ensuring correct wire placement. Remember to carefully thread the current transformer around the live wire, paying attention to the current's direction—easily reversed if needed. Securely plug the connector into the designated port, IIA.

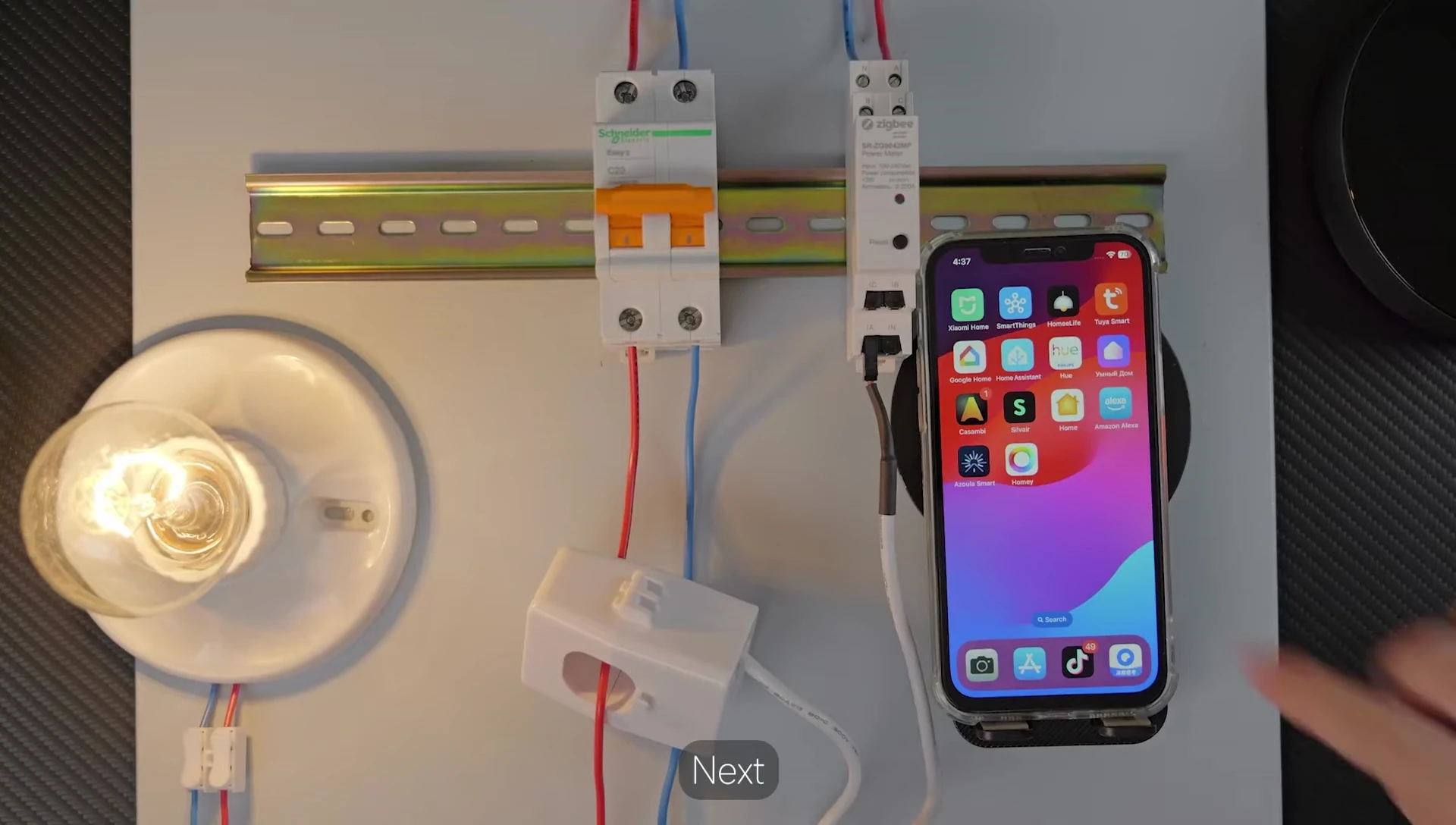

Integrating with your smart home is simple using the Homie app. Add a new Zigbee device, then press the reset button on the energy meter five times until the indicator light rapidly flashes, signifying successful pairing. This streamlined setup ensures quick and efficient integration into your existing smart home ecosystem.
Data Monitoring and Insights: Comprehensive Power Usage Analysis

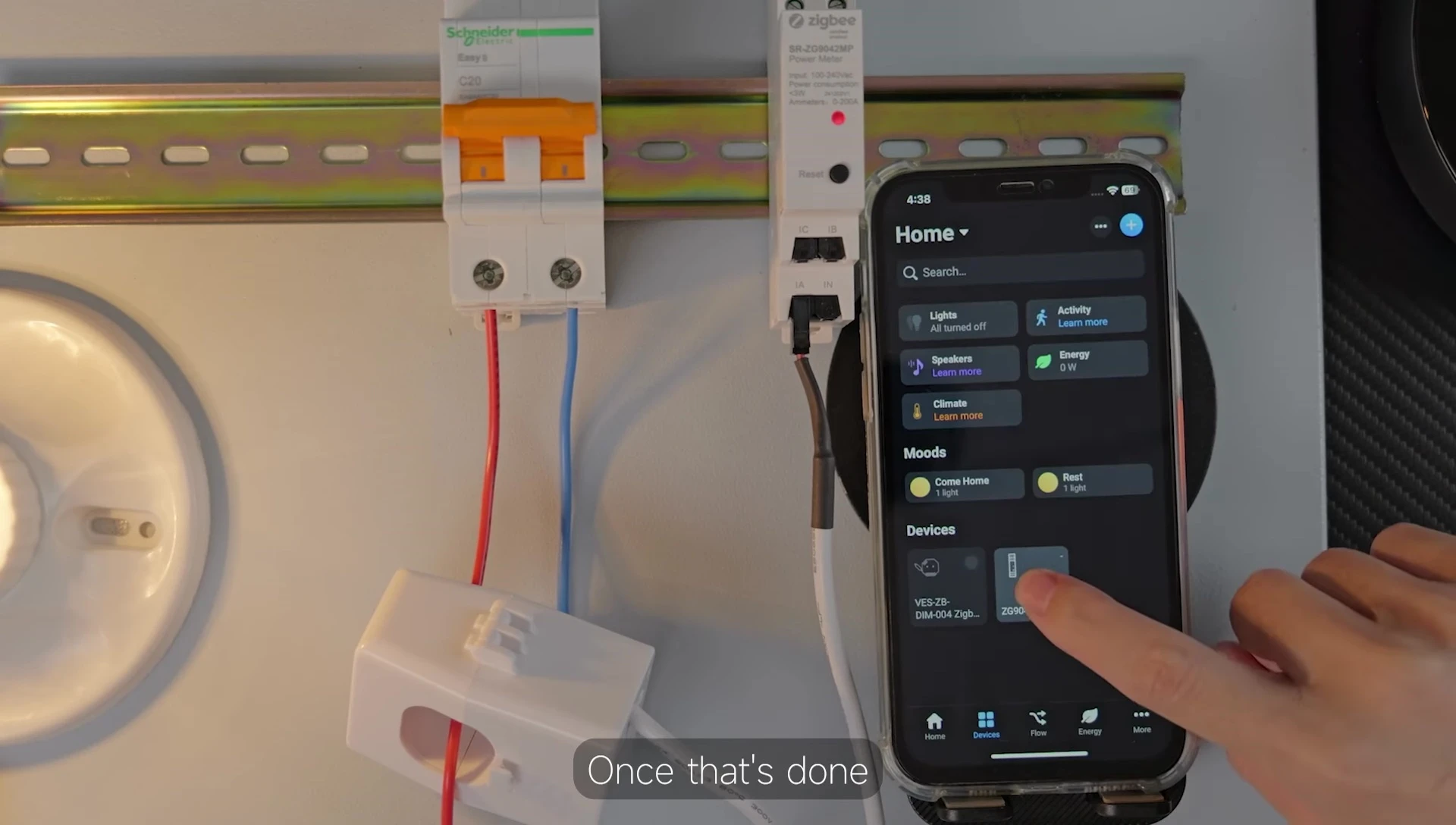

After setup, access real-time power consumption data through the Homie app. This includes total circuit power and individual phase readings for comprehensive power usage analysis. If data appears delayed, simply adjust the current to refresh the meter's readings.

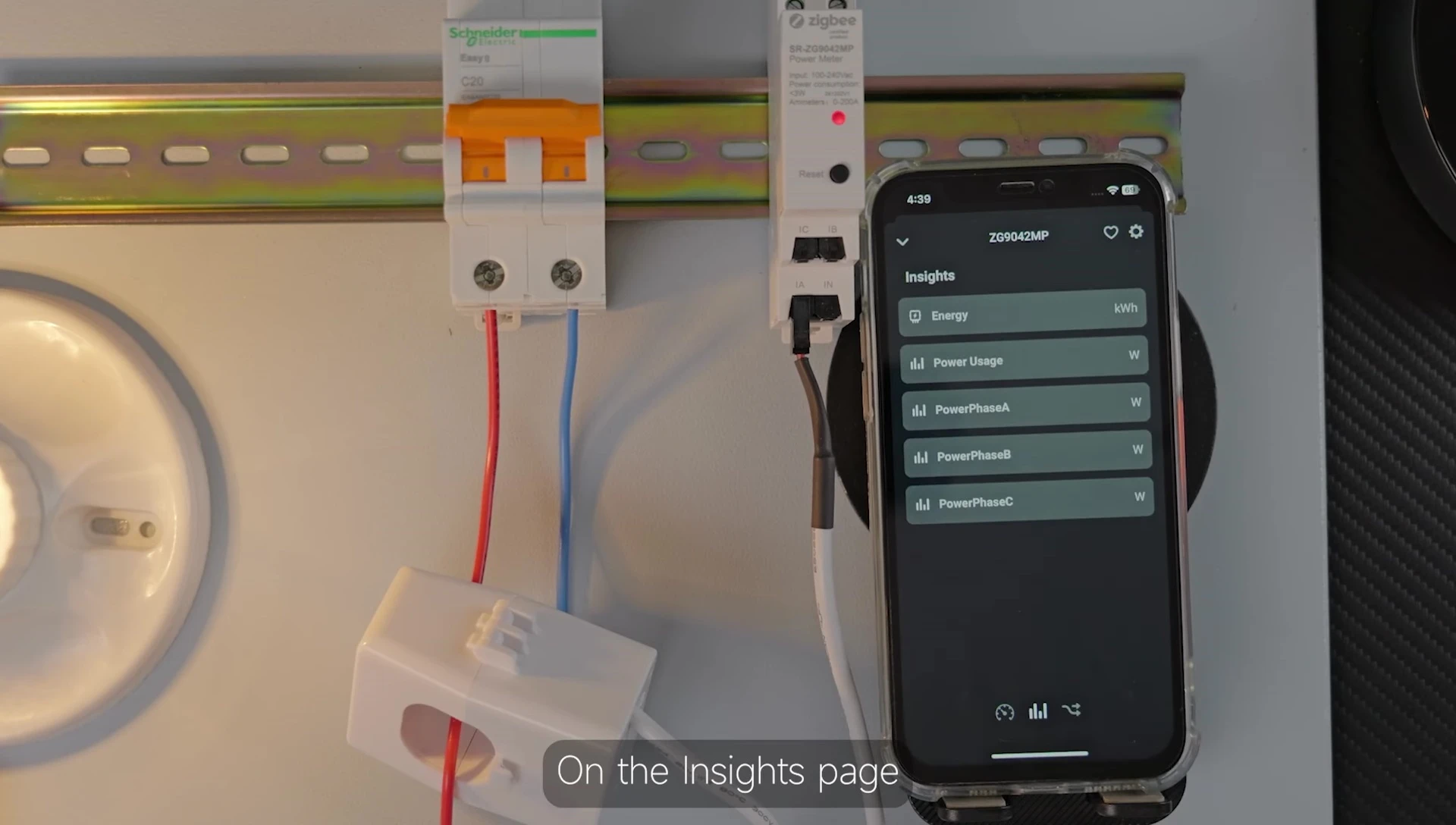

The Homie app provides an 'Insights' page that offers a detailed statistical overview of your power consumption patterns over time, facilitating better energy management and understanding your household's energy habits.
Three-Phase Setup: Expanding Functionality for Larger Systems

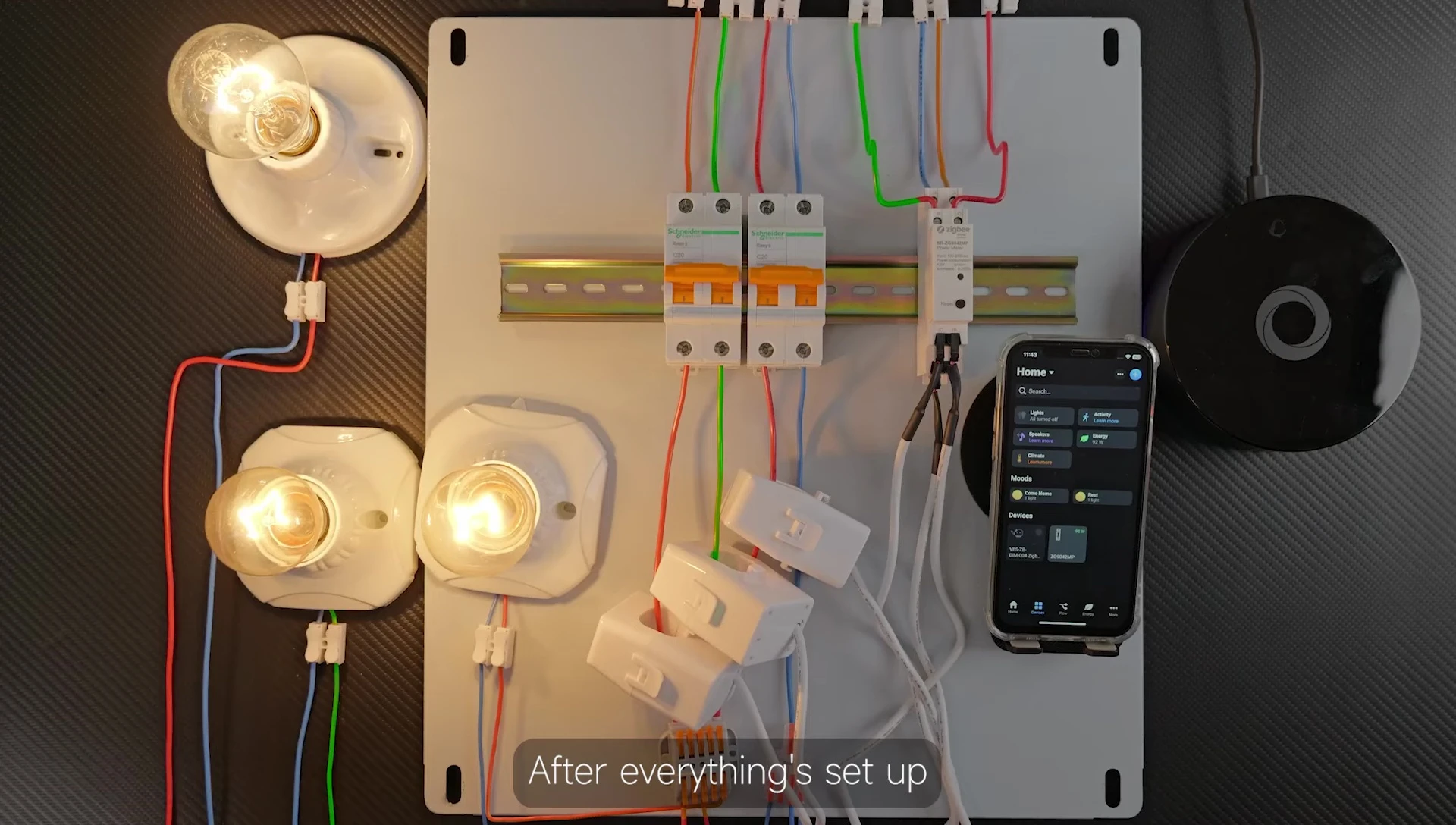

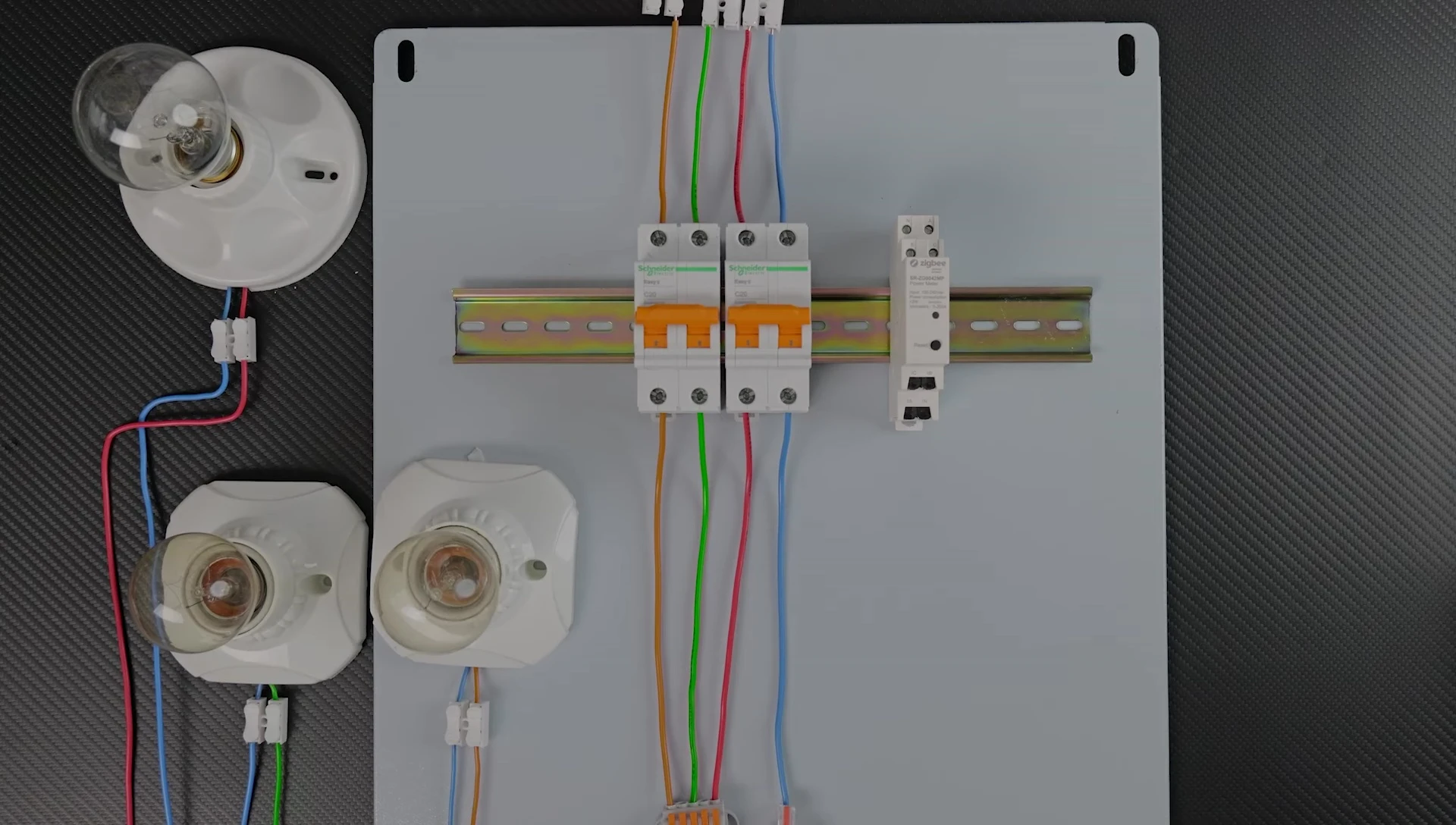

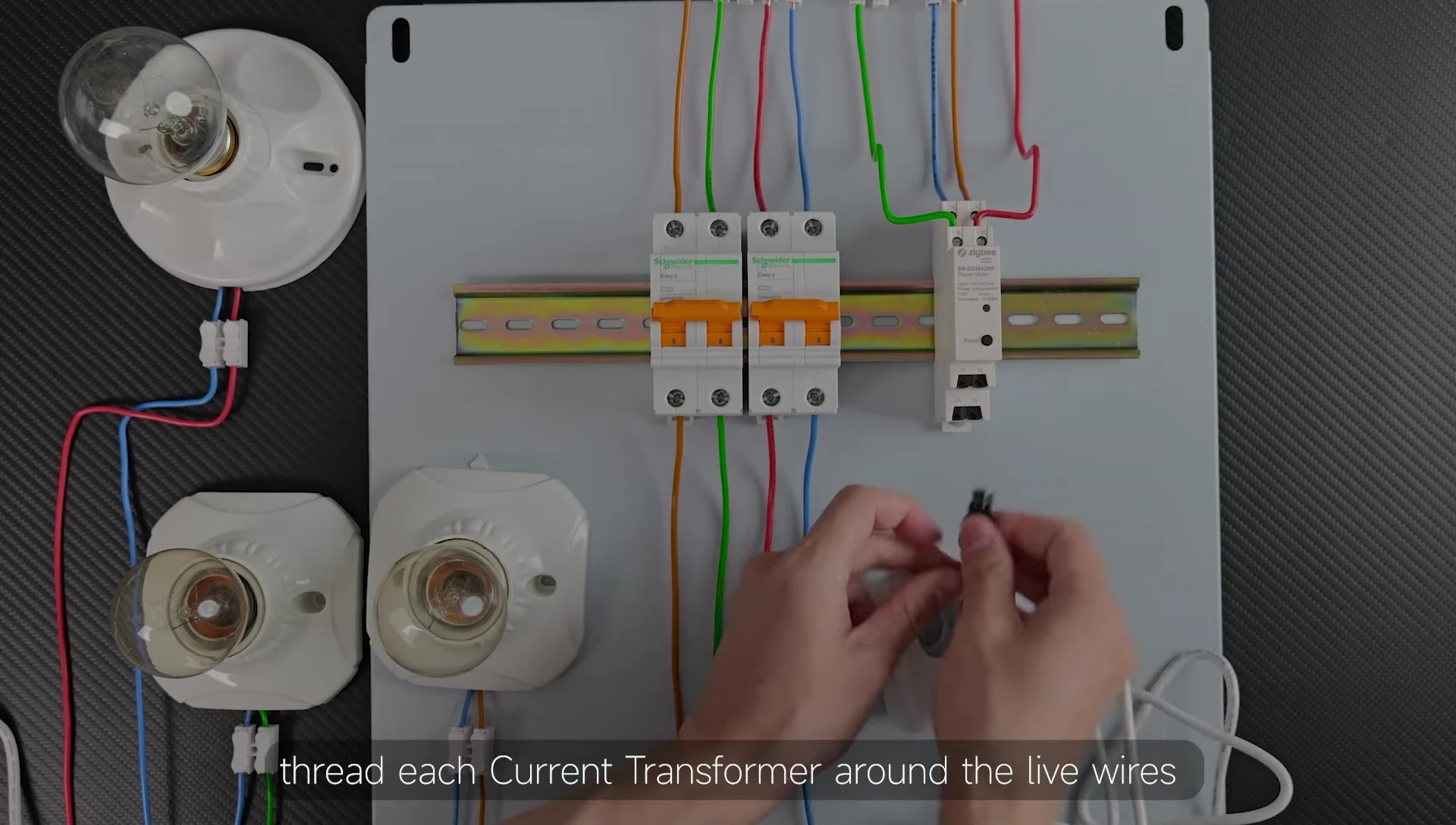

For three-phase circuits, the installation process expands slightly. Begin with the neutral wire connection, then connect each phase's live wire to the appropriate ports (A, B, and C). Securely thread each current transformer around the corresponding live wires and plug them into ports IA, IB, and IC.
This detailed three-phase setup supports larger energy systems and provides detailed monitoring for individual phase loads, allowing for accurate control and monitoring for those with more complex power needs.
Conclusion: A Powerful and User-Friendly Smart Energy Meter
This Zigbee 3.0 energy meter offers a compelling solution for both single-phase and three-phase power monitoring. Its high accuracy, user-friendly setup, and seamless Homie integration make it a strong contender in the smart home market. The versatility of handling both standard and renewable energy sources adds to its value.
While the video primarily demonstrates single-phase usage, its clear explanation of the three-phase configuration suggests easy scalability. The overall user experience appears streamlined, making this energy meter a worthy consideration for users seeking to optimize their energy consumption and gain valuable insights into their power usage.
